Aluminium Profile 40x40 mm 10 cm Length for M10 Hexagonal Bolts

Go to Product feedback

Aluminium 6060 mounting profile 40x40 mm length 10 cm for securing photovoltaic panels. Installation using M10 hexagonal bolts with flange nuts. Lightweight yet durable construction, corrosion-resistant alloy suitable for outdoor PV installations.

Go to full description
with VAT without VAT
Price €0.95
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

Main parameters

  • Coating type Raw
  • Mounting type Hex bolt
  • Cross-section 40x40
  • Length [cm] 10
  • Cable channel None

[PIM] Profile montażowe #6

  • Length [mm] 100
  • Profile [mm] 40×40
  • Slot Type For hex bolt
  • Finish Natural

Description

PV mounting profile 40 × 40 mm
40 × 40 mmCross-section
10 cm100 mm
Aluminium 6060mill finish
1.2 mmWall

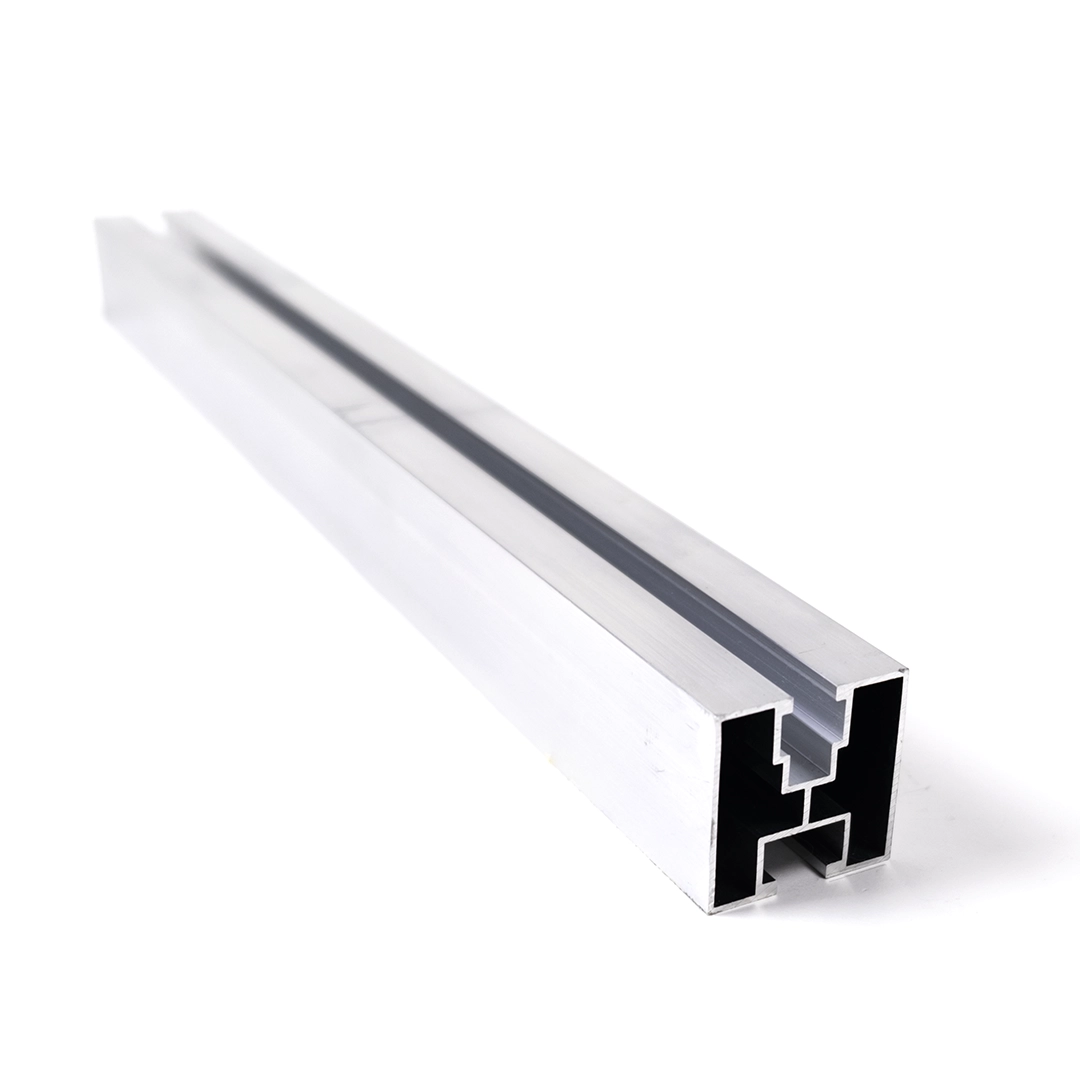

10 cm sample – to check before you order

A short piece of the profile to see the cross-section and finish and to check how bolts and clamps fit before you order full lengths. For the mounting structure, choose a full-length profile from the comparison table below.

Product videosSee the profile up close and watch how the system parts are mounted.

What it is for

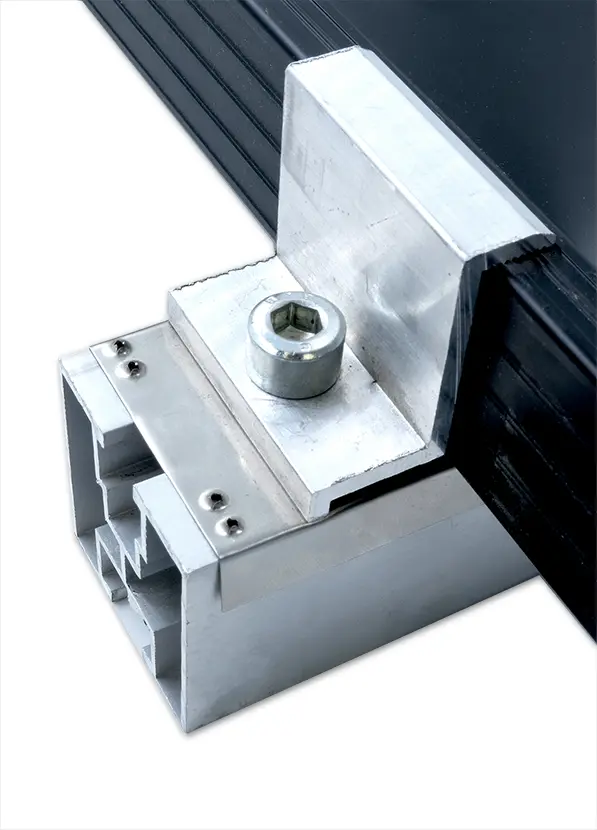

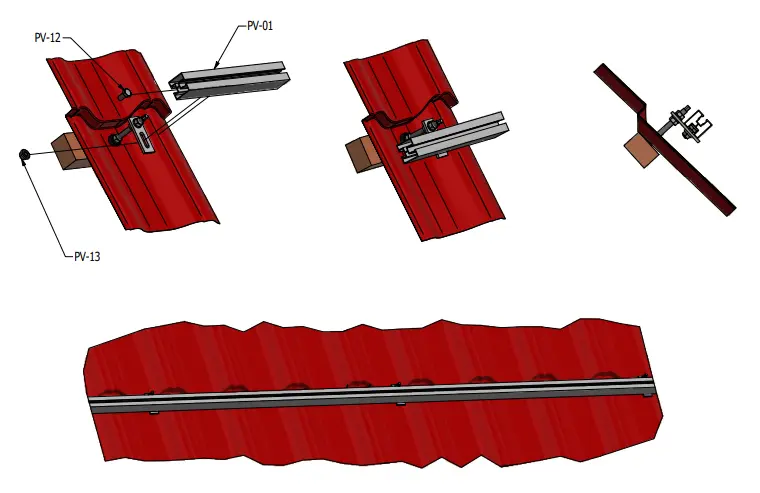

Aluminium mounting rail for photovoltaic installations. The panels are fixed on top of the profile with mid and end clamps, and the profile is bolted underneath to roof hooks, adapters or triangles.

  • ✓You are mounting photovoltaic panels on roof hooks, adapters or triangles.
  • ✓You fix the panel clamps with M8 fixings (top channel).
  • ✓You connect the profile to the hook or adapter with a hexagon bolt M10 (DIN 933) and a flange nut (bottom channel).
  • ✓You want to check the profile in your hand first – this is a 10 cm sample; full lengths are in the comparison table below.

Don't mix up the profiles

Do you have 28/15 hammer-head bolts? Choose the profile for 28/15 hammer-head bolts – this profile has a bottom channel for hexagon bolts.

Profile cross-section

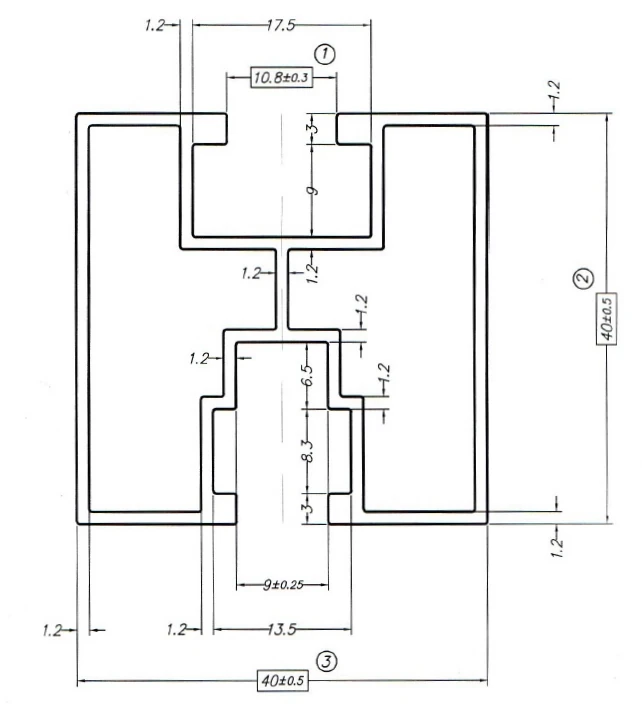

Cross-section drawing of the 40 × 40 mm profile: width 40 mm, height 40 mm, top channel slot 9 mm, bottom channel slot 10.8 mm
Enlarge cross-section
Topchannel for module clamps (M8)Bottomchannel for the head of a hexagon bolt M10 – roof hooks, adapters, triangles

Indicative drawing, nominal dimensions in mm.

Choosing the fixings

Top channel · slot 9 mm, chamber 13.5 mmModule mid and end clamps – M8 fixing
The head of an M8 hexagon bolt (13 mm) fits in the 13.5 mm chamber. Choose clamps to match the module frame height.
Hexagon bolt M10 (DIN 933)Bottom channel · slot 10.8 mm, width 17.5 mmHexagon bolt M10 (DIN 933)
Choose the bolt length to suit the fixing:
bolt M10×20bolt M10×25bolt M10×30
Slide the bolt head into the channel from the end of the profile and move it to the fixing point. For roof hooks, adapters or triangles.
flange nut M10Nutflange nut M10
For the bolt in the bottom channel.
ExtendingProfile connectors – sold separately

Technical data

Cross-section40 × 40 mm
Length100 mm
Wall thickness1.2 mm
Top channel slot9 mm
Top channel chamber width13.5 mm
Bottom channel slot10.8 mm
Bottom channel width17.5 mm
Alloyaluminium 6060
Finishmill finish (uncoated)

Nominal dimensions according to the data sheet.

Disclaimer

Support spacing and load capacity are determined by the structural design – taking into account snow and wind loads and the roof structure.
