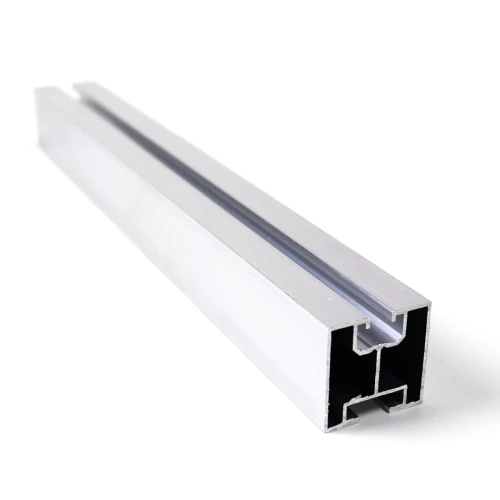

Aluminium Profile 40x40mm 10cm for Hammer Head Bolts

Go to Product feedback

Aluminium 6060 mounting profile | 40x40mm | 10cm length. Solar panel mounting rail compatible with M10 28/15 hammer head bolts. Installation using middle and end clamps in the upper rail channel. Lightweight construction for PV systems.

Go to full description
with VAT without VAT
Price €0.95
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

Main parameters

  • Coating type Raw
  • Mounting type T-bolt
  • Cross-section 40x40
  • Length [cm] 10
  • Cable channel None

[PIM] Profile montażowe #6

  • Length [mm] 100
  • Profile [mm] 40×40
  • Slot Type Hammer bolt groove
  • Finish Natural

Description

PV mounting profile 40 × 40 mm
40 × 40 mmCross-section
10 cm100 mm
Aluminium 6060mill finish
1.1 mmWall
approx. 0.89 kg/mWeight per metre

10 cm sample – to check before you order

A short piece of the profile to see the cross-section and finish and to check how bolts and clamps fit before you order full lengths. For the mounting structure, choose a full-length profile from the comparison table below.

Product videosSee the profile up close and watch how the system parts are mounted.

What it is for

Aluminium mounting rail for photovoltaic installations. The panels are fixed on top of the profile with mid and end clamps, and the profile is bolted underneath to roof hooks, adapters or triangles.

  • ✓You are mounting photovoltaic panels on roof hooks, adapters or triangles.
  • ✓You fix the panel clamps with M8 fixings (top channel).
  • ✓You connect the profile to the hook or adapter with an M10 hammer-head bolt, type 28/15, and a flange nut (bottom channel).
  • ✓You want to check the profile in your hand first – this is a 10 cm sample; full lengths are in the comparison table below.

Don't mix up the profiles

Do you have M10 hexagon bolts? Choose the profile for M10 hexagon bolts – this profile has a bottom channel for hammer-head bolts.

Profile cross-section

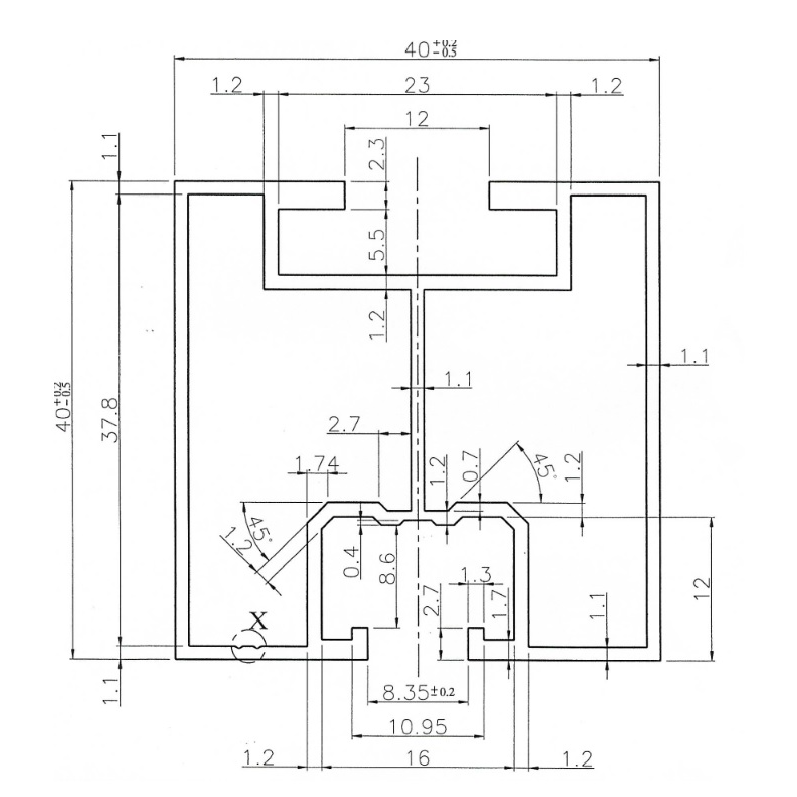

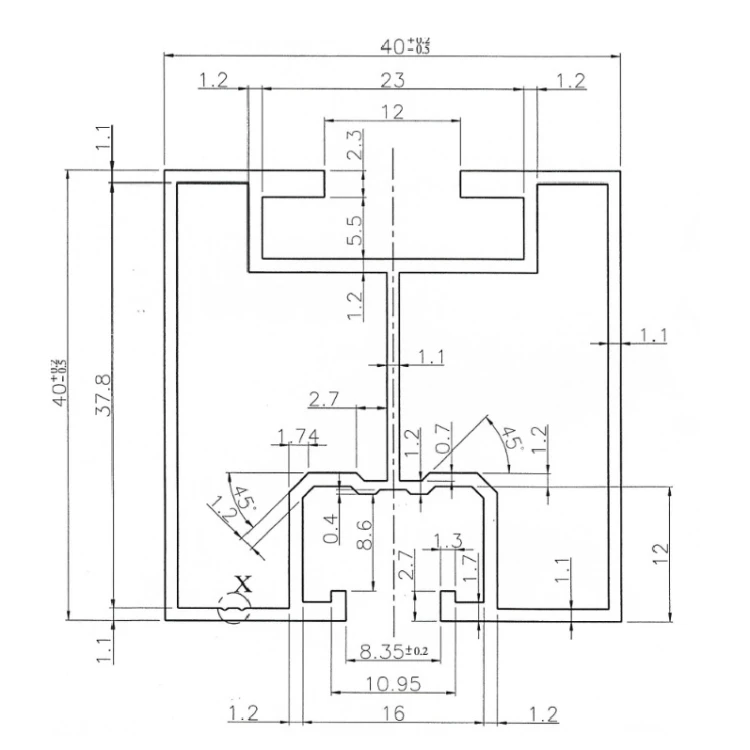

Cross-section drawing of the 40 × 40 mm profile: width 40 mm, height 40 mm, top channel slot 8.35 mm, bottom channel slot 12 mm
Enlarge cross-section
Topchannel for module clamps (M8)Bottomchannel for M10 28/15 hammer-head bolts

Indicative drawing, nominal dimensions in mm. The manufacturer's drawing with tolerances is in the downloadable files.

Choosing the fixings

DIN 557 M8 square nutTop channel · slot 8.35 mm, width 16 mmM8 T-nut or DIN 557 M8 square nut
For module mid and end clamps – choose clamps to match the module frame height.
bolt M10×25Bottom channel · slot 12 mm, width 23 mmbolt M10×25
bolt M10×30
Choose the bolt length to suit the fixing. For roof hooks, adapters or triangles.
M10 flange nutNutM10 flange nut
For the bolt in the bottom channel.
ExtendingProfile connectors – sold separately

Disclaimer

Support spacing and load capacity are determined by the structural design – taking into account snow and wind loads and the roof structure.

Technical data

Cross-section40 × 40 mm
Length100 mm
Wall thickness1.1 mm
Top channel slot8.35 mm
Top channel width16 mm
Bottom channel slot12 mm
Bottom channel width23 mm
Alloyaluminium 6060
Finishmill finish (uncoated)
Weight per metreapprox. 0.89 kg/m

Nominal dimensions according to the manufacturer's data sheet; weight is approximate.

Installation exampleEnlarge installation example

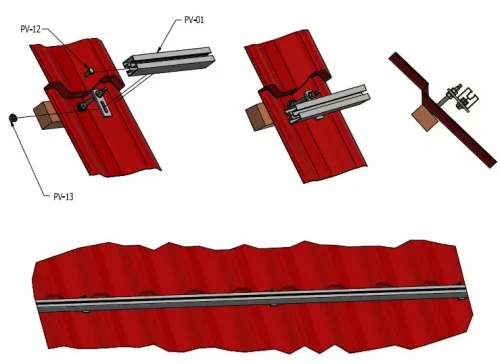

Manufacturer's illustration: profile bolted through the bottom channel to the fixings on a trapezoidal sheet roof.
