Aluminium Profile 221cm 40x40 for Hexagonal Screws Anodised
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
1.82 kg
Price / pcs.:
incl. 20% TAX, excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

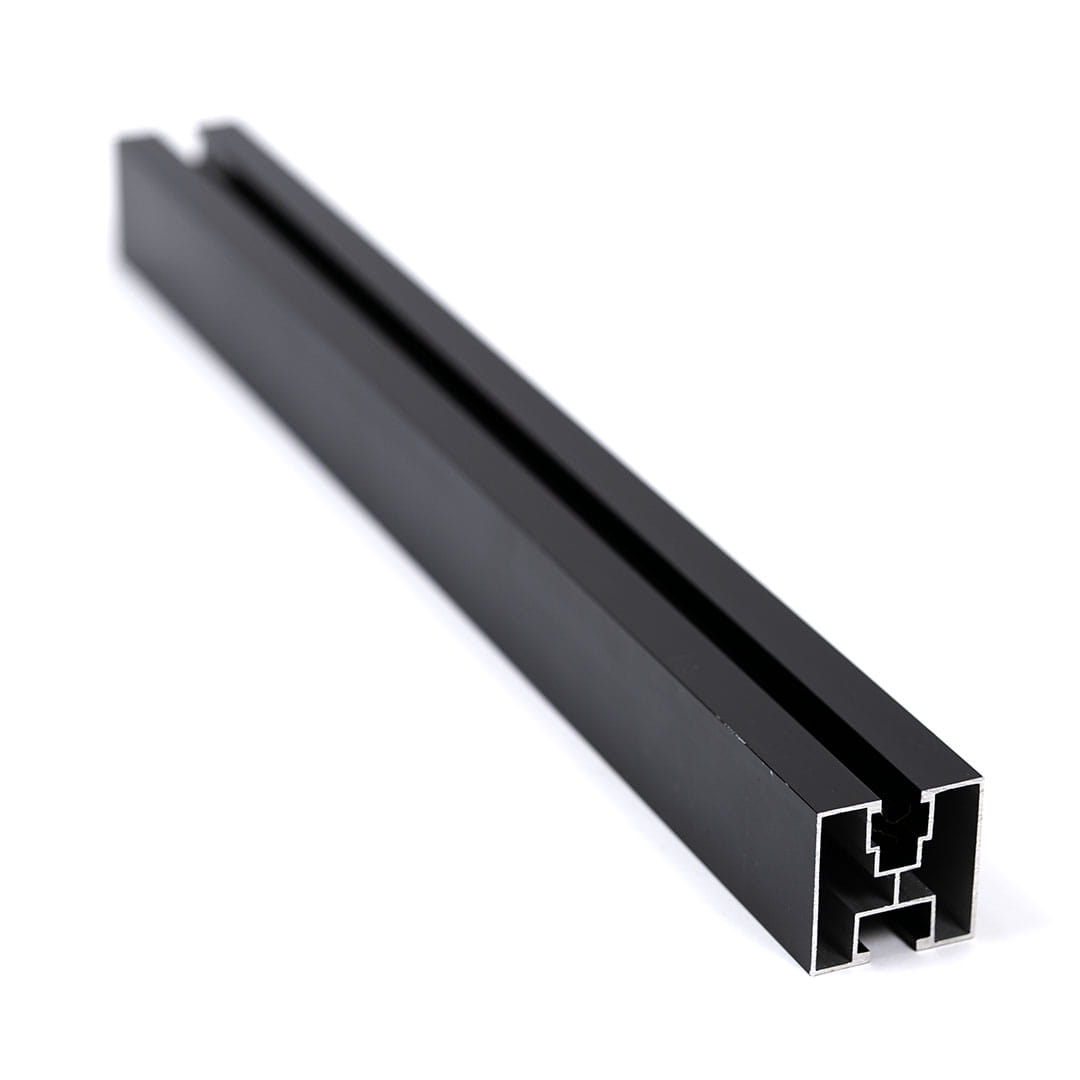

Aluminium Profile 221cm 40x40 for Hexagon Bolts Anodised
Mounting profile made of Aluminium 6060 Anodised 221cm for hexagon bolt DIN 933 M10, for photovoltaic modules.

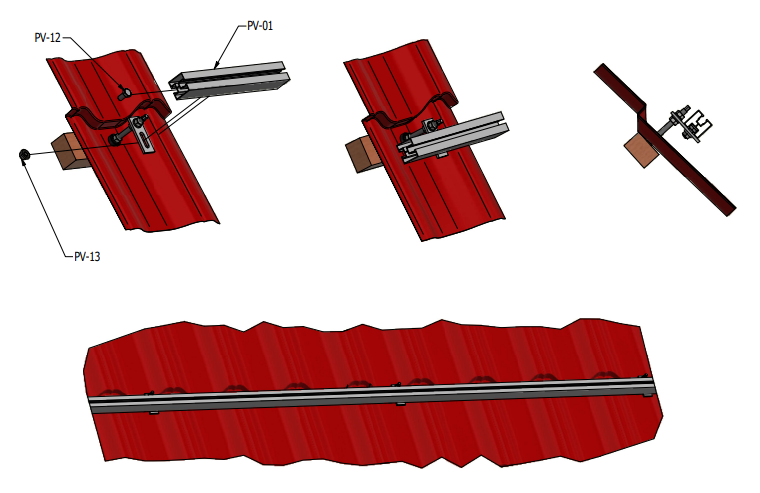

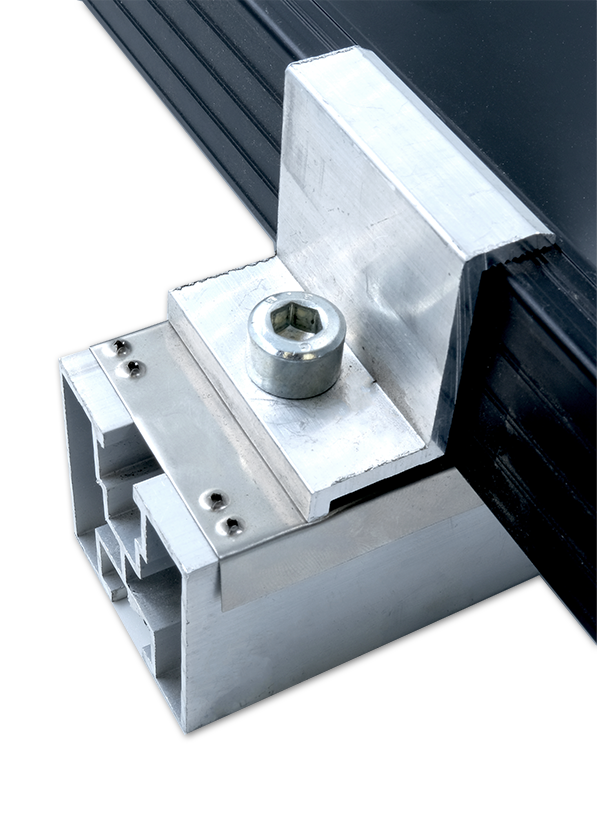

The mounting profile is suitable for securing photovoltaic panels using middle and end clamps. The clamps are fixed to the upper rail channel of the profile. The lower rail channel enables the profile to be mounted on adapters, roof hooks or triangles.
Installation is carried out using M10 hexagon bolts and M10 flange nuts.
- Mounting profiles measuring 4x4cm for hexagon bolts are made of high-quality aluminium 6060.
- The length of the profiles can be extended using separately available profile connectors.
- Black anodised for high durability and protection against environmental influences.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Coating type | Anodised – black |
| Mounting type | Hex bolt |
| Cross-section | 40x40 |
| Length [cm] | 221 |
| Cable channel | None |
| Length [mm] | 2210 |

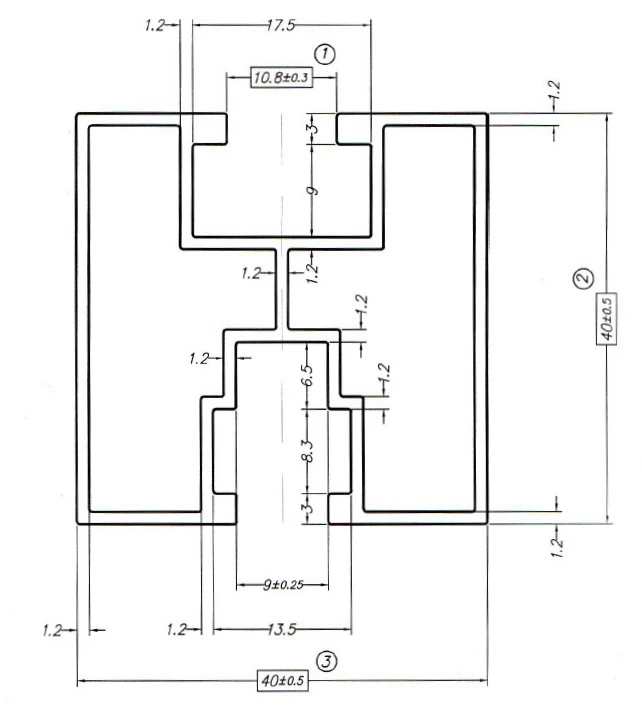

| Profile [mm] | 40×40 |
| Slot Type | For hex bolt |
| Finish | Anodised |
