Mounting Triangle 15° Vertical 1400x1352x374 mm Aluminium 6060
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
2.05 kg
Price / pcs.:
incl. 20% TAX, excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description
Mounting Triangle - 15° Portrait 1400x1352x374

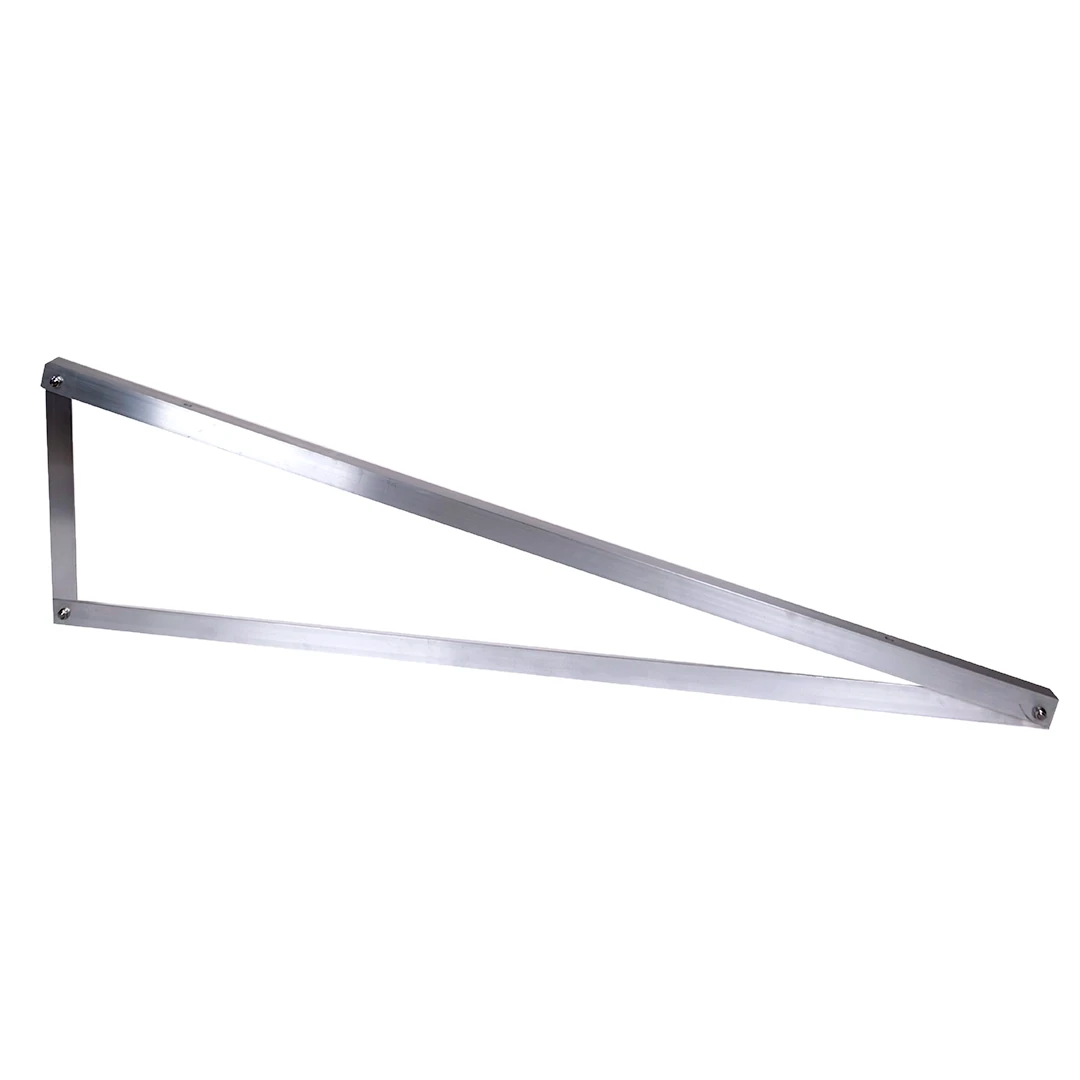

Mounting triangle portrait 15º 1400x1352x374 M10 made of Aluminium 6060, for mounting photovoltaic panels.
The mounting triangle, also known as a mounting bracket, is an essential component for installing photovoltaic systems on roofs with a low pitch angle and on flat roofs. Availability in several sizes allows for adjusting the tilt angle of PV panels, and proper selection of this angle is crucial for the correct and efficient operation of a photovoltaic installation.
- Triangles made from 40×40×3mm angle bar. The product is manufactured from aluminium 6060, ensuring lightweight construction, resistance to mechanical overload and durability in adverse environmental conditions.

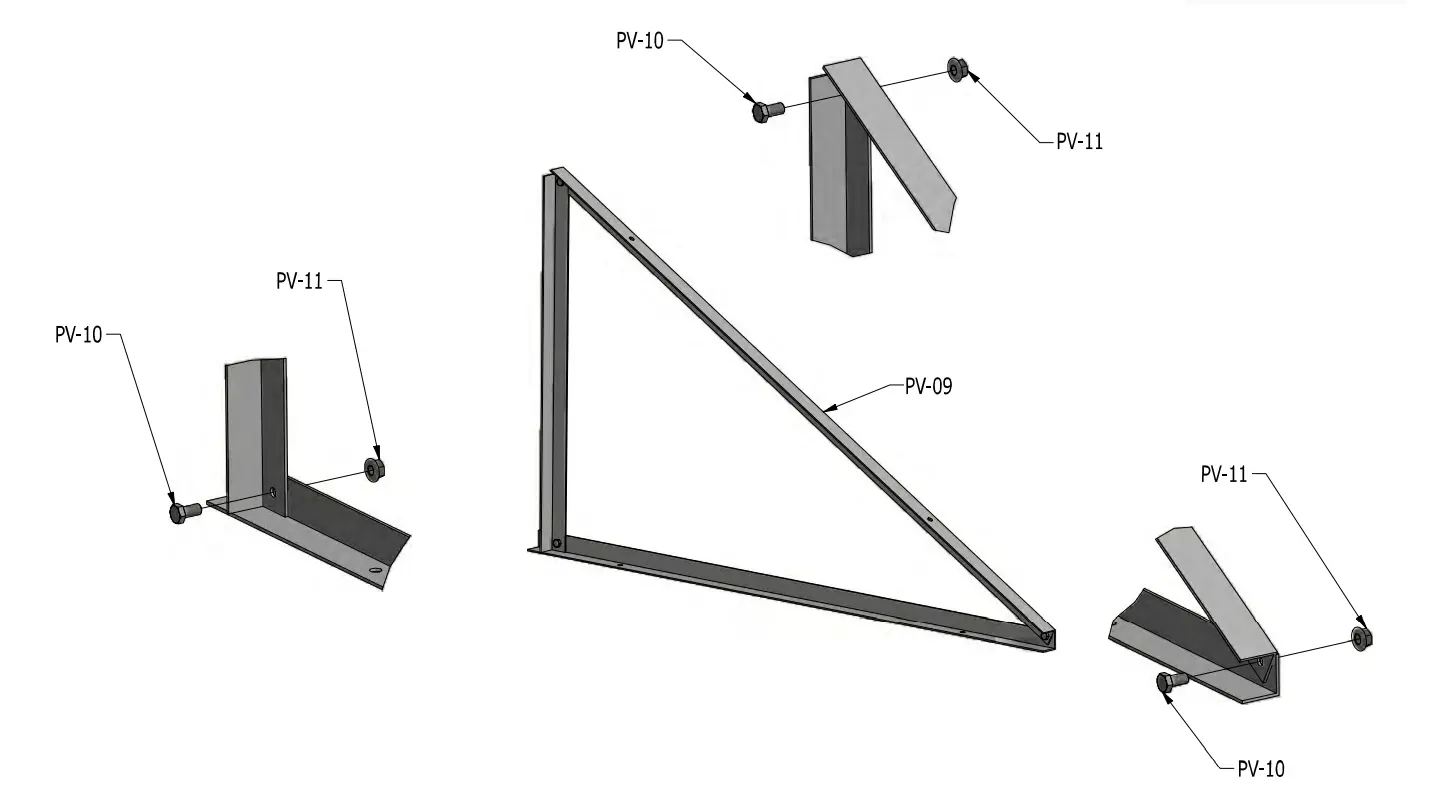

- Integral parts of the triangles are fastening elements, M8 hexagon socket button head screw DIN 7380 and M8 flange nut DIN 6923.
- Note: All necessary fastening elements are included in the set.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Aluminium 6060 |
| Angle | 15º |
| Panel orientation | Vertical |
