Fence post 100x100x3 mm, length 2.2 m, graphite RAL 7016
Description

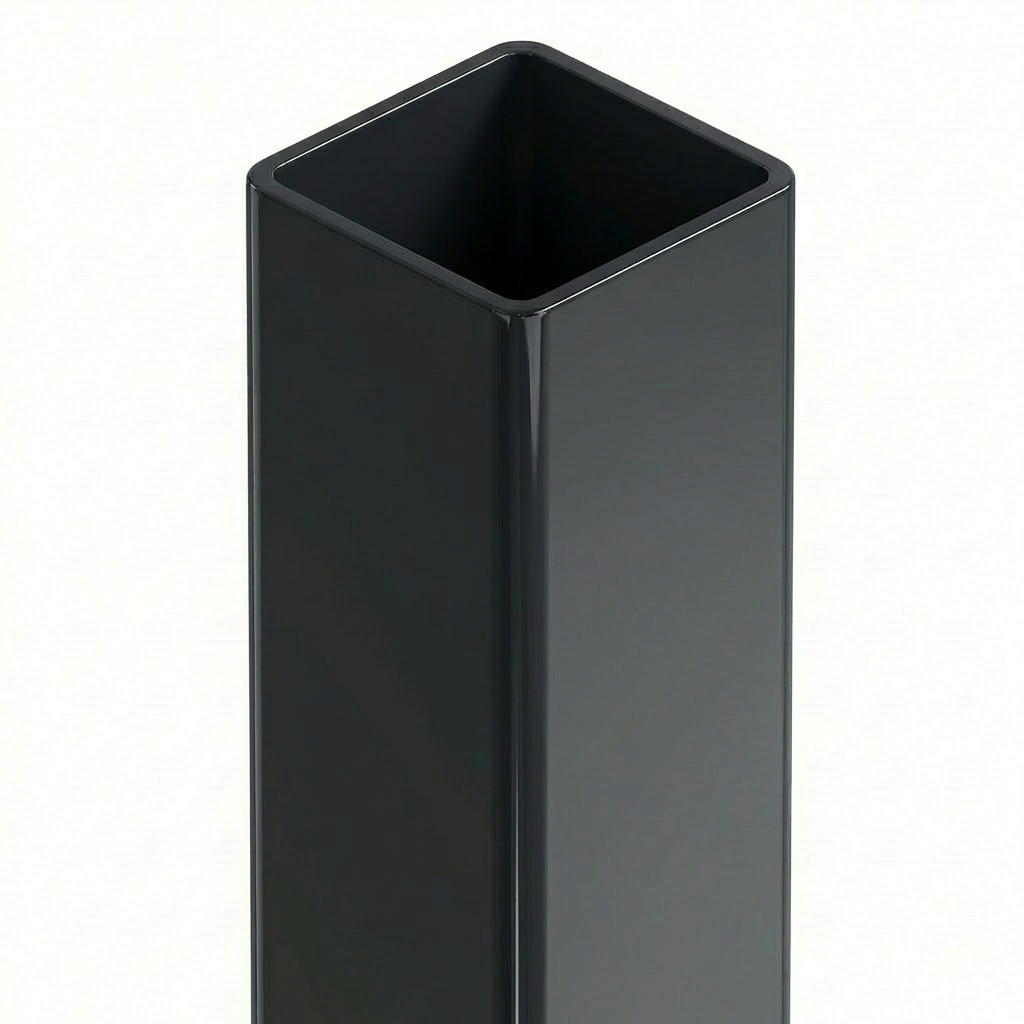

Fencing post 100×100×3 mm, length 2.2 m, graphite RAL 7016
Fencing post 100×100×3 mm with a length of 2.2 m in graphite colour RAL 7016 is a reinforced load-bearing element designed for construction of palisade fencing – both residential and industrial. Made from square steel profile with thicker wall 3 mm, it ensures enhanced rigidity and load capacity of the entire fence structure.
Cross-section 100×100 mm combined with wall thickness 3.0 mm makes the post perfectly suitable as support for heavy palisade and panel spans. Increased wall thickness compared to standard 2 mm versions translates to higher mechanical strength – particularly important for large spans, in locations exposed to strong wind loads or in industrial applications.
Powder coating in graphite colour RAL 7016 on galvanised primer provides double anti-corrosion protection and modern, elegant fence appearance. Graphite colour is currently the most popular choice, which perfectly complements both panel and palisade fencing.
Installation and application
The post in standard version is designed for ground installation in point concrete foundations. Alternatively, you can use a steel base enabling bolting to hard surface, plinth or retaining wall. Fence spans are mounted to posts using side or rear fixings – depending on the chosen span model. Recommended axial spacing of posts for spans of typical width is 265 cm. Length 2.2 m allows setting the post at appropriate depth in the foundation whilst maintaining sufficient height above ground.
Technical parameters
- Cross-section: 100×100 mm (square profile)
- Wall thickness: 3.0 mm
- Length: 2.2 m (2200 mm)
- Material: structural steel (closed profile)
- Coating: hot-dip galvanising + powder coating RAL 7016 (graphite)
- Installation: in ground (point foundation) or optionally on steel base

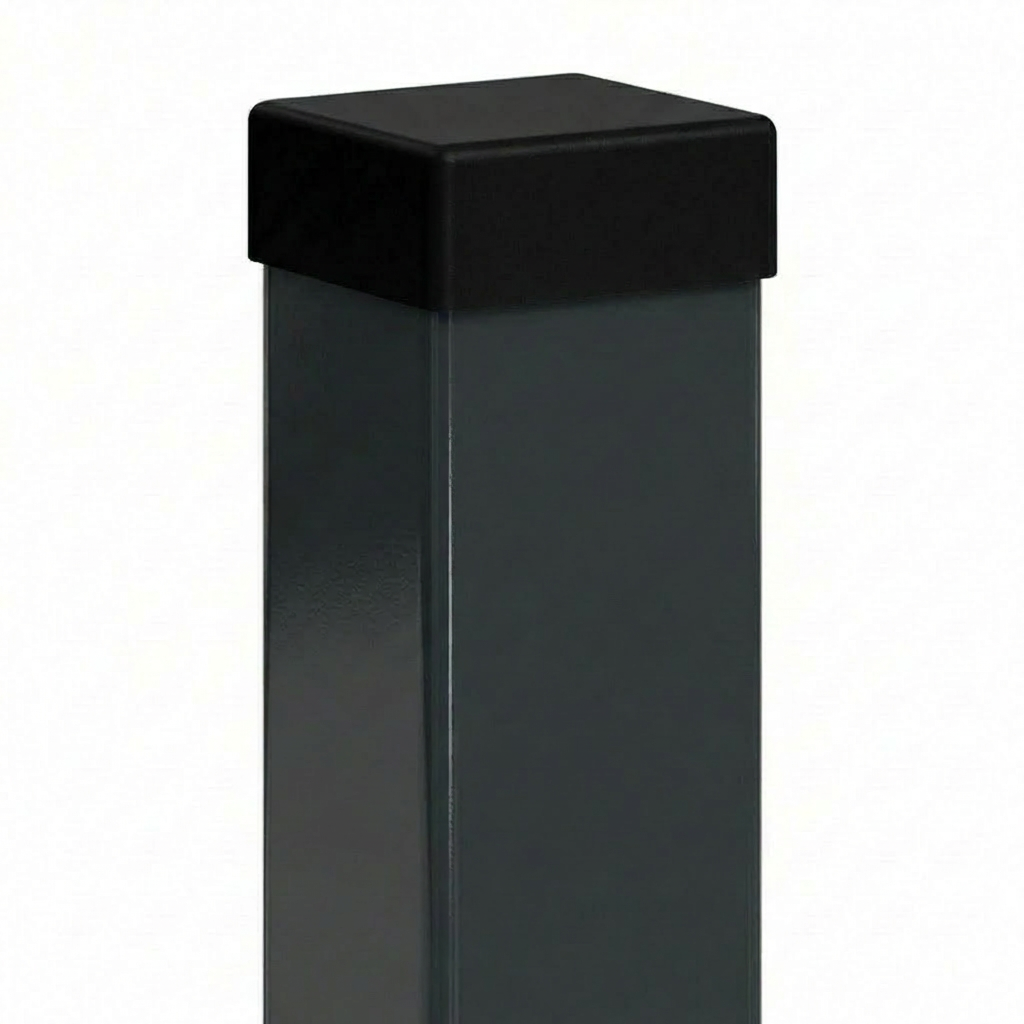

- Equipment: plastic top cap
Double anti-corrosion protection – zinc coating forms the first layer of steel protection, whilst powder coating in RAL 7016 colour provides additional barrier against atmospheric conditions and gives aesthetic, graphite appearance. Thanks to this, the post is ready for immediate installation – without need for additional painting.
Installer benefits
- Enhanced load capacity – 3 mm wall thickness provides reinforced rigidity, ideal for heavy spans and demanding conditions
- Double protection – galvanising + RAL 7016 powder coating guarantees years of corrosion resistance
- Ready for installation – graphite colour eliminates need for additional painting on site
- Versatility – compatible with palisade and panel spans and with dedicated side and rear fixings
- Increased length – 2.2 m provides adequate reserve for foundation setting whilst maintaining optimal fence height

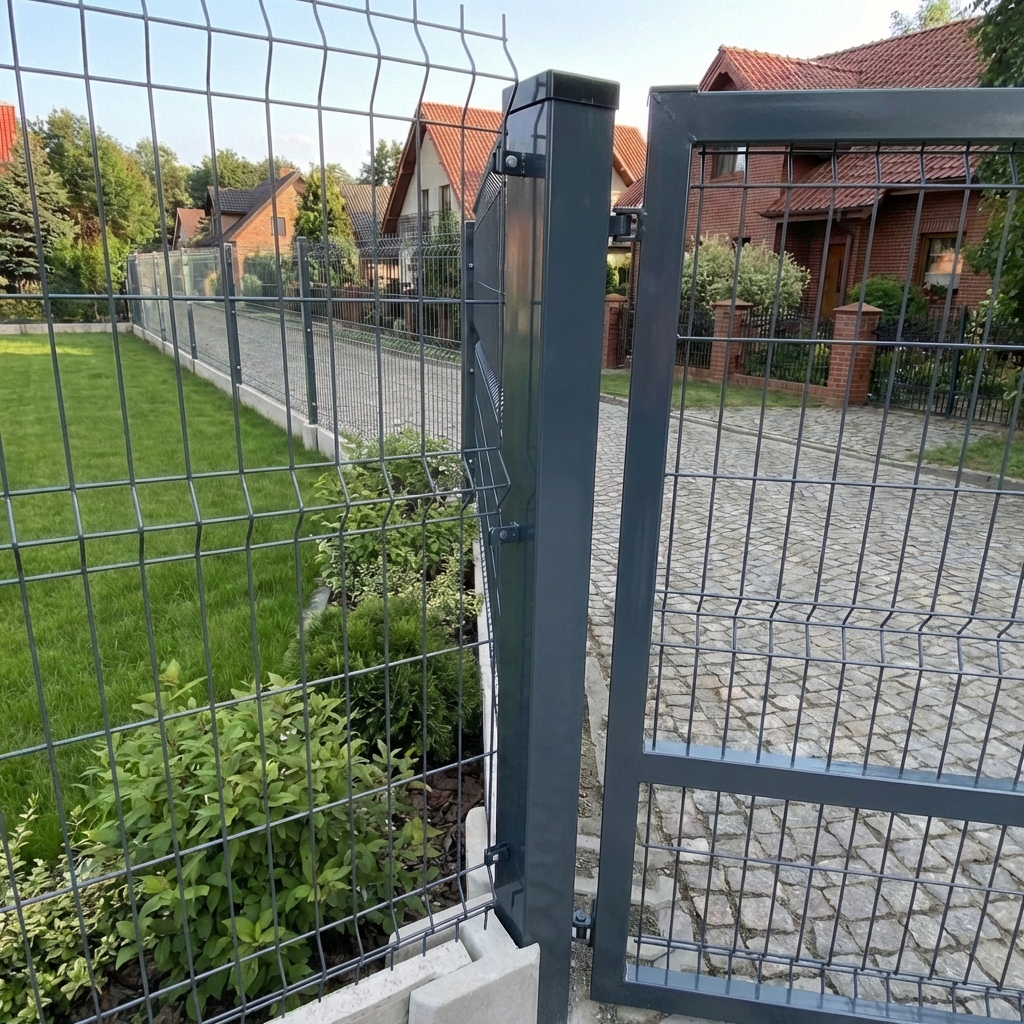

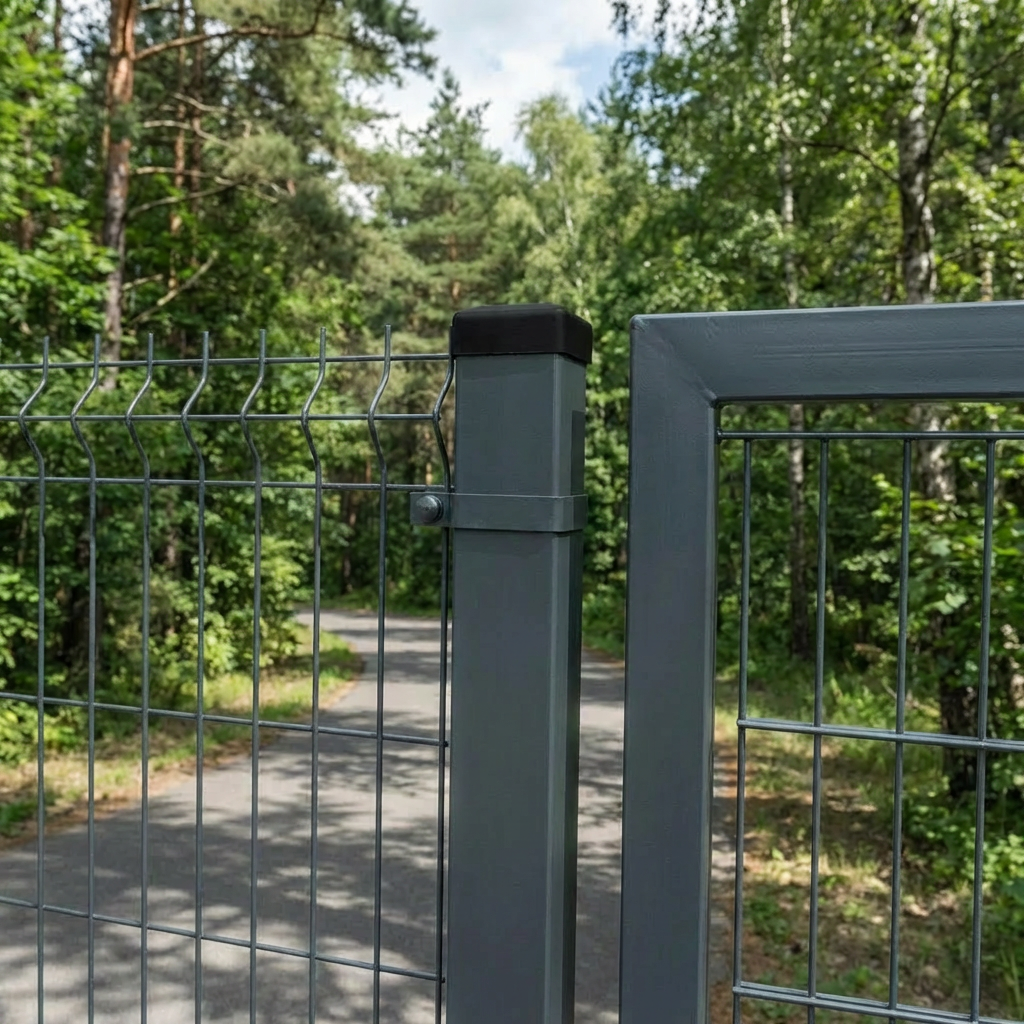

Post 100×100×3 mm in graphite RAL 7016 colour is a reinforced version for demanding projects where both structural solidity and finish aesthetics matter. Ideally suited as element of palisade and panel fencing around private properties, commercial facilities and industrial sites.

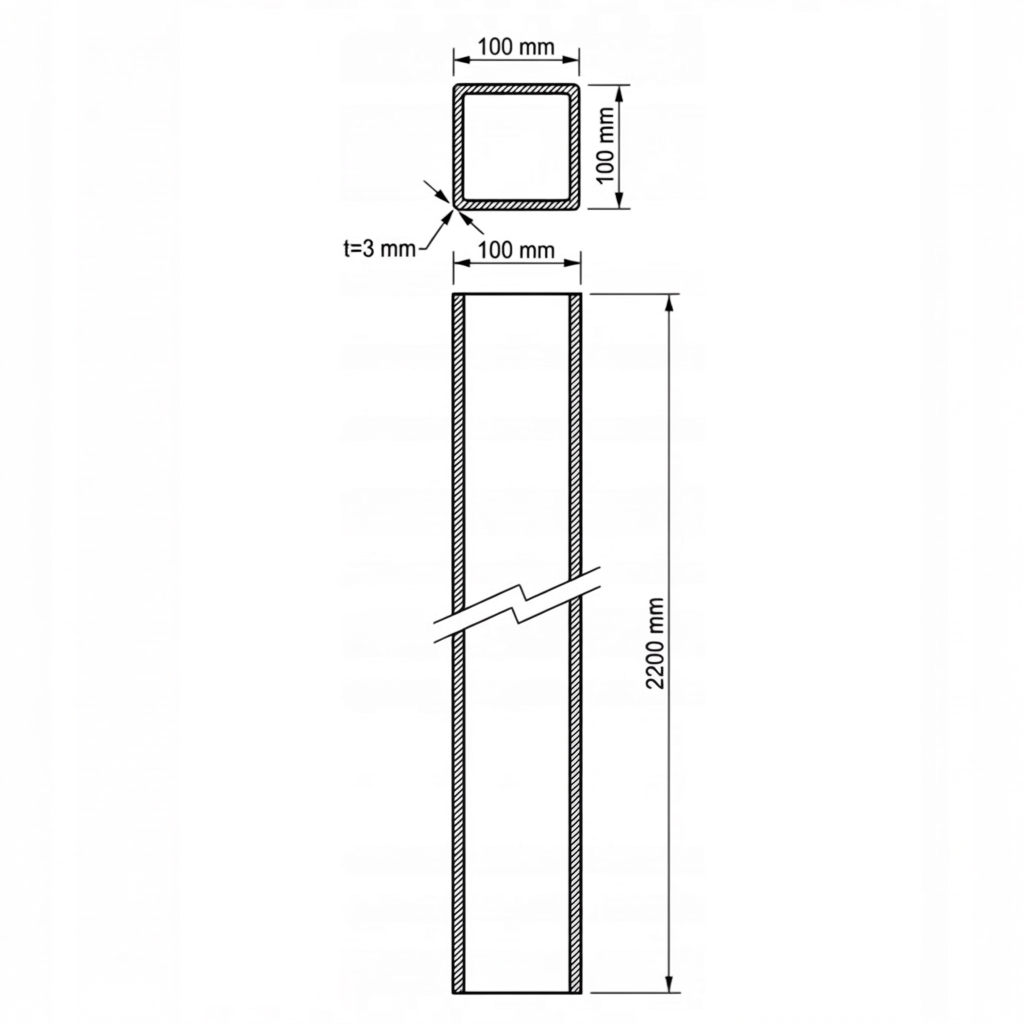

Technical data
| Profile [mm] | 100x100 |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2200 |
| Colour | Graphite RAL 7016 |
