Adjustable hinge with rectangular plate M16 85x55 mm

Go to Product feedback

Gate hinge made of galvanised steel, M16 thread, 85×55 mm plate with four slotted holes. Adjustable after installation, pair load capacity up to 65 kg.

Go to full description

€5.24

Quantity

pcs.

Availability:

In stock (large quantity)

Shipping time: 24 hours

[PIM] zawiasy #113

Adjustment Yes
Thread type M16
Diameter 12
Mounting Method With Plate
Material Steel

Description

Adjustable hinge with rectangular plate M16 85x55 mm for gates

Adjustable hinge with rectangular plate is a durable mounting element designed for gate installation. Thanks to the M16 thread and the ability to adjust at any time after installation completion, the hinge allows precise adjustment of the gate leaf positioning — even in case of sagging construction or thermal deformations resulting from extreme weather conditions.

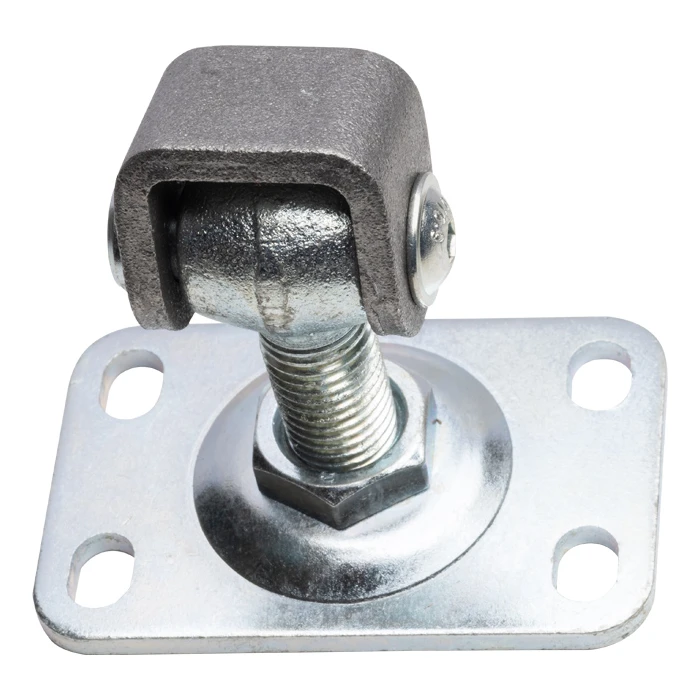

Adjustable hinge with rectangular plate M16 – product view

The rectangular plate measuring 85 × 55 mm is equipped with four slotted holes, ensuring solid attachment to the post and facilitating position correction during installation. The galvanised steel construction guarantees high corrosion resistance — the hinge is fully adapted for many years of outdoor operation. The hinge eye has a black finish.

Adjustment is carried out using the nut on the threaded bolt — simply tighten or loosen it to compensate for changes in gate leaf geometry. This is particularly important for metal gate installations, where seasonal temperature differences can cause shrinking and expansion of steel elements.

Technical specifications

Adjustable hinge M16 – technical drawing with dimensions

Material: galvanised steel

Thread: M16

Plate dimensions: 85 × 55 mm

Eye width: 36 mm

Overall length: 72 mm

Bolt length: 37 mm

Overall height: 85 mm

Weight: 0.38 kg

Permissible load for hinge pair on 2 m long gate leaf: 65 kg

Installer benefits

Quick and simple installation thanks to four slotted holes in the plate

Adjustment possible after completed installation — without gate leaf dismounting

Galvanised surface provides years of protection against corrosion

High quality workmanship translates to resistance to mechanical damage and load

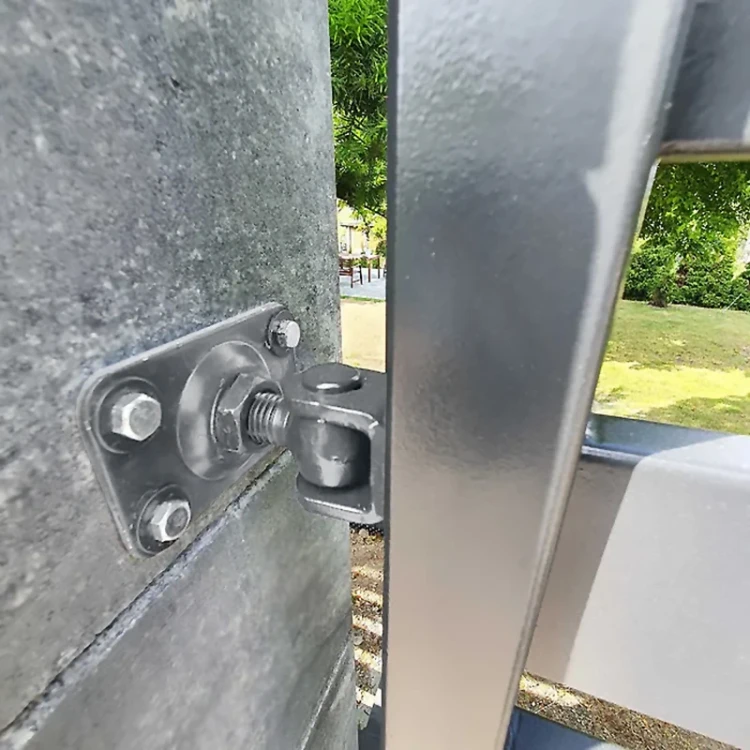

Adjustable hinge with rectangular plate – installation on gate post

The image shows an example installation of the hinge on a concrete gate post. The plate has been secured with four bolts, and the hinge eye encompasses the gate leaf profile. This type of solution works well for both steel and aluminium gates — wherever a reliable, adjustable hinge construction is required.
