Aluminium trapezoidal H-100 mounting block with EPDM 330 mm for trapezoidal sheet

Go to Product feedback

Aluminium trapezoidal H-100 mounting block with EPDM gasket, for mounting photovoltaic panels on trapezoidal sheet. 6060 aluminium alloy. Base cross-section 119 × 100 mm, length 330 mm, mounting channel 40.2 mm. Wall thickness 1.5–2.0 mm, weight 0.611 kg/pc.

Go to full description
with VAT without VAT
Price €6.87
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Description

Aluminium trapezoidal H-100 mounting block with EPDM 330 mm for trapezoidal sheet

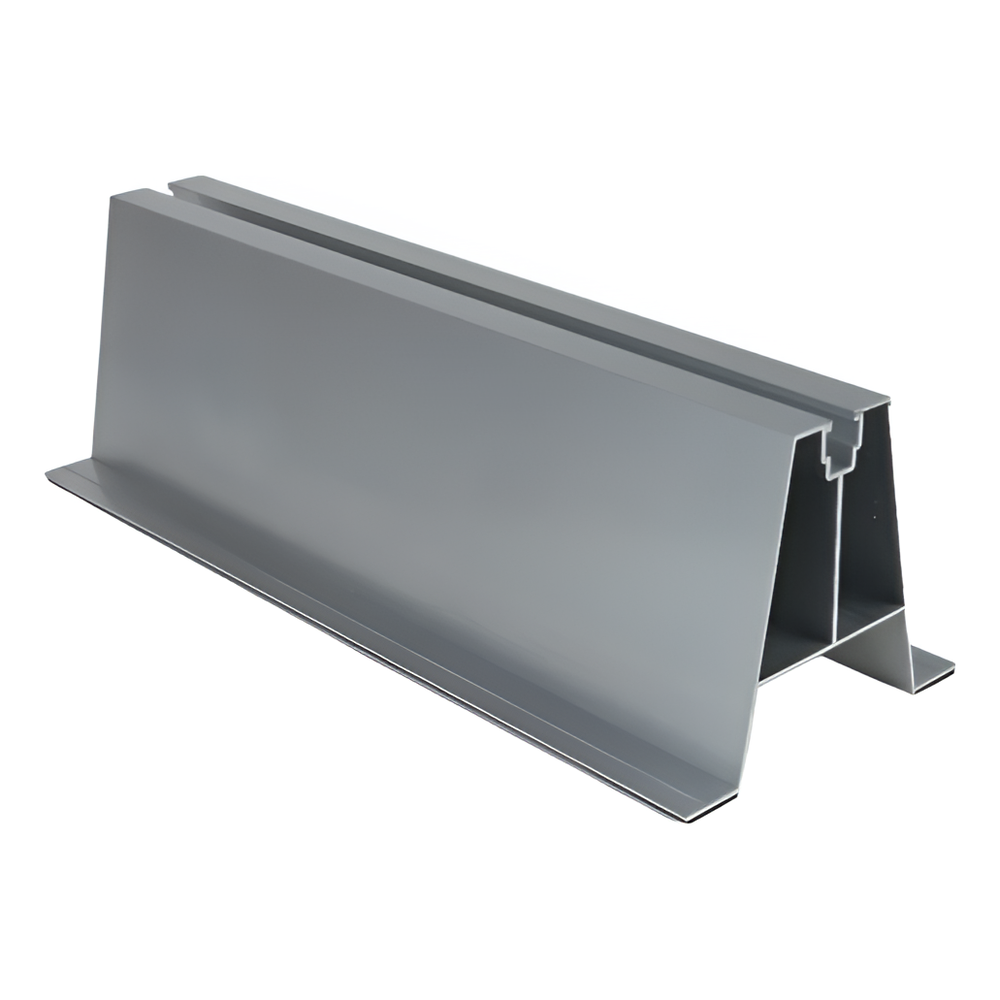

Aluminium trapezoidal mounting block H-100 with mounting channel and EPDM gasket — perspective view
Aluminium trapezoidal mounting block H-100 with mounting channel and EPDM gasket — perspective view

H-100 trapezoidal mounting block with EPDM gasket is an aluminium mounting profile designed for direct fixing of photovoltaic panels on roofs covered with trapezoidal sheet. The profile, 100 mm in height, provides sufficient space between the module and the roof surface, allowing air to circulate freely underneath the panel, enabling natural cooling and isolation from the heated roof covering. The mounting block is made of 6060 aluminium alloy, which combines good mechanical strength with high resistance to corrosion and weather conditions. The upper mounting channel allows fixing of mid and end clamps using hexagon socket bolts and square nuts — without the need for additional adapters. Holes for mounting bolts are drilled directly on the roof, allowing precise adjustment of spacing to a specific trapezoidal sheet profile.

Key benefits for the installer

  • Height of 100 mm guarantees free air flow under the module and effective panel cooling
  • Included EPDM gasket ensures a tight seal against the trapezoidal sheet and protects the roof covering from mechanical damage
  • 6060 aluminium is suitable for anodising, providing additional corrosion protection and an aesthetic finish
  • Universal mounting channel compatible with mid and end clamps
  • Mounting holes drilled on site — full flexibility to match the trapezoidal sheet spacing
Video presenting the aluminium trapezoidal mounting block for installing PV panels on trapezoidal sheets

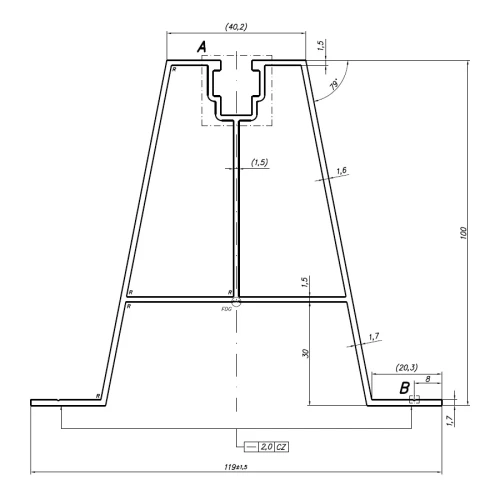

Technical drawing of the H-100 trapezoidal mounting block cross-section — base 119 mm, height 100 mm, top channel 40.2 mm
Technical drawing of the H-100 trapezoidal mounting block cross-section — base 119 mm, height 100 mm, top channel 40.2 mm

Dimensions

Cross-section (base width × height)119 × 100 mm
Length330 mm
Mounting channel width40.2 mm
Wall thickness1.5–2.0 mm
Weight per metre1.199 kg/m
Weight per piece (330 mm)0.611 kg

Material and finish

Material / alloy6060 aluminium
EPDM gasketincluded
Surface finishraw aluminium (can be anodised)

Installation and compatibility

Mounting channel / groove typeupper T-slot channel
Compatible boltshexagon socket bolts + square nuts
Roof / surface typetrapezoidal sheet roofs
Fixing methodmid and end clamps, holes drilled on site
