Trapezoidal bridge 40cm H-70 made of EPDM for trapezoidal sheet metal roofs
product unavailable
add to wish list
Description
Trapezoidal bridge 40cm H-70 made of EPDM for trapezoidal sheet metal roofs

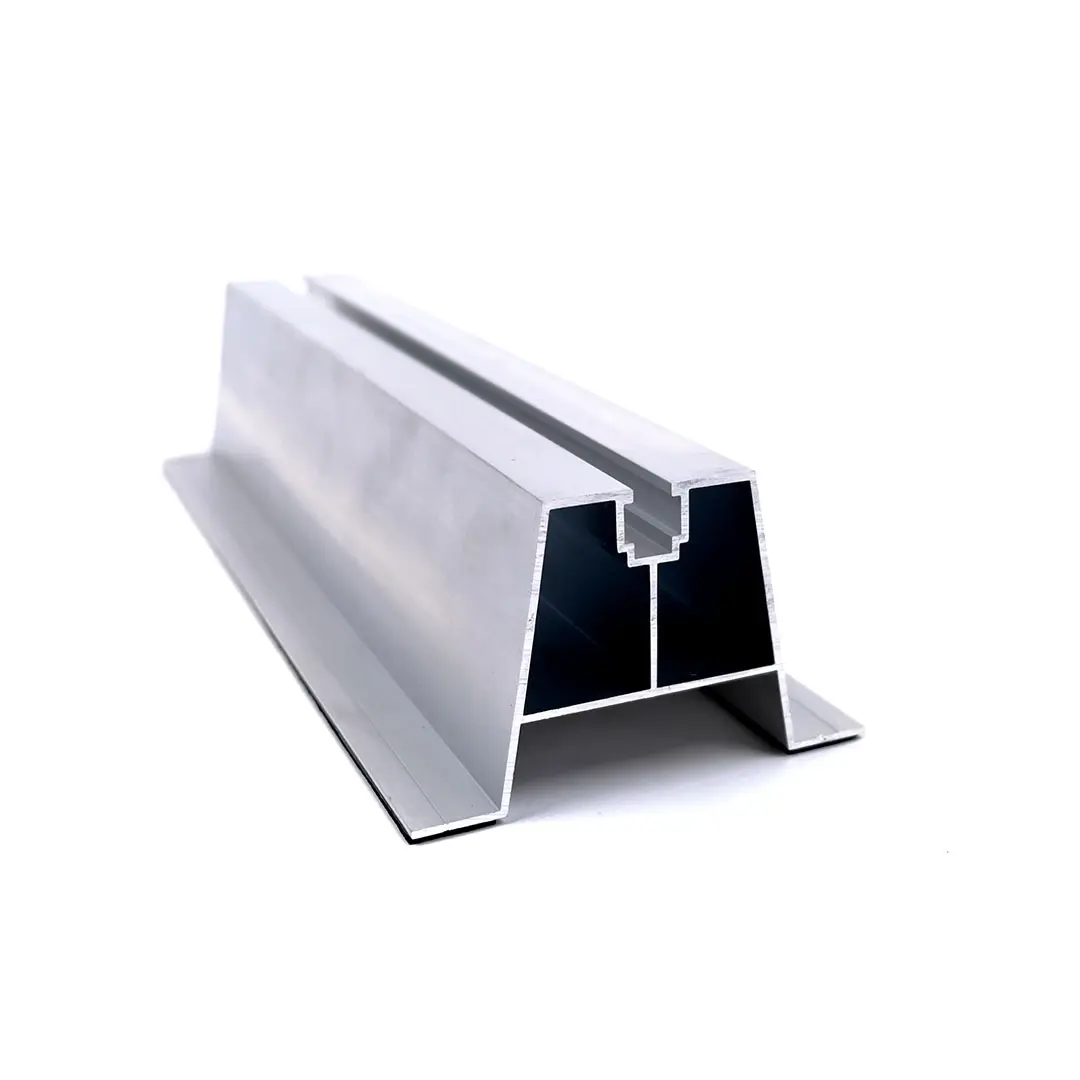

Trapezoidal bridge profile in Aluminium 6060 for metal roofs, 400x70mm, for photovoltaic modules.
The aluminium trapezoidal profile or so-called trapezoidal bridge allows panels to be fixed directly to trapezoidal sheets. It is suitable for fixing photovoltaic panels with centre and end clamps. The clamps are fixed to the top channel of the mounting rail using hexagon socket screws and square nuts. The 70mm high rail provides free airflow under the panel, allowing natural cooling and separation of the panel from the heated roof surface.
The standard length of the trapezoidal bridge is 400 mm. The screw holes are made when the profile is installed on the roof itself.
Specification
- Material: Aluminium 6060
- Dimension: H-70 (Height)
- Approximate weight: 2,03 kg/m
Properties Aluminium 6060
- Resistant to corrosion and external influences.
- Good mechanical strength, impact resistance.
- Suitable for anodising providing additional protection and a decorative finish.
Available Sizes
Safety
Shipping costs
The price does not include any possible payment costs
