Trapezoidal bridge 33cm H-30 made of EPDM for trapezoidal sheet metal roofs

Availability: Temporarily unavailable

Weight: 0.325 kg

Price / pcs.: £3.00 3.00

excl. shipping costs

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 50 pieces
Package: 500 pieces
Package: 1000 pieces

quantity pcs.

product unavailable

add to wish list

Rating:

Vendor: Synerga

Product code: PV-02-01

recommend to a friend

Description

Trapezoidal bridge 33cm H-30 made of EPDM for trapezoidal sheet metal roofs

Available sizes

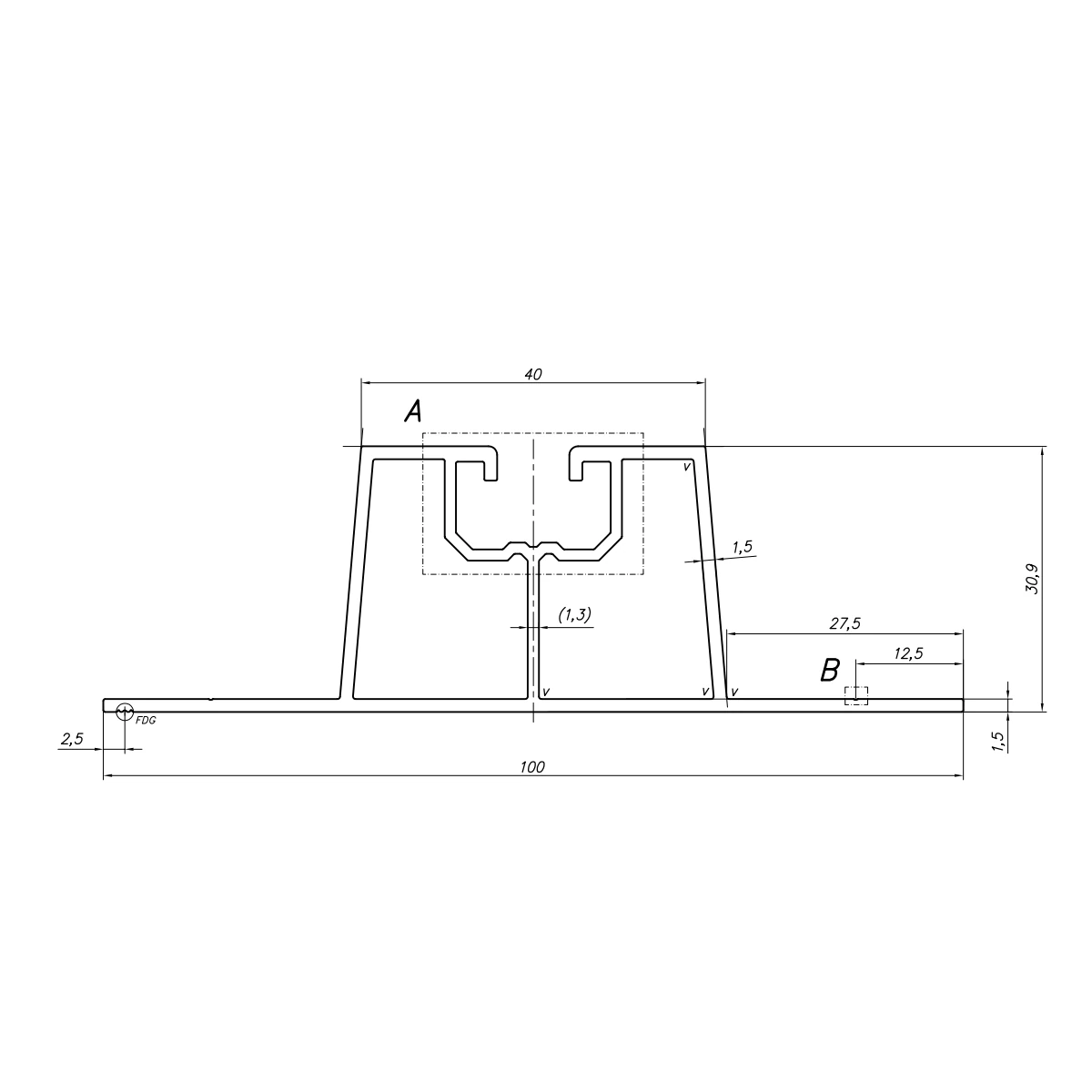

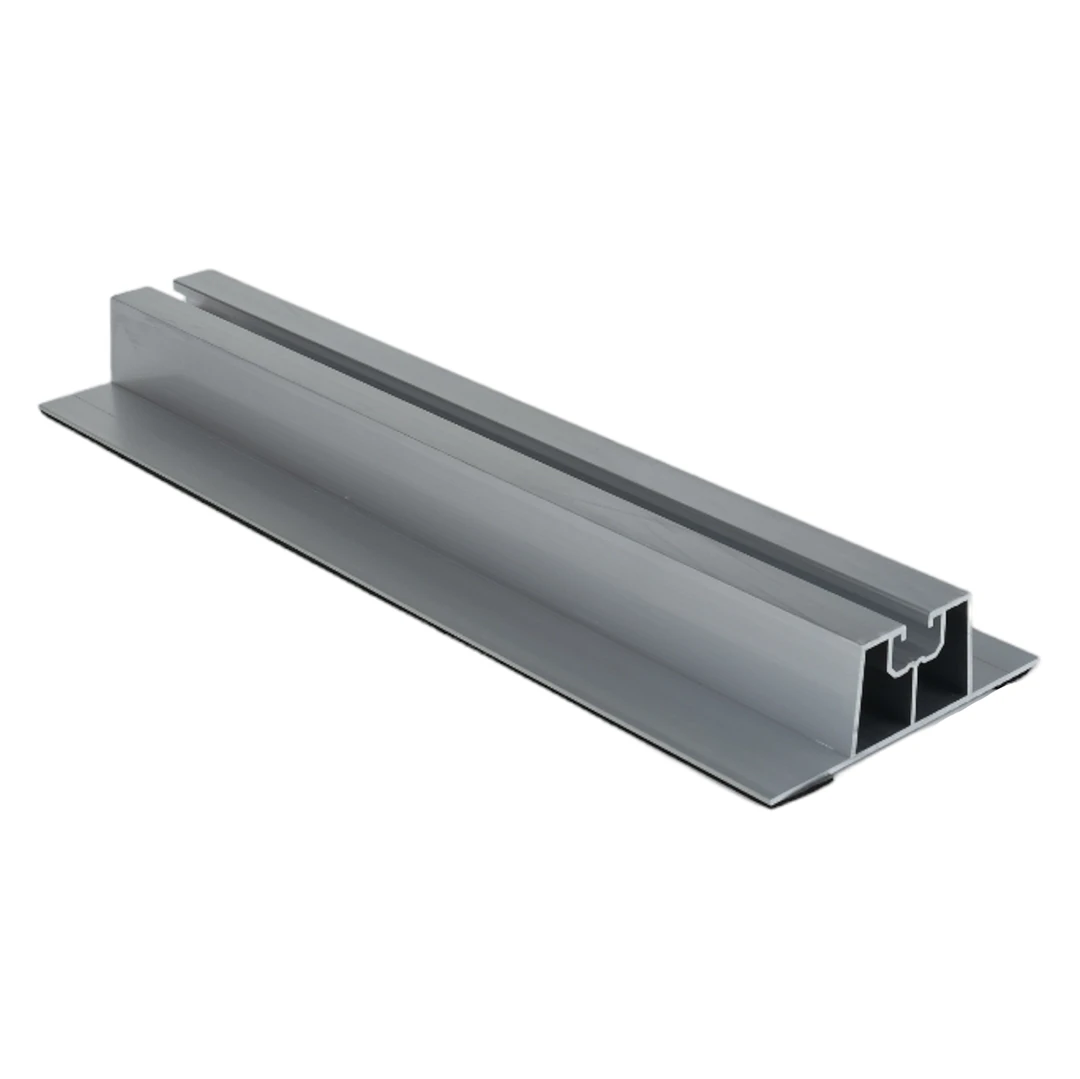

Aluminium 6060 trapezoidal bridge profile for metal roofs, 330x30mm, for photovoltaic modules.

Aluminum trapezoidal profile or so-called trapezoidal bridge allows direct attachment of panels to trapezoidal sheets. It is suitable for fixing photovoltaic panels with center and end clamps. The clamps are fixed to the upper channel of the mounting rail by means of a sliding groove, threaded insert or a mlot bolt. The 30mm high rail provides free airflow under the panel, allowing natural cooling and separation of the panel from the heated roof surface.

Standard trapezoidal bridge length is 330mm. Screw holes are made when the profile is installed on the roof itself.

Specification

Material: Aluminium 6060
Dimension: H-30 (height)
approximate weight: 0.983 kg/m

Properties of Aluminium 6060

Resistant to corrosion and external influences.
Good mechanical strength, impact resistance.
Suitable for anodising providing additional protection and a decorative finish.

Available sizes

Length [mm]

Thickness [mm]

330

H-30

330

H-40

330

H-60

330

H-70

330

H-70 Typ2

330

H-100
