Trapezoidal bridge 33cm H-70 made of EPDM for trapezoidal sheet metal roofs type 2 for higher roof connections
product unavailable
add to wish list
Description
Trapezoidal bridge 33cm H-70 made of EPDM for trapezoidal sheet metal roofs type 2 for higher roof connections

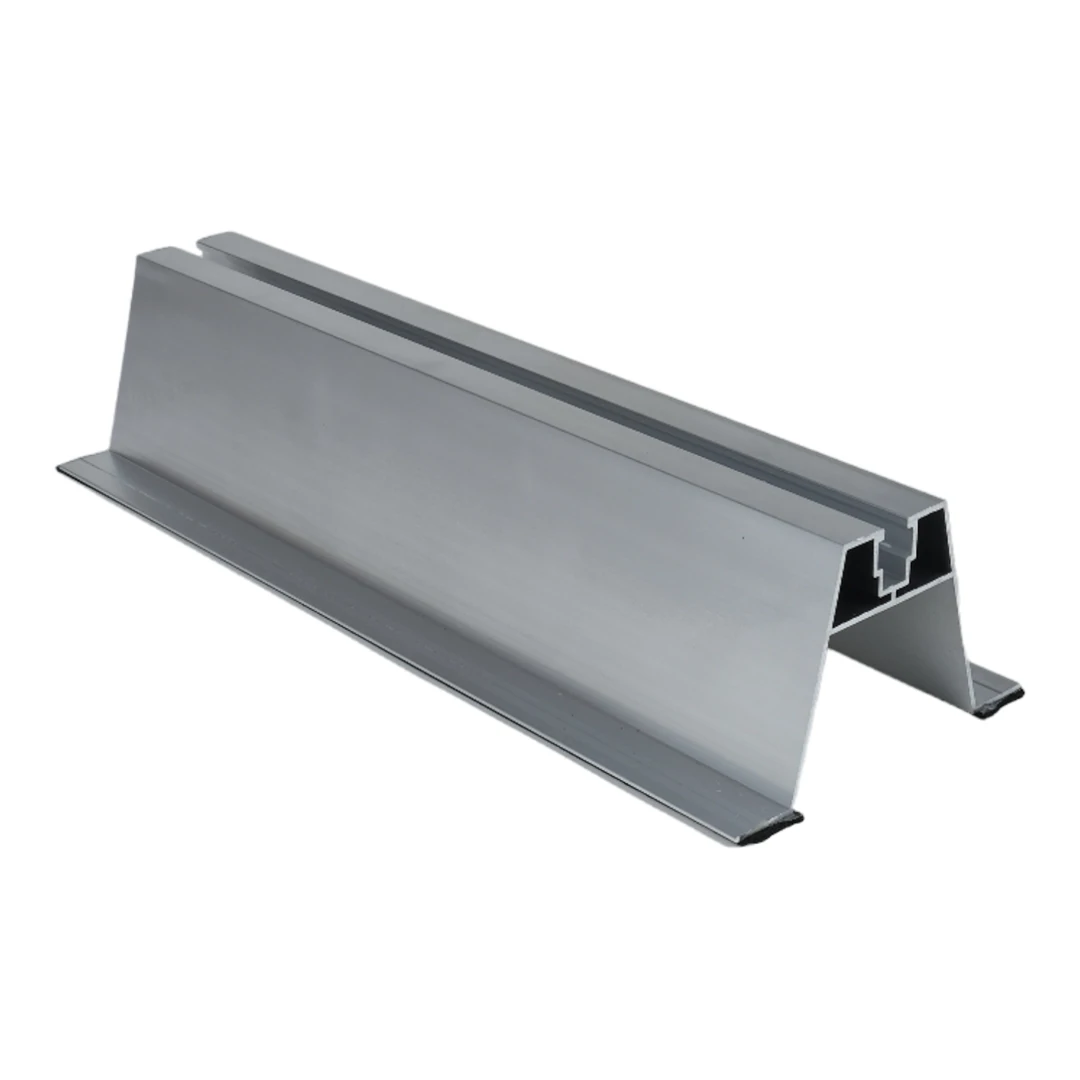

Trapezoidal Bridge Profile from Aluminium 6060 for metal roofs, Type 2 for higher roof connections, 330x70mm, for photovoltaic modules.
The aluminium trapezoidal profile or so-called trapezoidal bridge allows panels to be directly fixed to trapezoidal sheets. It is suitable for fixing photovoltaic panels with centre and end clamps. The terminals are fixed to the top channel of the mounting rail using hexagon socket screws and square nuts. The 70mm high rail provides free airflow under the panel, allowing natural cooling and separation of the panel from the heated roof surface.
Standard trapezoidal bridge length is 330mm. Screw holes are made when the profile is installed on the roof itself.
Specification
- Material: Aluminium 6060
- Dimension: H-70 (height)
- Type: 2 (for higher roof connections)
- Indicative weight: 1,262 kg/m
Properties of Aluminium 6060
- Resistant to corrosion and external influences.
- Good mechanical strength, impact resistance.
- Suitable for anodising providing additional protection and a decorative finish.
