Running trolley 80 steel rollers for sliding gate with adjustment 5-roller
Description

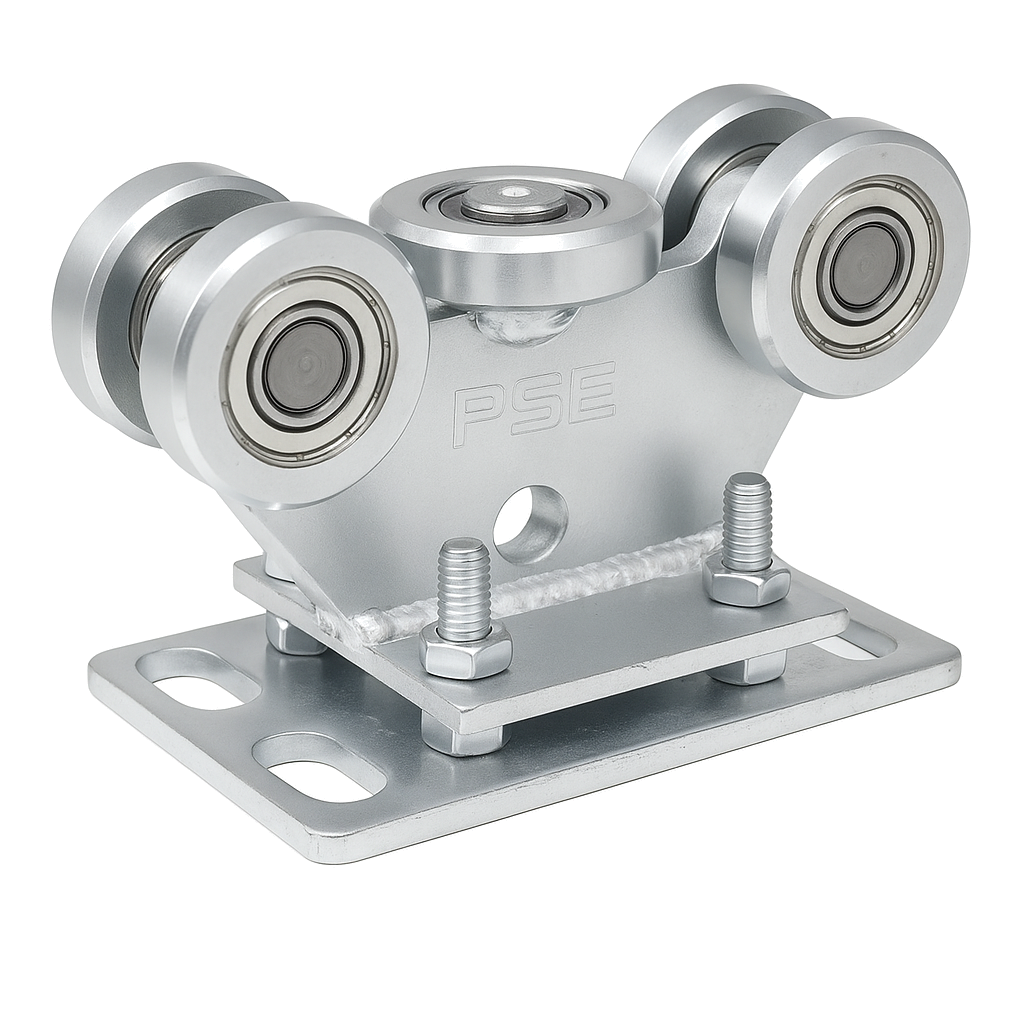

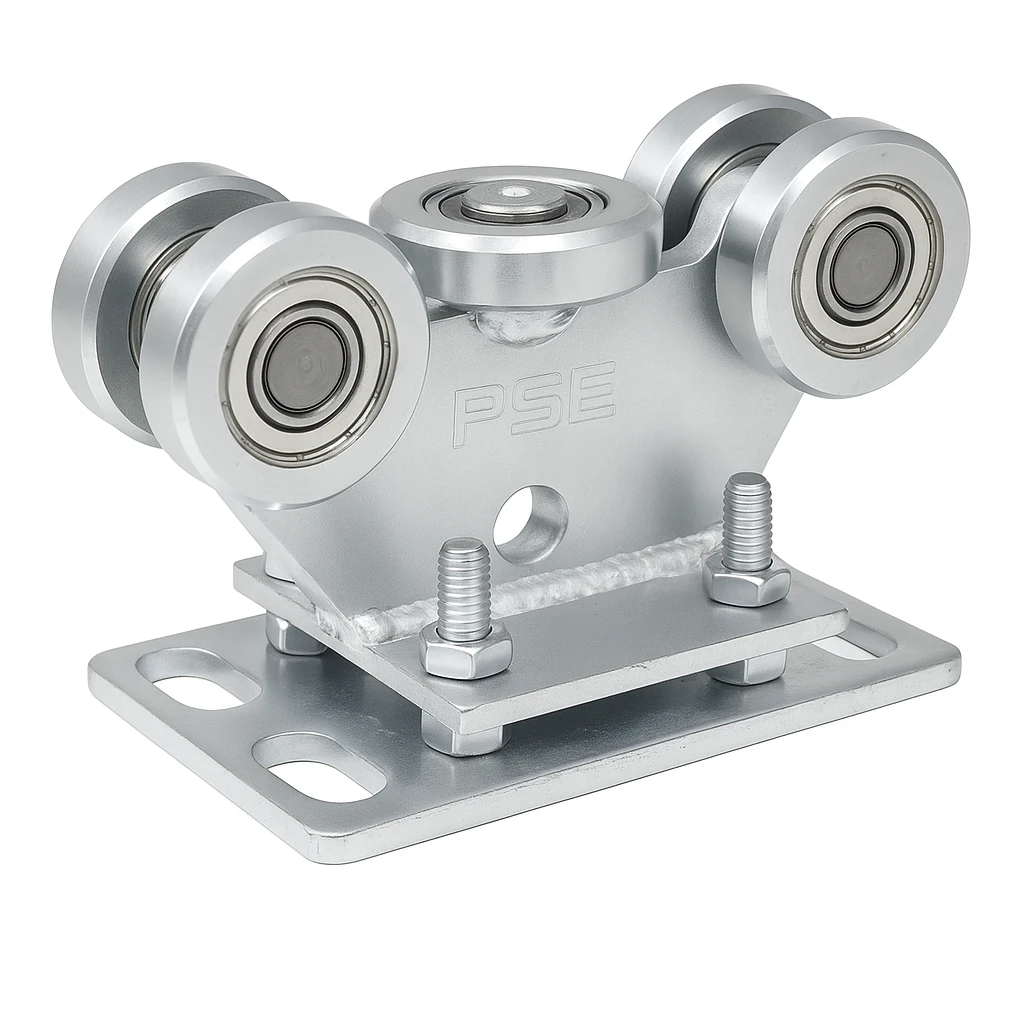

5-Roller Sliding Gate Trolley – 80x80 Rail, 650 kg
5-roller sliding gate trolley designed for cantilever sliding gates, engineered for professional installations requiring a load capacity of up to 650 kg. The construction is based on five steel rollers — including one horizontal roller — ensuring stable and smooth guidance of the gate leaf even under heavy loads.
The trolley is compatible with a rail measuring 80×80×5 mm and is permanently mounted to the base plate. The built-in height adjustment mechanism via bolts allows precise levelling of the gate within a range of 139.5–161.5 mm (front view) and 154–176 mm (side view), greatly simplifying installation and compensating for any unevenness in the ground. The entire unit is protected with a zinc coating, ensuring corrosion resistance and long-term outdoor performance.
Key Features
- Type: 5-roller sliding gate trolley (4 vertical rollers + 1 horizontal roller)
- Roller material: steel
- Roller diameter: ø68 mm
- Maximum load capacity: 650 kg
- Compatible rail: 80×80×5 mm
- Height adjustment: bolt-operated
- Corrosion protection: zinc coating
- Mounting: permanently fixed to base plate

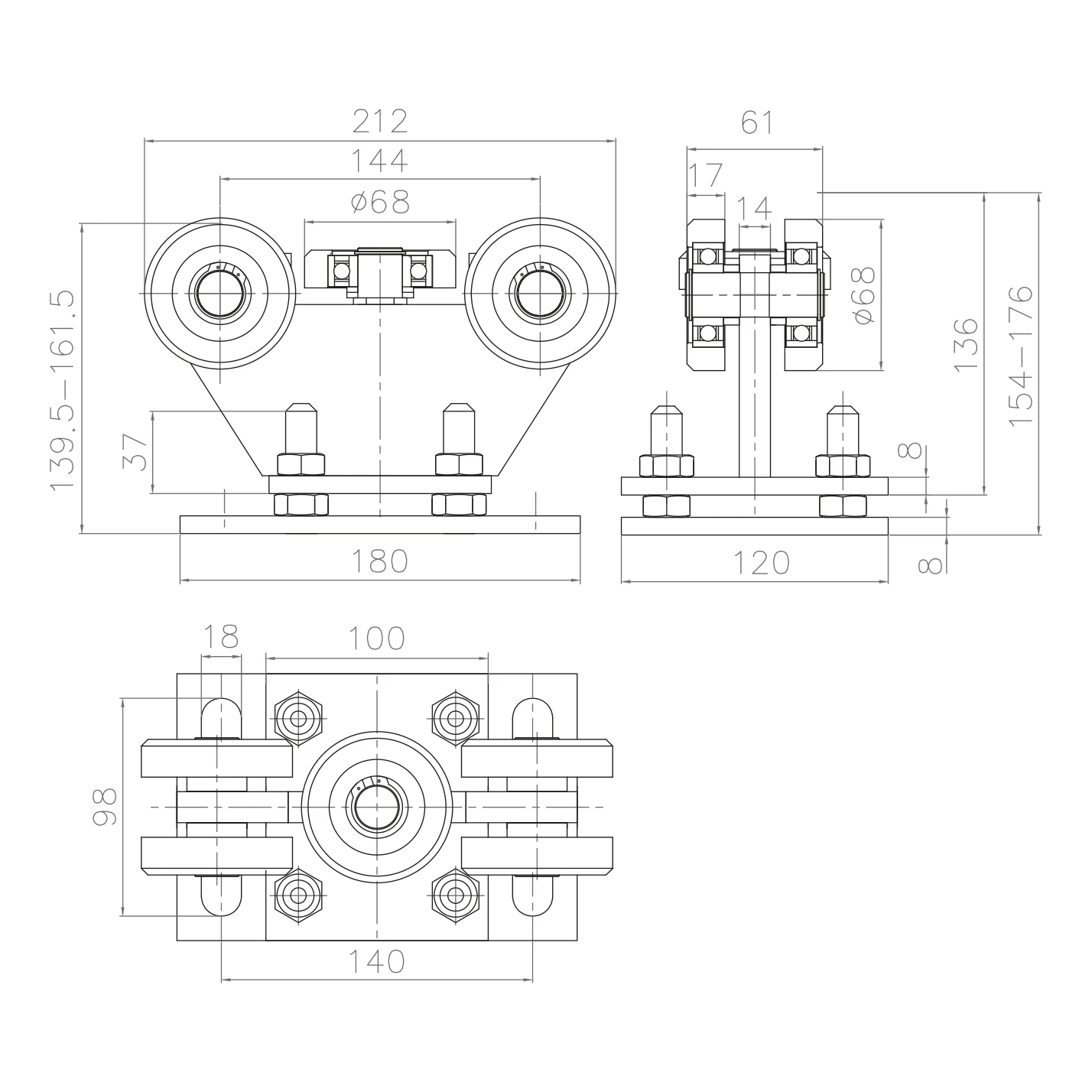

Dimensions and Technical Specifications
- Overall width (front view): 212 mm
- Roller axle spacing: 144 mm
- Overall height (front): 139.5–161.5 mm (adjustable)
- Overall height (side): 154–176 mm (adjustable)
- Body height without adjustment: 136 mm
- Width (side view): 61 mm
- Roller guide width: 17 mm, groove: 14 mm
- Base plate dimensions: 180 × 120 mm
- Base plate thickness: 8 mm
- Base plate height with bolts: 37 mm
- Housing dimensions (top view): 140 × 98 mm
- Mounting hole spacing: 100 mm
- H (catalogue): 142 mm
- Weight: 5.835 kg
- Volume: 5,243.44 cm³
- EAN: 5901289674454
Thanks to its robust steel construction, high load capacity and precise height adjustment, this trolley is equally suited to industrial gate installations and commercial premises requiring a reliable sliding gate system.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 5 |
| Trolley Construction | Fixed |
| Max. load capacity [kg] | 650 |
| Rail Size | 80x80x5 |
| Running System Type | Rolling system |
