Running trolley 68 for sliding gate - system 68x68, steel rollers
Description

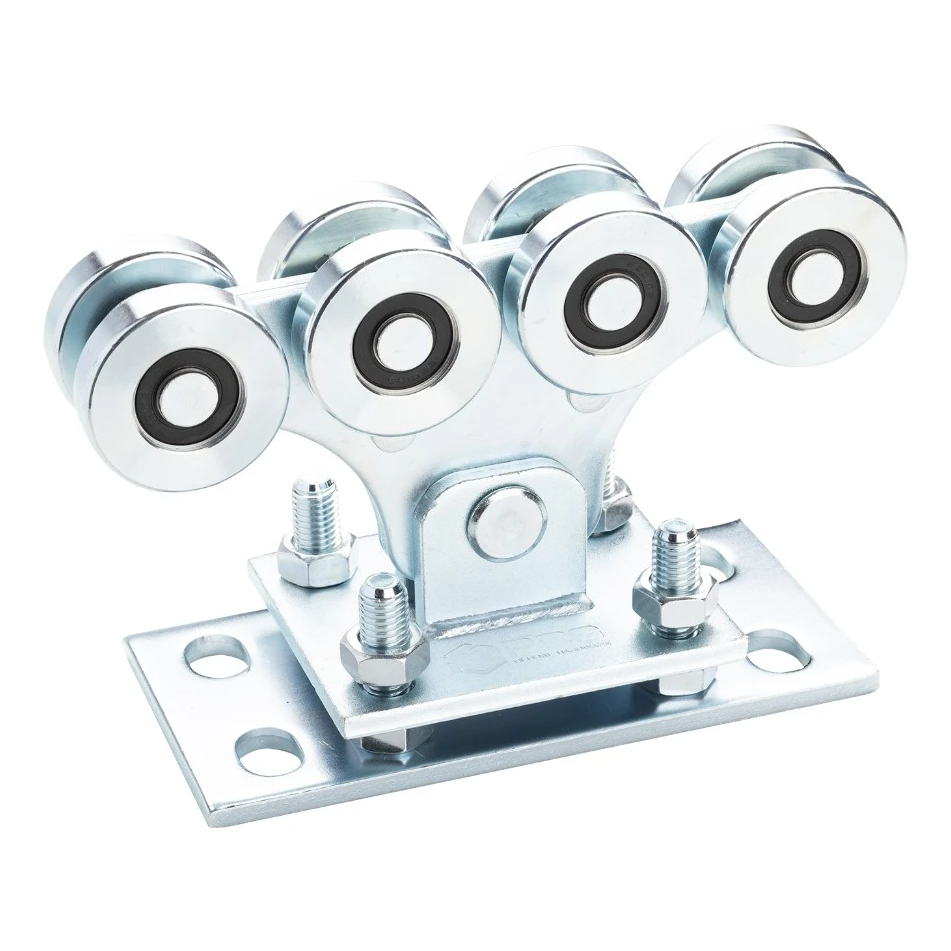

Sliding Gate Trolley 68 – 8 Steel Rollers, 68×68 System
The Sliding Gate Trolley 68 is a key component of the 68×68 sliding gate system, responsible for smooth, quiet and stable guidance of the gate leaf along the running rail. Fitted with 8 steel rollers arranged across two levels, it ensures even load distribution and eliminates lateral forces acting on the bearings — directly resulting in a longer service life and reduced noise during operation.
Robust Construction and Corrosion Protection
The trolley body is manufactured from high-quality steel, protected against corrosion by electro-galvanising. This ensures full resistance to variable weather conditions — rain, moisture and temperature fluctuations — providing years of trouble-free operation even under intensive use.
The rolling assembly uses 6201 RS ball bearings with rubber seals, which protect the bearing interior from contamination and ensure quiet, smooth roller operation. The two-level running arrangement eliminates lateral forces, further extending bearing service life and reducing rolling resistance.
Easy Installation Adjustment
The base design with M14 bolt fixing allows precise height adjustment of the trolley on foundation anchors — simply add the appropriate washers. This enables the installer to quickly align the gate to site conditions without the need for additional tools or components. The trolley is compatible with the guide rail designed for the 68×68 system.

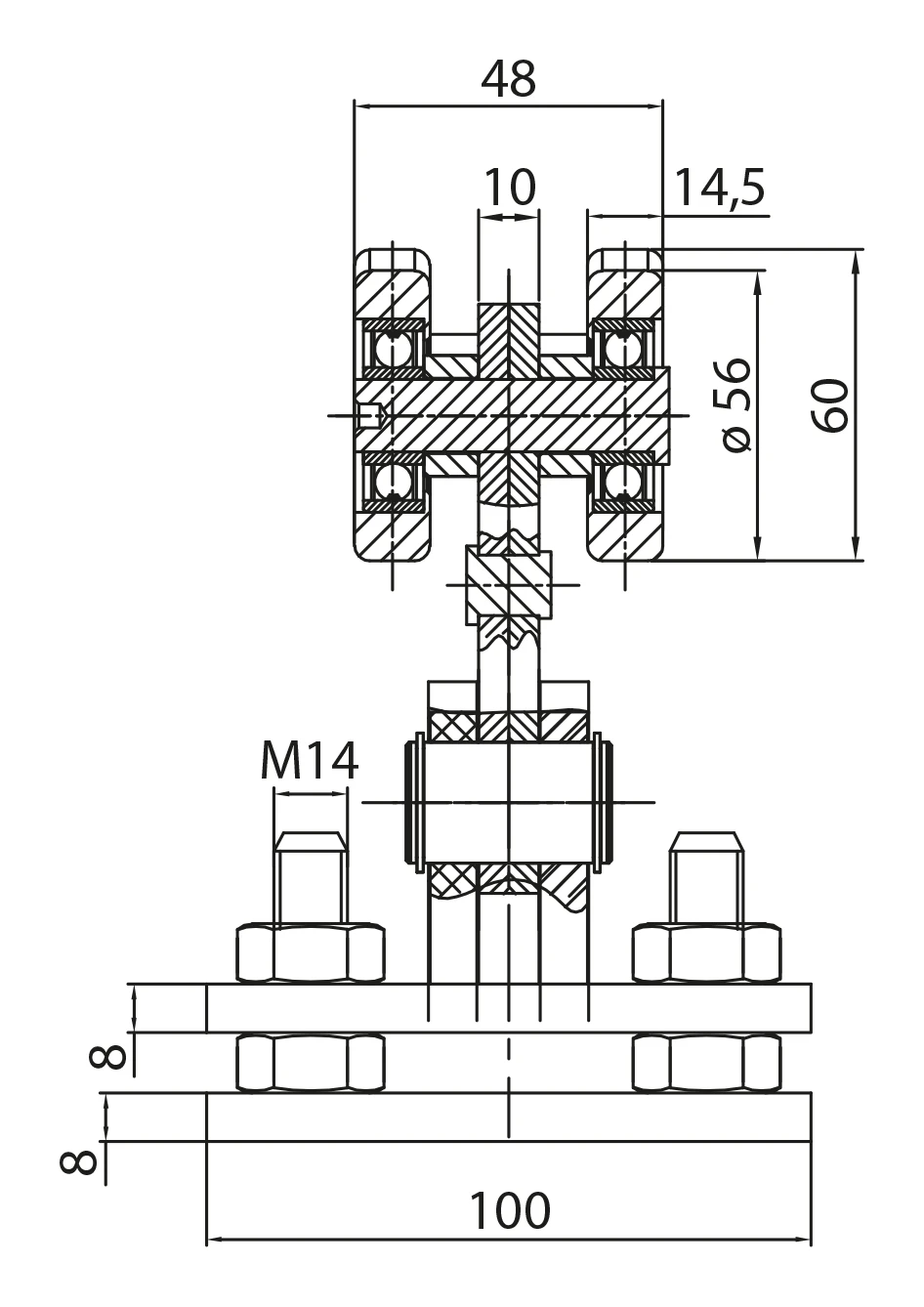

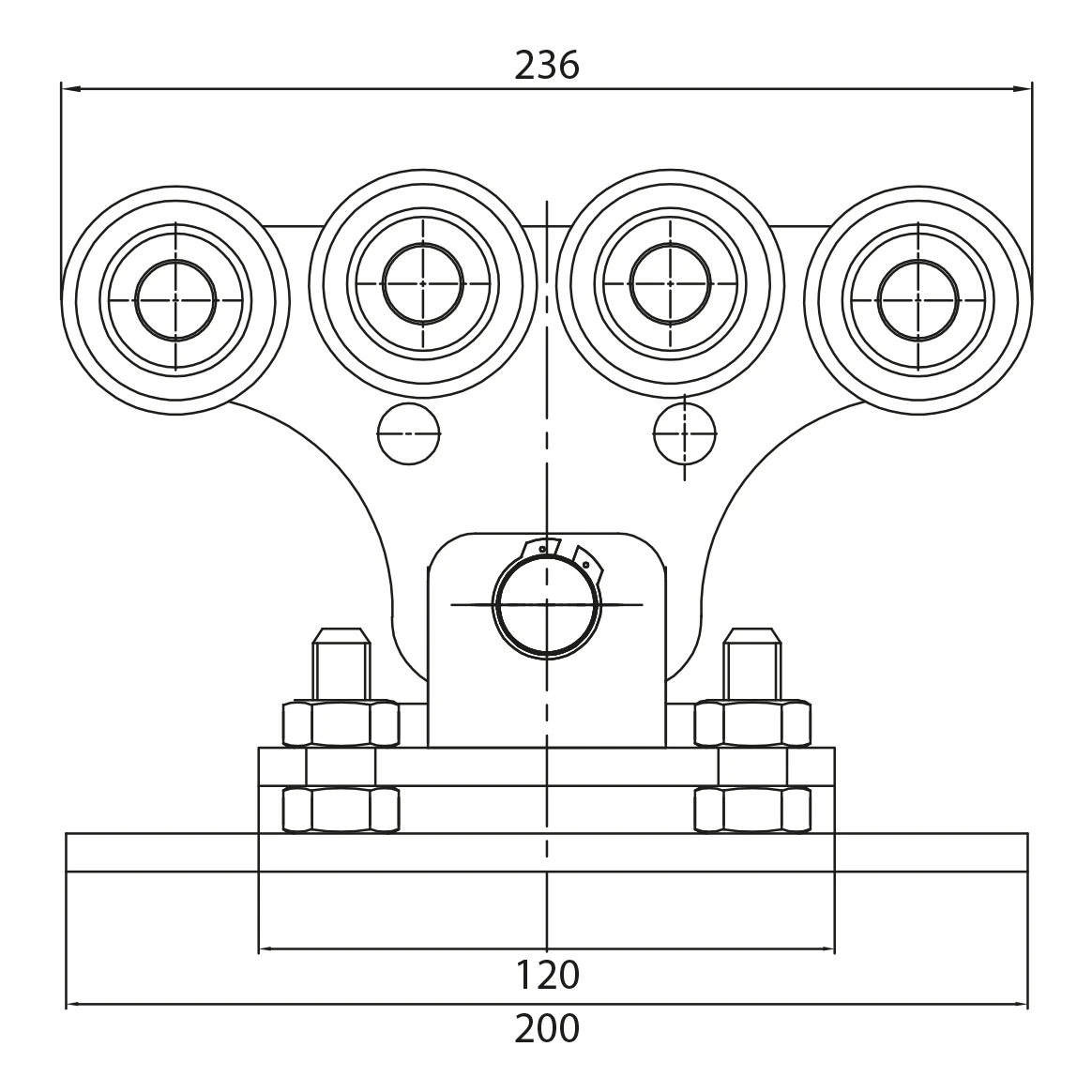

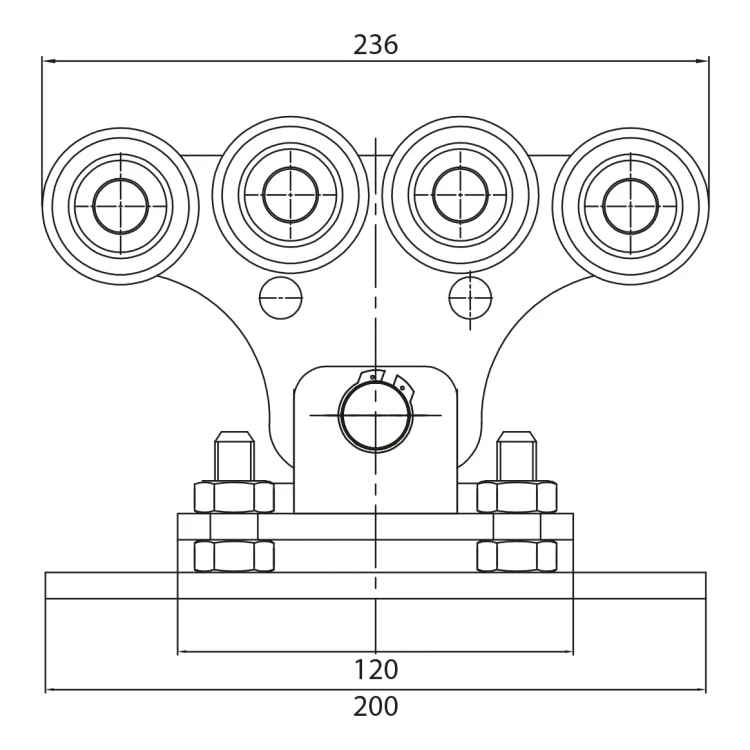

Dimensions and Technical Specification
- System: 68×68
- Running assembly: 8 steel rollers on two levels
- Roller outer diameter: 60 mm
- Roller working diameter (in groove): 56 mm
- Roller width: 14.5 mm
- Bearings: 6201 RS ball bearings
- Material: electro-galvanised steel
- Overall length (L): 236 mm
- Trolley height (H): 157 mm
- Roller assembly width: 48 mm
- Carrier plate thickness: 10 mm
- Base length: 200 mm
- Top mounting plate length: 120 mm
- Base width: 100 mm
- Base plate thickness: 2 × 8 mm
- Fixing bolt thread: M14
- Weight: 5.4 kg
Benefits for the Installer
- Two-level arrangement of 8 rollers — stable guidance and even load distribution across the gate leaf
- 6201 RS sealed bearings — quiet operation and protection against contamination
- Elimination of lateral forces — extended bearing service life and reduced operational noise
- Electro-galvanised finish — effective corrosion protection for outdoor conditions
- Adjustment on foundation anchors — fast and precise gate alignment during installation
- Compatibility with the 68×68 system rail — reliable fit with a proven guidance system
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Trolley Construction | Fixed |
| Rail Size | 68x68x3,5 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 8 |
| Running System Type | Rolling system |
