Sliding gate rail 68x68x3.5 mm, length 6 m - semi-open, galvanised
Description

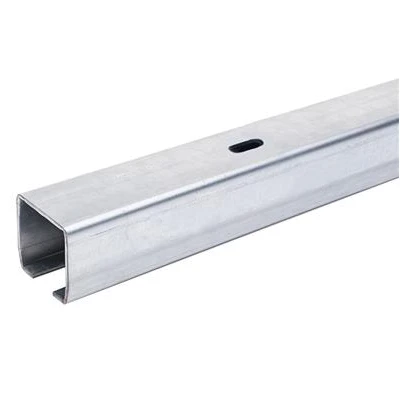

Running Rail 68×68 mm – Semi-Open Channel Section for Suspended Sliding Gates, L=6000 mm
Running rail 68×68 mm is a steel semi-open channel section designed as a guide track for suspended sliding gates. The six-metre profile ensures smooth and quiet gate travel, eliminating lateral forces acting on the trolley's load-bearing wheels – which directly translates into a longer service life for the entire running mechanism.
The profile is manufactured from steel with a hot-dip galvanised coating, ensuring high corrosion resistance and long-term durability even in demanding weather conditions. This makes the rail equally well suited for use inside industrial buildings and in installations exposed to moisture, rain, or fluctuating temperatures.

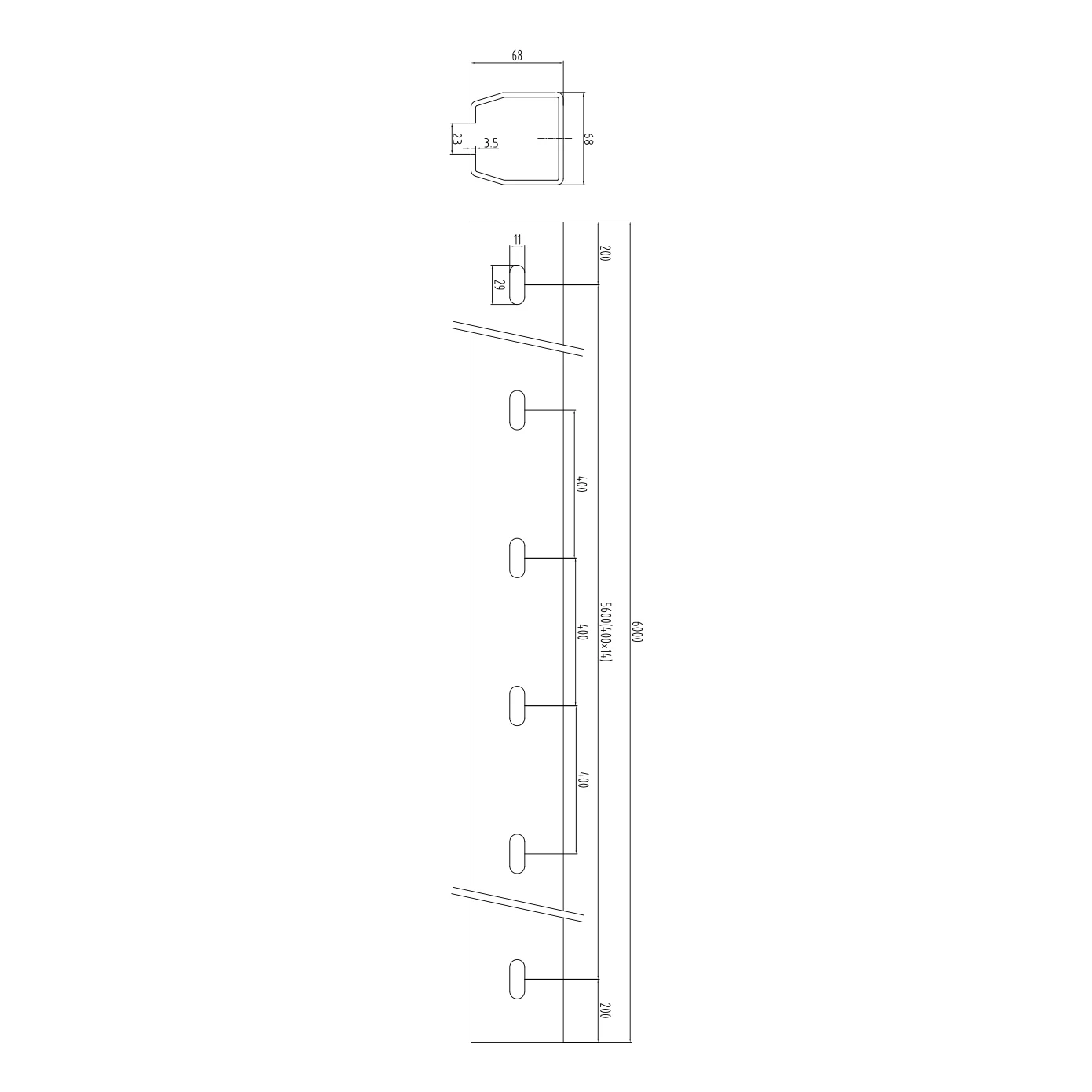

Bolted installation instead of welding – the channel section is factory-drilled with mounting holes measuring 29×11 mm, spaced at regular 400 mm intervals. Bolting the rail to the gate structure is technically simpler and more cost-effective than welding, and additionally eliminates the risk of thermal distortion of the profile, which could otherwise compromise the quality of gate guidance.
Technical Specifications
- External cross-section: 68×68 mm
- Wall thickness: 3.5 mm
- Length: 6000 mm
- Mounting holes: 29×11 mm (spaced every 400 mm)
- Weight: 36 kg
- Coating: hot-dip galvanised
- Brand: PSG
Applications
The rail is intended for suspended sliding gates used in industrial halls, warehouses and agricultural buildings, where reliability, quiet operation and minimal maintenance are essential. The profile is compatible with trolley set 60.069, ensuring optimal performance of the entire running system.
Key Benefits
- Elimination of lateral forces – the semi-open channel shape protects the trolley's load-bearing wheels from uneven wear and extends their service life
- Quiet and smooth operation – the precise profile geometry prevents the gate from jamming
- Corrosion resistance – the galvanised coating protects the rail against rust and the effects of weather conditions
- Fast bolted installation – ready-drilled mounting holes eliminate the need for welding and reduce installation time
- 6 m length – fewer joints along the entire gate travel length
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Running System Type | Suspended system |
| Rail Size | 68x68x3,5 |
