PV Mounting Profile End Cap 40×40 mm Grey LLDPE – Type 2

Availability: In stock (large quantity)
Delivered within: 10 Business days
Delivery: The price does not include any possible payment costs check the delivery methods
Weight: 0.01 kg
Price / pcs.: £0.10 0.10
excl. shipping costs




quantity pcs.
Total:

product unavailable

add to wish list
* - Field mandatory
Visa Mastercard Google Pay Apple Pay PayPal Bank Transfer
Rating: 0
Vendor: -
Product code: GPV-19-02

Description

PV Mounting Profile End Cap 40×40 mm Grey LLDPE – Type 2

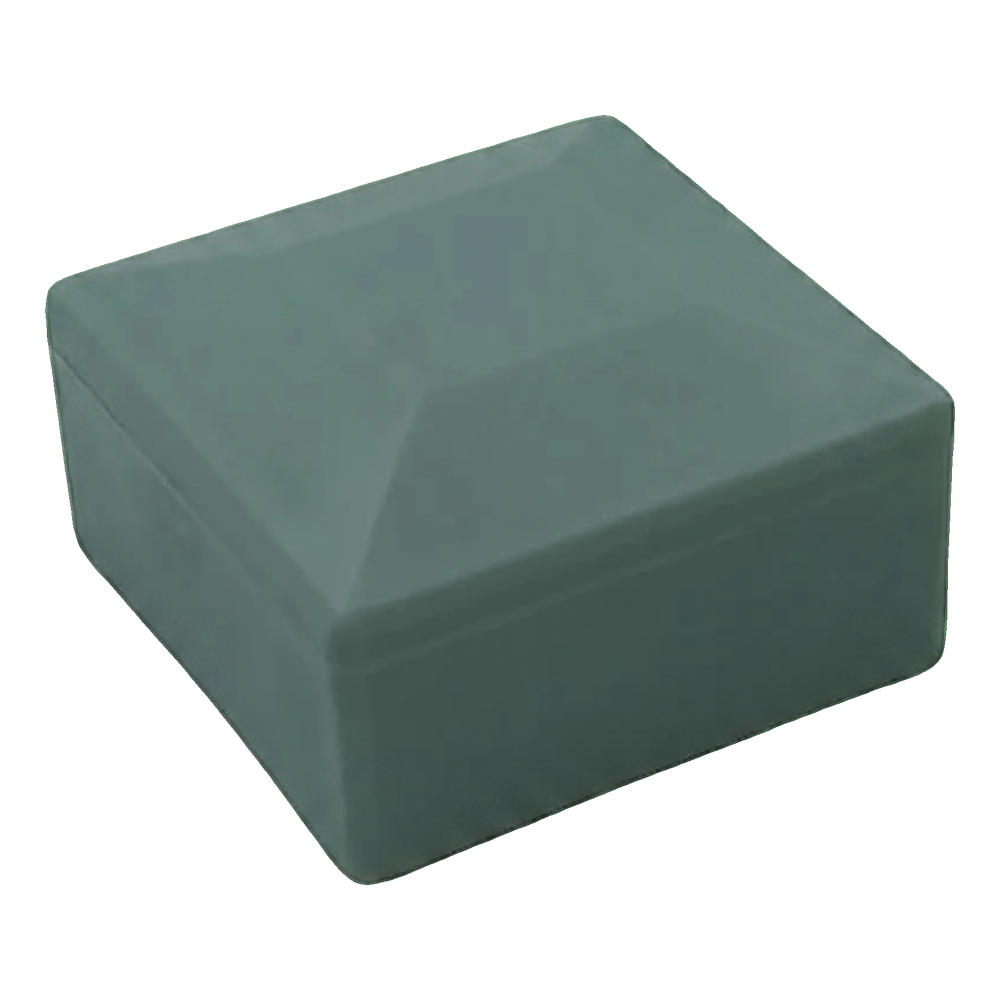

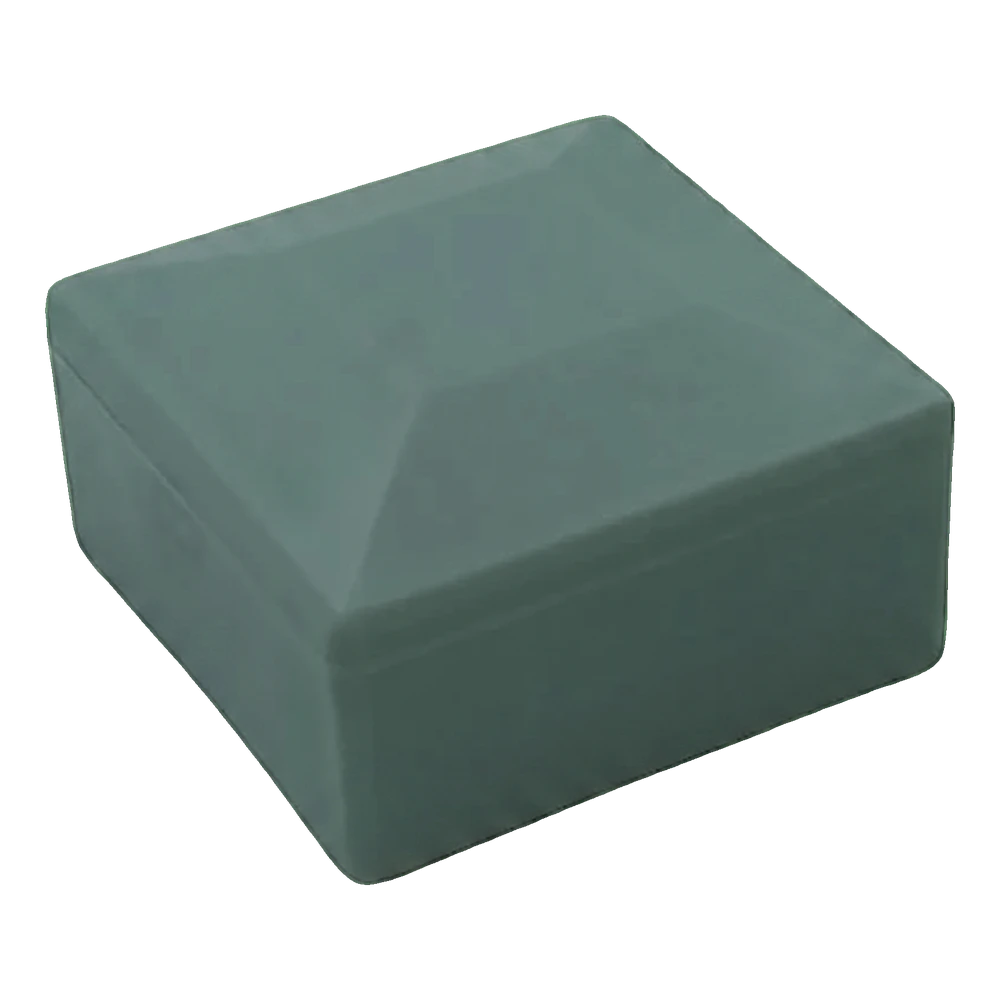

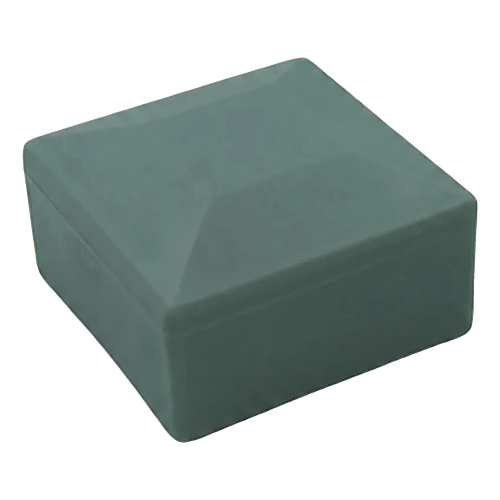

Mounting profile end cap 40×40 grey – top view
Mounting profile end cap 40×40 grey – top view

The end cap for 40×40 mm mounting profiles is an essential finishing element for every photovoltaic installation. Fitted onto the ends of aluminium profiles, it effectively protects the inside of the profile from rainwater, dirt and contaminants, which could accelerate the degradation of the structure. Made of LLDPE polyethylene in grey, it ensures long-lasting resistance to weather conditions and UV radiation. Thanks to the flexibility of the material, the end cap is easy to fit onto the profile while holding securely in the cross-section. The type 2 element with its characteristic conical top gives the installation a professional, aesthetic appearance — particularly important on the roofs of residential and commercial buildings.

Why it is worth using PV profile end caps

  • Effectively protects the inside of the profile against the ingress of rainwater and contaminants
  • Material with high resistance to UV radiation and environmental corrosion — durability for years
  • Neat finishing of profile ends enhances the aesthetics of the entire photovoltaic installation
  • Flexible material enables quick push-fit installation without additional tools
  • Minimal weight — does not burden the profile or require additional fixings

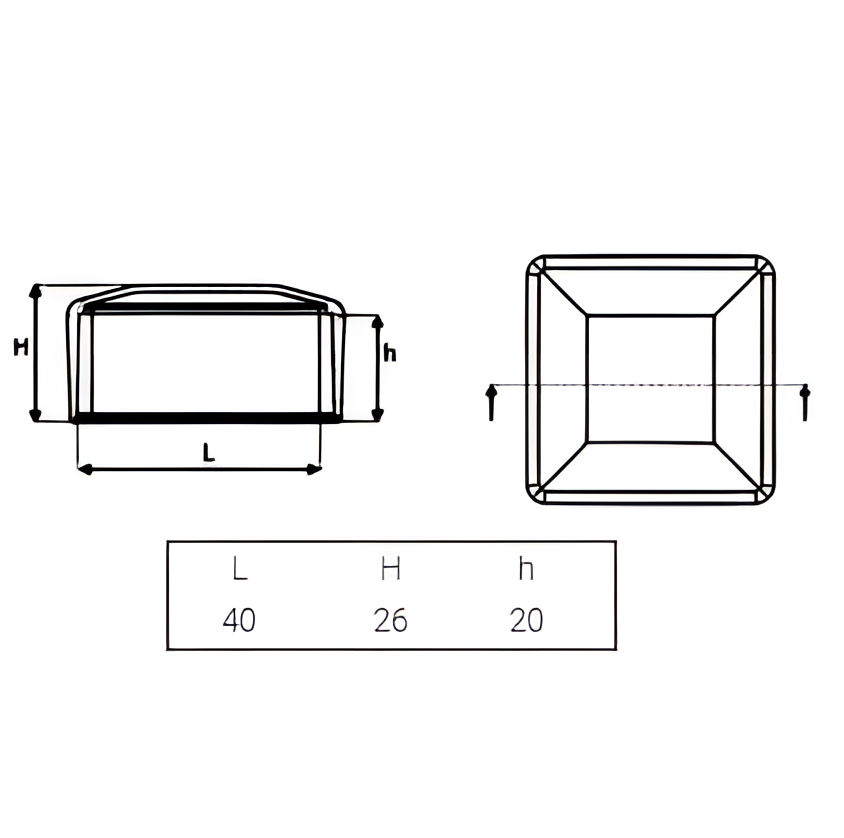

Dimensional drawing of the 40×40 mm end cap – L 40, H 26, h 20
Dimensional drawing of the 40×40 mm end cap – L 40, H 26, h 20

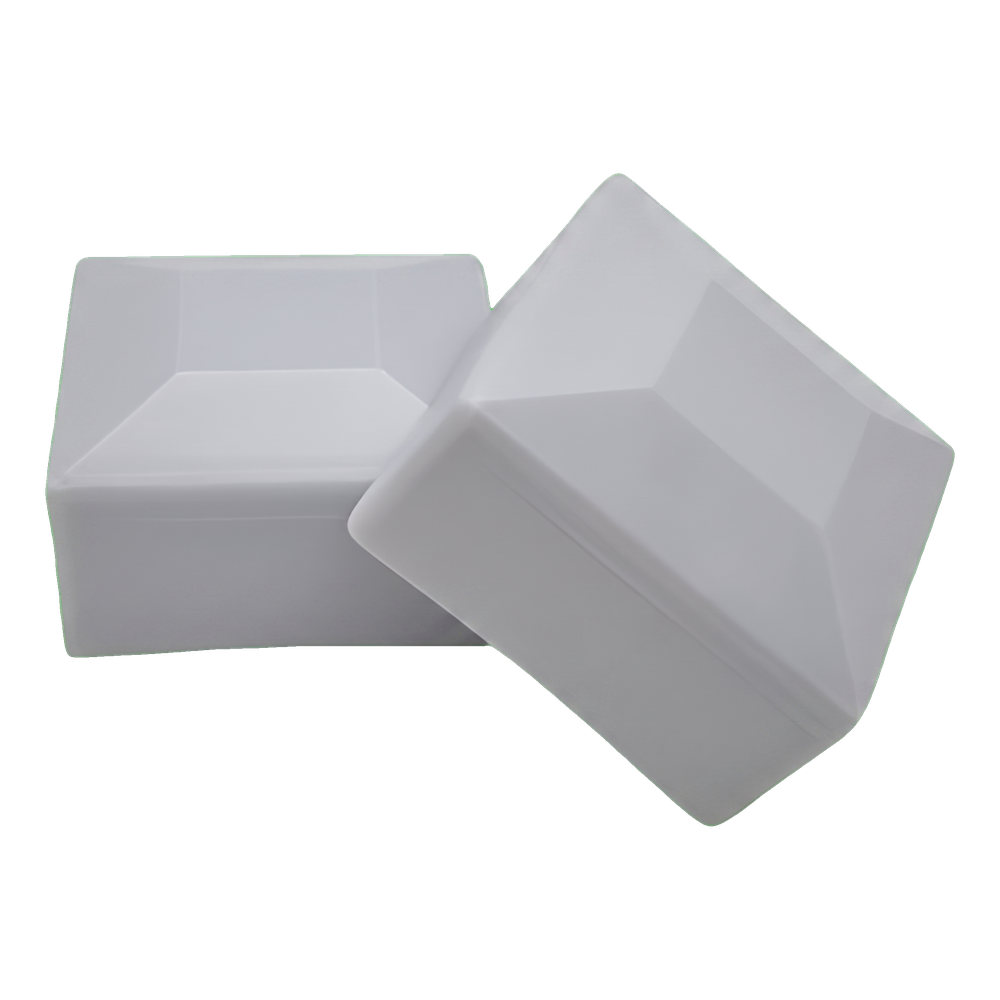

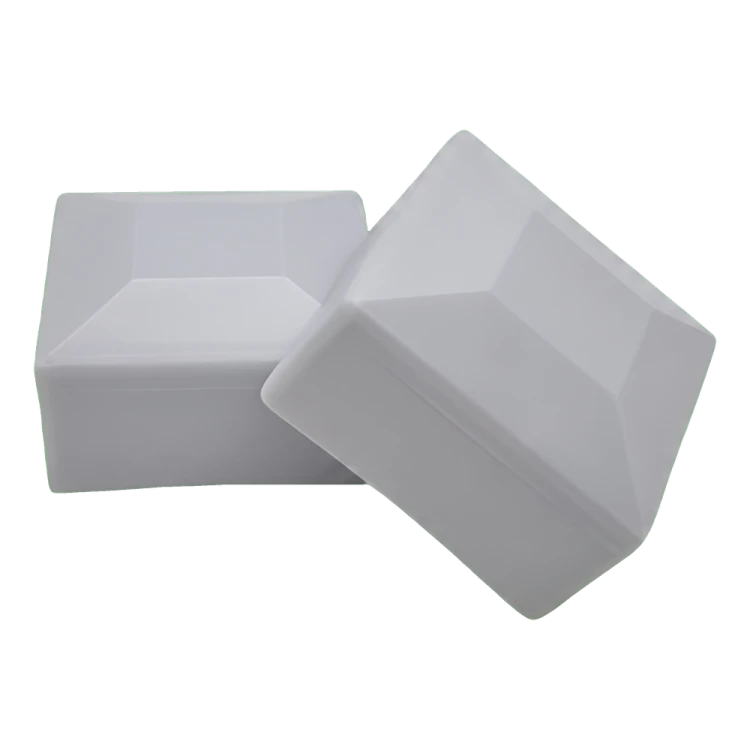

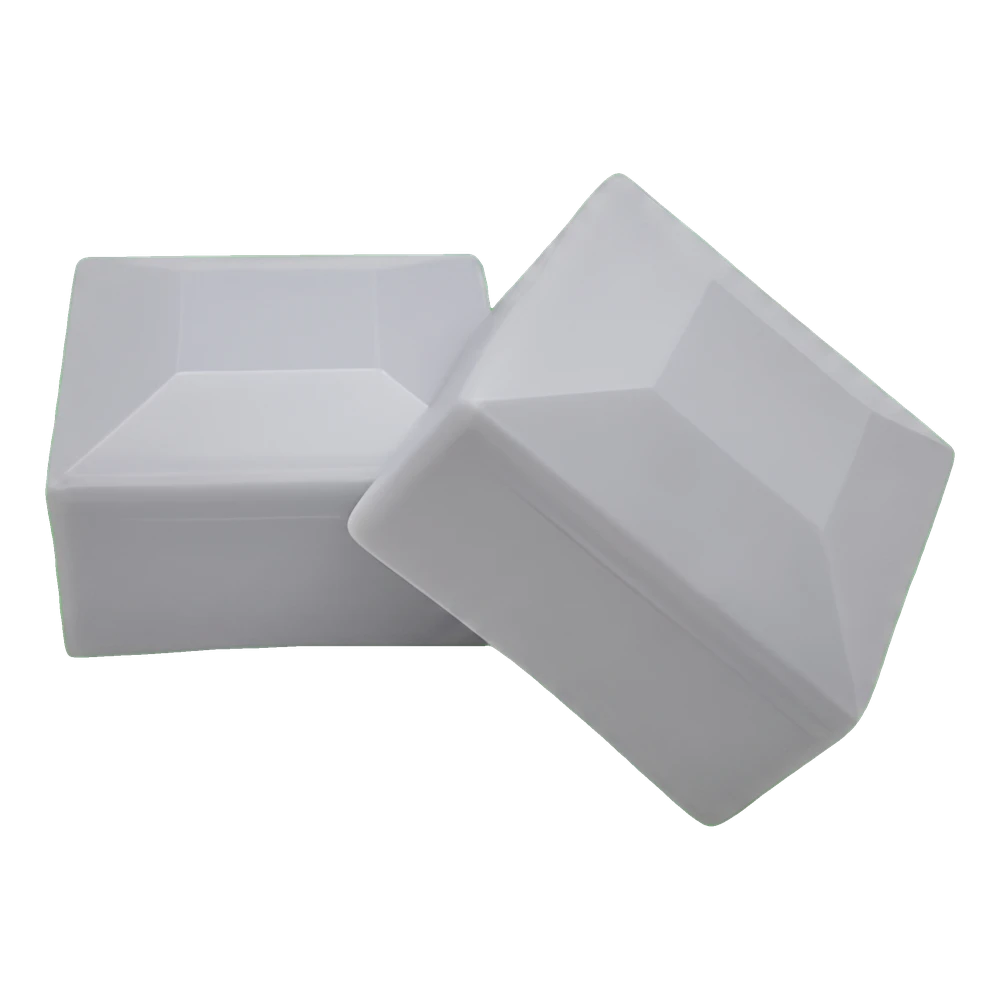

Mounting profile end caps – view of two pieces
Mounting profile end caps – view of two pieces
Video presenting the PV mounting profile end cap
Video presenting the installation of the end cap on a photovoltaic profile

Material and properties

MaterialLLDPE polyethylene
Colourgrey
UV and weather resistancehigh
Operating temperature rangefrom –100 °C

Dimensions

Fitting dimension40×40 mm
Length (L)40 mm
Overall height (H)26 mm
Insertion depth (h)20 mm
Type / shapetype 2 – conical top
Weight0.01 kg

Installation and application

Installation methodpush-fit onto the end of the profile
Compatible profiles40×40 mm mounting profiles
Applicationphotovoltaic structures — protection of profile ends
