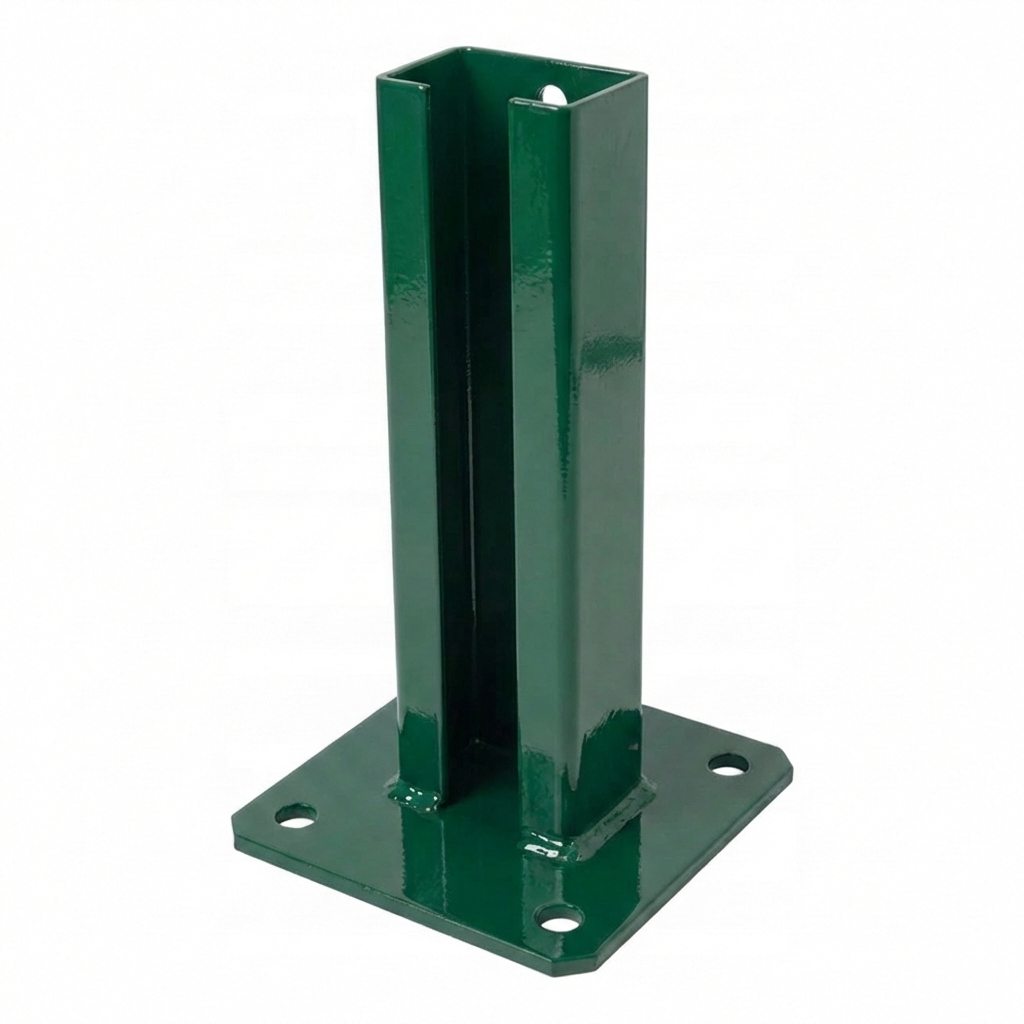

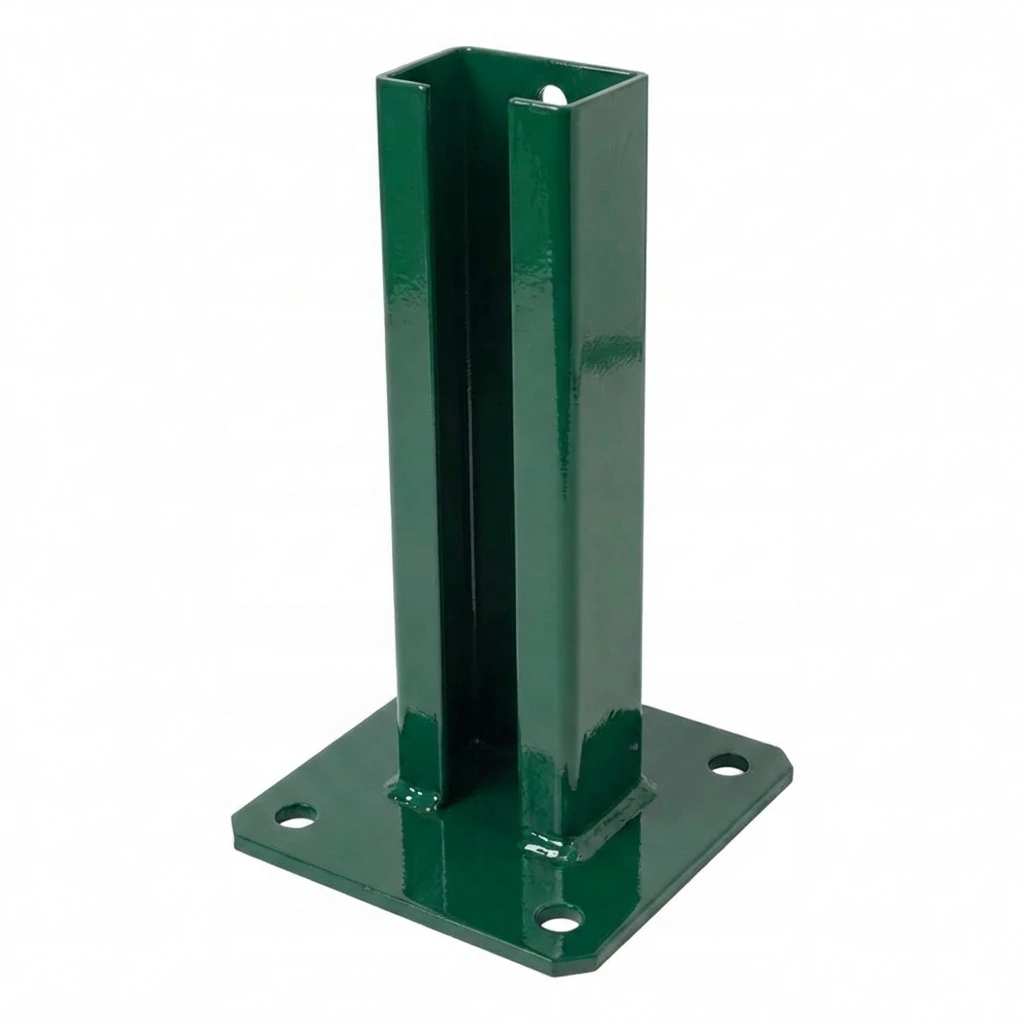

Fence post base 60x40 green RAL 6005 galvanised

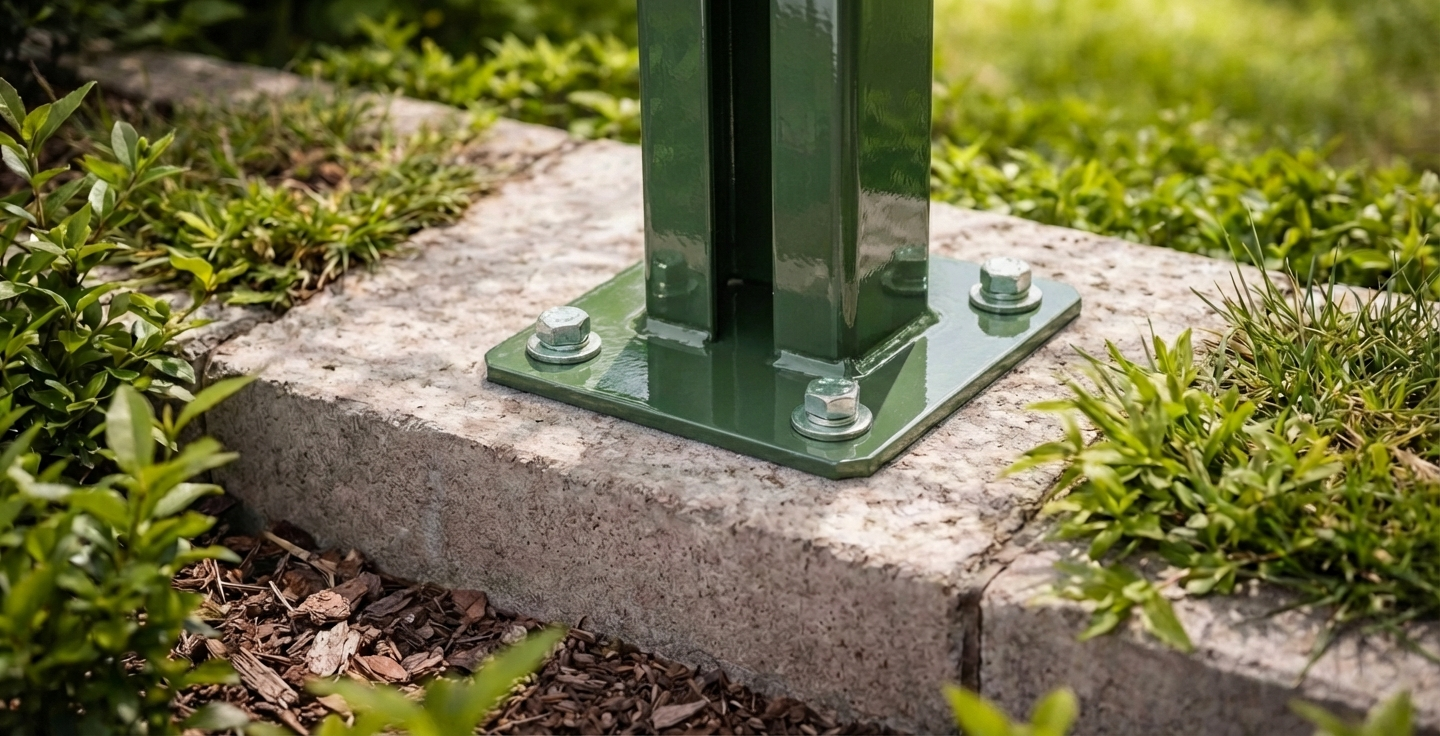

The product is dedicated to posts with a profile cross-section of 60×40 mm, used in panel fencing systems. The base enables quick and secure installation using screws or concrete anchors — simply fix it to the surface through four factory-drilled holes and insert the post into the bracket profile.

Why choose the powder-coated version? The combination of galvanic zinc plating and powder coating provides double anti-corrosion protection even in harsh weather conditions. This solution is dedicated to outdoor applications, where in addition to durability, decorative function also matters — the green colour blends well with natural surroundings and typical mesh fencing.

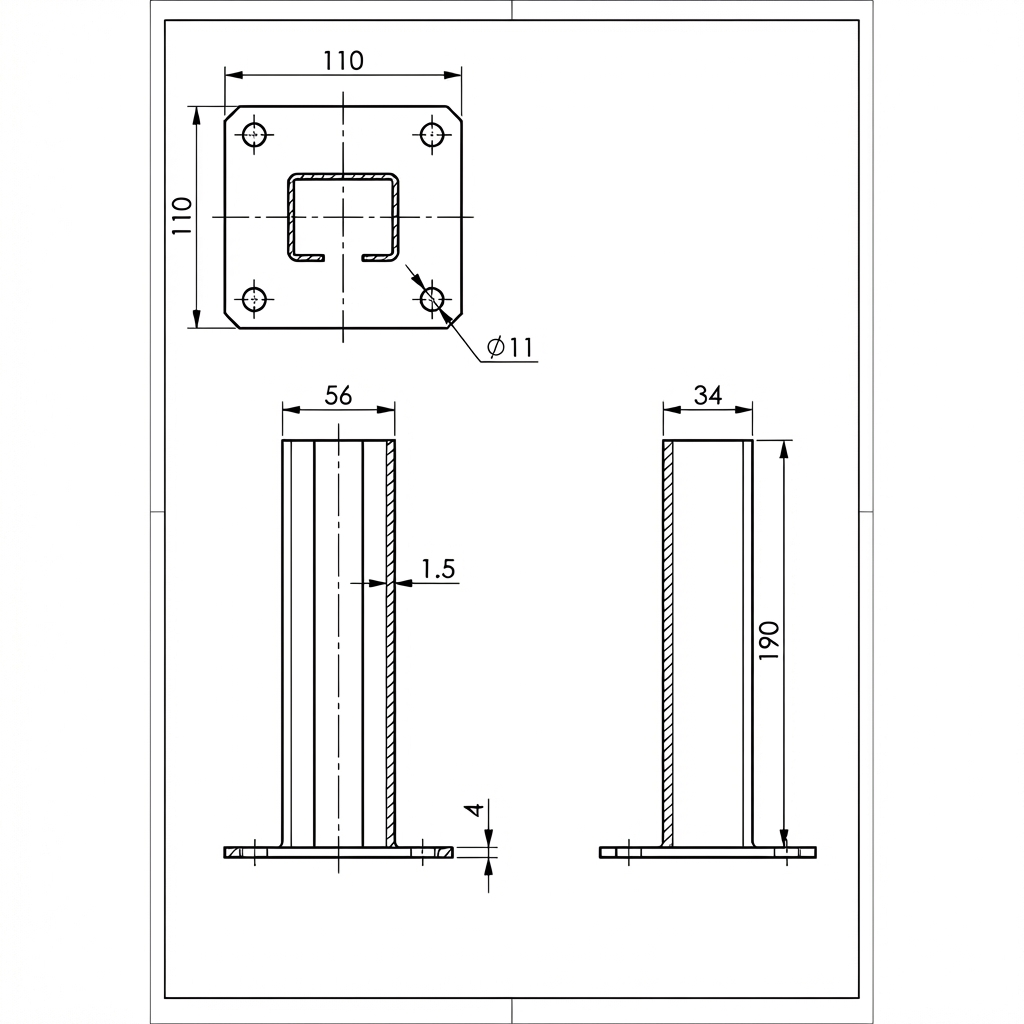

Technical specifications

• Base (plate) dimensions: 110 × 110 mm
• Plate thickness: 4 mm
• Mounting holes: 4 × 11 mm
• Bracket profile dimensions: 190 × 58 × 38 mm
• Profile wall thickness: 1.5 mm
• Suitable for posts: 60 × 40 mm
• Protection: galvanic zinc plating + powder coating (RAL 6005, for outdoor use)

Key advantages

• Ready to install — factory-drilled holes speed up installation
• Solid construction — thick sheet metal (4 mm) and strong welds guarantee stability
• Double protection — galvanic zinc plating + powder coating for maximum durability
• Weather resistance — ideal for outdoor applications
• Neutral appearance — powder coating in RAL 6005 (green) blends well with green fencing and surroundings

The base is compatible with standard fence posts with a 60×40 mm profile, used in most panel fencing systems. An ideal solution for installation companies carrying out fence mounting on ready-made foundations and concrete plinths outdoors — even in harsh weather conditions.
