Synerga

Fence post 60x40x1.2 mm, length 2.4 m, green

Go to Product feedback

Steel fence post, 60×40 mm, height 240 cm, wall thickness 1.2 mm. The RAL 6005 polyester coating provides protection against corrosion. Compliant with PG-EN 10219, supplied with an end cap.

Go to full description
with VAT without VAT
Price €11.37
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] slupki #109

  • Profile [mm] 60x40
  • Wall Thickness [mm] 1.2
  • Length [mm] 2400
  • Colour Green RAL 6005

Description

Fence post · 60 × 40 mm · 2.4 m

Steel tube 60 × 40 mm with a wall thickness of 1.2 mm, length 2400 mm – post for panel fencing

60 × 40 mmcross-section
1.2 mmwall thickness
2.4 mlength
zinc-coated and powder-coated, green RAL 6005coating

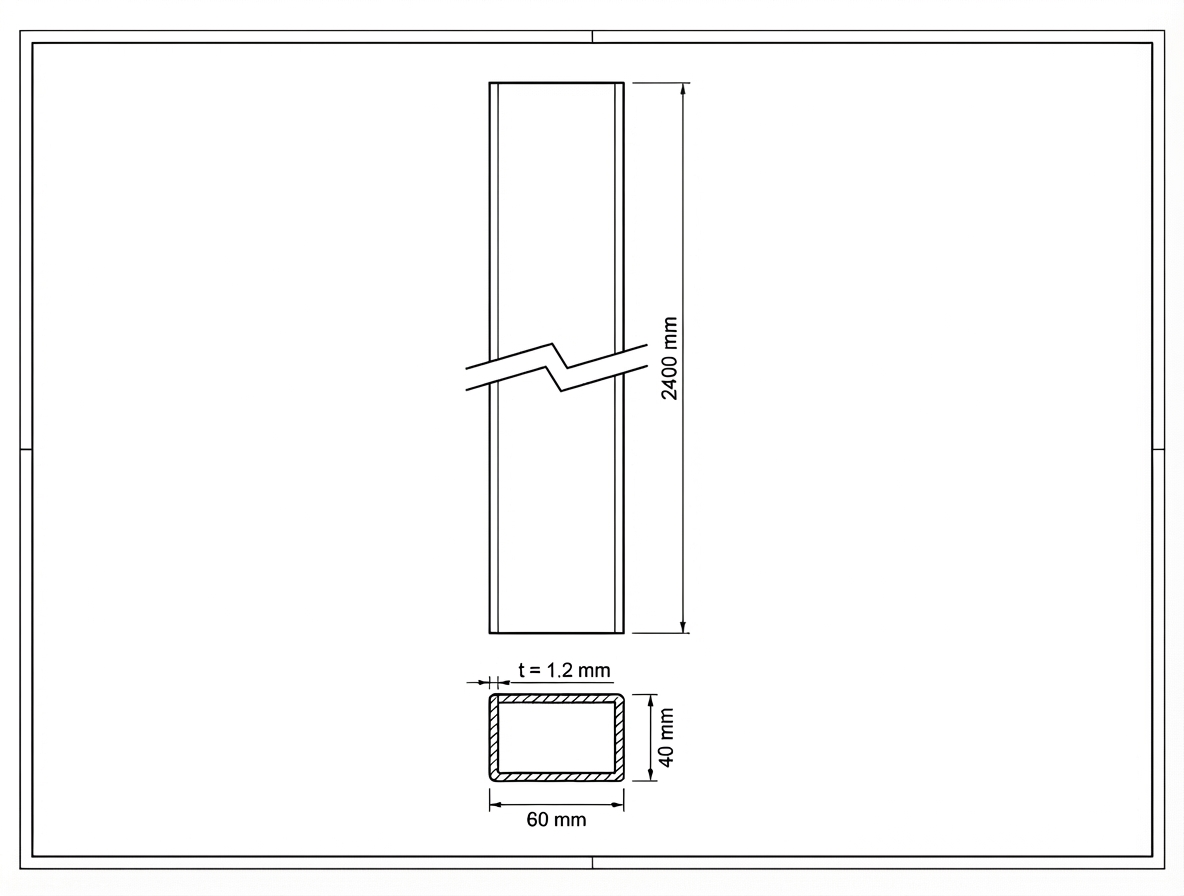

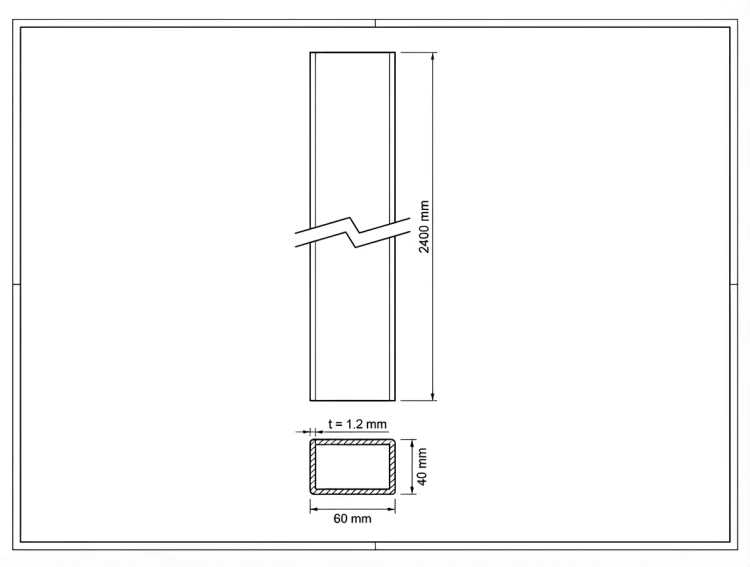

Fence post dimensional drawing: cross-section a × b = 60 × 40 mm, wall thickness s = 1.2 mm, length L = 2400 mm
Open the dimension drawing in full size
Illustrative drawing: post view (with a break) and tube cross-section.

Quick choice

ApplicationSupport post for panel fencing; panels are secured to it with fence post clamps
SelectionChoose fence post clamps, fence post base plates and post caps to suit the 60 × 40 mm cross-section
ConditionsThe zinc coating protects the steel against corrosion under typical conditions; in the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions

About the product

The post is a load-bearing component of panel fencing. It is made from steel tube with a cross-section of 60 × 40 mm, and the panels are secured to it with fence post clamps sized to suit this cross-section.

In the drawing, a × b denotes the external cross-sectional dimensions: 60 × 40 mm. The tube wall thickness s is 1.2 mm, and the post length L is 2400 mm. The dimensions are taken from the manufacturer's drawing and comparison table; the cross-section is not shown to scale relative to the length.

The coating (zinc-coated and powder-coated, green RAL 6005) protects the steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions. The post embedment depth is specified by the fence design.

Dimensions

External cross-section a × b60 × 40 mm
Wall thickness s1.2 mm
Length L2400 mm
Dimensions according to the manufacturer's drawing and comparison table.

Material and coating

Materialsteel
Coatingzinc-coated and powder-coated, green RAL 6005

Unit of sale

Sales unit1 pcs

Selection and installation

  • ✓Choose the post length to suit the panel height and embedment depth – the post length is 2400 mm.
  • ✓Set the post into a foundation or secure it to a fence post base plate designed for the 60 × 40 mm cross-section.
  • ✓Before the concrete sets, check that the posts are plumb and spaced to suit the panel width.

Important

The manufacturer's data does not specify the post's weight or load-bearing capacity. Choose the embedment depth and foundation to suit the fence height and ground conditions.
