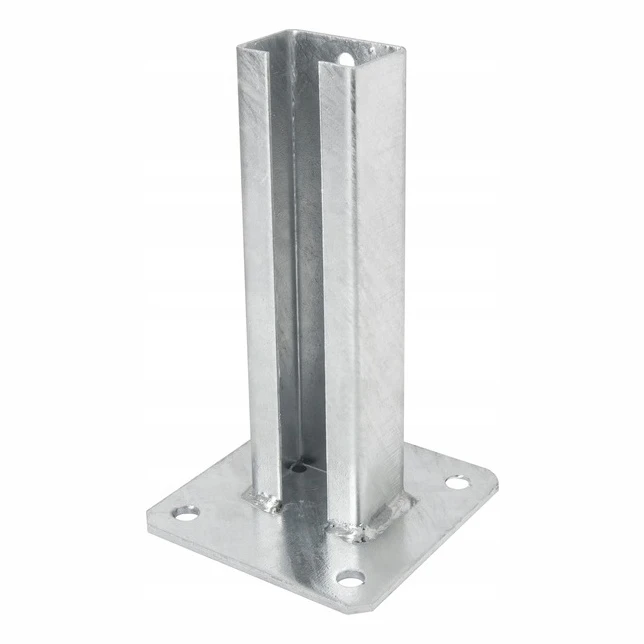

Fence post base 60x40 galvanised

The product is dedicated to posts with a profile cross-section of 60×40 mm, used in panel fencing systems. The base enables quick and secure installation using screws or concrete anchors — simply attach it to the substrate through four factory-drilled holes and insert the post into the bracket profile.

Why choose the galvanised version? Galvanic zinc plating ensures a uniform protective coating across the entire surface of the element. This solution works well wherever corrosion resistance is a priority without the need for additional painting. Particularly recommended for indoor applications, such as warehouses, facilities or covered spaces.

Technical specifications

• Base dimensions (plate): 110 × 110 mm
• Plate thickness: 4 mm
• Mounting holes: 4 × 11 mm
• Bracket profile dimensions: 190 × 58 × 38 mm
• Profile wall thickness: 1.5 mm
• Dedicated to posts: 60 × 40 mm
• Protection: galvanic zinc plating (without painting) for indoor applications

Key advantages

• Ready to install — factory-drilled holes speed up installation
• Solid construction — thick sheet metal (4 mm) and strong welds guarantee stability
• Galvanic zinc plating — effective anti-corrosion protection without additional painting
• Weather resistance — product for indoor applications

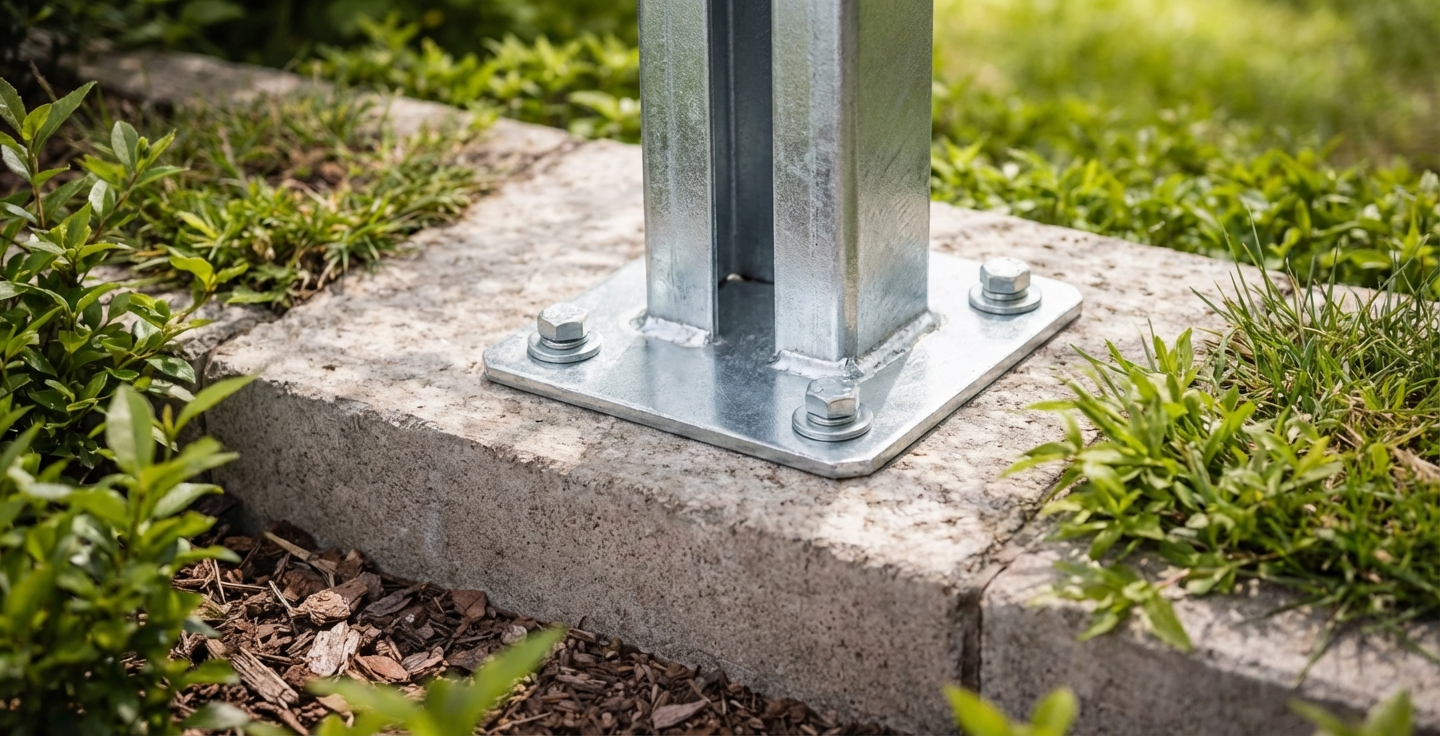

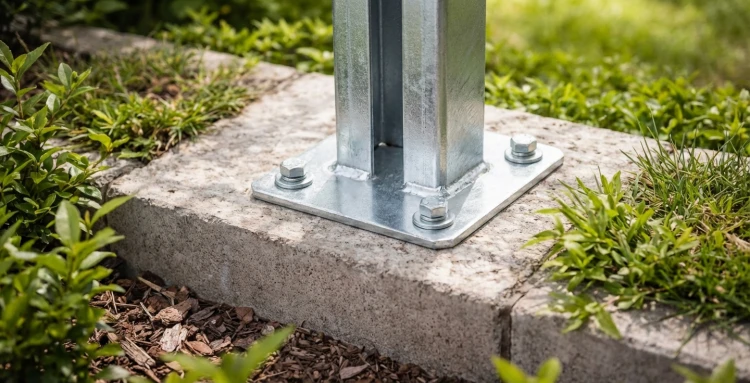

• Universal application — installation on concrete foundations, base walls and footings in facilities and warehouses

The base is compatible with standard fence posts with a 60×40 mm profile, used in most panel fencing systems. An ideal solution for installation companies carrying out fence installation on ready-made concrete foundations and base walls inside warehouses and facilities.
