Trolley package for 68x68 mm profile with plastic wheels, with approach roller and approach bracket

Kit Contents

• Running trolley — 2 pcs
• Ride-on roller — 1 pc
• Ride-on bracket (ride-on socket) — 1 pc

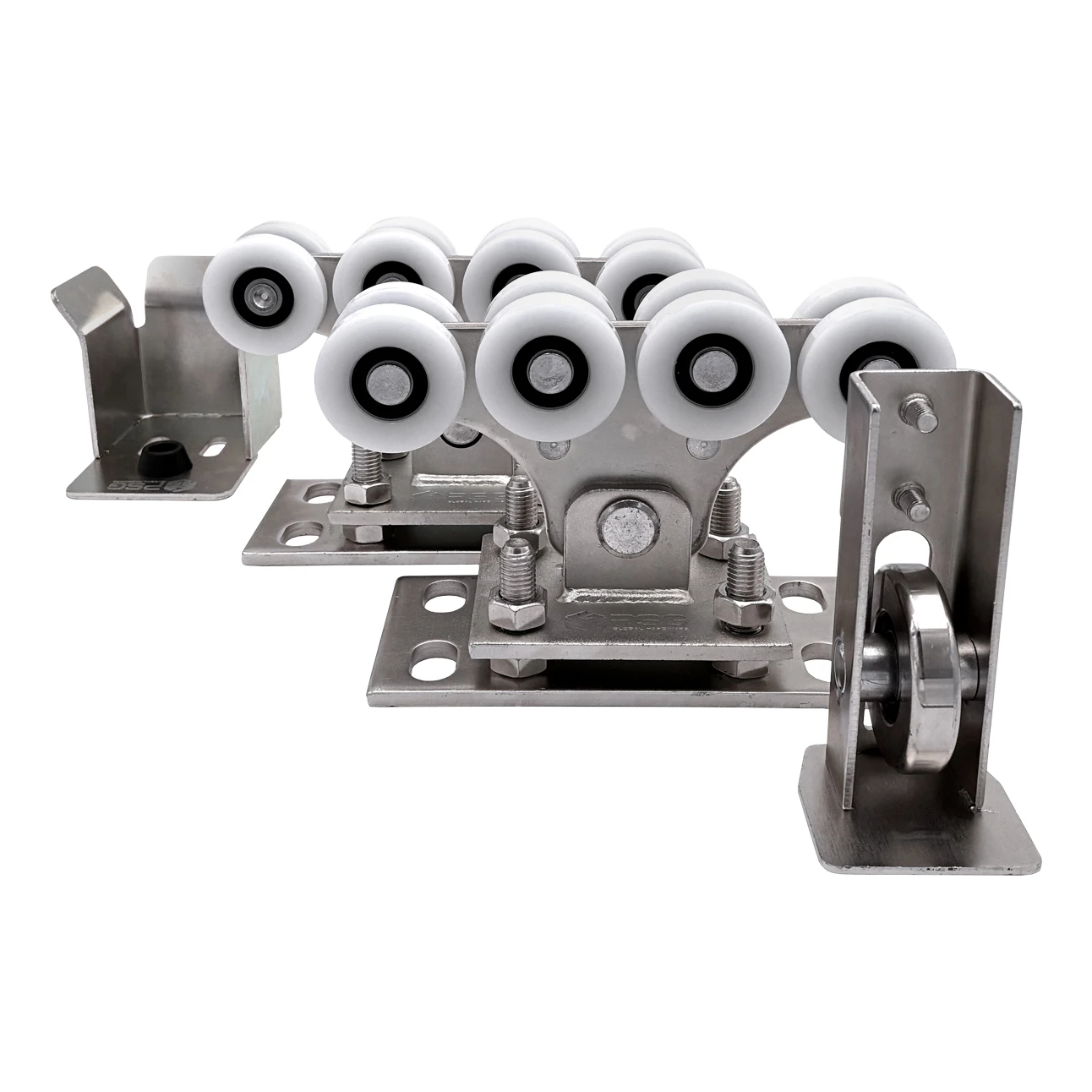

The kit provides a complete running gear assembly for a cantilever gate — simply mount the components on the foundation and post to obtain a fully functional sliding system.

Running Trolleys — the Heart of the System

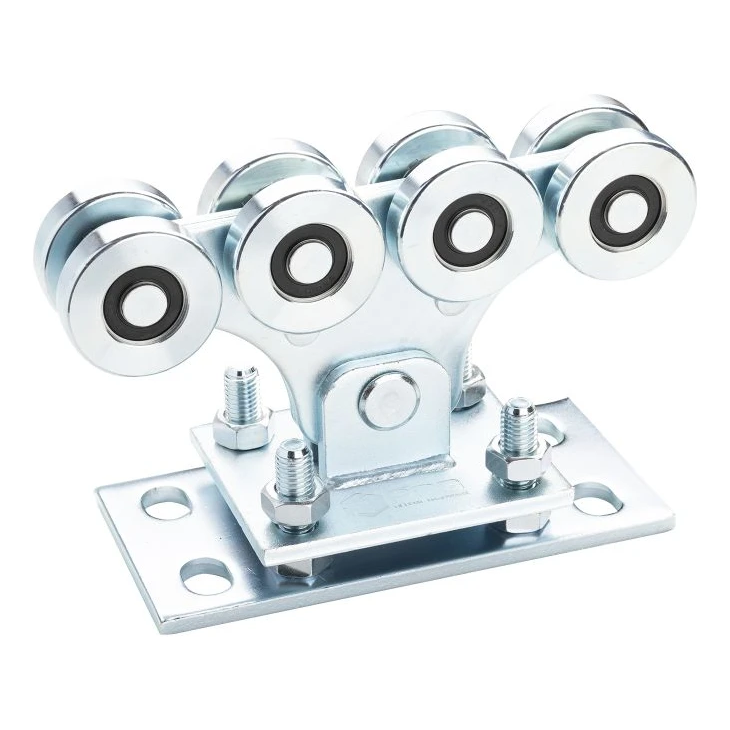

The two running trolleys are responsible for guiding and supporting the gate leaf. Each is fitted with 8 plastic rollers arranged on two levels, ensuring even guidance and stabilisation of the leaf. The plastic rollers operate quietly and require minimal lubrication, while 6201 RS sealed ball bearings guarantee low rolling resistance and protection against contamination.

Running Trolley Technical Specifications

• Frame material: electro-galvanised steel
• Running gear: 8 plastic rollers on two levels
• Bearings: ball bearings 6201 RS
• System: 68×68 mm
• Base plate dimensions: 200 × 100 × 8 mm
• Overall roller assembly width: 48 mm
• Roller rolling diameter: 56 mm
• Roller outer diameter: 60 mm
• Single roller width: 14.5 mm
• Central bracket thickness: 10 mm
• Adjustment bolt thread: M14
• Base plate thickness: 2 × 8 mm
• Trolley height: 157 mm
• Roller diameter: 68 mm

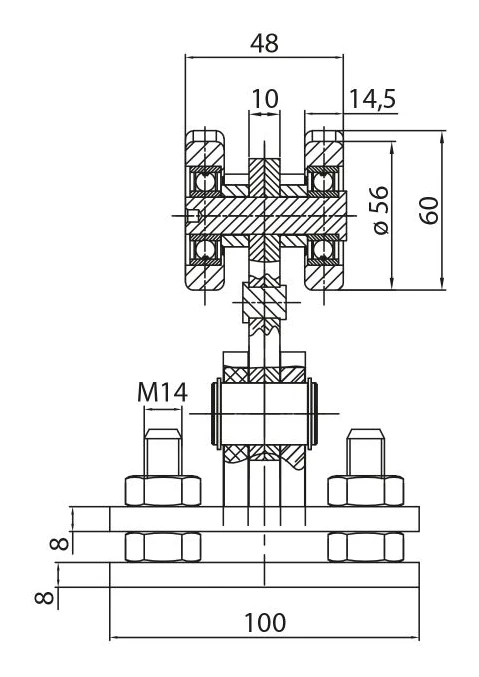

The dimensional drawing shows a cross-section of the running trolley with key dimensions indicated. The two-level roller arrangement ensures optimal load distribution, while the double base plate with M14 bolt adjustment allows precise setting of the gate leaf height and vertical alignment after installation.

Ride-On Roller — Stabilisation and Protection

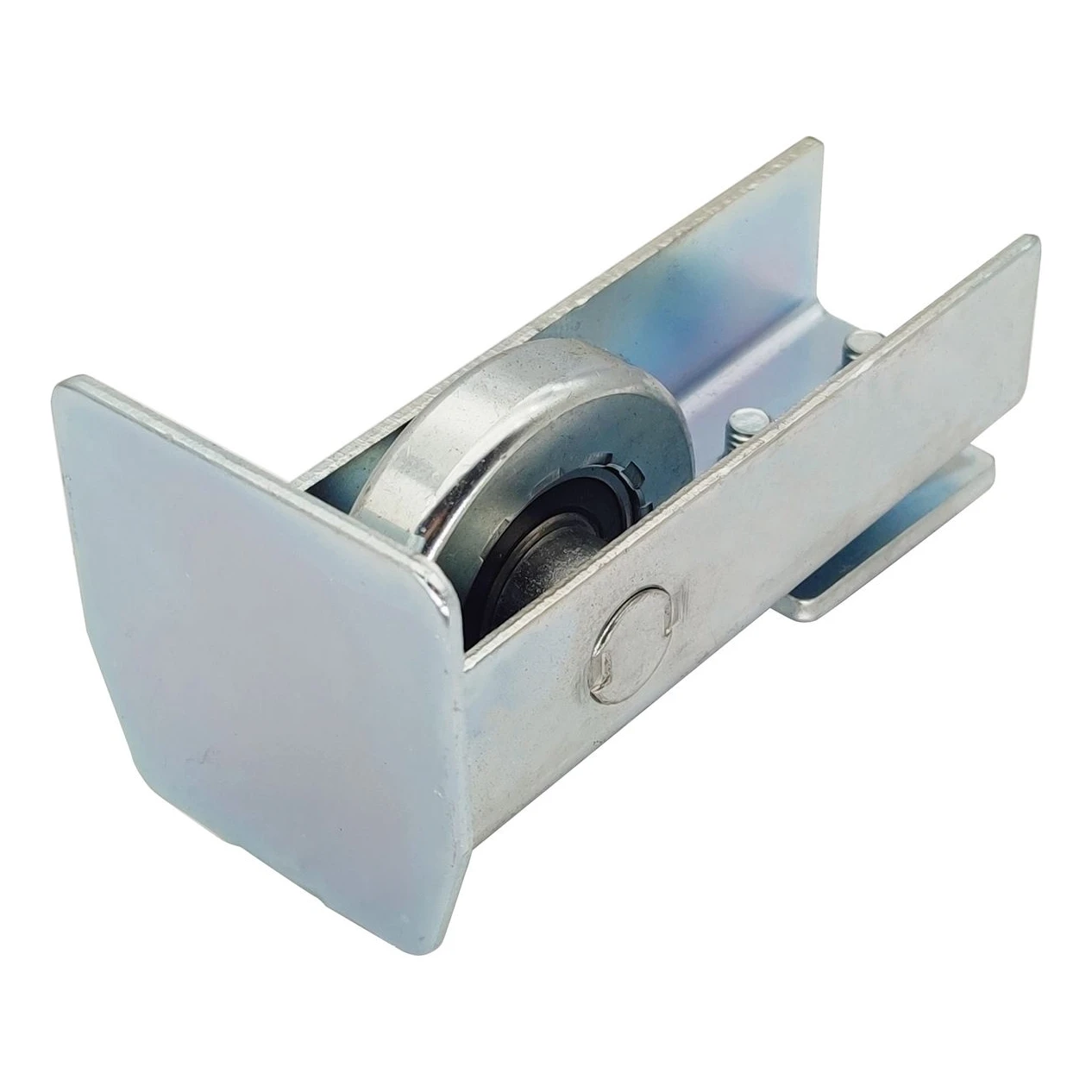

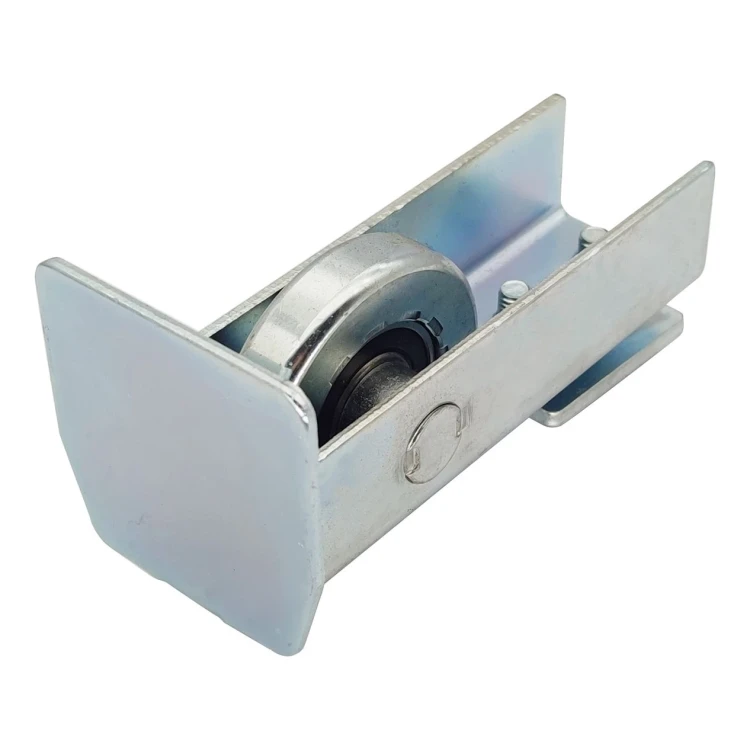

The ride-on roller is mounted at the start of the cantilever rail. Its galvanised steel construction absorbs part of the load and stabilises the gate leaf, improving the overall quality of gate operation. It works in conjunction with the ride-on bracket at the closing post, facilitating secure closure and reducing vibration. The roller also reduces wear on the running trolleys and, during winter, minimises the effect of snow and ice on gate operation.

• Compatibility: 68×68 mm system
• Finish: galvanised — corrosion protection

Ride-On Bracket — Precise Closure

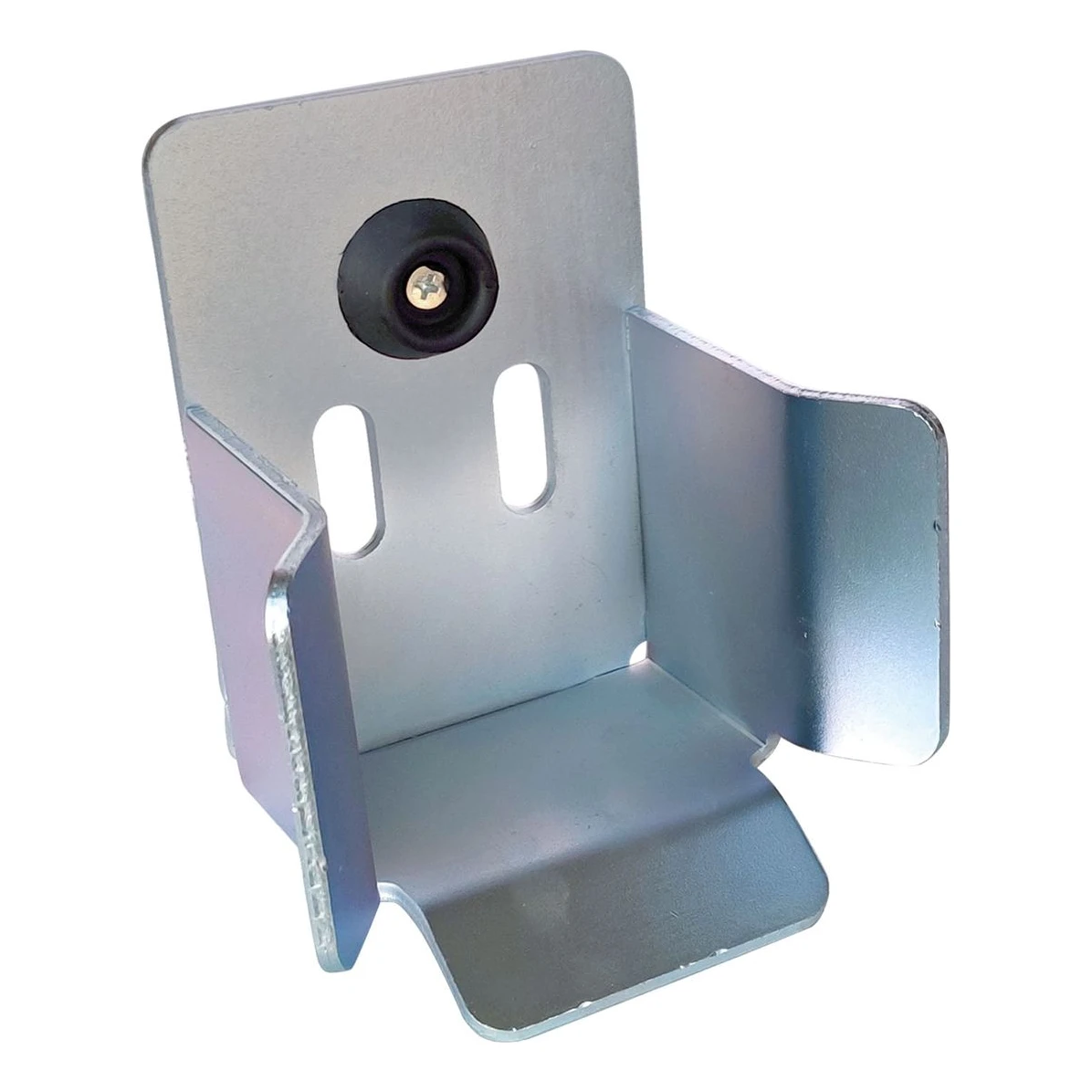

The ride-on socket guides the gate leaf and improves the stability of the entire system. Installation is quick and straightforward — the component is bolted to the lower part of the closing post. Together with the ride-on roller, it forms an assembly that guides the gate onto the post, ensures secure closure and reduces vibration. The rear face features two mounting holes and a rubber buffer that cushions the gate leaf on arrival.

• Compatibility: 68×68 mm system
• Finish: galvanised
• Buffer: rubber — cushions gate leaf on arrival

Kit Data

• Kit weight: 12.934 kg
• Packaging volume: 10,486.88 cm³
• EAN: 5903313208031
• Guide rail compatibility: 68×68 rail
