Synerga ZU-1 – Universal mounting bracket for PV clamps on carports and ground-mounted structures

Go to Product feedback

Synerga ZU-1 mounting bracket made of 304 (1.4301) stainless steel, 2 mm thick. Dimensions 30×30×30 mm, M8 thread. For photovoltaic clamps on Vica carports and ground-mount structures. Compatible with mid and end clamps.

Go to full description
with VAT without VAT
Price €1.86
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Description

Synerga ZU-1 – PV clamp mounting bracket for Vica carports and ground-mount structures

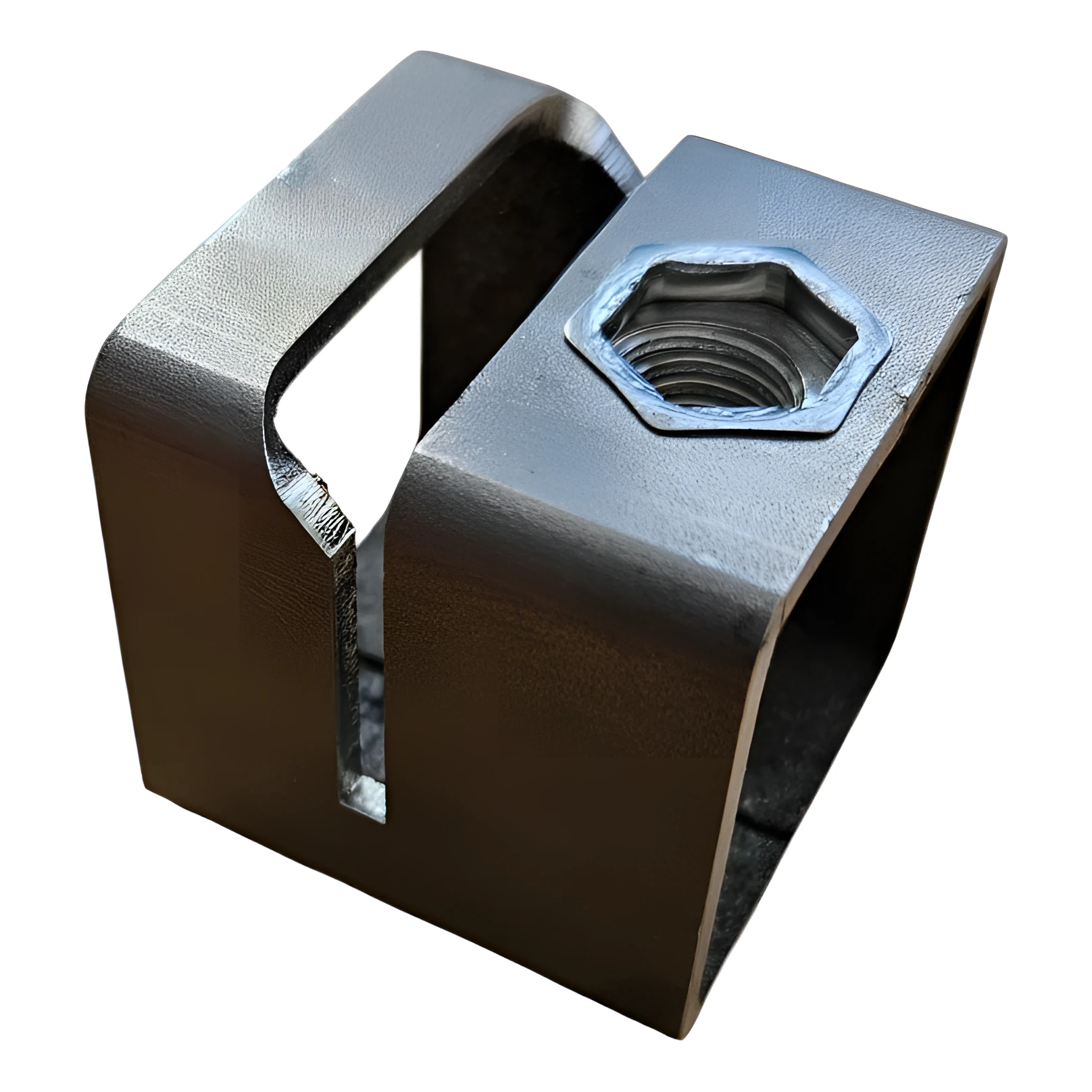

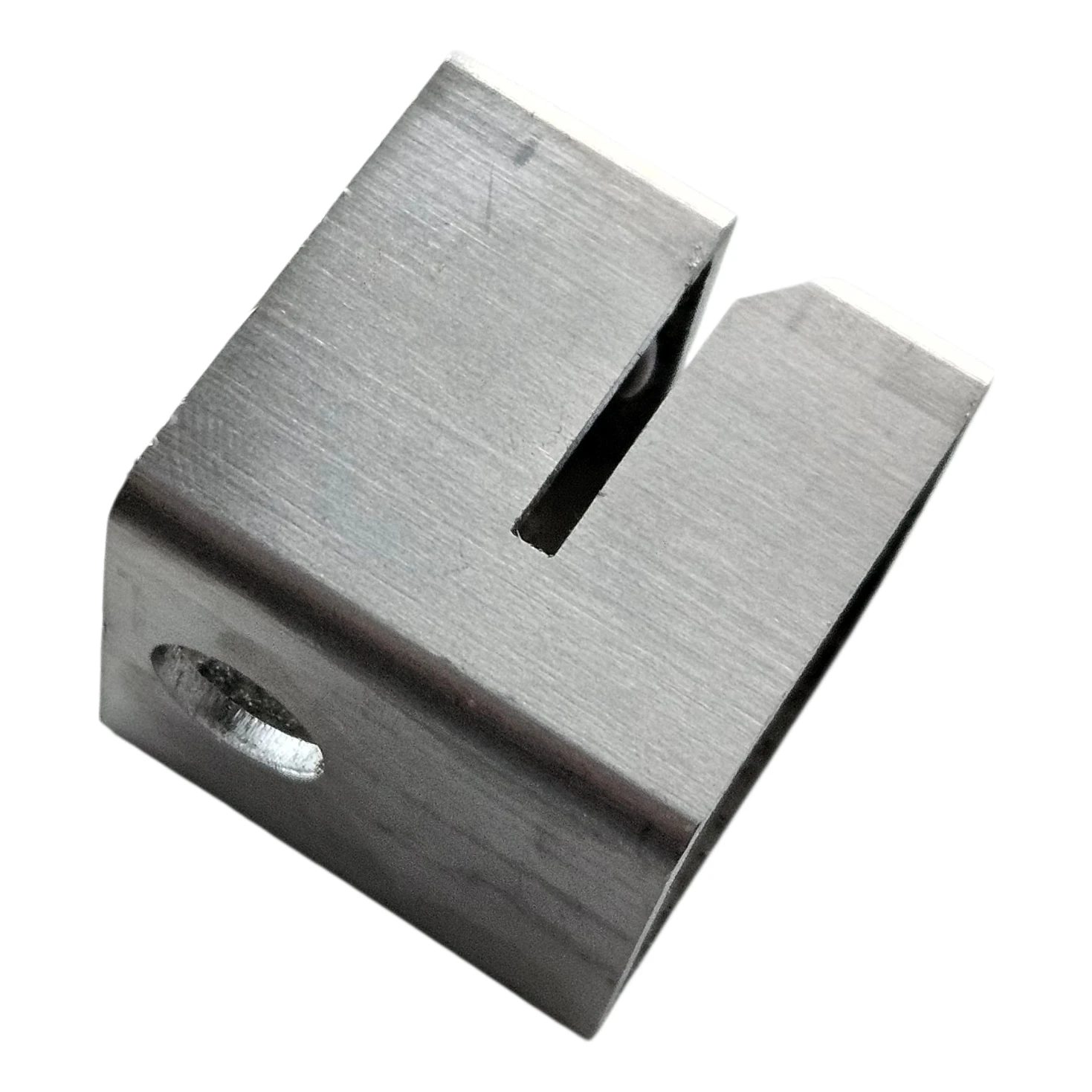

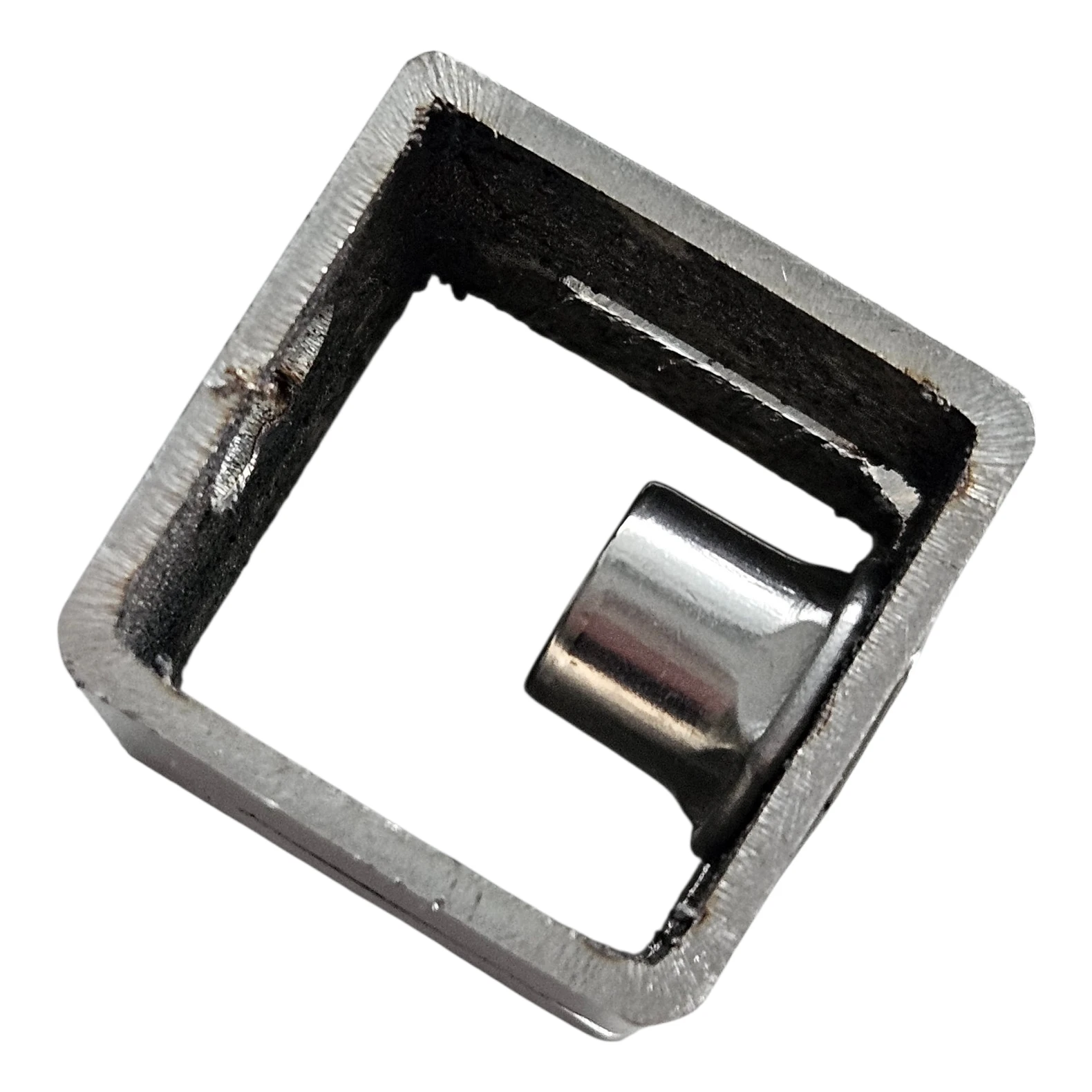

Synerga ZU-1 mounting bracket made of 304 (1.4301) stainless steel – product view with M8 screw socket
Synerga ZU-1 mounting bracket made of 304 (1.4301) stainless steel – product view with M8 screw socket

Synerga ZU-1 is a universal mounting bracket that significantly speeds up the installation of photovoltaic clamps on carport and ground-mount structures. Thanks to its compact, open design made of 304 (1.4301) stainless steel, the component allows a mid or end clamp to be fitted anywhere along the purlin — without the need for grooved rails. All you need is an M8 screw to achieve a solid, secure connection.

The bracket is slid onto the edge of the purlin and then tightened with an M8 screw passing through the internally threaded socket. The mounting point prepared in this way accepts any clamp — side or mid — giving the installer complete freedom in arranging the PV modules.

Technical parameters

  • Manufacturer: Synerga
  • Material: 304 (1.4301) stainless steel, thickness 2 mm
  • Dimensions: 30 × 30 × 30 mm
  • Thread: M8 (internal socket)
  • Compatibility: mid and end clamps for PV modules
  • Intended use: exclusively for our Vica carports and our Synerga ground-mount structures

Installation in practice

The photos below show the ZU-1 bracket fitted onto a steel purlin with a photovoltaic clamp — a ready-made mounting point for the panel:

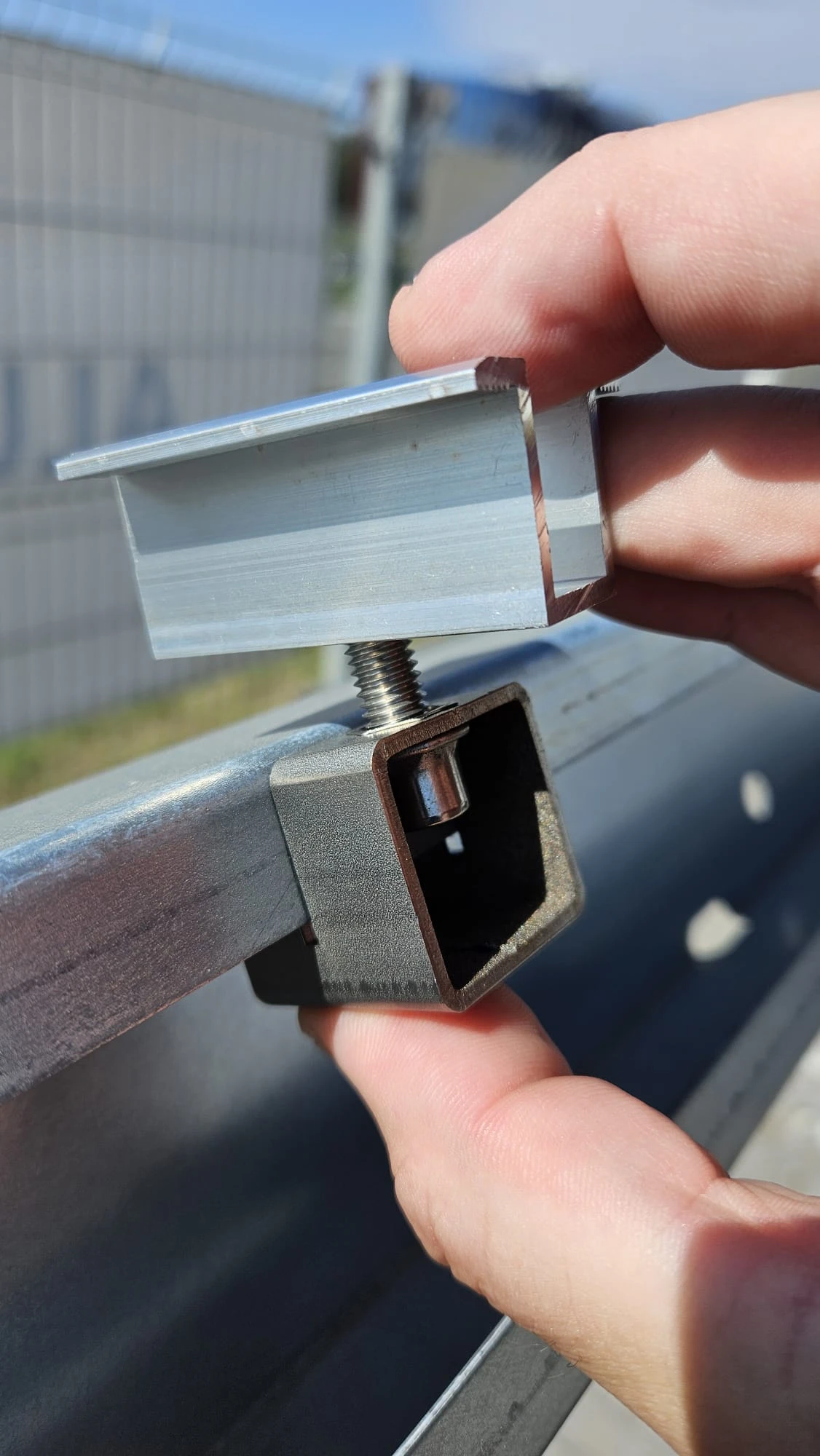

ZU-1 bracket with clamp fitted onto a carport purlin – front view
ZU-1 bracket with clamp fitted onto a carport purlin – front view

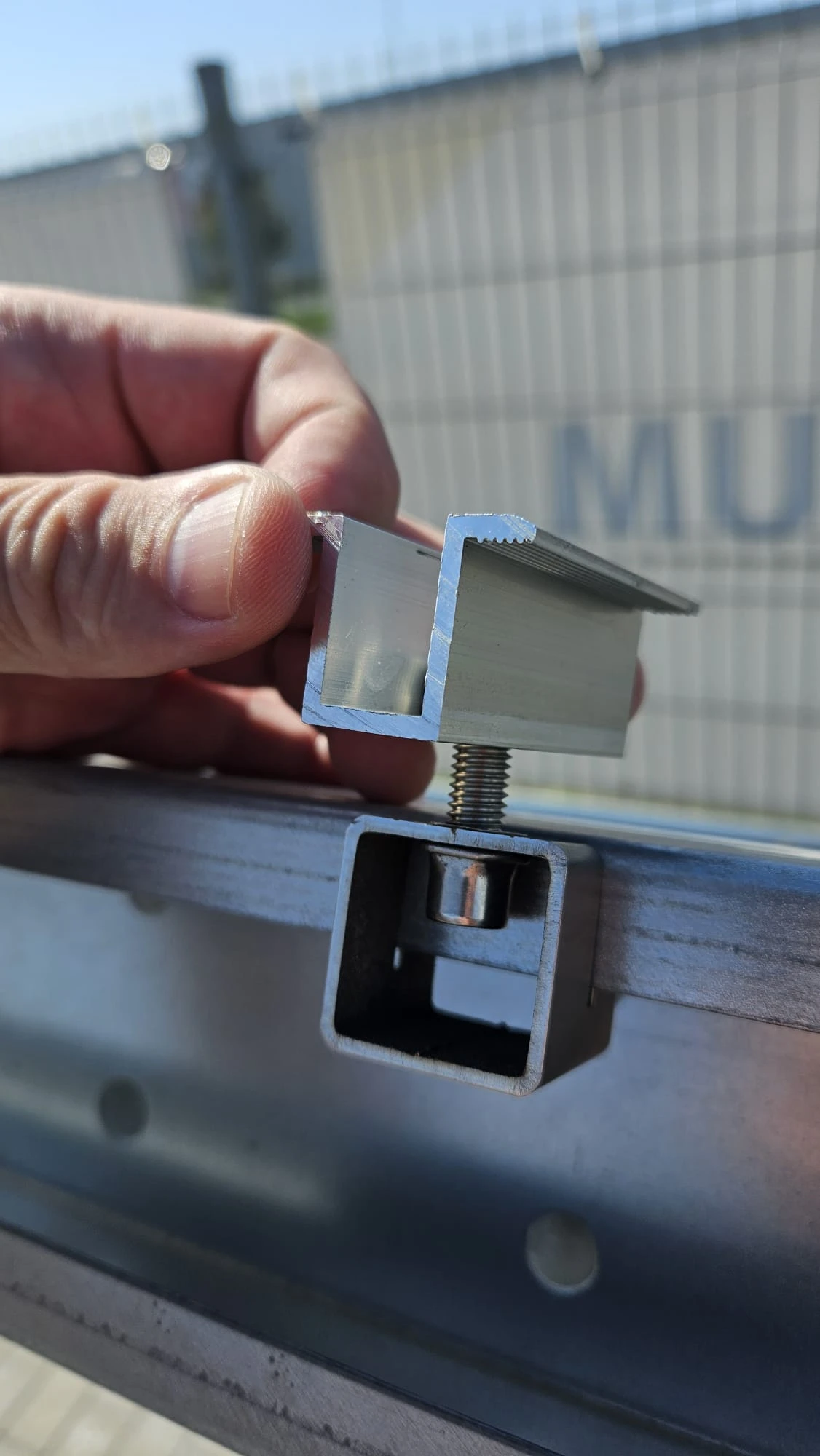

ZU-1 bracket with clamp fitted onto a purlin – side view showing how it is slid on
ZU-1 bracket with clamp fitted onto a purlin – side view showing how it is slid on

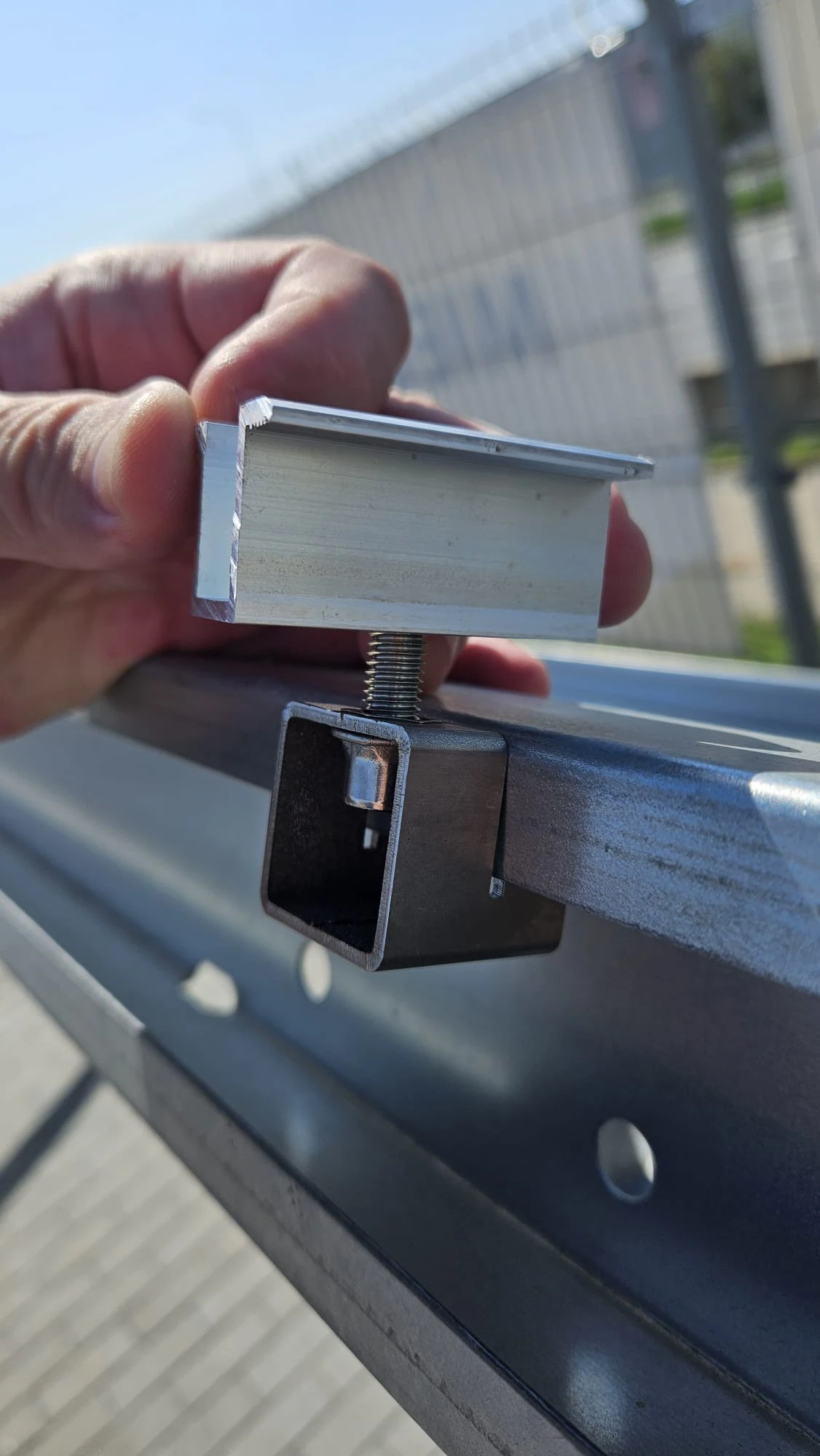

ZU-1 bracket with clamp on a carport purlin – overall view of the installed set
ZU-1 bracket with clamp on a carport purlin – overall view of the installed set

Benefits for the installer

  • Free positioning — fit the clamp exactly where the module spacing requires, without the limitations of a rail groove
  • Versatility — works with both mid and end (side) clamps
  • Quick installation — sliding onto the purlin and tightening with a single M8 screw takes only a matter of seconds
  • 304 (1.4301) stainless steel — high resistance to corrosion and weather conditions ensures a durable connection without additional anti-corrosion protection
  • Spare part — available individually, making it easy to select the required quantity
