Side clamp H30 KLIK black painted L50 (type 2)
Leave feedback on the product
Side clamp KLIK for PV panels with 30 mm frame, aluminium 6060 with black anodising. Includes mounting clip and A2 bolt. Compatible with profiles for hexagonal bolt, tightening torque max 20 Nm.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
Filter clamps
- Panel thickness [mm] -
- Colour Black
- Adjustment -
- Additional equipment Click-on version
- Grounding pin None
[PIM] Klemy #34
- Clamp Type End
- Panel thickness [mm] 30
- Colour Black
- Grounding pin No
- Additional accessories Click version
Description

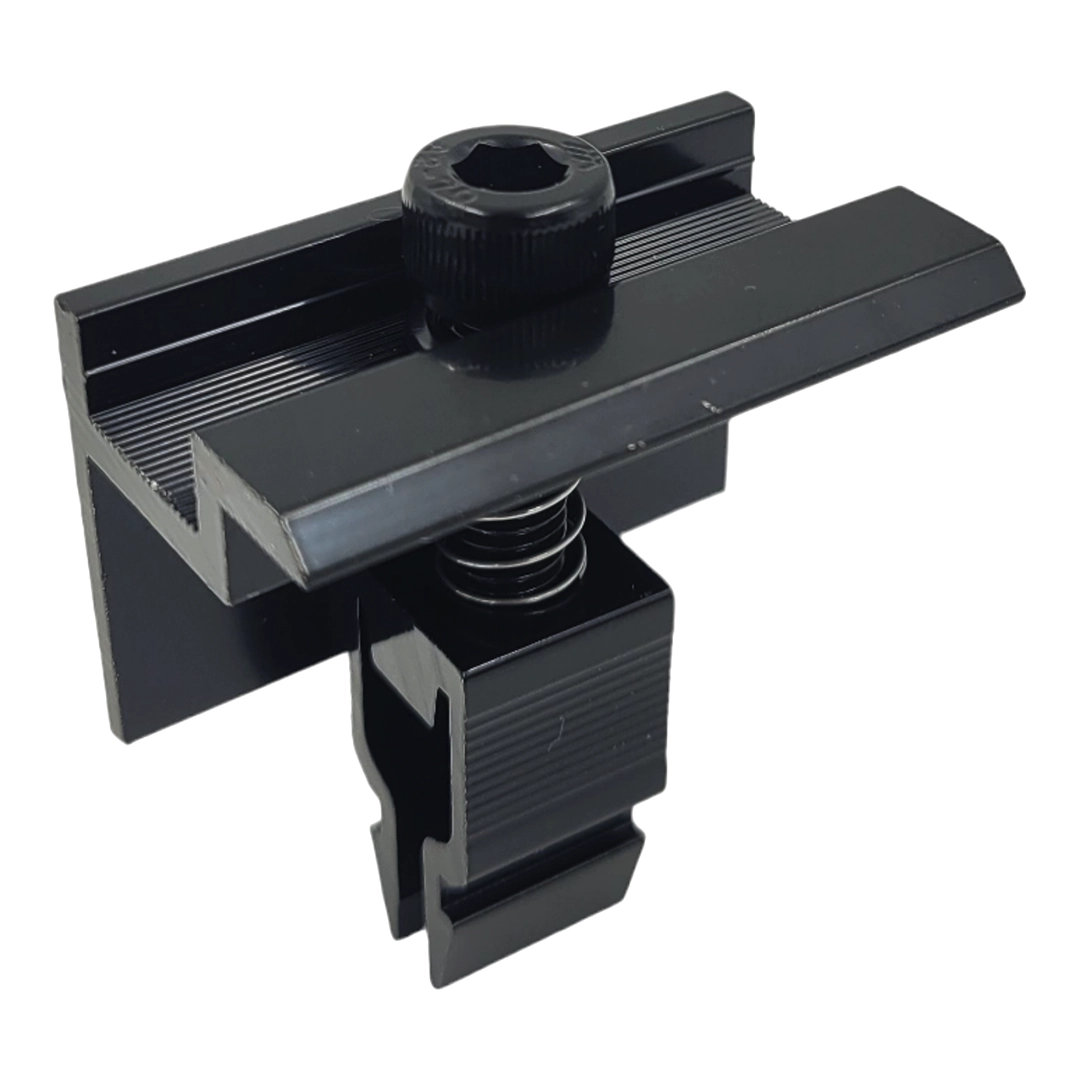

H30 KLIK Black End Clamp L50 (type 2)
End clamp (side clamp) with the KLIK system for mounting photovoltaic modules with a frame thickness of 30 mm. Used at the ends of panel rows — on both flat and pitched roofs.

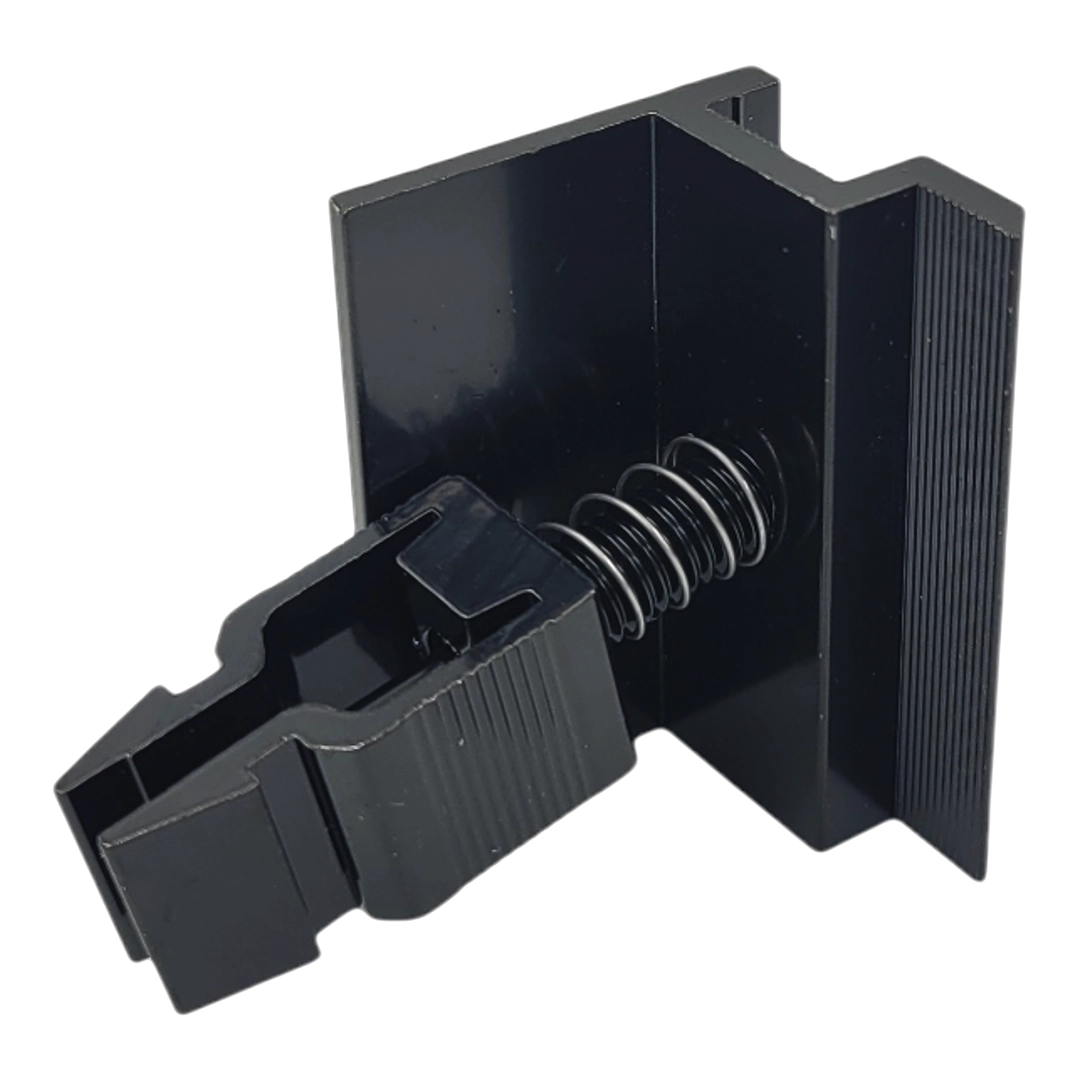

Set includes: aluminium clamp, KLIK mounting latch and A2 stainless steel bolt.

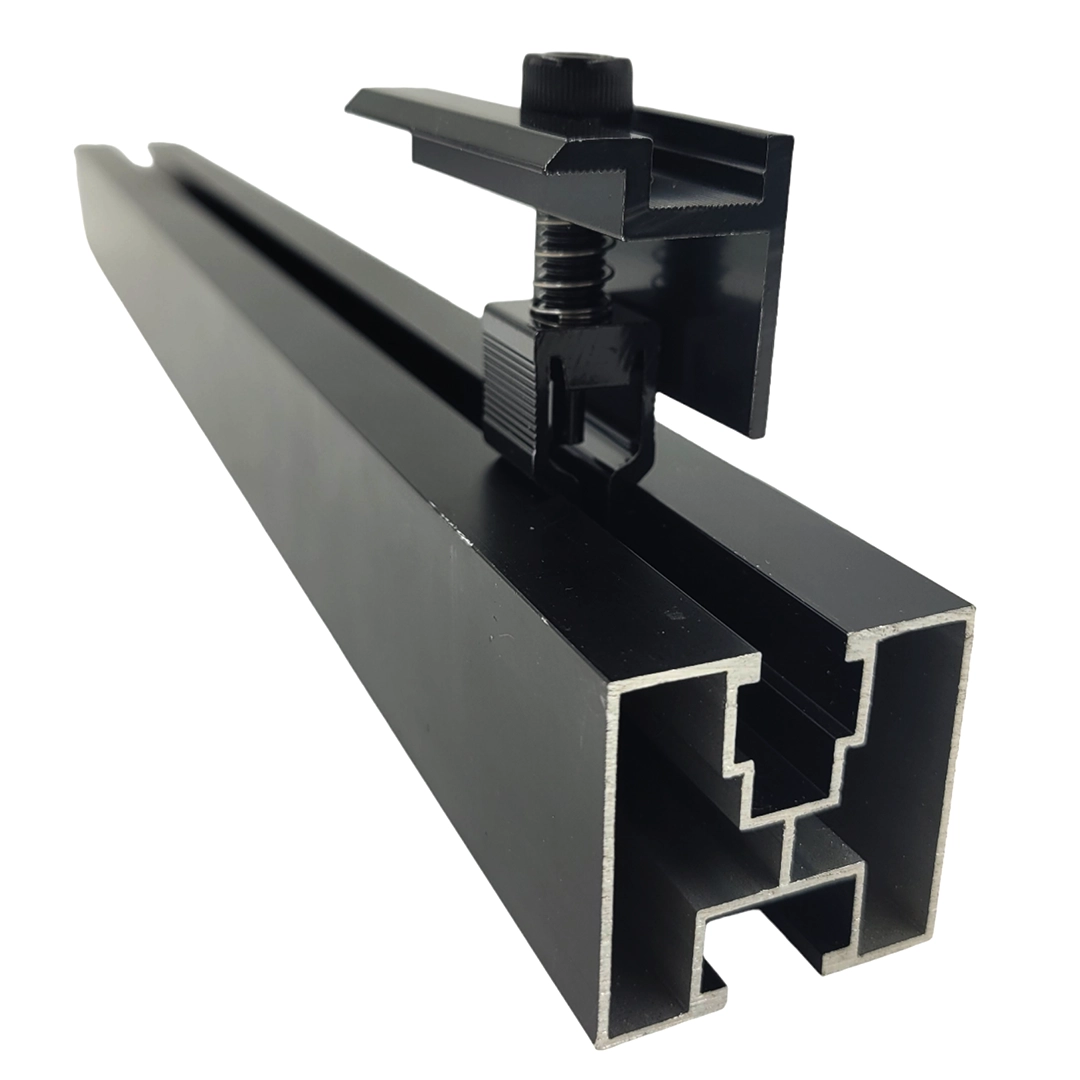

The KLIK system enables quick installation — the latch is inserted into the profile groove at any point. Tightening the bolt spreads the clip and presses the panel against the profile. The teeth on the underside of the clamp grip the frame, securing the module against movement.
The clamp is made of 6060 aluminium with a black powder coating.
Compatible with profiles for hexagon bolts.
Note: maximum tightening torque for the M8 bolt: 20 Nm. The recommended torque should be selected according to the panel manufacturer's guidelines.
