Synerga

Side Clamp H35 L50 Klik (Type 2) Painted Black

Go to Product feedback

End-side clamp with KLIK system for PV panels with a frame thickness of 35 mm. Made from aluminium 6060 with powder coating in black, A2 stainless steel bolt, tightening torque 20 Nm.

Go to full description
with VAT without VAT
Price €1.33
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] Klemy #34

  • Clamp Type End
  • Panel thickness [mm] 35
  • Colour Black
  • Grounding pin No
  • Additional accessories Click version

Description

Side Clamp H35 L50 KLIK Painted Black (Type 2)

Side Clamp H35 KLIK is an end-mounting clamp with a quick-installation system, designed for photovoltaic panels with a frame thickness of 35 mm. Thanks to the KLIK snap-in mechanism, you can significantly reduce installation time — on both flat and pitched roofs.

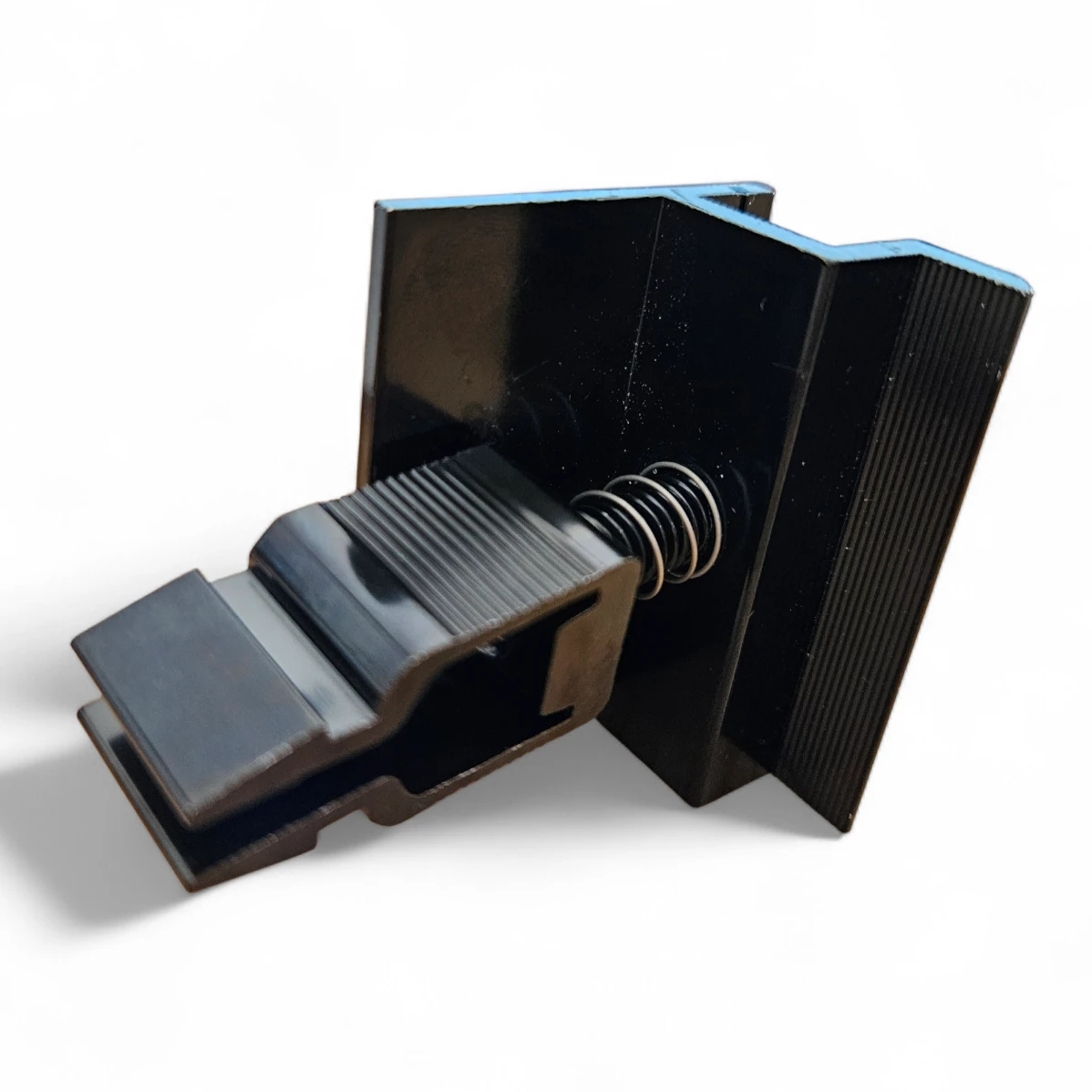

Side clamp H35 KLIK black – side view with mounting snap-in clip
Side clamp H35 KLIK black – side view with mounting snap-in clip

How does the KLIK system work? The mounting clip slides into the rail groove at any position — no need to feed it from the end of the rail. Once the bolt is tightened, the clip expands and presses the panel firmly against the profile. The teeth on the underside of the clamp grip the module frame, preventing any movement. A solution that genuinely speeds up work on the roof.

Included in the set are an aluminium clamp, a KLIK mounting clip, and an A2 stainless steel bolt — everything you need to secure a panel at the end of a row.

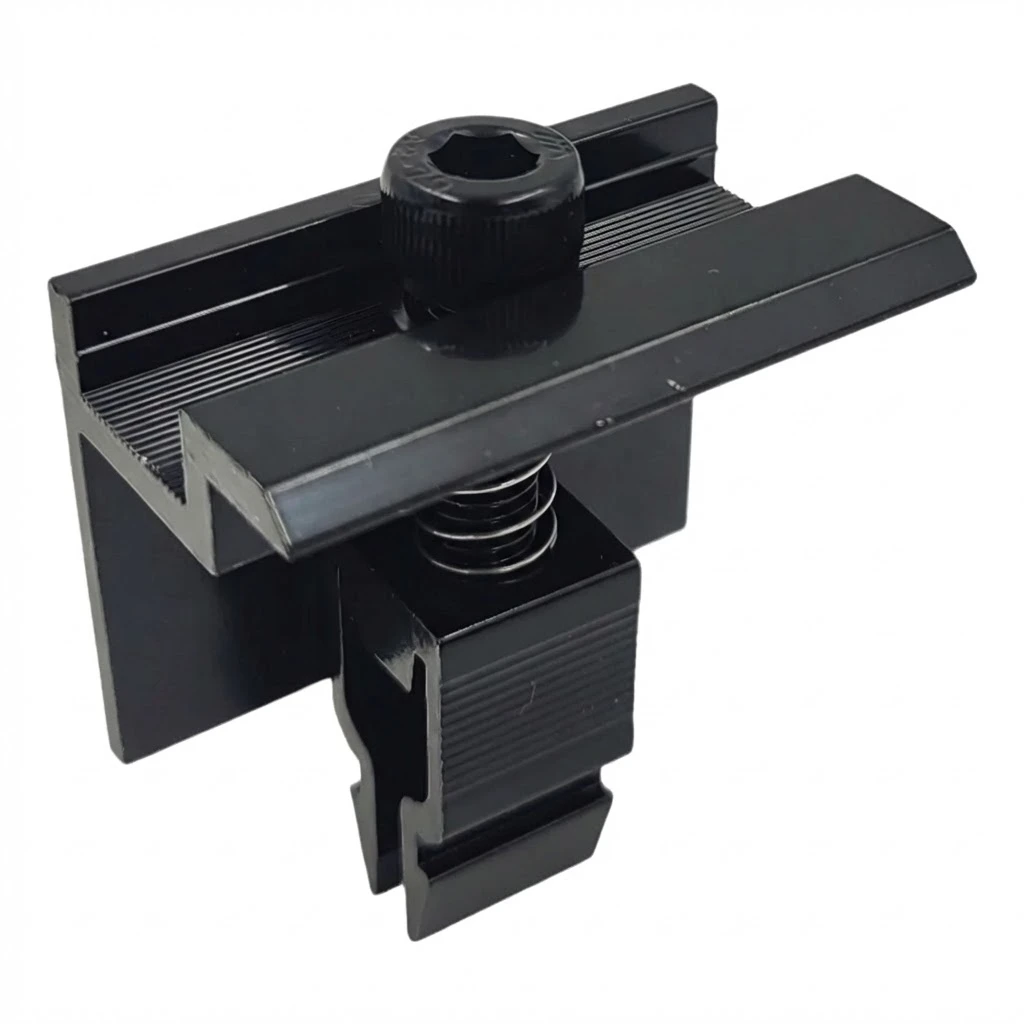

Side clamp H35 KLIK black – top view with hex bolt
Side clamp H35 KLIK black – top view with hex bolt

The clamp is made from 6060 aluminium with a black powder coating, providing excellent corrosion resistance and an aesthetic finish that complements dark PV modules. The black finish is an increasingly popular choice among installers who want a uniform appearance across the entire installation.

Technical Specification

  • Panel thickness: 35 mm
  • Colour: black (powder-coated)
  • Material: 6060 aluminium
  • Version: KLIK
  • Bolt: A2 stainless steel
  • Compatibility: profiles for hex bolt

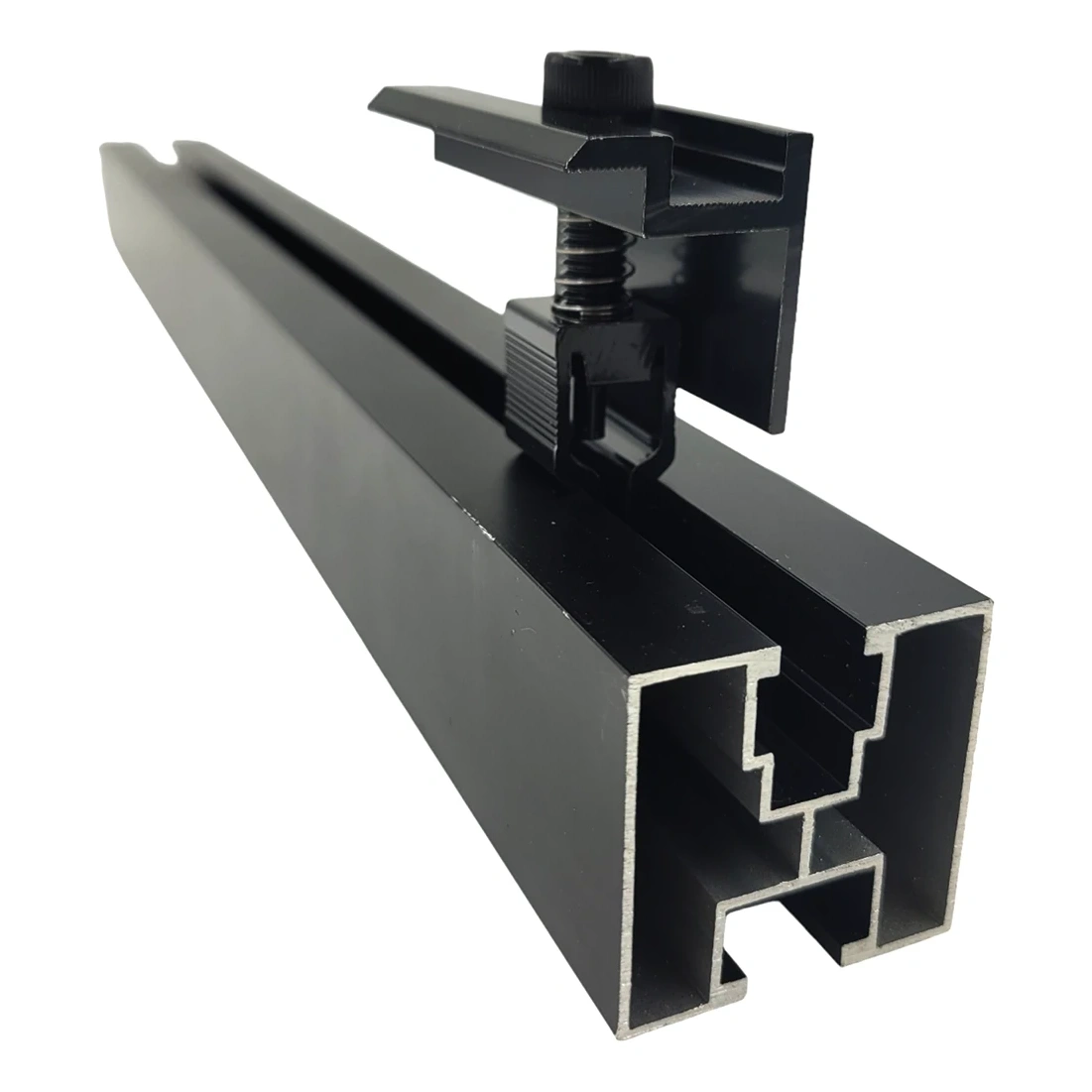

Side clamp H35 KLIK black mounted on an aluminium profile
Side clamp H35 KLIK black mounted on an aluminium profile

Please note: the maximum tightening torque for the M8 bolt is 20 Nm. The recommended tightening torque should be selected in accordance with the panel manufacturer's guidelines.
