Synerga

Side Clamp H35 L50 Click (Type 2) Silver Anodised

Go to Product feedback

End mounting clamp with KLIK system for PV panels with a frame thickness of 35 mm. Made from 6060 aluminium with silver anodising, A2 stainless steel bolt.

Go to full description
with VAT without VAT
Price €1.28
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 24 hours

Product features

[PIM] Klemy #34

  • Clamp Type End
  • Panel thickness [mm] 35
  • Colour Silver
  • Grounding pin No
  • Additional accessories Click version

Description

Side Clamp H35 L50 Click (Type 2) Anodised Silver

H30 Click Silver Side Clamp is an end-mounting clamp featuring a quick-installation system, designed for photovoltaic panels with a frame thickness of 30 mm. Thanks to the Click snap-in mechanism, you can significantly reduce installation time — on both flat and pitched roofs.

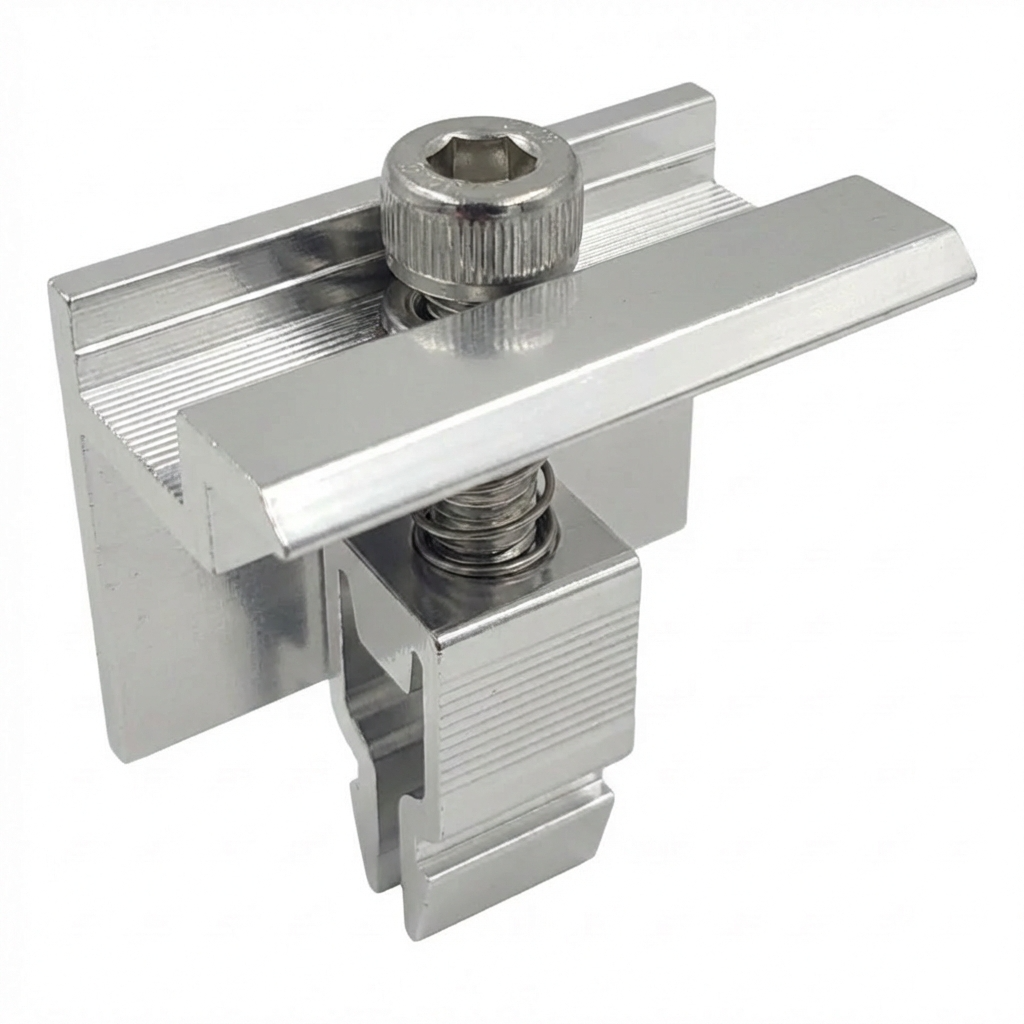

H30 Click silver side clamp – top view with hex screw
H30 Click silver side clamp – top view with hex screw

How does the Click system work? The mounting clip is inserted into the rail groove at any point — no need to slide it in from the end of the rail. Once the screw is tightened, the clip expands and presses the panel firmly against the profile. The serrated teeth on the underside of the clamp grip the module frame, preventing any movement. It's a solution that genuinely speeds up work on the roof.

Included in the set: an aluminium clamp, a Click mounting clip, and an A2 stainless steel screw — everything you need to secure a panel at the end of a row.

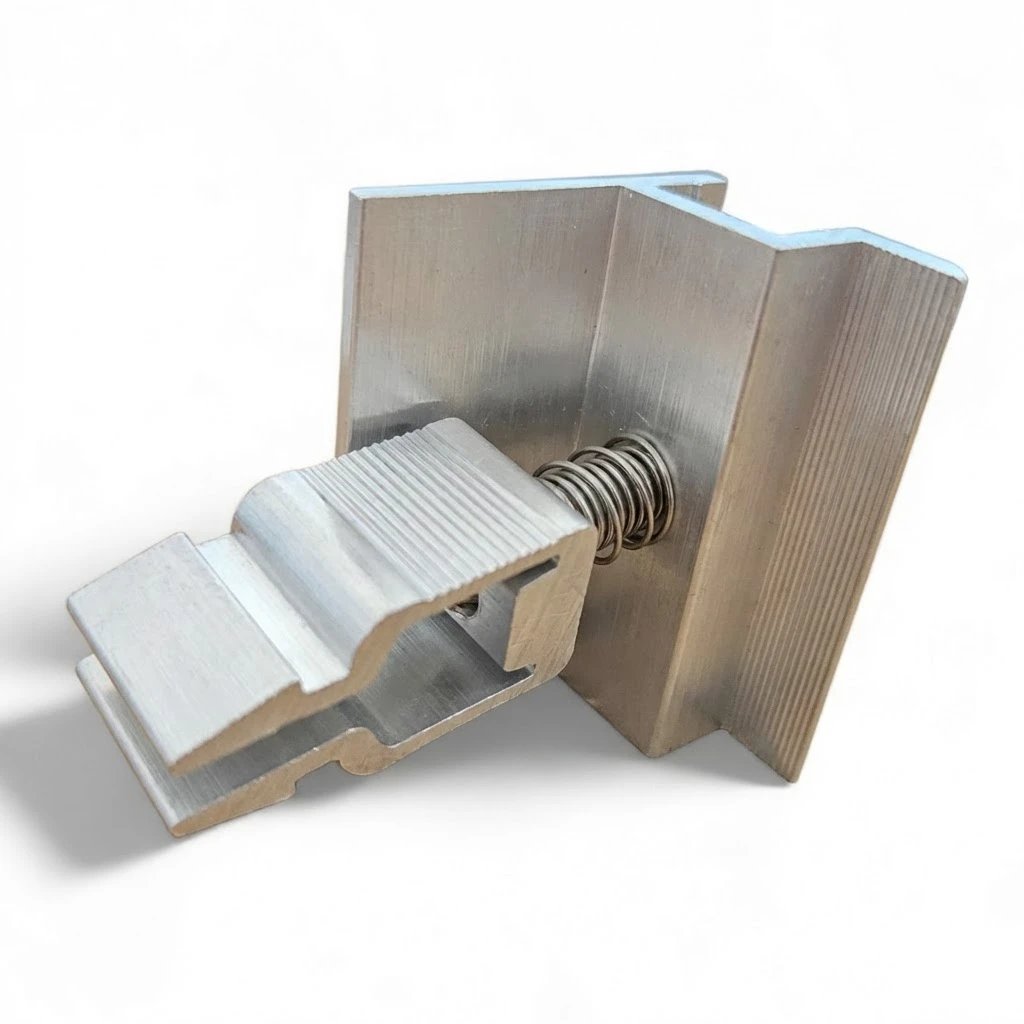

H30 Click silver side clamp – side view with mounting clip
H30 Click silver side clamp – side view with mounting clip

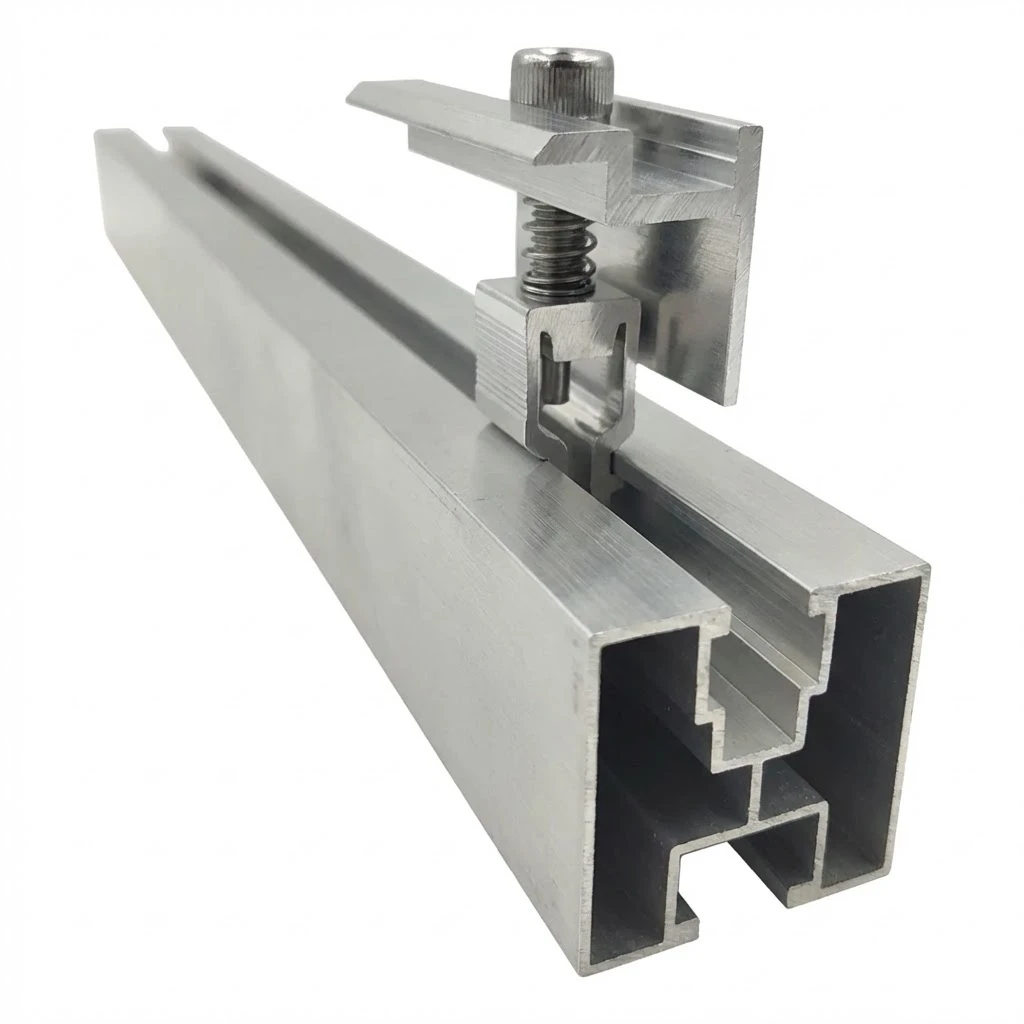

H30 Click silver side clamp mounted on an aluminium profile
H30 Click silver side clamp mounted on an aluminium profile

The clamp is made from 6060 aluminium with a silver anodised finish, providing excellent corrosion resistance and a classic, neutral appearance that complements the majority of PV installations. The silver finish pairs perfectly with aluminium mounting profiles, creating a cohesive aesthetic throughout the entire system.

Technical Specification

  • Panel thickness: 30 mm
  • Colour: silver (anodised)
  • Material: 6060 aluminium
  • Version: Click
  • Screw: A2 stainless steel
  • Compatibility: profiles for hex bolt

Please note: the maximum tightening torque for the M8 screw is 20 Nm. The recommended tightening torque should be selected in accordance with the panel manufacturer's guidelines.
