Running trolley 89x100 mm for rail 6V.089 sliding gate 8 steel rollers
Description

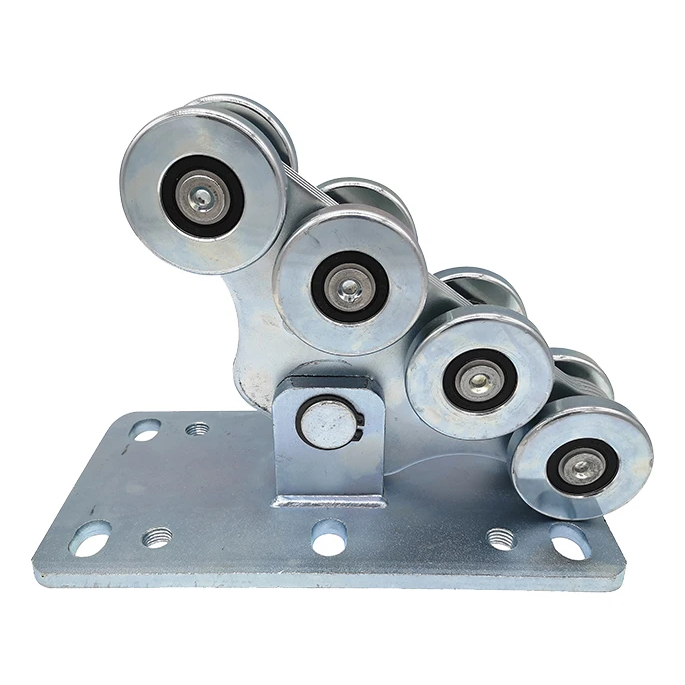

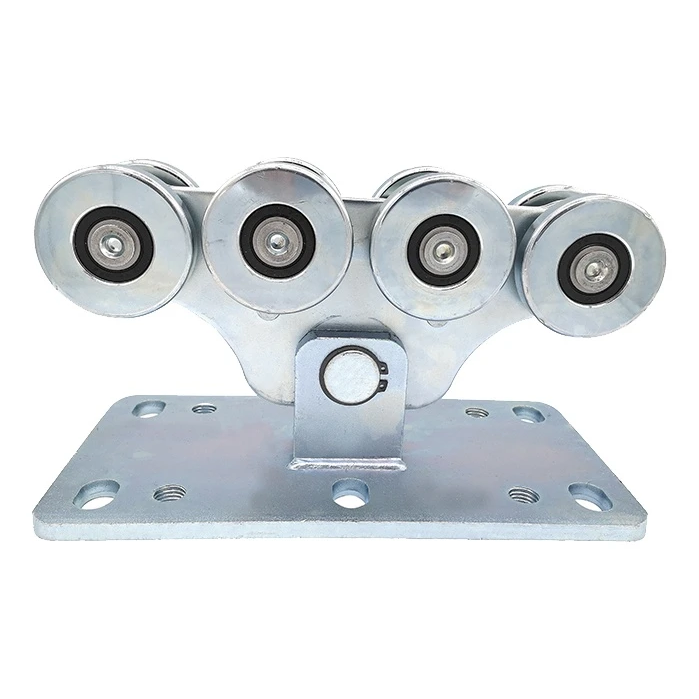

8-Roller Swivel Running Trolley for Sliding Gate – Steel Rollers
The 8-roller swivel running trolley is a robust guide component for rail-mounted sliding gates, compatible with the 6V.089 rail. Its multi-plate central structure provides increased load capacity and operational stability, while steel rollers ensure smooth guidance of the gate leaf for many years of service.
Key product features
- Type: swivel running trolley
- Number of rollers: 8
- Roller material: steel
- Compatibility: 6V.089 rail

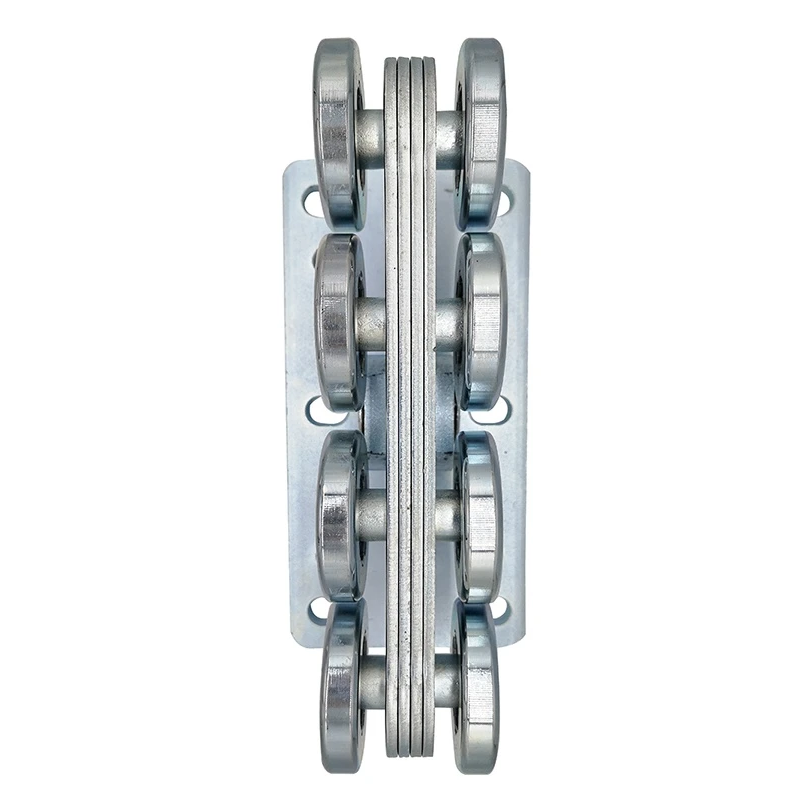

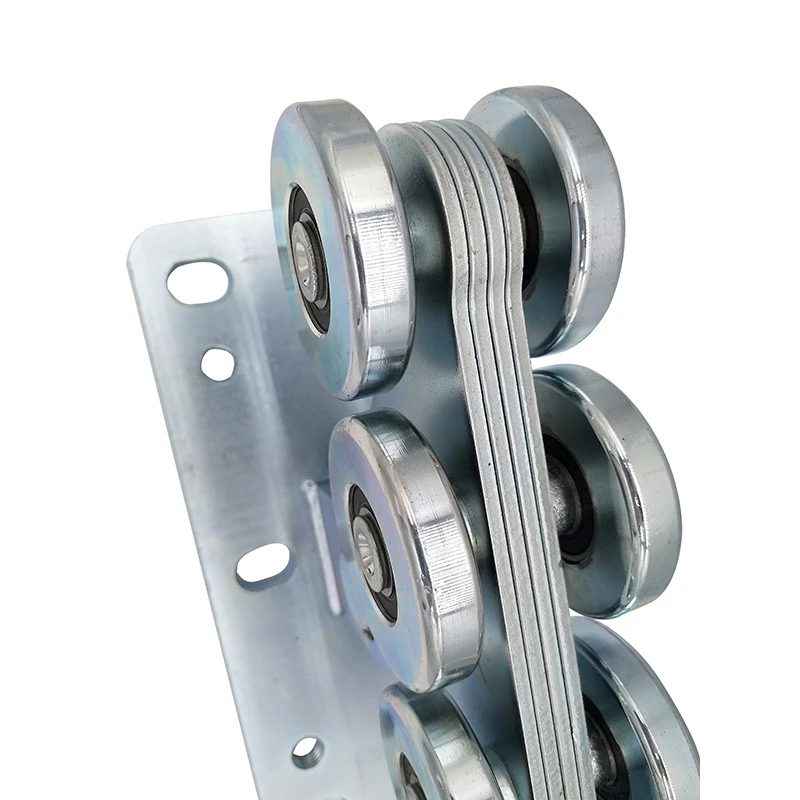

- Construction: multi-plate (enhanced durability)
- Mounting base with holes: 4× M16
- Weight: 11.3 kg
- Height (H): 169 mm
Durability and long-term reliability
The trolley is distinguished by its high resistance to mechanical damage and dynamic loads. The multi-plate central element reduces deformation under heavy pressure, ensuring stable guidance even for heavy gate leaves. Steel rollers mounted on bearings provide quiet and smooth operation, minimising rolling resistance and reducing maintenance requirements. The swivel design compensates for any axial deviations in the rail, protecting the rollers from uneven wear.

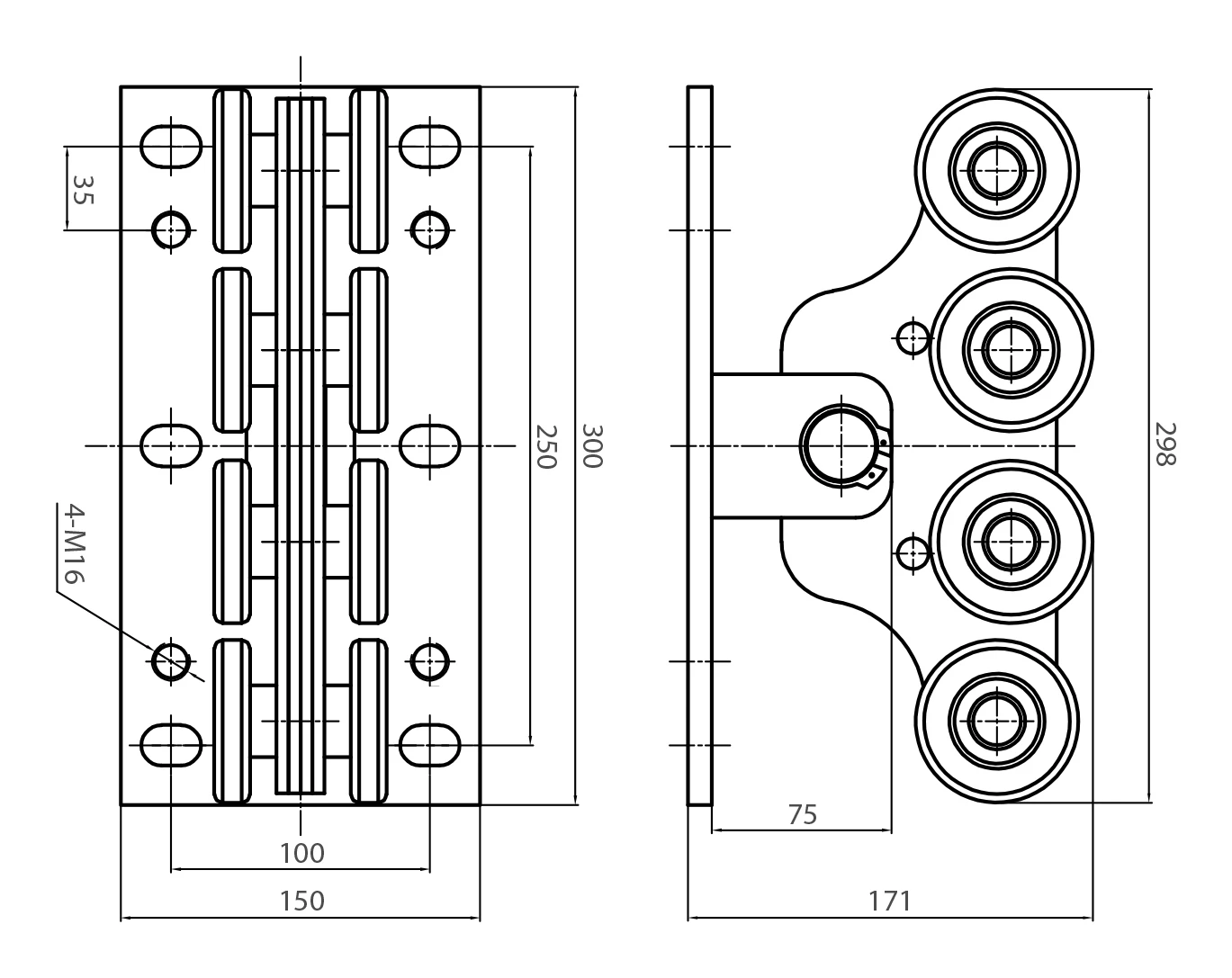

Overall dimensions
The technical drawing shows the key dimensions of the trolley, enabling precise planning of installation within the gate housing:
- Base plate dimensions: 150 × 300 mm
- Mounting hole spacing: 100 × 250 mm
- Mounting holes: 4× M16
- Edge distance of holes: 35 mm
- Overall width including rollers: 171 mm
- Overall height (side view): 298 mm
- Roller axis offset from base edge: 75 mm

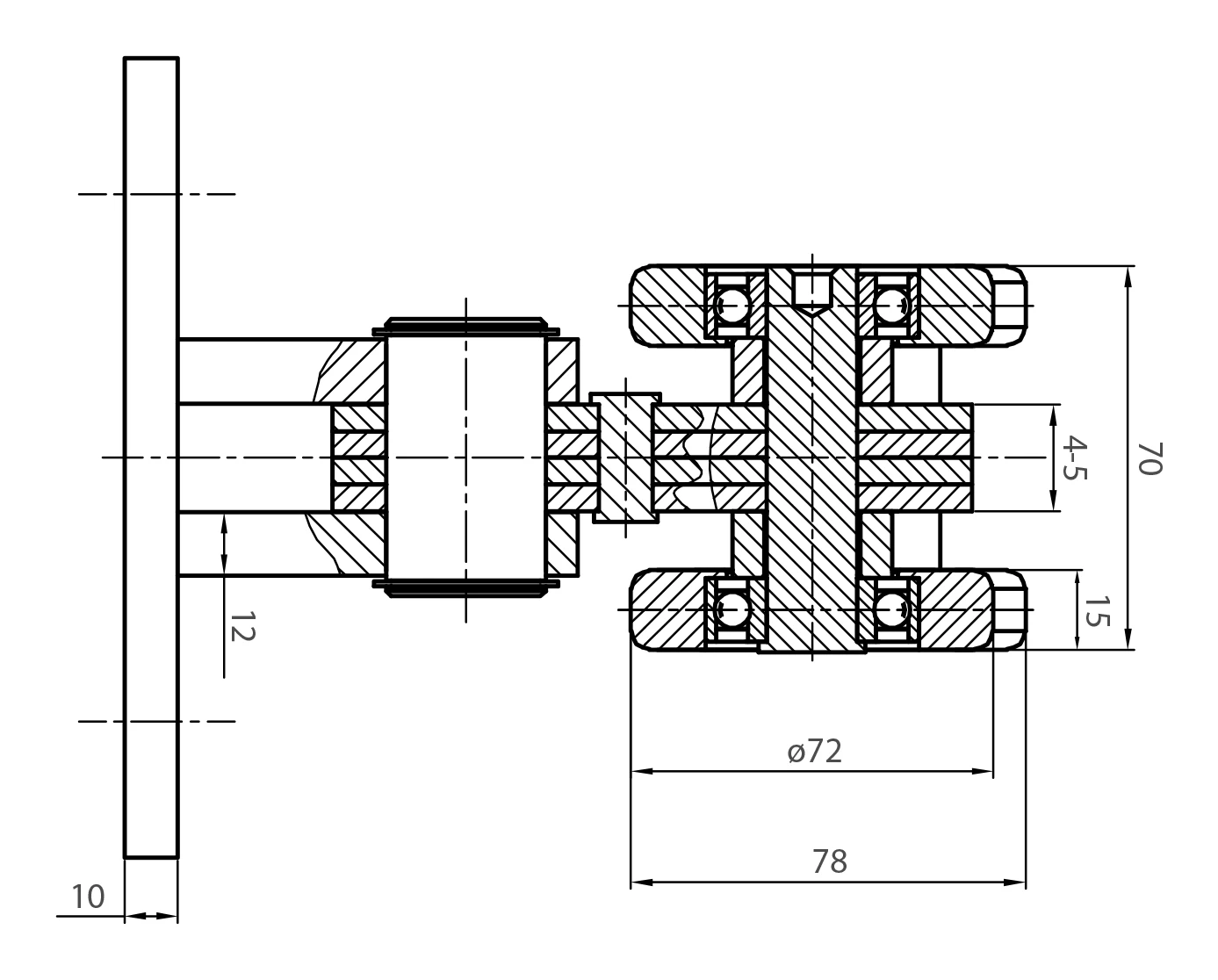

Roller and cross-section parameters
- Roller diameter: ø72 mm
- Roller width: 78 mm
- Roller assembly height: 70 mm
- Rail guide clearance: 4–5 mm
- Base plate thickness: 10 mm
- Bearing diameter: 12 mm
- Bottom clearance: 15 mm
- Volume: 5,243.44 cm³
- EAN: 5903313200240
The trolley is a ready-to-install assembly that, once secured to the gate frame using four M16 bolts, is immediately ready for use. Thanks to its robust steel construction and precision-engineered bearings, the product delivers years of trouble-free operation even in heavily used industrial gates.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Rail Size | 100x89x5 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 8 |
| Trolley Construction | Swivel |
| Running System Type | Rolling system |
