Running trolley 80 steel rollers for sliding hanging gates
Description
Suspension Gate Trolley – 3 Rollers, 80×80 mm Rail, 350 kg
Suspension gate trolley with three bearing-mounted rollers — a reliable solution for overhead sliding gate systems. Designed for intensive use, it provides a load capacity of up to 350 kg and smooth operation even under heavy loads. The galvanised surface effectively protects against corrosion, extending the service life of the component in variable weather conditions.
Design and Operating Principle

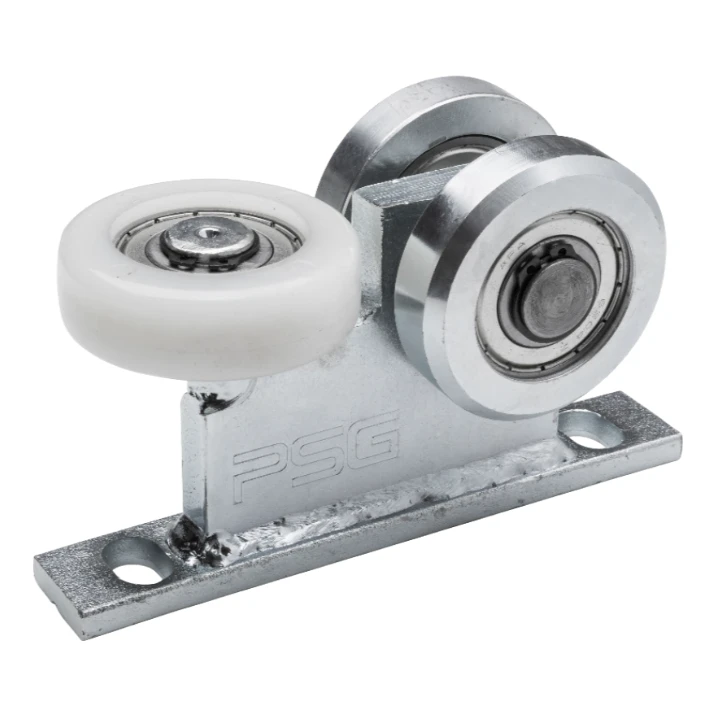

The trolley is fitted with three rolling-bearing rollers — two vertical steel rollers and one horizontal plastic guide roller. This arrangement ensures stable gate guidance within the rail and minimises rolling resistance, resulting in quiet and effortless operation of the mechanism. The steel rollers carry the main vertical load, while the plastic roller acts as a guide, eliminating lateral play and vibration.
The trolley is permanently fixed to a mounting base with holes, enabling quick and secure attachment to the gate structure. It is designed for use with an 80×80×5 mm guide rail.

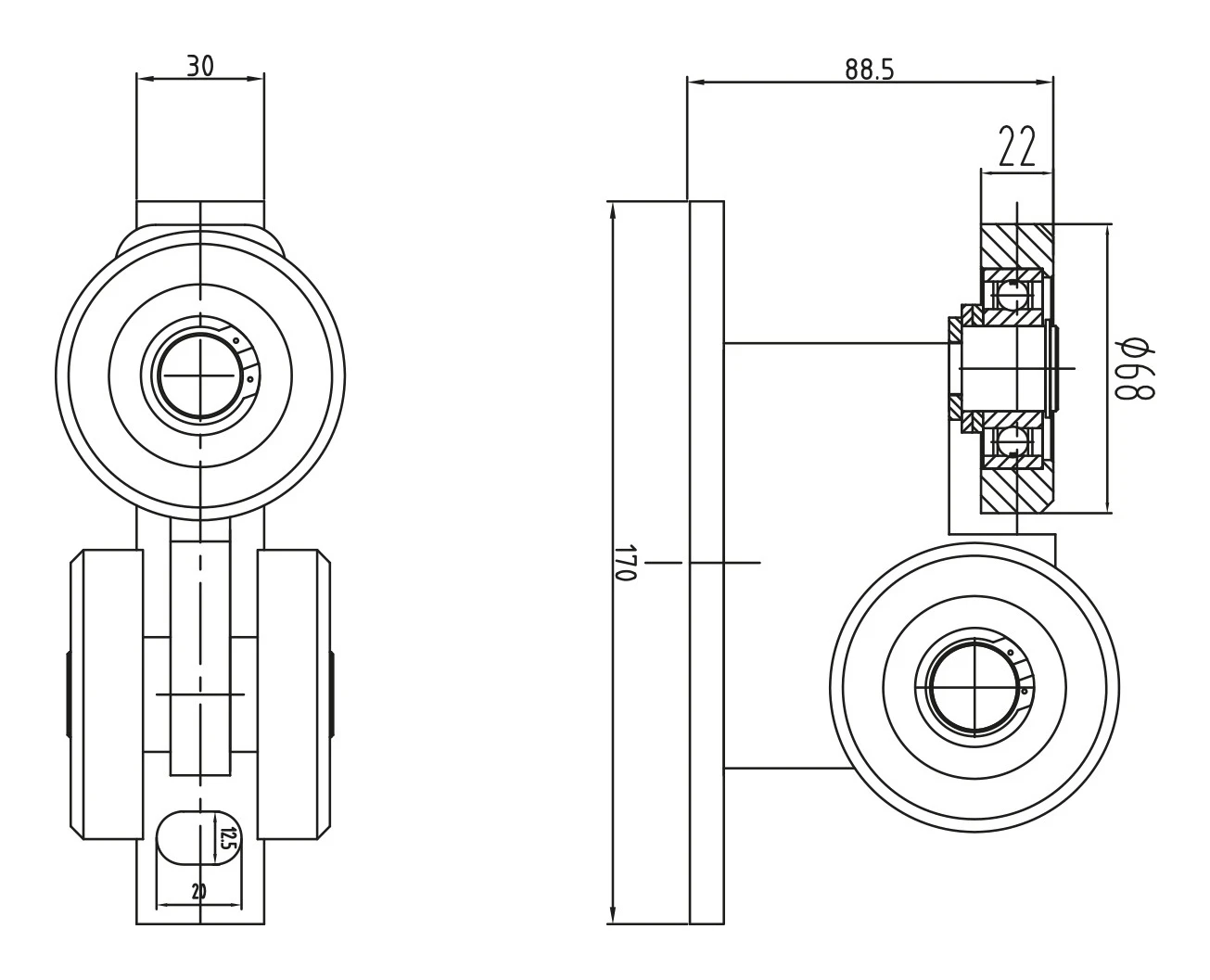

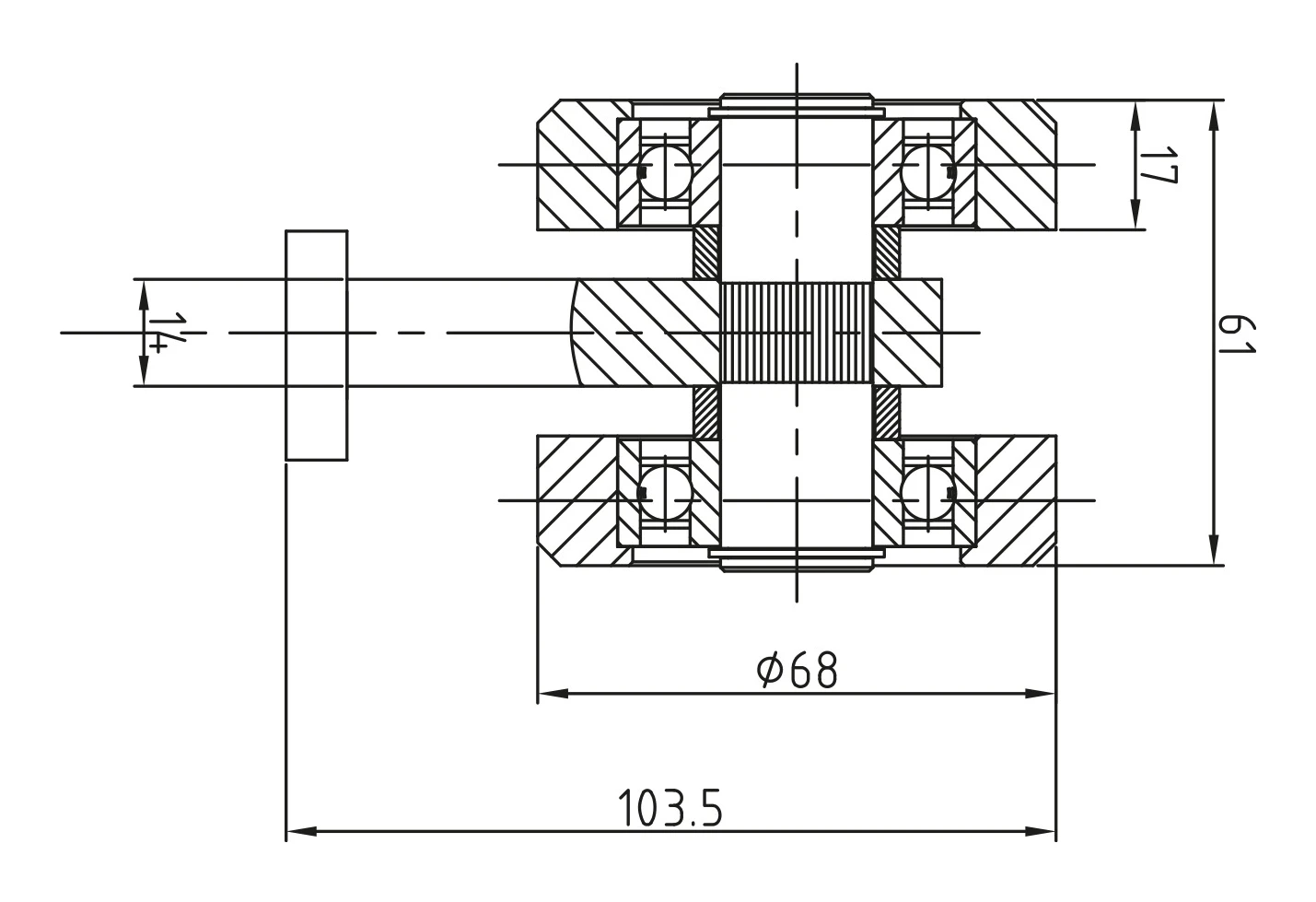

Dimensions and Technical Specification
- Maximum load capacity: 350 kg
- Guide rail: 80×80×5 mm
- Number of rollers: 3 (2 vertical steel + 1 horizontal plastic)
- Roller diameter: ø68 mm
- Total height (H): 105 mm
- Roller axle spacing: 170 mm
- Depth (from base to roller face): 88.5 mm
- Mounting base width: 30 mm
- Total width: 103.5 mm
- Rail groove width: 22 mm
- Upper section height: 17 mm
- Lower section height: 61 mm
- Mounting hole spacing in base: 20 mm
- Surface finish: galvanised
- Fixing: permanently fixed to base
- Weight: 2.13 kg
- Volume: 1,386 cm³
- EAN: 5901289674591
Applications
The trolley is intended for overhead sliding gate systems in industrial facilities, warehouse halls, workshops, and agricultural buildings. The high load capacity of 350 kg makes it suitable for use with both lightweight sandwich panel gates and heavier steel structures. The galvanised surface allows operation in environments exposed to moisture and fluctuating temperatures.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 3 |
| Trolley Construction | Fixed |
| Max. load capacity [kg] | 350 |
| Rail Size | 80x80x5 |
| Running System Type | Suspended system |
