Running trolley 80 3 steel and plastic rollers for suspended gates
Description
Suspension Gate Trolley 3-Roller – 80x80 mm Rail, 350 kg
Suspension gate running trolley with three rollers — a robust running component designed to guide heavy sliding gate leaves on overhead suspended systems. With a load capacity of 350 kg and a durable electro-galvanised construction, this trolley is well suited to demanding industrial and commercial installations, ensuring smooth and quiet gate operation for years of service.
Construction and Materials

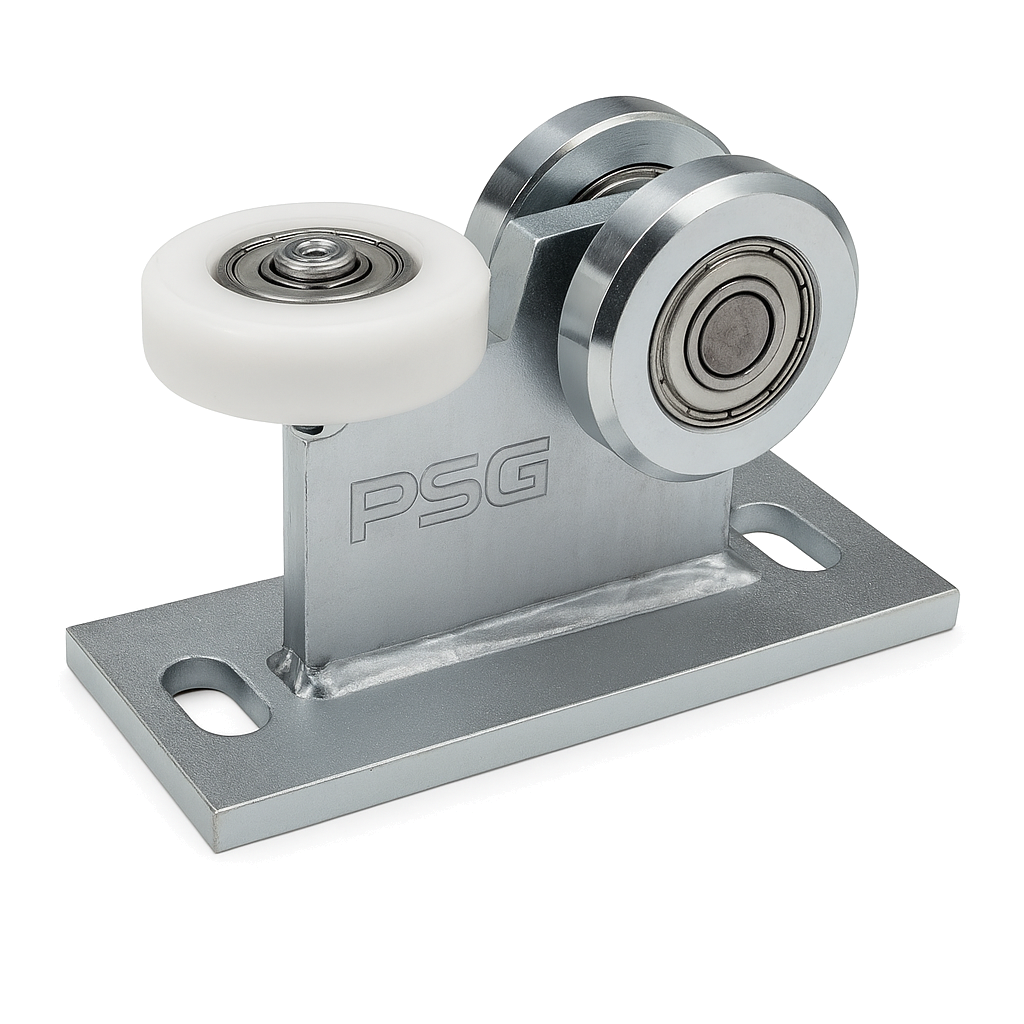

The trolley is fitted with three bearing-mounted rollers — two vertical steel rollers responsible for load transfer and one horizontal plastic roller that stabilises the running path and dampens vibration. This design guarantees quiet and smooth operation even under heavy loads. The entire trolley is permanently fixed to a solid mounting base with slotted holes for positional adjustment. The steel components are zinc-coated for high corrosion resistance and long-term performance in variable weather conditions.
The trolley is designed for a guide rail with dimensions of 80×80×5 mm — a standard profile used in high-capacity overhead sliding gate systems. The mounting base with slotted holes allows precise positioning of the trolley during installation.

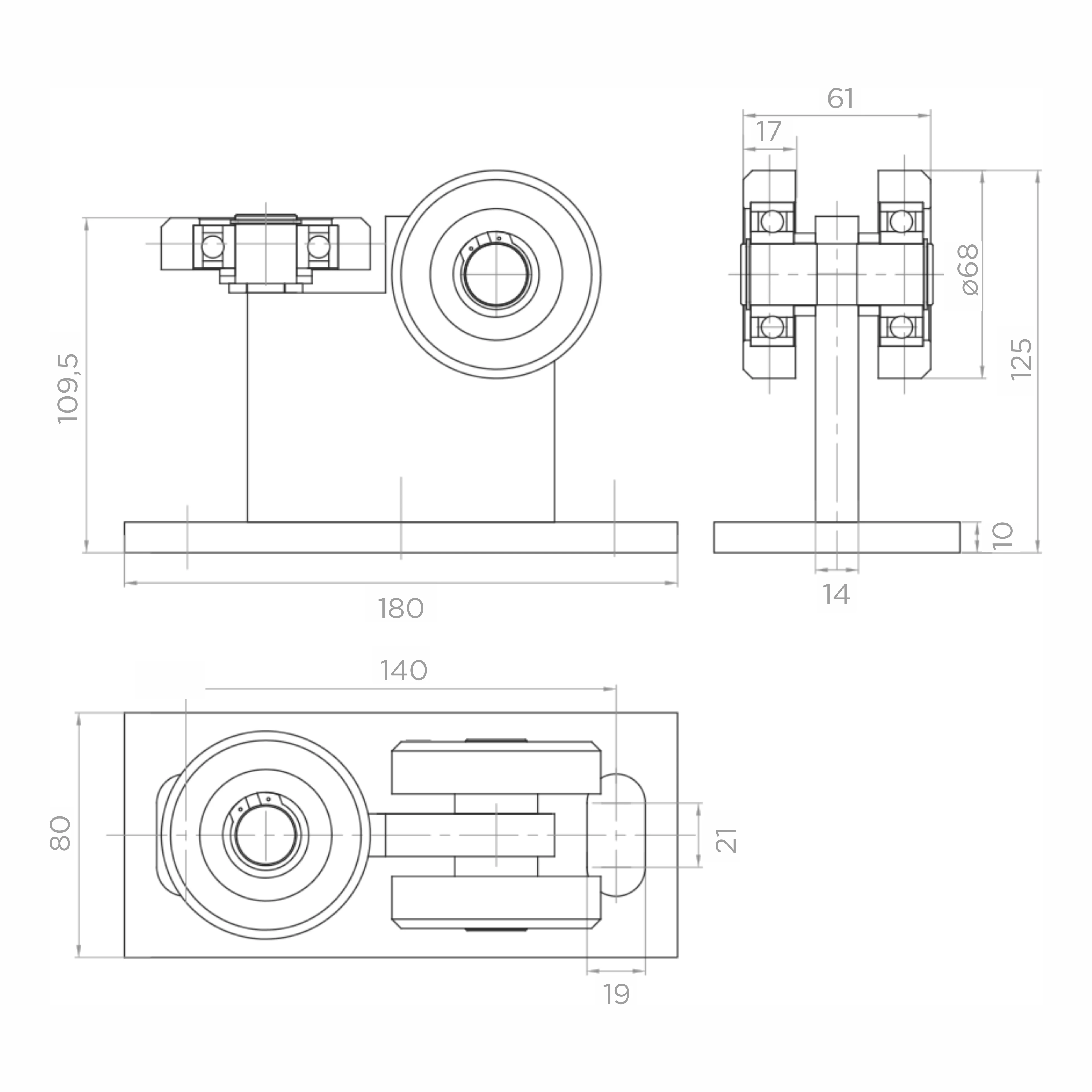

Dimensions and Technical Specifications
- Maximum load capacity: 350 kg
- Guide rail: 80×80×5 mm
- Total height (H): 125 mm
- Body height (side view): 109.5 mm
- Base length: 180 mm
- Mounting plate dimensions: 140 × 80 mm
- Roller diameter: ø68 mm
- Base thickness: 10 mm
- Body width: 61 mm
- Side guide thickness: 17 mm
- Mounting holes: slotted, width 14 mm
- Vertical rollers: 2 pcs — steel with bearings
- Horizontal roller: 1 pc — plastic
- Corrosion protection: zinc coating
- Weight: 3.06 kg
- Volume: 1,642.5 cm³
Applications
This trolley is intended for overhead suspended sliding gate systems — in industrial and warehouse facilities as well as private properties with heavy entrance gates. The high load capacity of 350 kg makes it suitable for use with large steel and aluminium gate leaves. The robust, galvanised construction ensures reliable performance in outdoor conditions throughout the year.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Max. load capacity [kg] | 350 |
| Rail Size | 80x80x5 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 3 |
| Trolley Construction | Fixed |
| Running System Type | Suspended system |
