Running trolley 80 3 rollers steel for light self-supporting sliding gates
Description

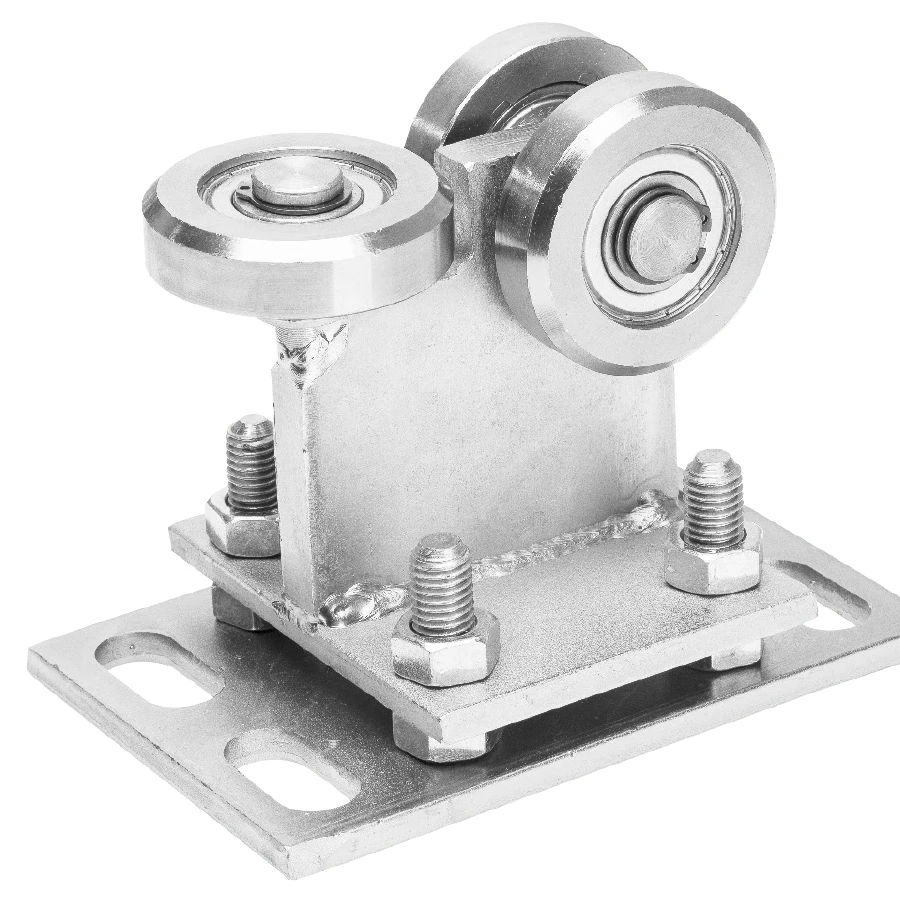

Running Trolley 80 for Sliding Gate – 3 Steel Rollers, 350 kg
The Running Trolley 80 is a robust running component designed for lightweight self-supporting sliding gates. Fitted with three steel rollers — including one horizontal roller — it ensures smooth and stable movement of the gate leaf along an 80×80×5 mm rail. Thanks to height adjustment via bolts, installation is quick and precise, which will be appreciated by professional installation teams working on residential and commercial property fencing.
Construction and Material
The trolley body is made from heavy-duty metal and protected with a zinc coating, ensuring corrosion resistance even in demanding weather conditions. Three rollers mounted on ball bearings minimise rolling resistance and provide quiet, trouble-free operation over an extended period. The trolley is permanently fixed to the base — a solid plate with slotted mounting holes allows precise alignment relative to the running rail.
The maximum load capacity of the trolley is 350 kg, making it suitable for typical sliding gates used in residential and light industrial construction.

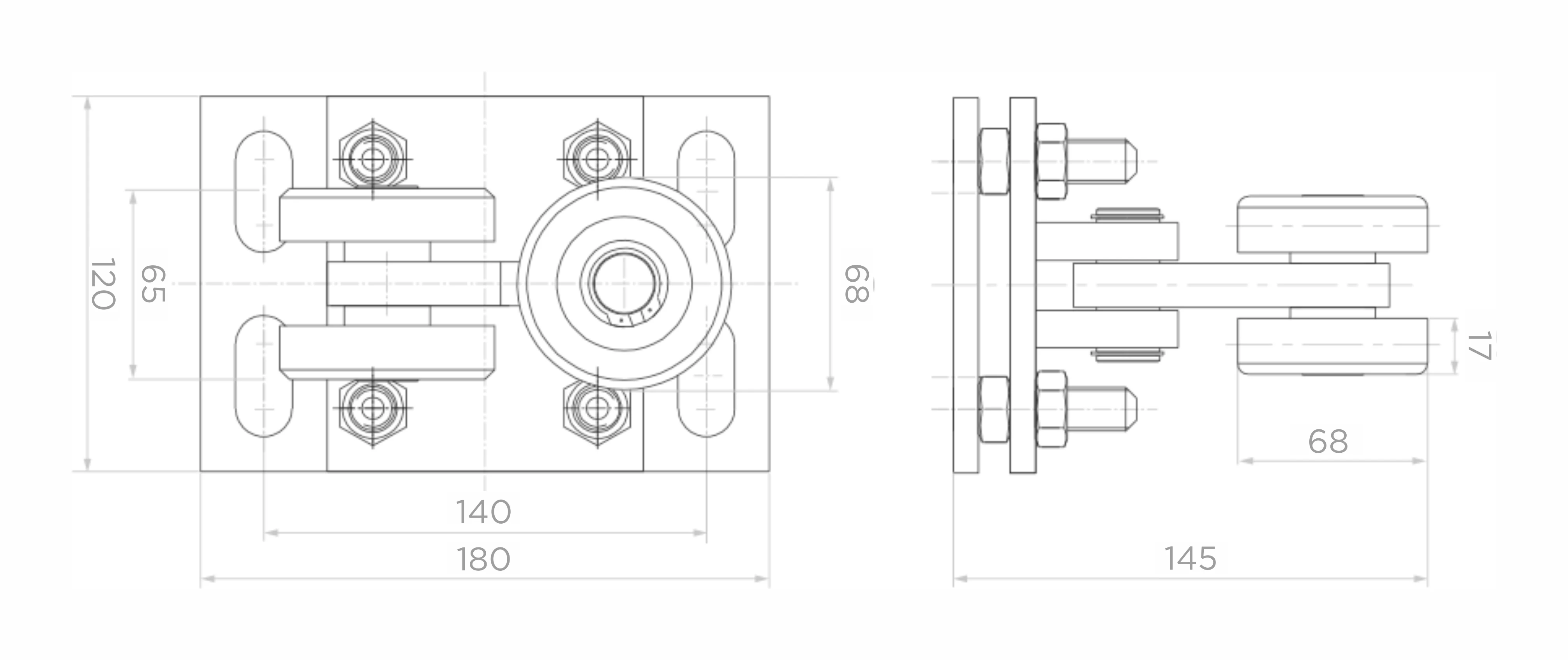

Dimensions and Technical Specifications
- Maximum load capacity: 350 kg
- Running rail: 80×80×5 mm
- Number of rollers: 3 (including 1 horizontal roller)
- Roller material: steel
- Finish: zinc-plated
- Base plate dimensions: 180 × 120 mm
- Mounting hole spacing: 140 × 65 mm
- Overall height (H): 145 mm
- Roller zone width: 68 mm
- Base plate thickness: 17 mm
- Depth: 145 mm
- Height adjustment: yes – via bolts
- Weight: 4.425 kg
- Volume: 4290 cm³
- EAN: 5901289674560
Installation and Application
The trolley is permanently fixed to a foundation or surface using bolts passed through the slotted holes in the base plate. The oval shape of the holes allows positional correction along the rail axis, while height adjustment via bolts enables precise levelling of the trolley once seated. A typical sliding gate installation uses two running trolleys — the appropriate spacing ensures stable guidance of the gate leaf and an even distribution of loads.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Max. load capacity [kg] | 350 |
| Rail Size | 80x80x5 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 3 |
| Trolley Construction | Fixed |
| Running System Type | Rolling system |
