Running trolley 70 for sliding gate swivel 5 plastic rollers
Description

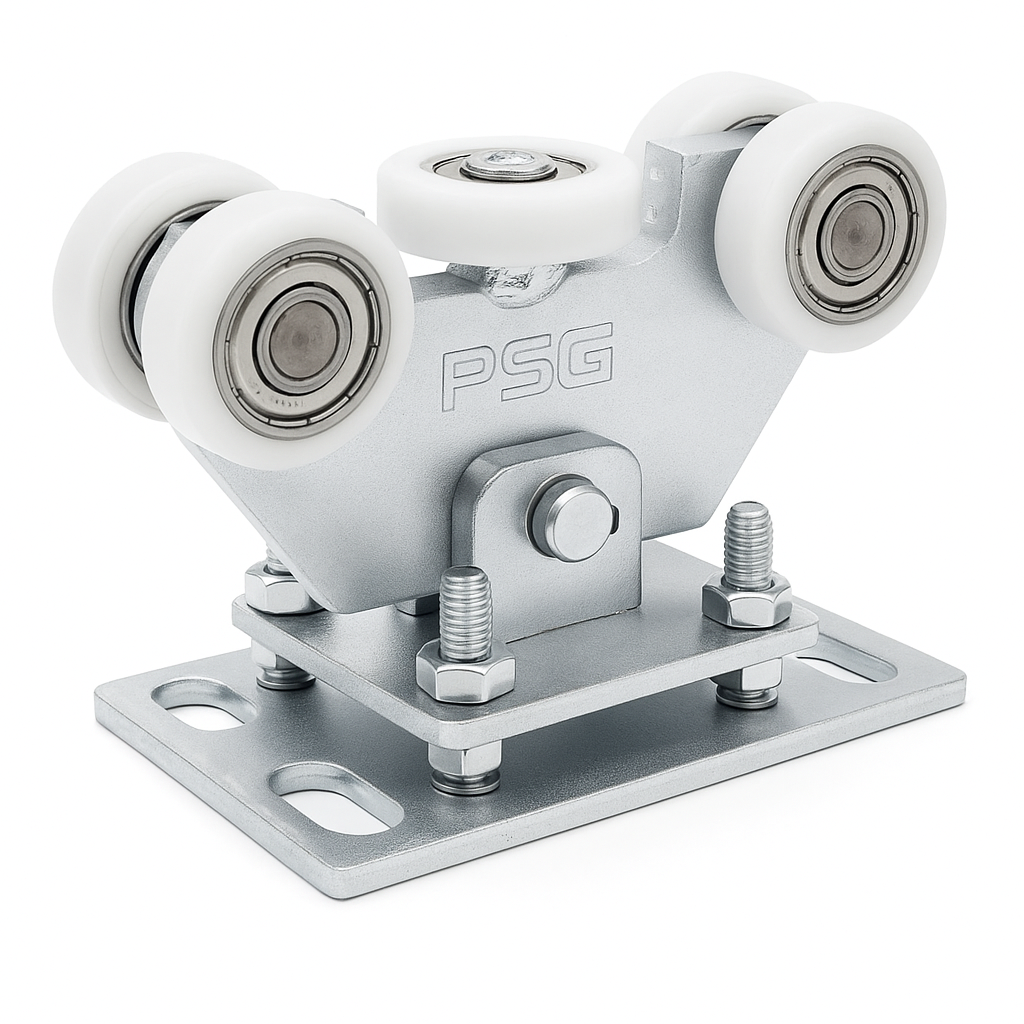

Swivel Running Trolley 70 – 5-Roller Sliding Gate Carriage for Cantilever Gates
The Running Trolley 70 is a robust, 5-roller gate carriage designed for cantilever sliding gates. Its swivel construction with a pivot pin allows automatic self-alignment to the guide rail, eliminating stress and ensuring smooth gate operation even under heavy loads – an ideal solution for installers seeking reliable components for gate systems.
Construction Features
- Number of rollers: 5 (including 1 horizontal roller for stabilisation)
- Roller material: plastic with ball bearings
- Construction: swivel – trolley connected to the base plate via a pivot pin, self-aligning to the gate
- Height adjustment: via adjustment screws
- Finish: electro-galvanised – corrosion protection
- Rail compatibility: 70×70×4 mm
- Maximum load capacity: 400 kg
Thanks to the plastic rollers, the trolley operates quietly and smoothly, which is particularly important for installations near residential and office buildings. Ball bearings in each roller guarantee long service life and minimal rolling resistance, reducing the load on the gate drive.

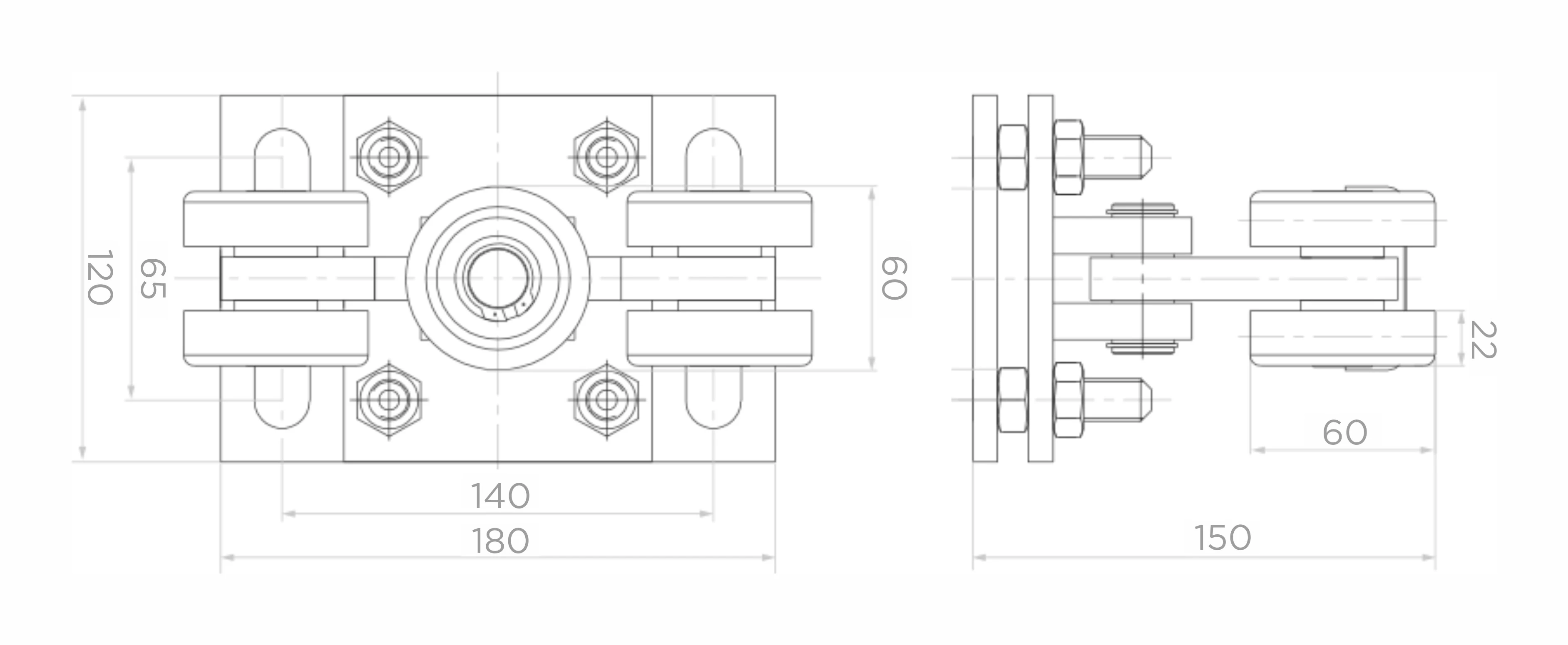

Dimensions and Technical Specifications
- Base plate dimensions: 180 × 120 mm
- Mounting hole spacing: 140 × 65 mm
- Overall height (H): 150 mm
- Depth: 150 mm
- Roller width: 60 mm
- Mounting base thickness: 22 mm
- Weight: 5.04 kg
- Volume: 5093.63 cm³
- EAN: 5901289674553
The swivel trolley is a key component of cantilever sliding gate systems. It is mounted to the foundation using bolts and nuts through slotted holes in the base plate, which allow precise positional adjustment of the trolley relative to the rail axis. Height adjustment enables perfect levelling of the gate once installed.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Single trolley |
| Roller Material | Plastic |
| Number of Rollers [szt.] | 5 |
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 400 |
| Rail Size | 70x70x4 |
| Running System Type | Rolling system |
