Running carriage for aluminium profile 5-roller plastic

Construction and Operating Principle

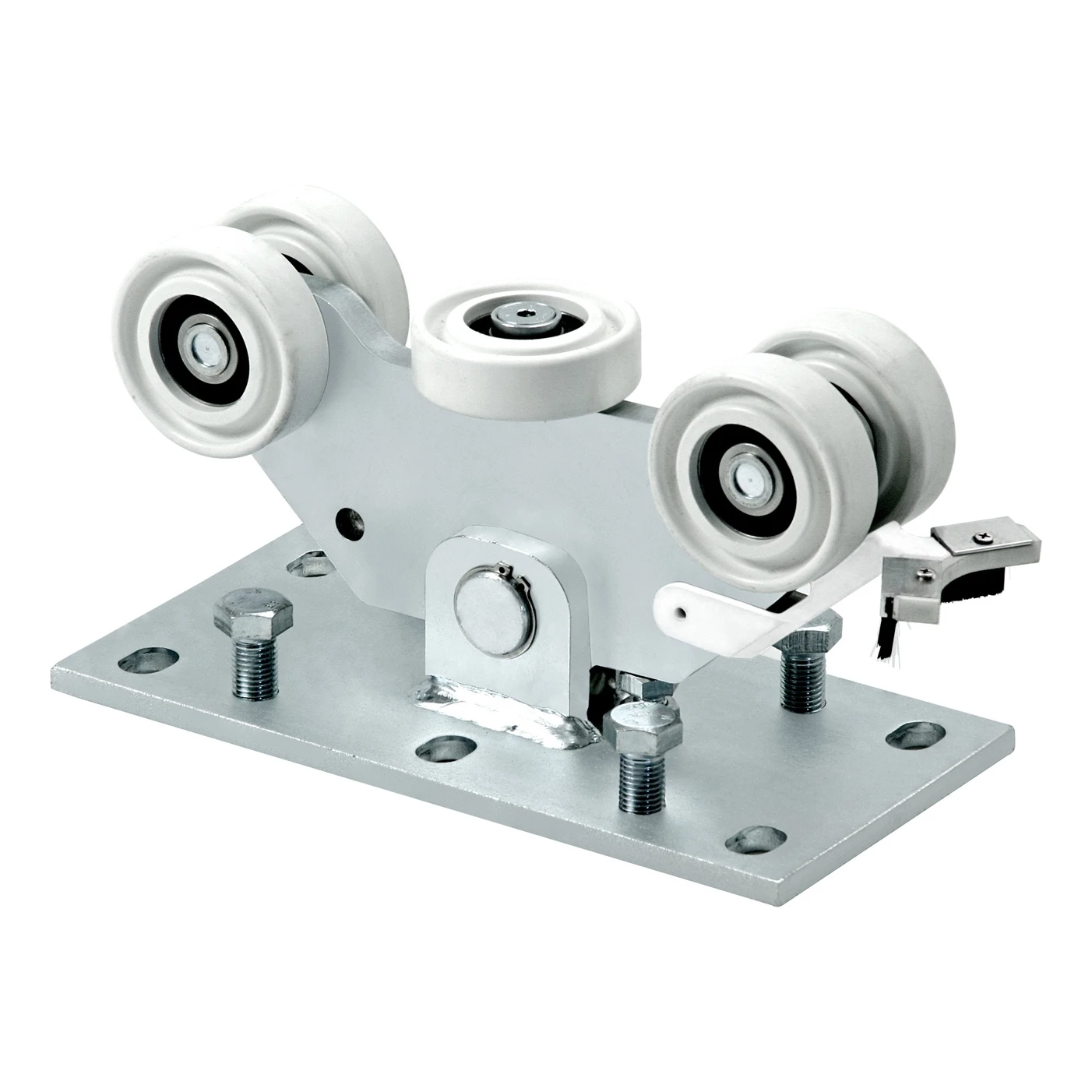

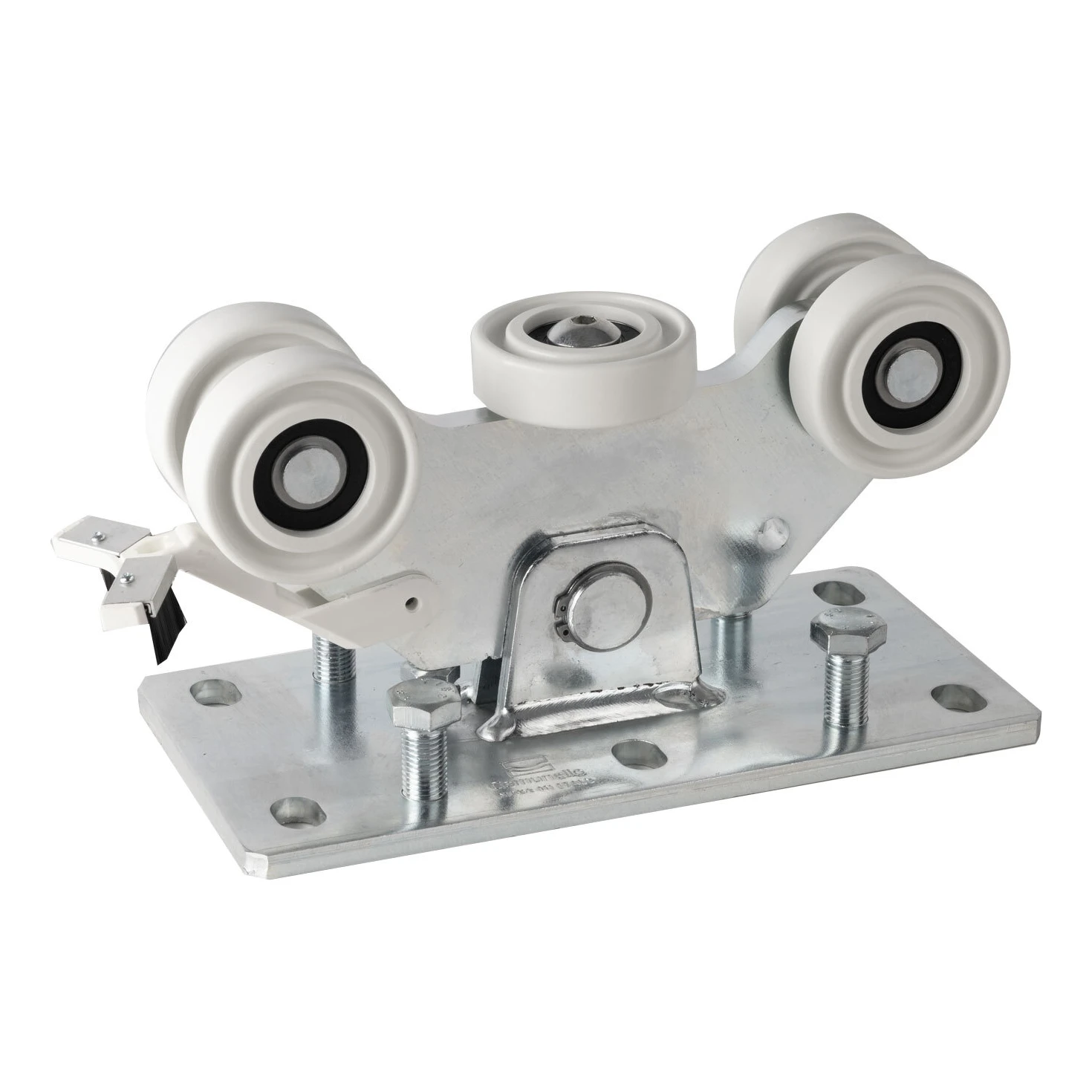

The trolley consists of a solid mounting plate fixed to the gate foundation and a body housing five rollers — three main load-bearing rollers and two lateral guide rollers. The nylon rollers, seated on bearings, ensure smooth movement even under heavy loads. A clamping element (clip) allows the gate guide rail to be securely locked into the trolley socket. Thanks to the well-thought-out design, installation is quick and requires no specialist tools — simply bolt the mounting plate to the foundation using screws through the mounting holes.

Benefits for the Installer

• High load capacity — recommended maximum gate weight of 400 kg for gate openings up to 6 m
• 5 nylon rollers — reduced friction and noise for quiet gate operation
• Galvanised steel — durable corrosion protection for the entire structure
• Quick installation — straightforward fitting to the foundation, saving time on site
• Stable operation — vibration and shake eliminated by even load distribution across 5 rollers

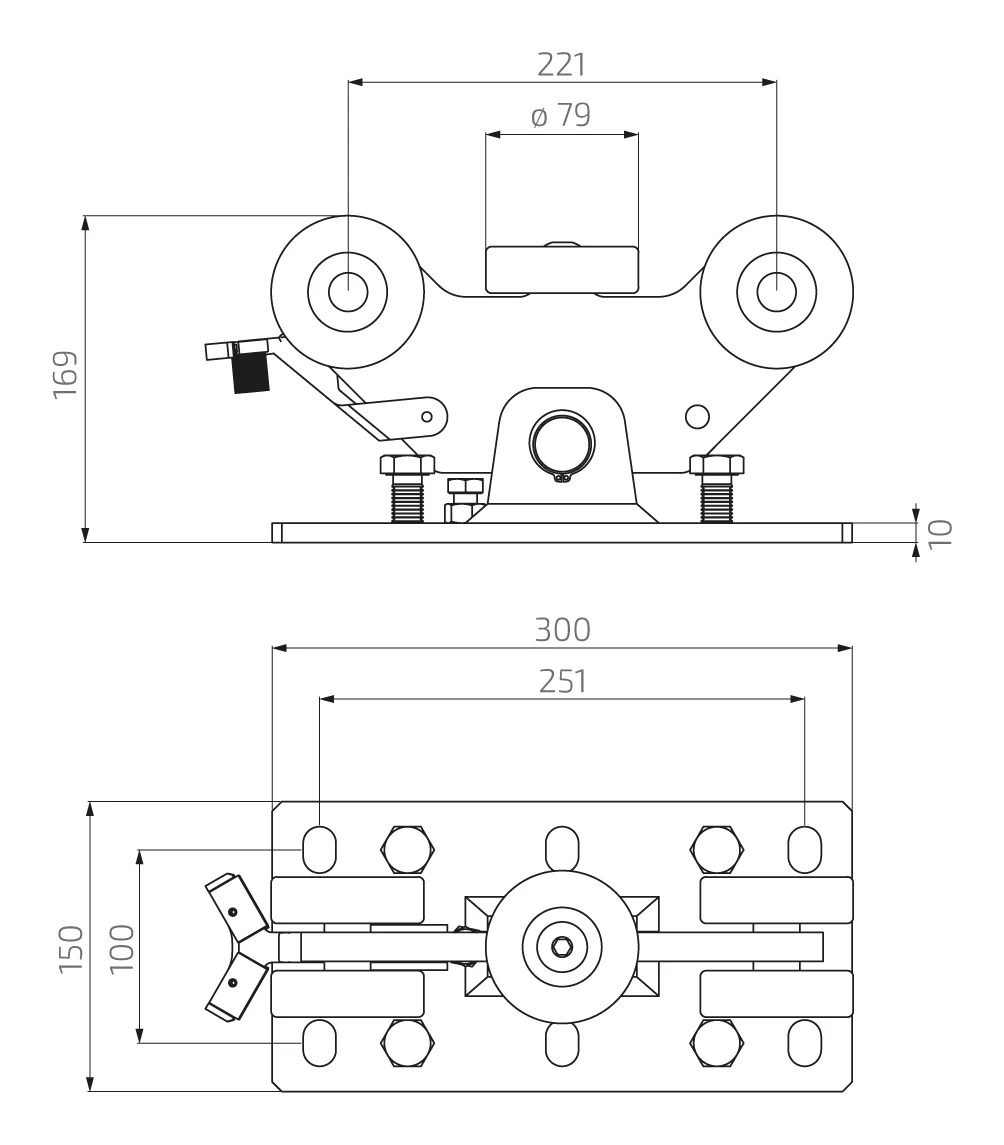

Dimensions and Technical Specifications

• Overall length (mounting plate): 300 mm
• Overall width (mounting plate): 150 mm
• Overall height (with rollers): 169 mm
• Mounting plate thickness: 10 mm
• Roller axle spacing: 221 mm
• Guide roller diameter: ø 79 mm
• Mounting hole spacing (longitudinal): 251 mm
• Mounting hole spacing (transverse): 100 mm
• Frame material: galvanised steel
• Roller material: nylon (plastic)
• Number of rollers: 5
• Recommended max. gate weight: 400 kg (for gate openings up to 6 m)
• Trolley weight: 8.3 kg
• EAN: 8028390629979

This trolley is designed for self-supporting gate systems with aluminium profiles. Thanks to its robust construction and nylon rollers, it is a reliable component that ensures comfortable, trouble-free gate operation for many years. An ideal solution for installation companies carrying out sliding gate projects at industrial and logistics facilities, as well as private properties.
