Running carriage 70 for sliding gate 5-roller steel rollers
Description

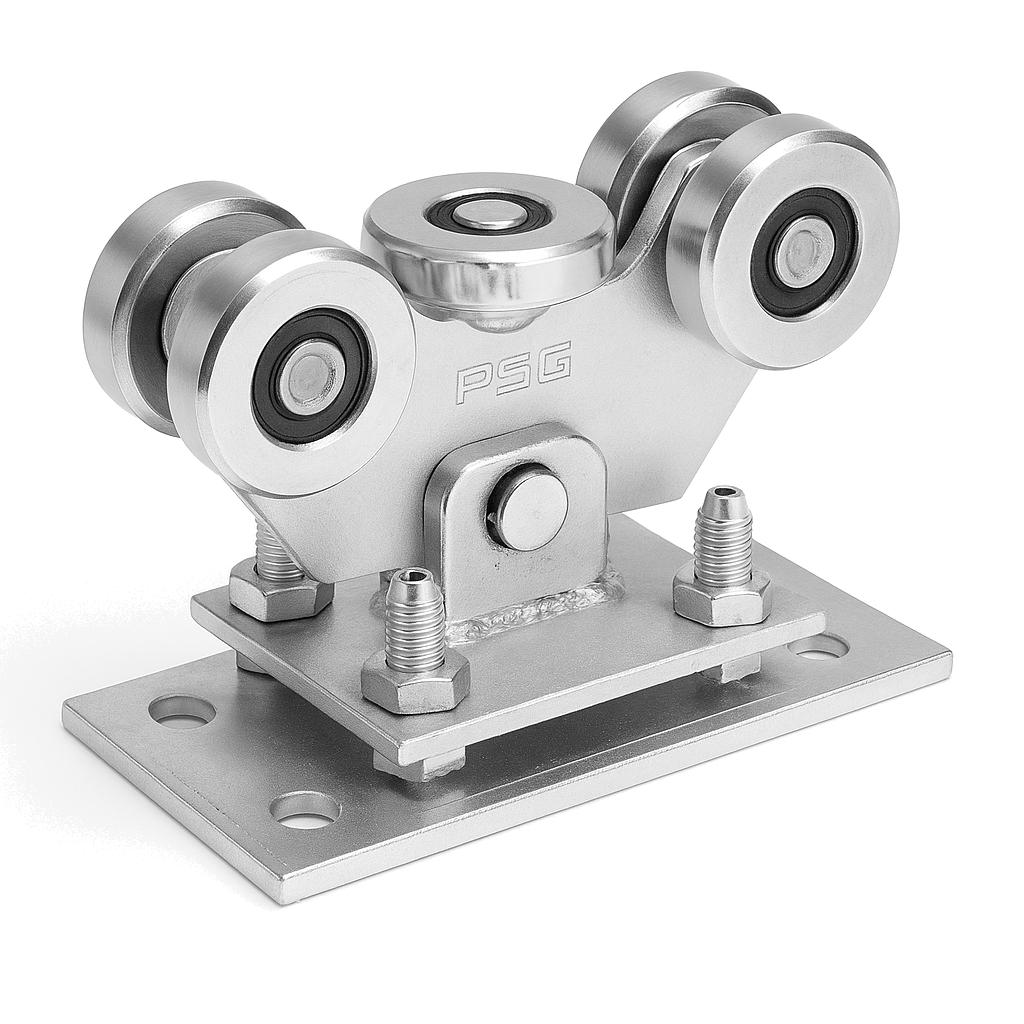

5-Roller Sliding Gate Trolley – 70x70 mm Rail, 450 kg
The 5-roller sliding gate trolley for cantilever sliding gates is a robust running component designed for professional gate systems. Its swivel construction with 5 steel rollers (including one horizontal roller) ensures smooth and quiet gate travel, while the pin connection between the trolley and base plate allows automatic alignment to the guide rail. This solution reduces installation time and eliminates the need for precise levelling — ideal for installation teams working across multiple projects.
Construction and Operation
The trolley is fitted with 5 metal rollers mounted on bearings, which ensure an even distribution of load along the guide rail. The horizontal roller stabilises lateral gate movement, eliminating wobble and vibration during travel. The swivel mechanism (a pin connecting the trolley to the mounting base) allows automatic compensation for minor rail deviations, greatly simplifying installation on uneven ground.
Height adjustment is carried out via fixing screws in the base plate, enabling precise gate levelling after the trolley has been installed. The entire component is galvanised, providing corrosion protection and ensuring long-term performance in outdoor conditions.

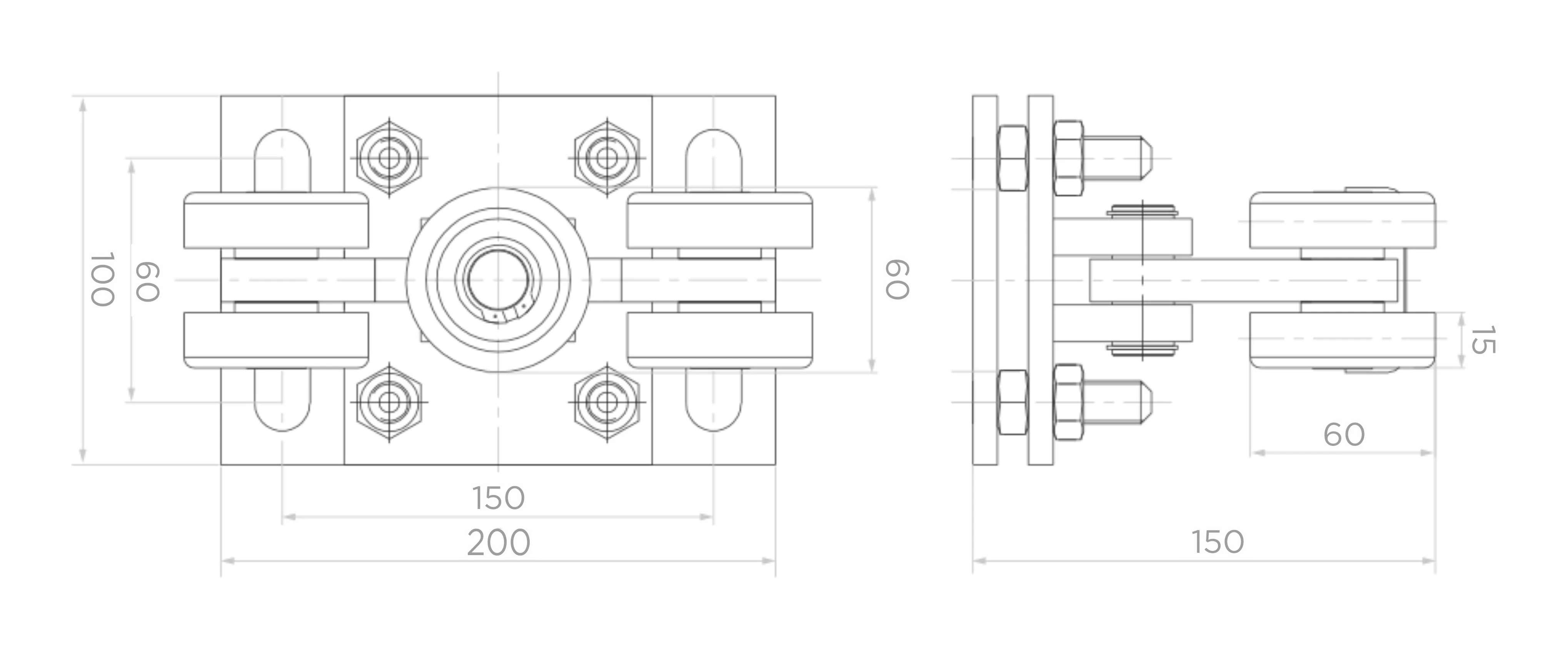

Technical Specifications
- Number of rollers: 5 (including 1 horizontal roller)
- Roller material: steel
- Maximum load capacity: 450 kg
- Compatible rail: 70×70×4 mm
- Trolley height (H): 150 mm
- Mounting base dimensions: 200×100 mm
- Mounting hole spacing: 150 mm
- Trolley width: 150 mm
- Roller depth: 60 mm
- Surface finish: galvanised
- Mechanism: swivel (pin)
- Height adjustment: screw-type
- Weight: 4.965 kg
- Volume: 5243.44 cm³
- EAN: 5901289674645
Application
The trolley is designed for cantilever sliding gates running on a 70×70×4 mm rail. A load capacity of 450 kg allows it to handle heavy gates used in both residential construction and industrial, warehouse, or logistics facilities. A complete running system requires two trolleys mounted on gate posts at the appropriate spacing.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Rail Size | 70x70x4 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Number of Rollers [szt.] | 5 |
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 450 |
| Running System Type | Rolling system |
