Running carriage 70 for sliding gate – 5-roller, steel rollers
Description
Running Trolley 70 for Sliding Gate – 5 Steel Rollers, 650 kg

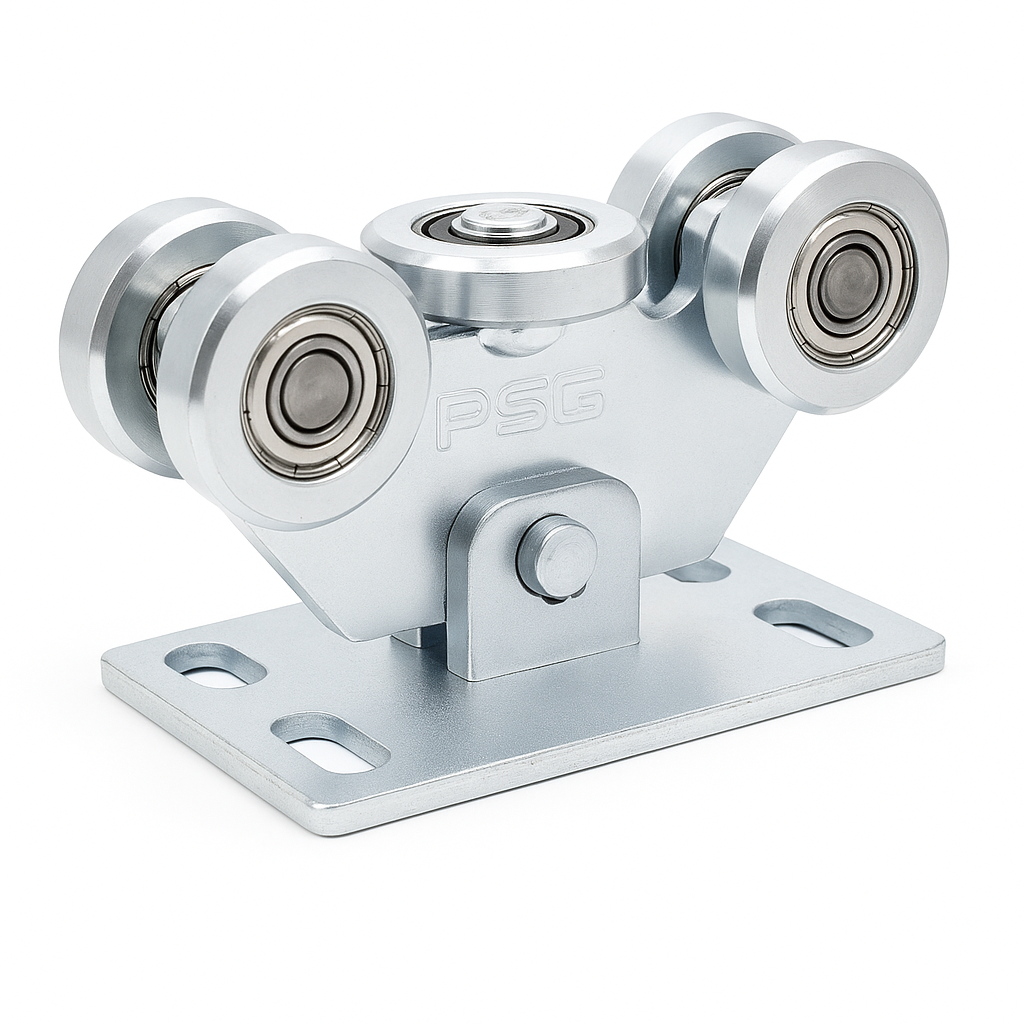

The Running Trolley 70 is a heavy-duty, 5-roller running component designed for self-supporting sliding gates. Its swivel construction — the trolley is connected to the base plate via a pivot pin — means it automatically adjusts to the guide rail profile during gate operation, ensuring smooth and quiet movement even under heavy loads.
The trolley is fitted with 4 vertical rollers and 1 horizontal roller, all manufactured from steel. The bearings provide minimal rolling resistance and a long service life. The entire assembly is galvanised, guaranteeing high corrosion resistance and reliable outdoor performance in variable weather conditions.
The product is compatible with a guide rail measuring 70×70×4 mm and supports a maximum load of 650 kg, making it a suitable choice for both standard-weight gates and heavier industrial structures.

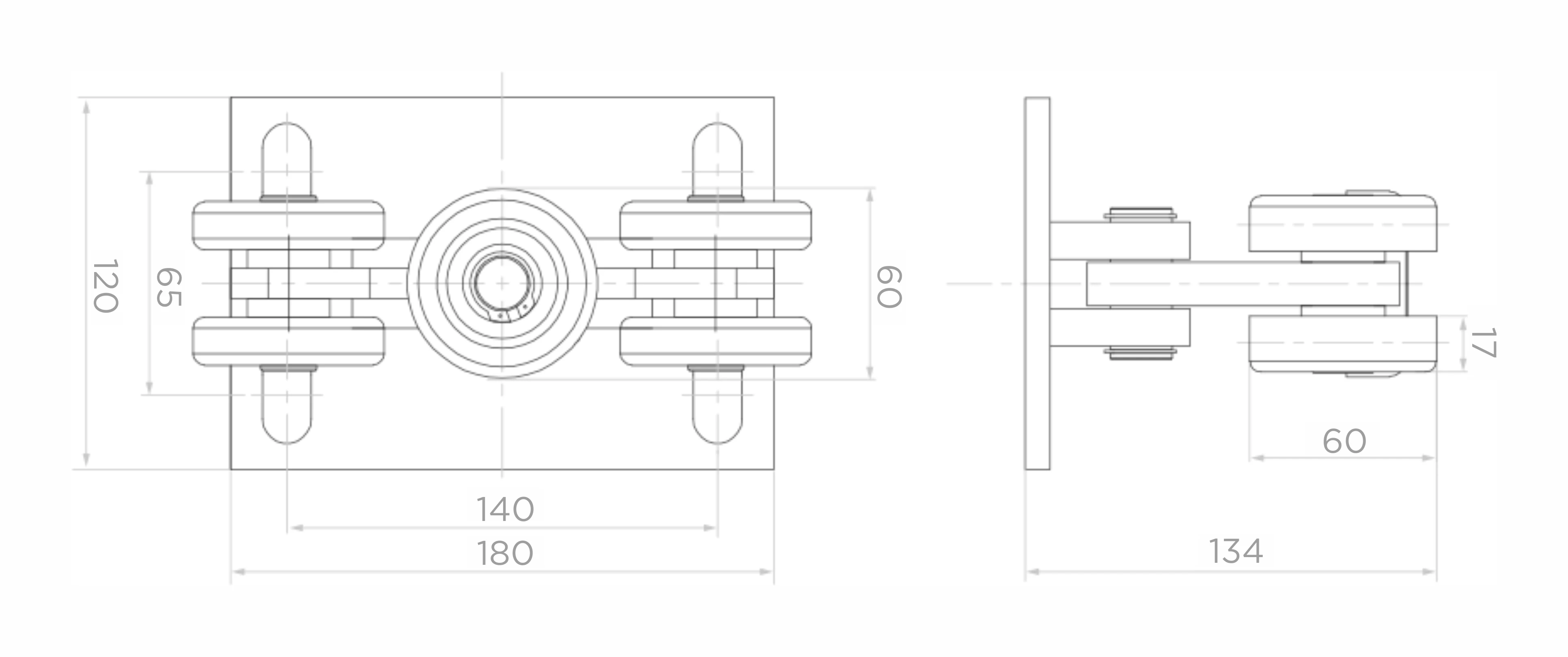

Dimensions and Technical Specifications
- Number of rollers: 5 (4 vertical + 1 horizontal)
- Roller material: steel
- Surface finish: galvanised
- Maximum load capacity: 650 kg
- Compatible rail: 70×70×4 mm
- Base plate dimensions: 180 × 120 mm
- Roller spacing (width): 140 mm
- Roller axle offset from centre: 65 mm
- Roller axle height from base: 60 mm
- Overall depth (H): 134 mm
- Base plate thickness: 17 mm
- Swivel mount width: 60 mm
- Construction: swivel (pivot pin connecting to base plate)
- Weight: 5.68 kg
- EAN: 5901289674492
The base plate features slotted mounting holes, allowing the trolley position to be adjusted during installation. This enables the installer to precisely align the trolleys relative to both the guide rail and the gate leaf, ensuring optimal performance of the entire sliding gate system.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Roller Material | Steel |
| Number of Rollers [szt.] | 5 |
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 650 |
| Rail Size | 70x70x4 |
| Product Type | Single trolley |
| Running System Type | Rolling system |
