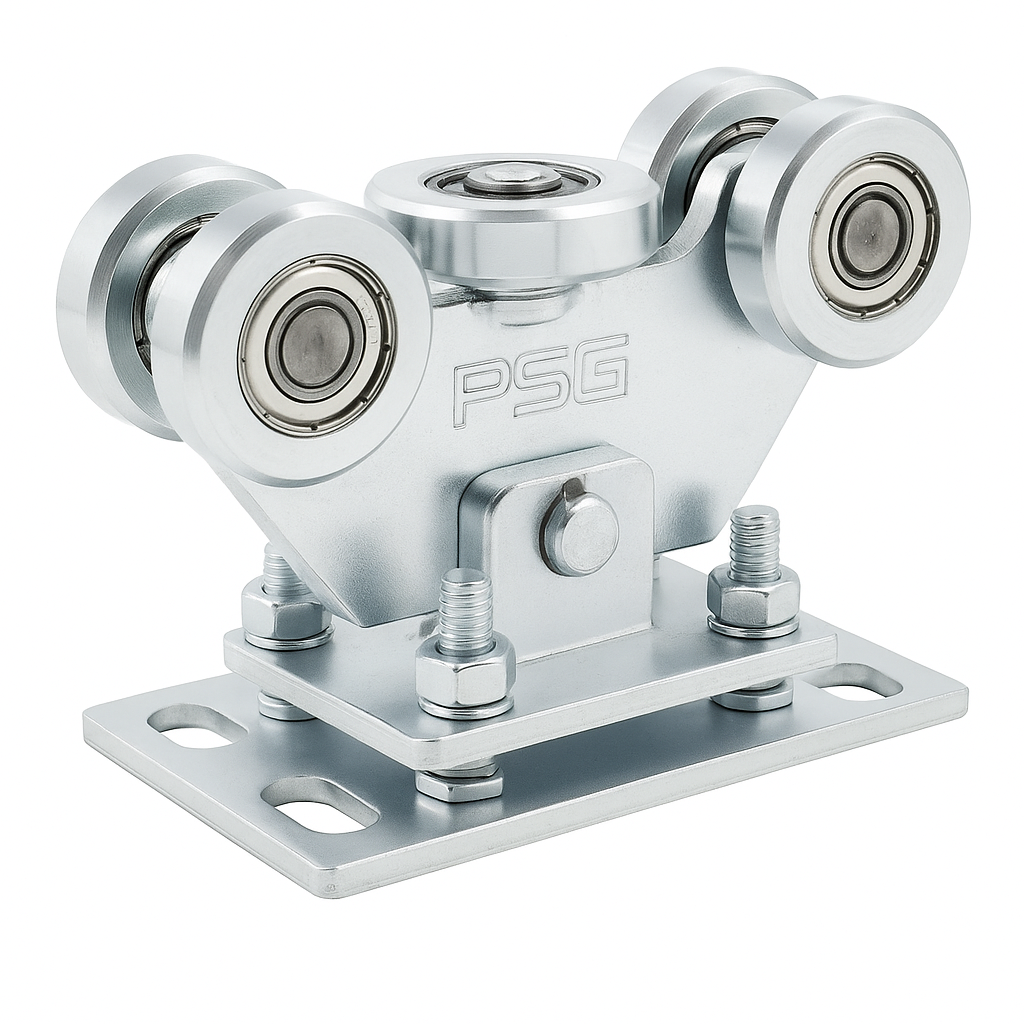

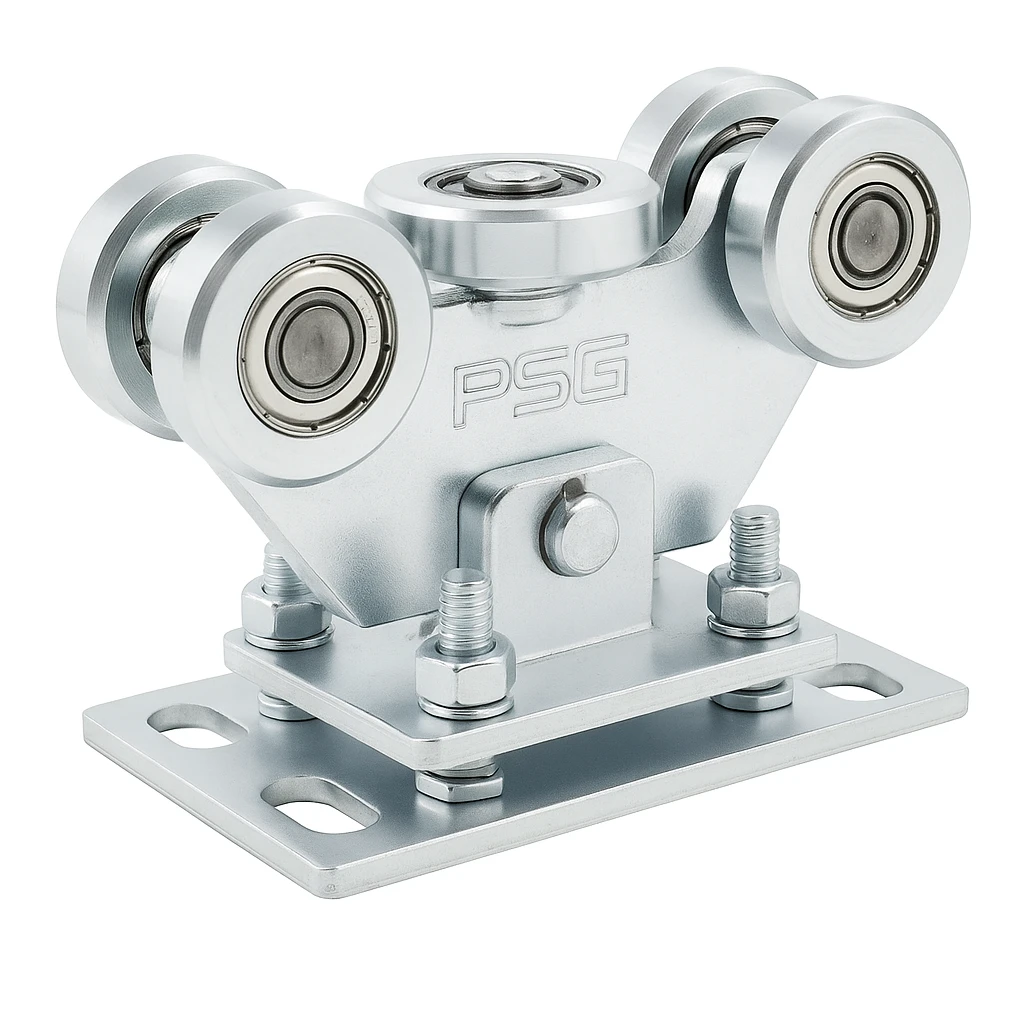

Running Trolley 70 for Sliding Gate – 5-Roller Swivel, Steel Rollers
The Running Trolley 70 is a robust, 5-roller running component designed for self-supporting sliding gates. Its swivel construction with a pivot pin connecting the trolley to the base plate ensures automatic alignment with the rail profile, resulting in smooth and trouble-free gate operation even under heavy loads — up to 650 kg.
Design and Operating Principle
The trolley is fitted with 5 steel rollers, including one horizontal roller, which work in conjunction with a guide rail measuring 70×70×4 mm. All rollers are mounted on ball bearings, ensuring low rolling resistance and quiet operation. The swivel mechanism allows the trolley to tilt relative to the mounting base — compensating for minor unevenness and rail deflection, while distributing the load evenly across all rollers.
Height adjustment is achieved via bolts in the base plate, allowing precise levelling of the gate during installation. The entire assembly is zinc-coated, protecting the steel components against corrosion and ensuring long-lasting performance in outdoor conditions.
Technical Specifications
- Number of rollers: 5 (including 1 horizontal roller)
- Roller material: steel with ball bearings
- Compatible rail: 70×70×4 mm
- Maximum load capacity: 650 kg
- Height (H): 150 mm

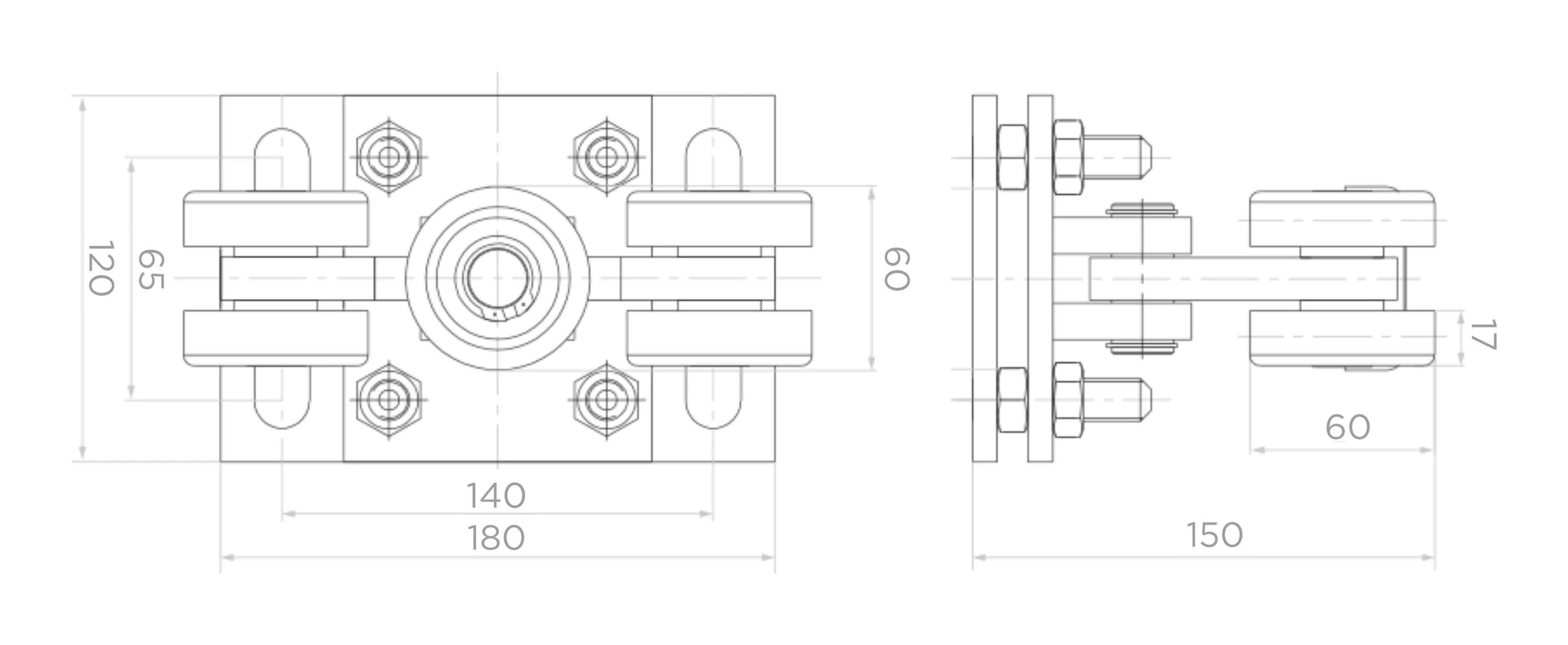

- Base plate dimensions (W × L): 180 × 120 mm
- Base plate fixing centres: 140 × 65 mm
- Lateral depth: 150 mm
- Body width: 60 mm
- Base plate thickness: 17 mm
- Weight: 5.7 kg
- Volume: 5243 cm³
- Corrosion protection: zinc coating
- Base connection type: swivel pivot pin
- Height adjustment: yes — via bolts
- EAN: 5901289674546
Application and Installation
The trolley is designed for professional installations of self-supporting sliding gates with a leaf weight of up to 650 kg. Thanks to its swivel construction and height adjustment, installation is straightforward and does not require a perfectly level foundation — the installer can make precise corrections during the gate-setting stage. The mounting holes in the base plate allow secure anchoring to the ground using standard bolts.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Number of Rollers [szt.] | 5 |
| Trolley Construction | Swivel |
| Max. load capacity [kg] | 650 |
| Rail Size | 70x70x4 |
| Product Type | Single trolley |
| Roller Material | Steel |
| Running System Type | Rolling system |
