Running carriage 60 5-roller steel for self-supporting sliding gates
Leave feedback on the product

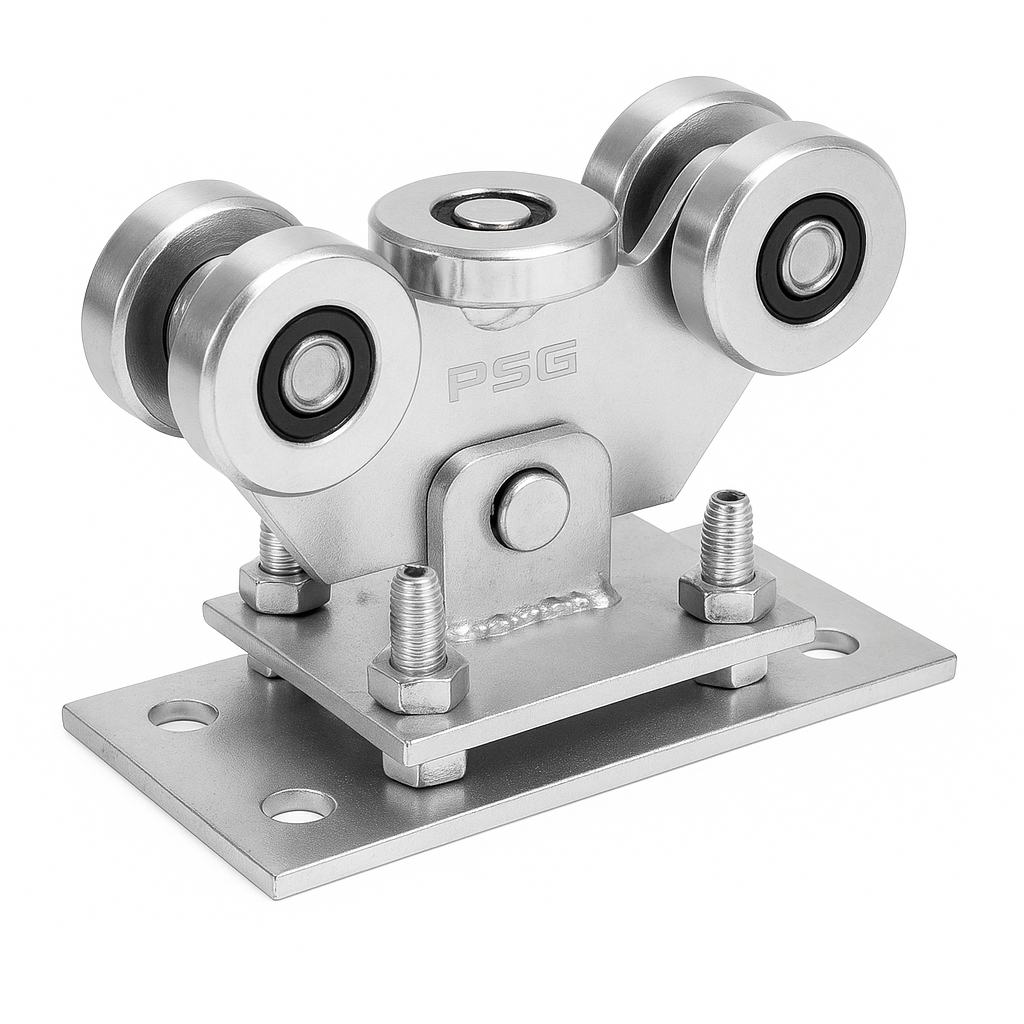

5-roller steel running trolley with swing arm construction for self-supporting sliding gates. Load capacity 350 kg, compatible with 60×60×4 mm rail, galvanised, height adjustment via screws.
Product code: 000-313
Product features
[PIM] wozki #111
- Rail Size 60x60x4
- Product Type Single trolley
- Roller Material Steel
- Number of Rollers [szt.] 5
- Trolley Construction Swivel
- Max. load capacity [kg] 350
- Running System Type Rolling system
Description
Running Trolley 60 for Sliding Gate – 5 Steel Rollers, 350 kg
5-roller running trolley designed for self-supporting sliding gates. The swivel construction with 5 steel rollers (including one horizontal roller) ensures smooth gate guidance and automatic adjustment to the running rail. The trolley connects to the base via a pivot pin, providing freedom of movement and compensation for any track deviations. The mounting height is adjustable via screws, allowing the installer to precisely level the gate on site.
Robust construction and high load capacity
The trolley is fully galvanised, providing effective corrosion protection and a long service life even in demanding weather conditions. Rollers mounted on ball bearings guarantee quiet and effortless gate operation throughout the entire service life. The maximum load capacity of the trolley is 350 kg, making it suitable for use with heavy gates – both steel and aluminium.
The trolley is compatible with a running rail measuring 60×60×4 mm, making it a universal component for the majority of self-supporting sliding gate systems available on the market.

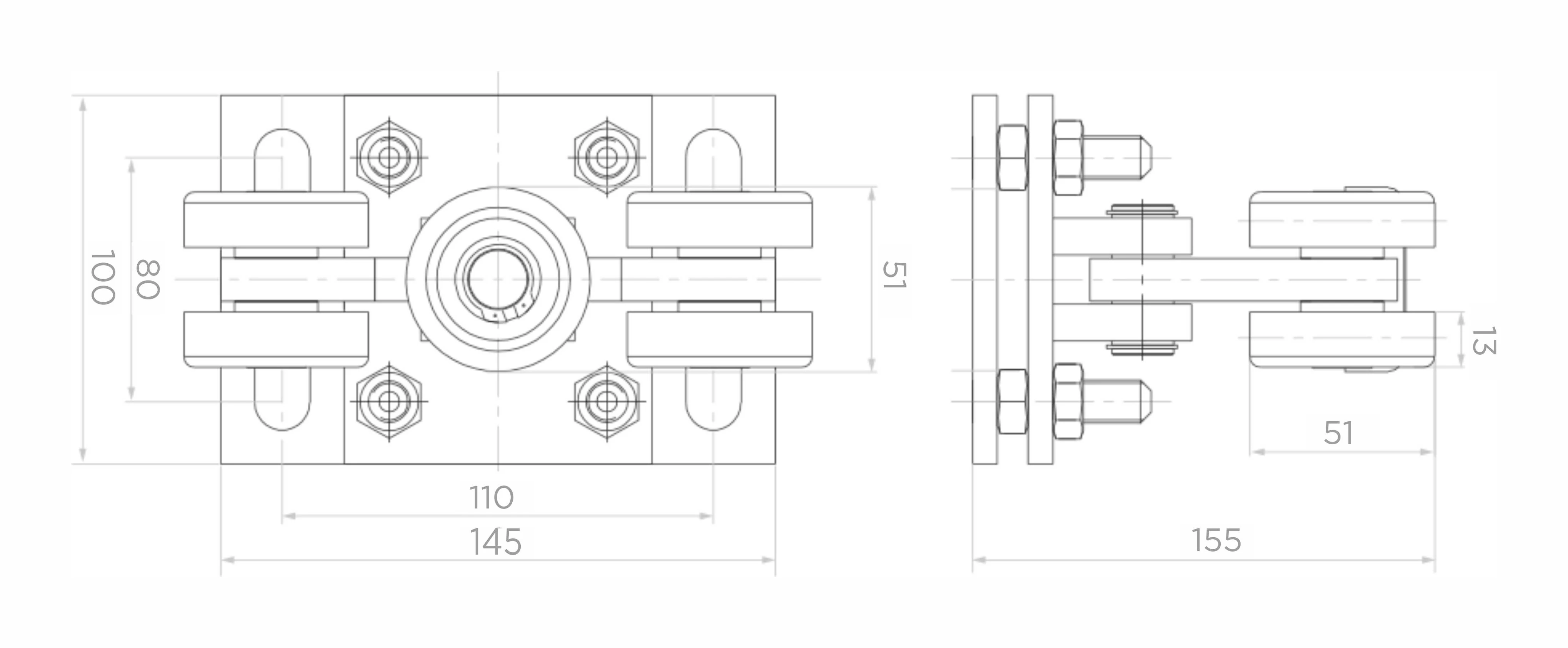

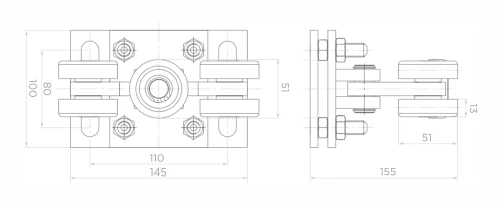

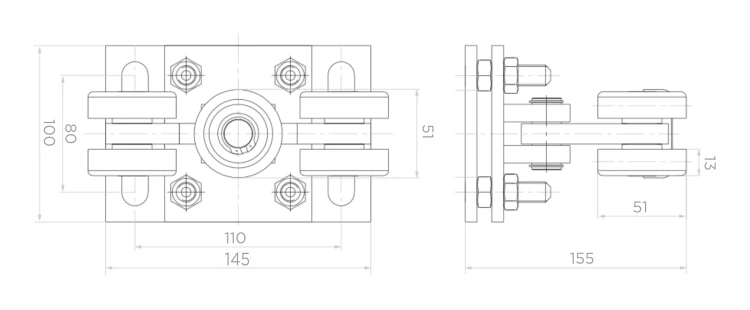

Dimensions and technical specifications
- Compatible running rail: 60×60×4 mm
- Maximum load capacity: 350 kg
- Number of rollers: 5 (4 vertical + 1 horizontal)
- Roller material: steel
- Surface finish: galvanised
- Construction: swivel, pivot pin connection to base
- Height adjustment: via base screws
- Total height (H): 150 mm
- Base dimensions: 145 × 100 mm
- Mounting hole spacing: 110 × 80 mm
- Width including rollers: 155 mm
- Roller width: 51 mm
- Bottom clearance: 13 mm
- Weight: 3.46 kg
- Packaging volume: 5,243.44 cm³
- EAN: 5901289674638
