Middle clamp H11 L50 low Aluminium 6060
Leave feedback on the product
Middle clamp for securing two PV modules, made from aluminium 6063/T66. Thickness 3 mm, Ø 8.5 mm hole for M8 bolt, width 25 mm. Raw finish, anti-slip serrations.
Product code: 000-186
Product features
[PIM] Klemy #34
- Clamp Type Mid
- Colour Silver
- Grounding pin No
- Additional accessories None
Description

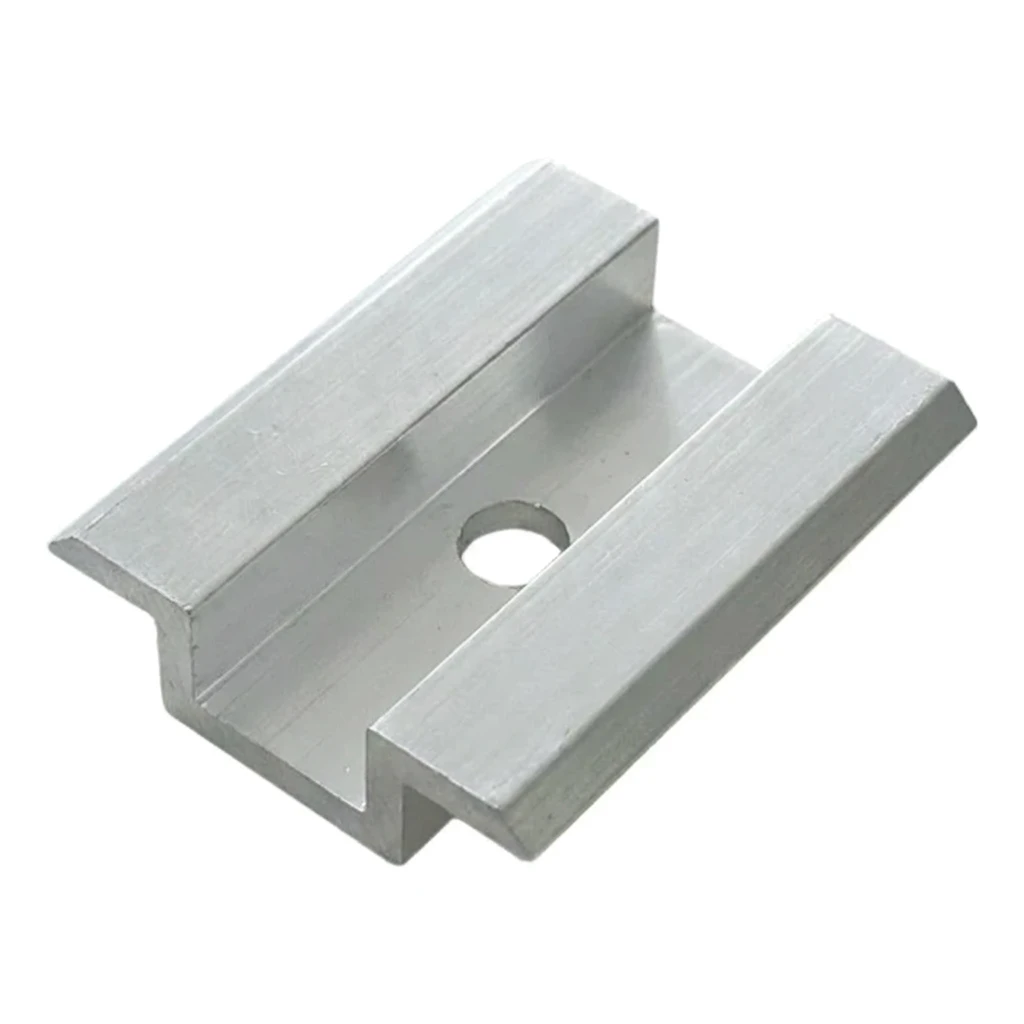

Low Mid Clamp H11 – Aluminium 6063/T66
Low mid clamp H11 for securing two adjacent photovoltaic modules on a mounting rail. The low-profile design makes it suitable for use with thin-framed panels, ensuring a firm and stable clamping force.
The clamp is manufactured from aluminium 6063/T66 in a natural silver finish (mill finish). This alloy offers excellent corrosion resistance and outstanding mechanical properties, ensuring long-term durability of the installation.
Installation is fast and straightforward — the insert (T-bolt or hammer-head) is placed into the rail channel, and tightening the bolt clamps both panels securely against the mounting rail. Serrated teeth on both sides of the clamp grip the module frames, effectively preventing any lateral movement.

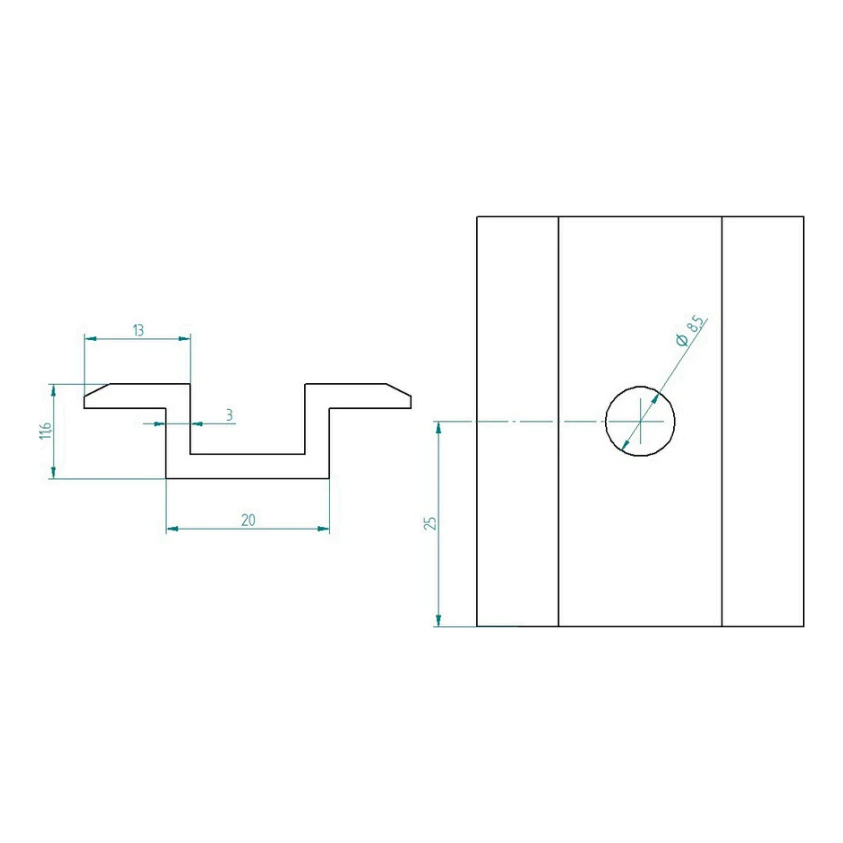

Clamp dimensions: width 25 mm, height 11.6 mm, slot width 13 mm, hole Ø 8.5 mm. The compact dimensions and low weight facilitate transport and roof installation.
Technical Specifications
- Material: aluminium 6063/T66
- Finish: mill finish (silver)
- Thickness: 3 mm
- Height: 11.6 mm
- Mounting hole: Ø 8.5 mm (for M8 bolt)
- Application: flat and pitched roofs
The clamp is compatible with hex-head bolt profiles, T-slot profiles, and trapezoidal bridges. The bolt length should be selected as for an end clamp, with an additional 15 mm.
Note: the tightening torque must be selected in accordance with the photovoltaic panel manufacturer's guidelines.
