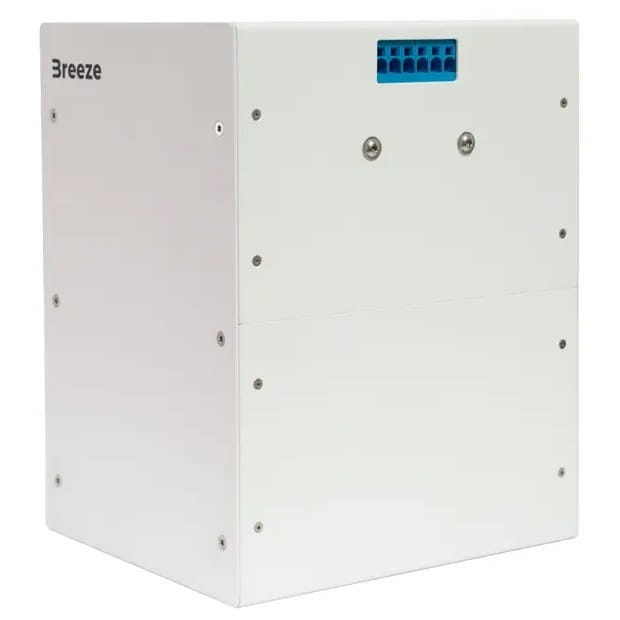

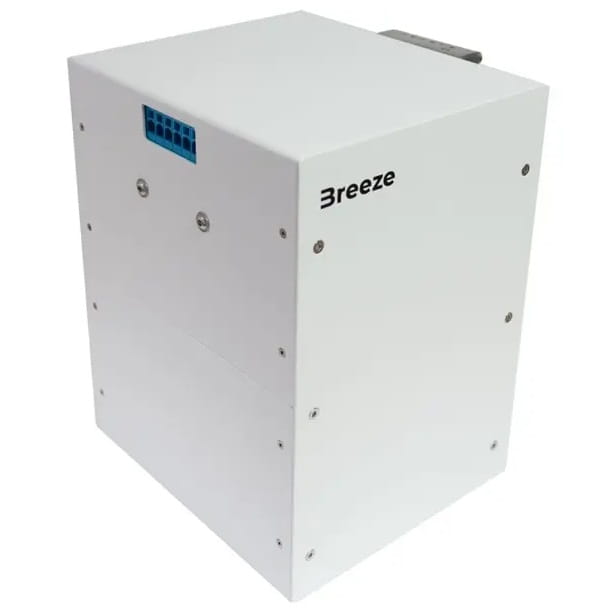

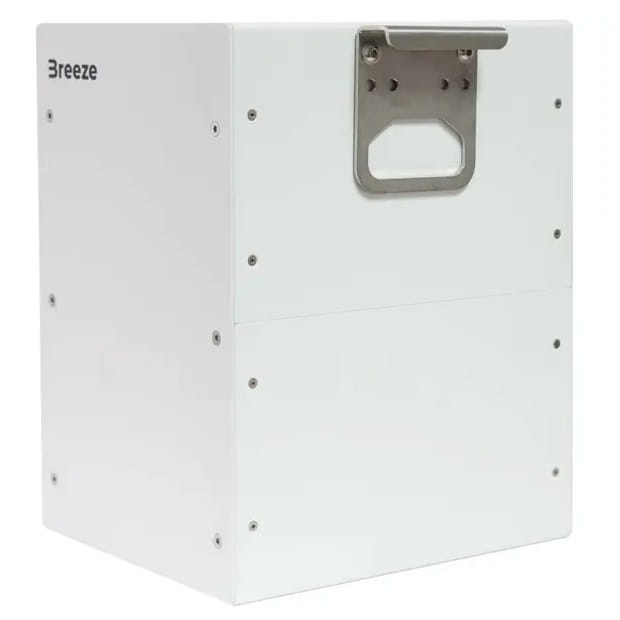

ION BREEZE 4850 Battery Module with BMS 2.5 kWh 48V 50Ah 50A
Description
ION BREEZE 4850 Moduł bateryjny z BMS 2,5 kWh 48V 50Ah 50A
The ION BREEZE 4850 battery module by BREEZE is an advanced energy storage unit with a capacity of 2.5 kWh, 48V voltage and 50A current. Designed for domestic photovoltaic installations, it enables surplus energy to be efficiently stored and used during sunless periods or power outages.
With plug-and-play technology, the system is easy to install and expand, offering a 20-year warranty and a life expectancy of 6,000 cycles at full power.
Key features and functions:
- Energy storage: Stores excess production from PV installations.
- Emergency power supply: Instantaneous switching to emergency mode without the need for an ATS.
- Plug&Play technology: Easy installation and configuration.
- Scalability: Possibility to combine modules to increase capacity or power.
- Winter mode: Island operation option during more expensive energy hours.
- Long life: 6000 cycles at full power (1C).
Applications:
- Domestic photovoltaic installations
- Emergency power systems
- Household energy optimisation
Advantages:
- Flexibility: Possibility to expand the system over time.
- Reliability: 20-year manufacturer's warranty.
- Compatibility: No interference with existing PV installation.
- Efficiency: Optimum use of solar energy.
Additional information:
- No restrictions on expanding storage capacity.
- Ideal for large domestic installations.
- Parallel operation possible, maintaining the nominal capacity of the new modules.
The ION BREEZE 4850 BREEZE battery module is the professional solution for owners of domestic photovoltaic installations looking for an efficient and scalable energy storage system. Its advanced features, ease of installation and long service life make it the ideal choice for those who want to maximise the potential of their PV installation and become independent of energy price fluctuations.
The BREEZE mobile application allows you to monitor and view:
- State of charge
- Charge and discharge current
- Failure states
- Level of balance of individual cells
- Temperature
| Our Models | 1,5 kWh | 2,5 kWh | |||
|---|---|---|---|---|---|
| Specification | |||||
| Manufacturer | BREEZE | ||||
| Battery capacity [Ah] | 30 Ah | 50 Ah | |||
| Voltage [V] | 51,2 V | ||||
| Usable energy [Wh] | 1536 Wh | 2560 Wh | |||
| Charging voltage [VDC] | 58,4 V | ||||
| Charging current [A] | 10 A | 20 A | |||
| Maximum charging current [A] | 30 A | 50 A | |||
| Discharge current [A] | 15 A | 25 A | |||
| Maximum discharge current [A] | 40 A | 50 A | |||
| Operating temperature [°C] | -10 deg.C to 55 deg.C | ||||
| Storage temperature [°C] | -40 deg.C to 60 deg.C | ||||
| Weight [kg] | 13,4 kg | 20 kg | |||
| Dimensions [mm] | 216 x 170 x 321,2 mm | 219 x 256 x 321,2 mm | |||
| Terminal type | 4 - 18 AWG | ||||
| Mounting direction | Vertical / Horizontal | ||||
| Cell type | LiFePO4 | ||||
| Cut-off voltage | 44 V | ||||
| Internal resistance | < 52 mOhm | < 36 mOhm | |||
| Number of cycles 80% DOD | > 6000 | ||||
Technical data
| Usable capacity [kWh] | 2.56 |
| Continuous power [kW] | 2.56 |
| Peak power 10 s [kW] | 5.10 |
| Maximum current [A] | 50 |
| Chemistry | LFP |
| Lifespan [cycles] | 6000 |
| IP rating | 65 |
| Min. charging temp. [°C] | 0 |
| Max. charging temp. [°C] | 55 |
| Min. discharge temp. [°C] | ‑10 |
| Max. discharge temp. [°C] | 55 |
| Min. modules [pcs] | 1 |
| Max modules [pcs.] | No rigid limit (in practice, any number of modules can be connected in parallel) |
