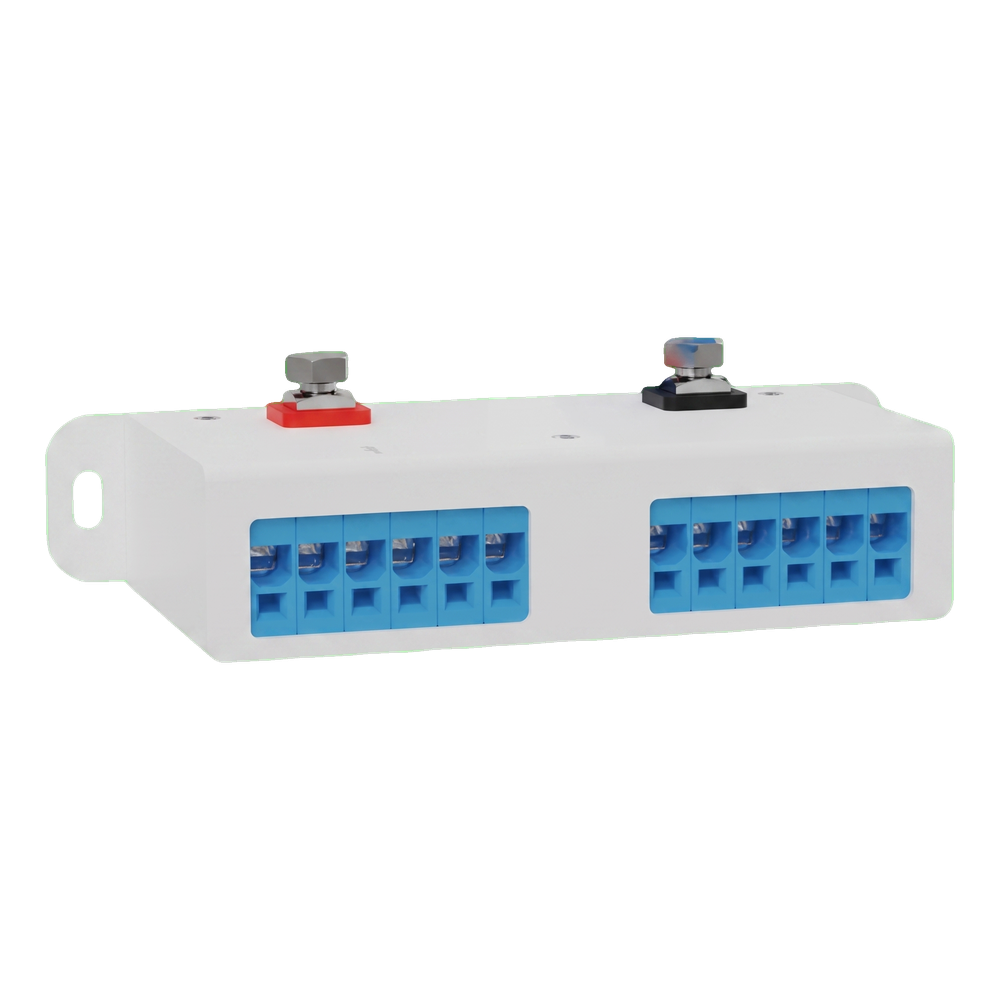

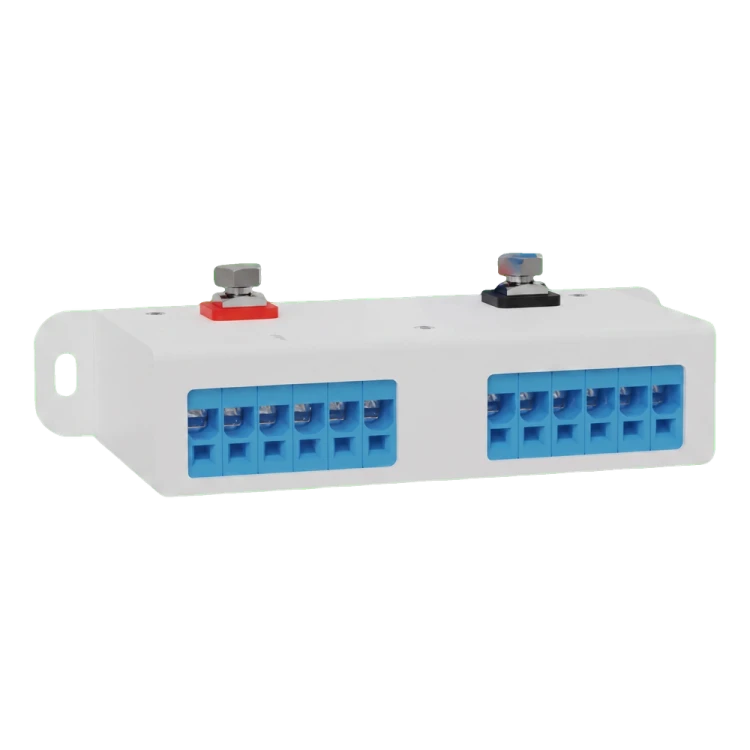

Breeze Connect Box – 200A busbar connector for 6 batteries
Description
Breeze Connect Box – 200A busbar connector for 6 batteries

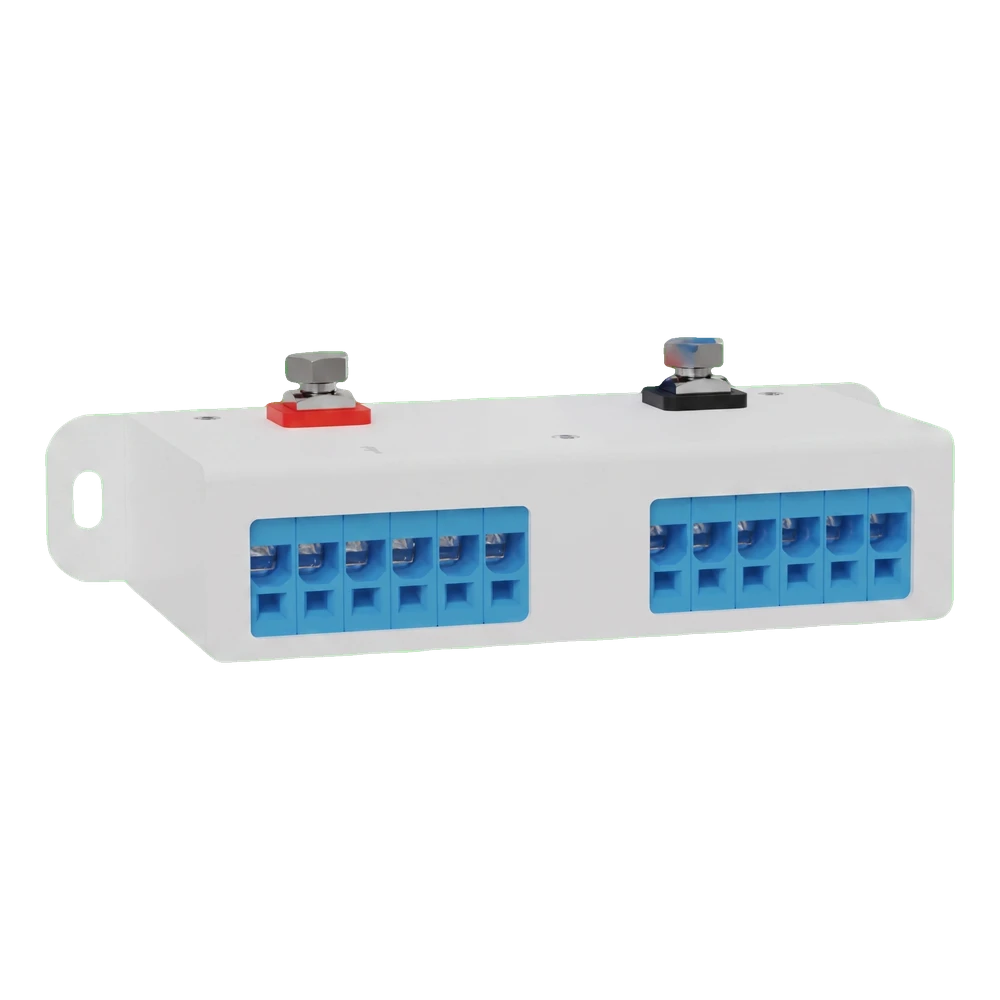

Breeze Connect Box is a compact connector enabling the parallel connection of up to 6 batteries into a single, high-performance energy bank. The device has been designed with professional energy storage installations in mind — both domestic PV systems and backup power systems. Two independent current paths with input and output terminals ensure a reliable, low-resistance connection of each battery to the busbar. High continuous current guarantees safe operation even under heavy load on the bank. The compact design allows for horizontal or vertical mounting, and its small dimensions and low weight make it easy to integrate into cabinets and switchboards. The system is fully scalable — by connecting several Connect Boxes, banks with a greater number of battery modules can be built, adapting the storage capacity to the investor's growing needs.
Application and expansion possibilities

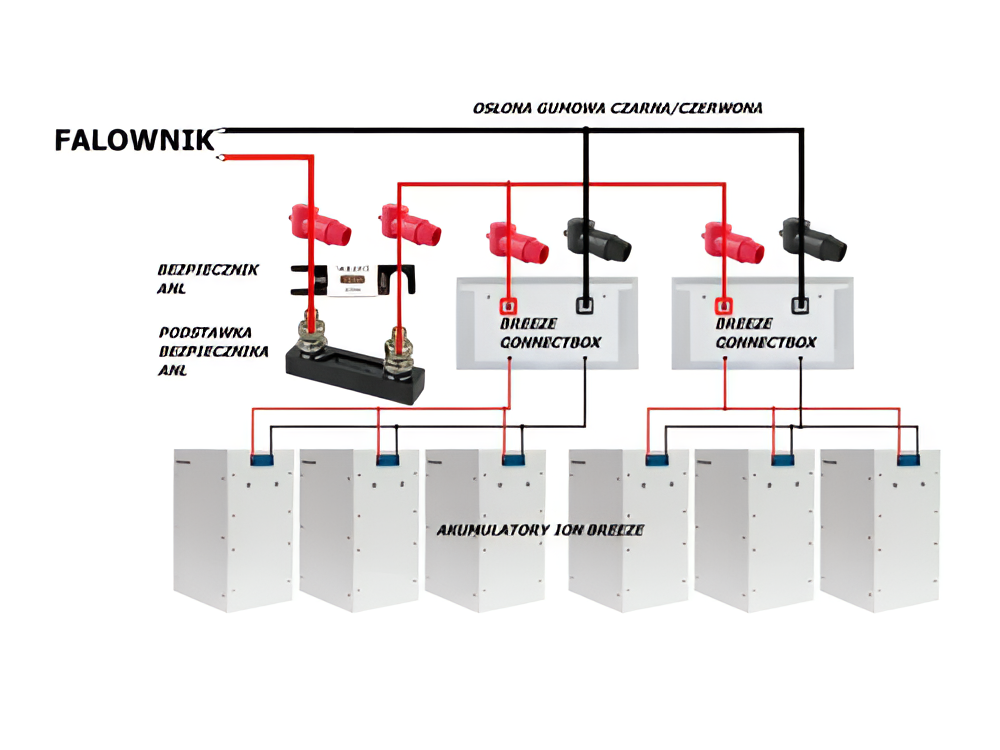

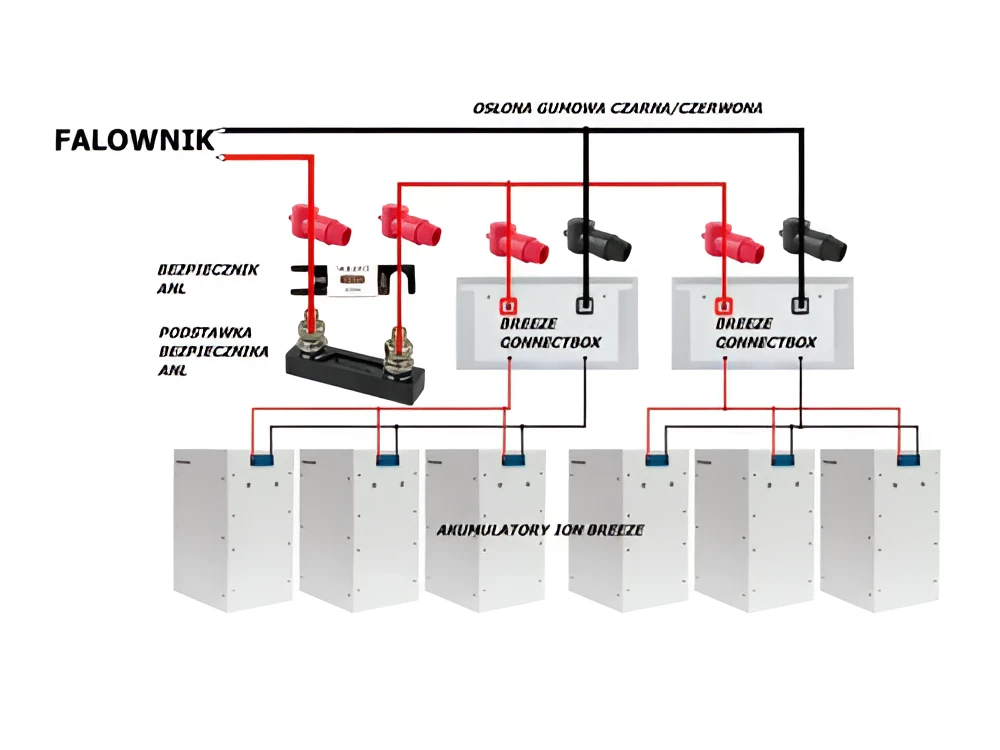

- Parallel connection of up to 6 batteries into one energy bank using a single Connect Box

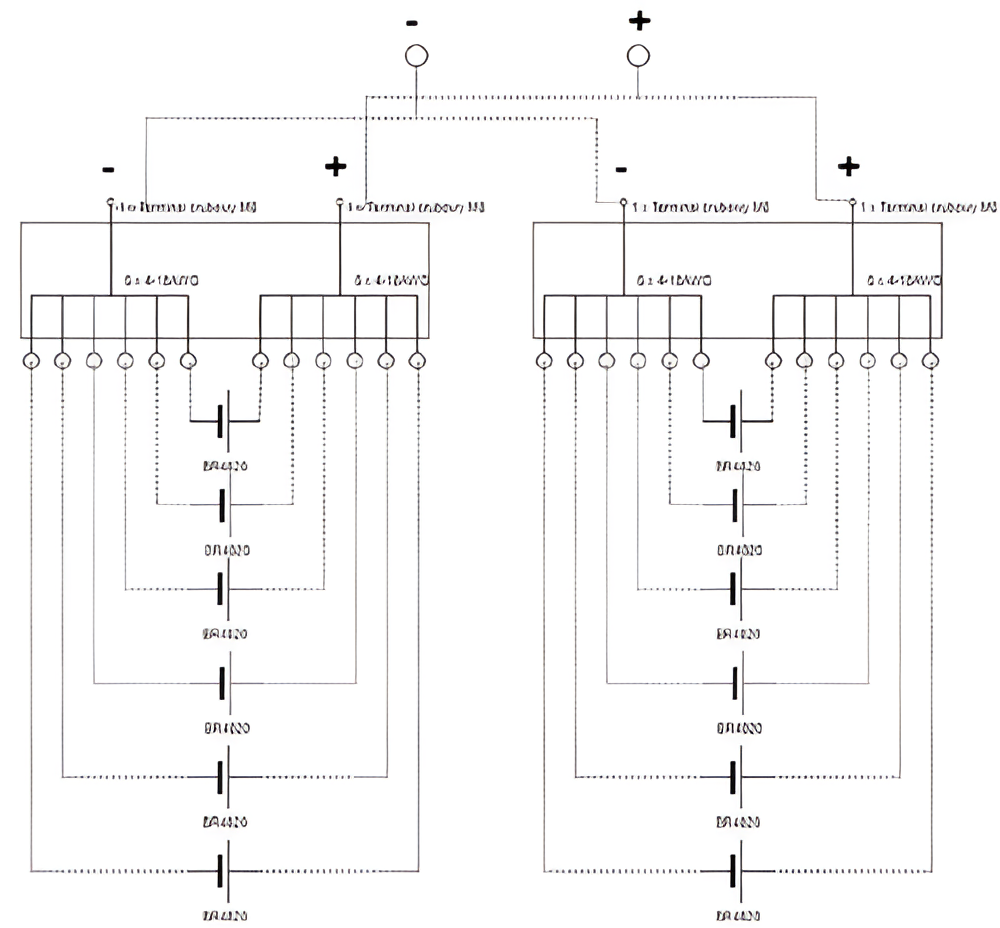

- Ability to cascade several Connect Boxes together to support a greater number of battery modules — ideal for expanding existing installations
- Compatible with ION Breeze batteries and the Breeze Vertical module
- Horizontal or vertical mounting — adaptable to cabinet configuration and available space
- Universal application: domestic PV systems, energy storage systems, backup power systems
Technical specification
| Electrical parameters | |
|---|---|
| Rated current (6 channels) | 180 A |
| Maximum current (6 channels, max. 30 min) | 240 A |
| Maximum current (1 channel) | 66 A |
| Insulation voltage (+/−) | 1 kV |
| Number of current paths | 2 |
| Connections and batteries | |
| Maximum number of batteries | 6 pcs |
| Input terminal type | 4–18 AWG |
| Output terminal type | M8 screw |
| Maximum battery cable cross-section | up to 21 mm² (4 AWG) |
| Mounting and dimensions | |

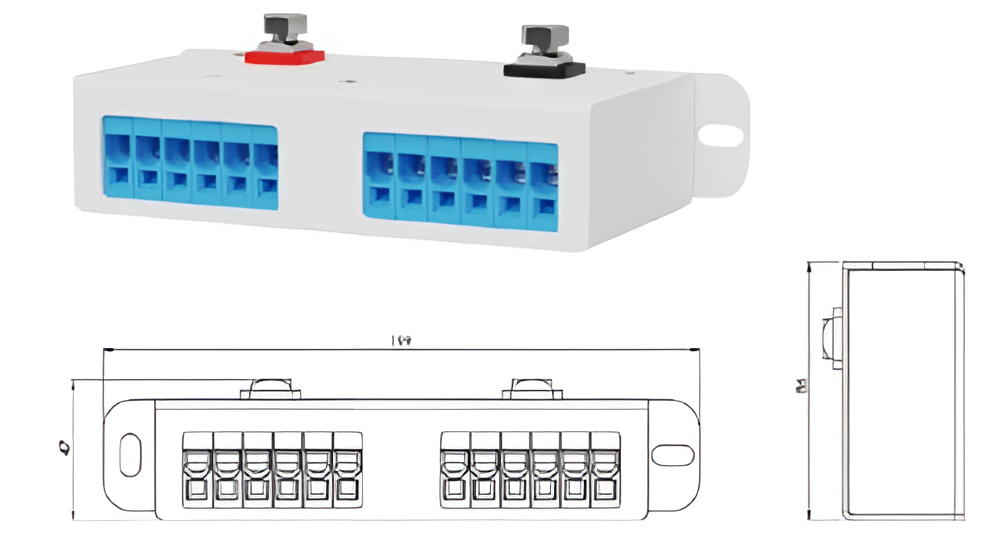

| Dimensions (L × W × H) | 86 × 199 × 47 mm |
| Weight | 424 g |
| Mounting direction | horizontal / vertical |
| Manufacturer | |
| Manufacturer | Breeze |
| Model | Breeze Connect Box |
