BREEZE ION BREEZE 4830 – LiFePO4 1.5 kWh 48V Battery Module with BMS
Description
BREEZE ION BREEZE 4830 – LiFePO4 1.5 kWh 48V Battery Module with BMS

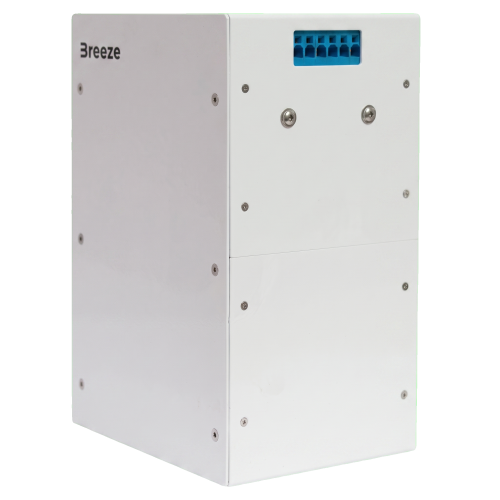

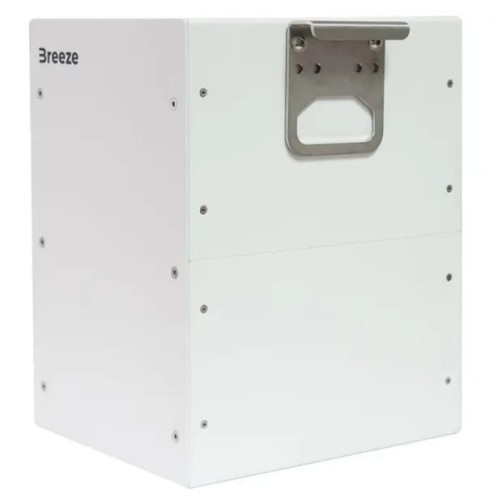

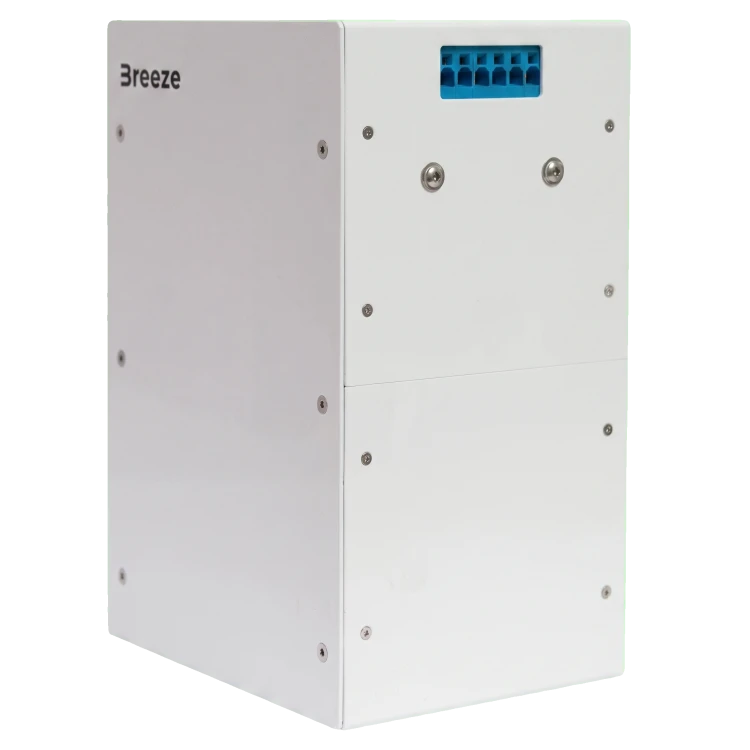

BREEZE ION BREEZE 4830 is a compact battery module with a built-in BMS management system, based on LiFePO4 cells with a usable energy of 1,536 Wh. Designed as a component of home energy storage systems working alongside photovoltaic installations — it enables the storage of surplus PV production and its use during hours without sunlight or during power outages.
Key benefits for the installer
- Plug&Play technology — quick connection without interfering with the existing grid inverter or the main meter
- Vertical or horizontal mounting — flexibility to adapt to conditions in the technical room
- Instant switching to backup power supply — without the need for an ATS
- Winter mode — enables off-grid operation during hours of more expensive energy

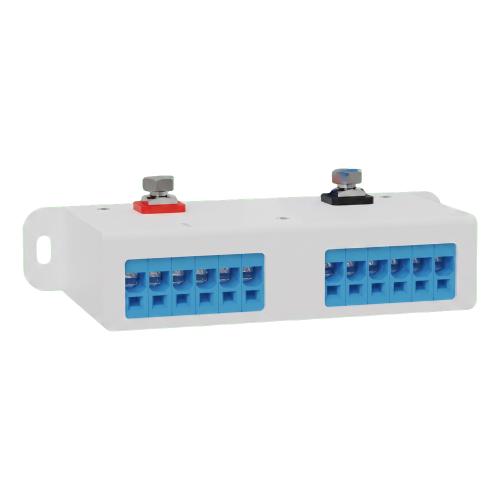

- Ability to combine up to 4 modules in a single string using BREEZE ConnectBox
- Durability of over 6,000 cycles at 80% DOD
Applications
- Residential photovoltaic installations — storing surplus energy from PV panels
- Backup power systems — continuity of power supply for critical loads during outages
- Energy consumption optimisation — winter mode operation allows the use of a cheaper tariff
The BREEZE mobile app enables remote monitoring of key module operating parameters: state of charge, charging and discharging current, fault states, individual cell balancing level, and temperature.

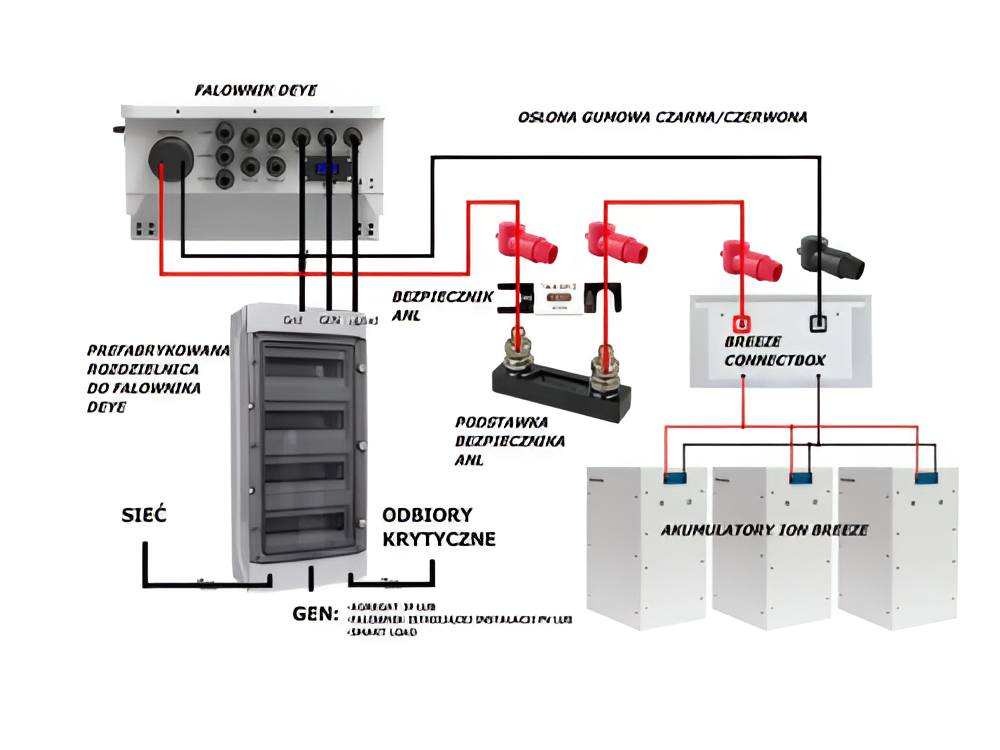

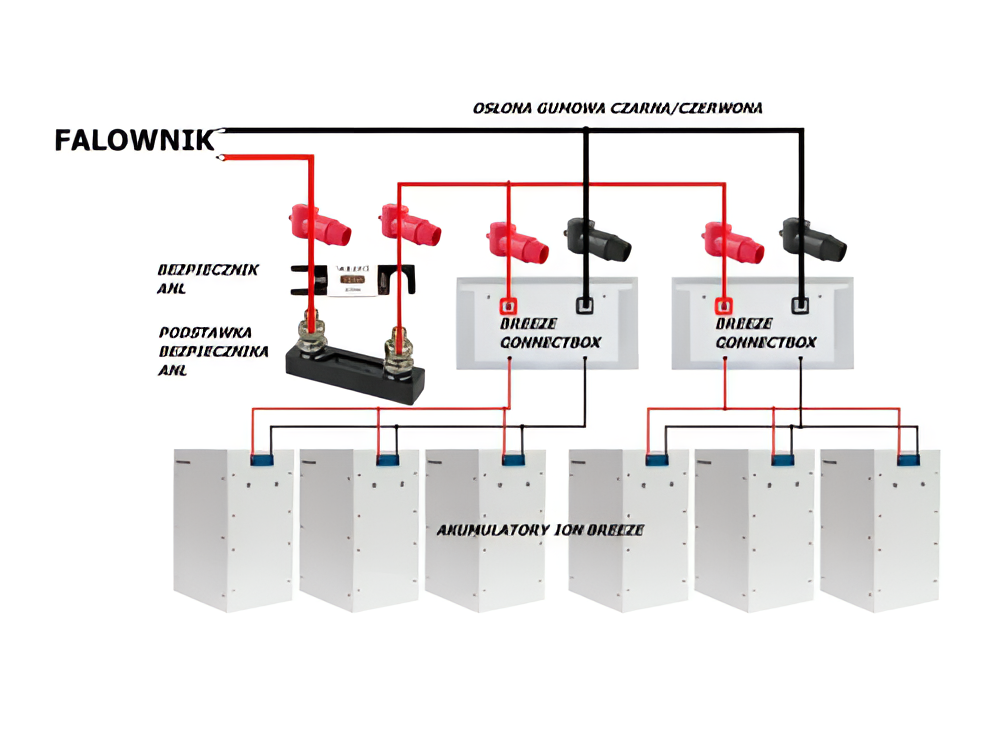

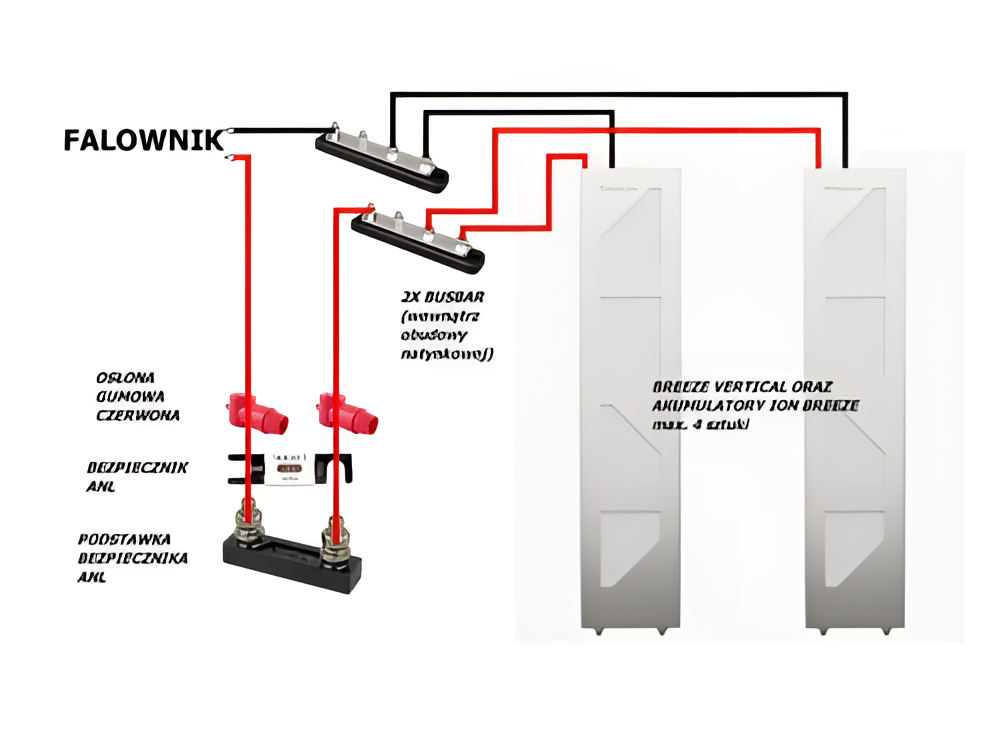

Connection diagrams

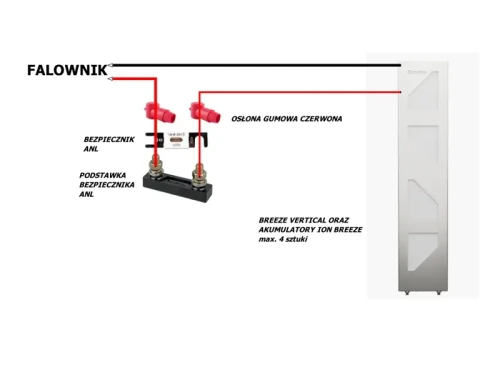

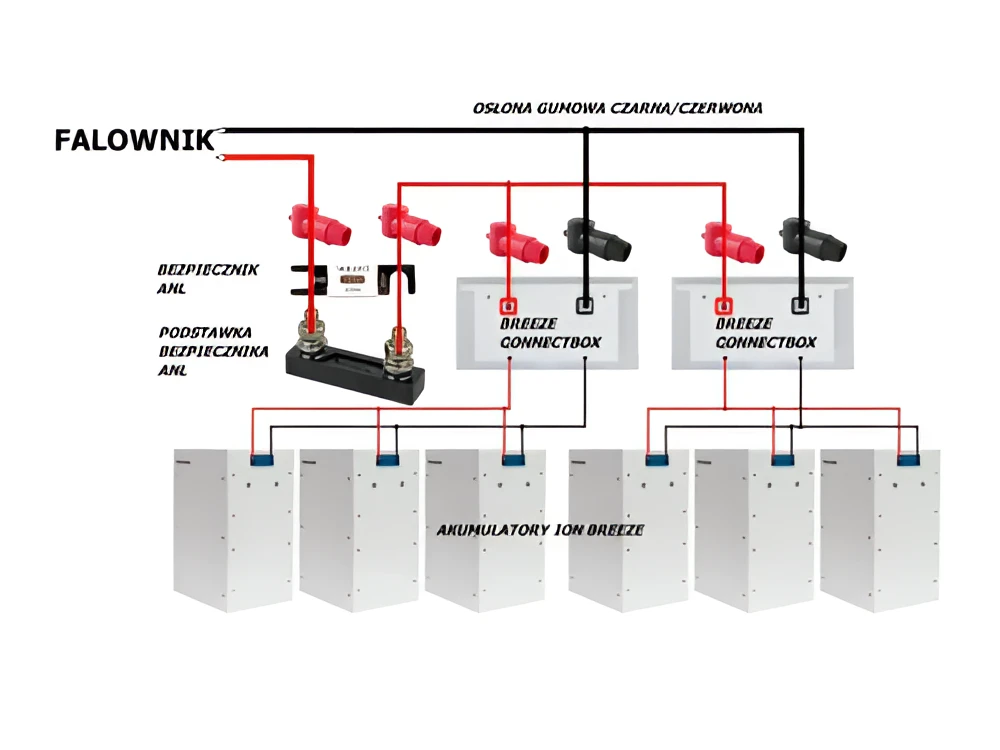

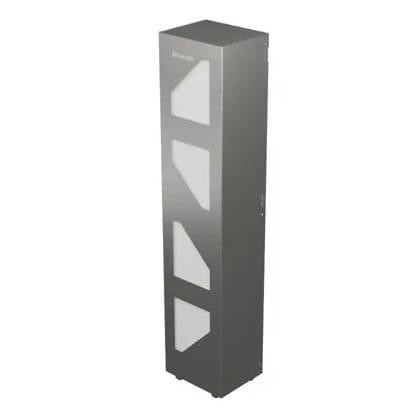

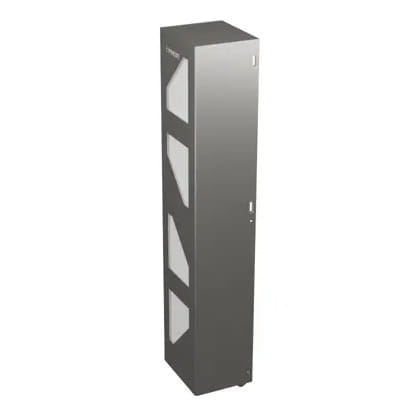

The diagrams below show variants of connecting ION BREEZE modules to an inverter — from a configuration with a single module, through a system with BREEZE Vertical and up to 4 batteries, to extended sets with a Deye inverter, a prefabricated switchboard, BREEZE ConnectBox and multiple modules connected via busbars.
Technical specification
| Parameter | Value |
|---|---|
| Manufacturer | BREEZE |
| Model | ION BREEZE 4830 |
| Cell type | LiFePO4 |
| Capacity | 30 Ah |
| Usable energy | 1,536 Wh |
| Nominal voltage | 51.2 V |
| Charging voltage | 58.4 VDC |
| Cut-off voltage | 44 V |
| Charging current | 10 A |
| Maximum charging current | 30 A |
| Discharge current | 15 A |
| Maximum discharge current | 40 A |
| Internal resistance | < 52 mΩ |
| Number of cycles (80% DOD) | > 6,000 |
| Operating temperature | from −10°C to +55°C |
| Storage temperature | from −40°C to +60°C |
| Dimensions (W × D × H) | 216 × 170 × 321.2 mm |
| Weight | 13.4 kg |
| Terminal type | 4–18 AWG |
| Mounting orientation | vertical / horizontal |
| BMS | built-in |
Technical data
| Usable capacity [kWh] | 1.536 |
| Continuous power [kW] | 1.90 |
| Peak power 10 s [kW] | 3.80 |
| Maximum current [A] | 50 |
| Chemistry | LFP |
| Lifespan [cycles] | 6000 |
| IP rating | 65 |
| Min. charging temp. [°C] | 0 |
| Max. charging temp. [°C] | 55 |
| Min. discharge temp. [°C] | ‑10 |
| Max. discharge temp. [°C] | 55 |
| Min. modules [pcs] | 1 |
| Max modules [pcs.] | No rigid limit (in practice, any number of modules can be connected in parallel) |
