Gravel board bracket 300×50 mm green
Leave feedback on the product
Gravel board bracket for fence gravel boards, 300×50 mm, made of galvanised steel with green powder coating RAL 6005. Sheet thickness 1.5 mm, external width 52 mm. Slotted mounting holes 6×12 mm, Ø6 mm locking rod. Corrosion resistant.
Product code: GPV-700-53
Product features
[PIM] ceownik-do-podmurowki #165
- Colour Green RAL 6005
- C-channel dimension [mm] 300x50
Description
Gravel board bracket with a length of 300 mm and an internal width of 52 mm – connects a 300 × 50 mm gravel board to a fence post
About the product

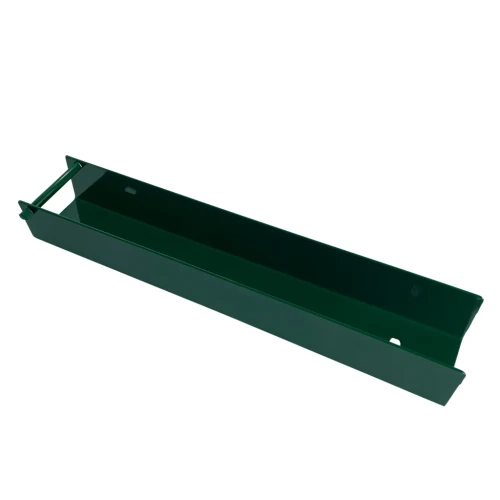

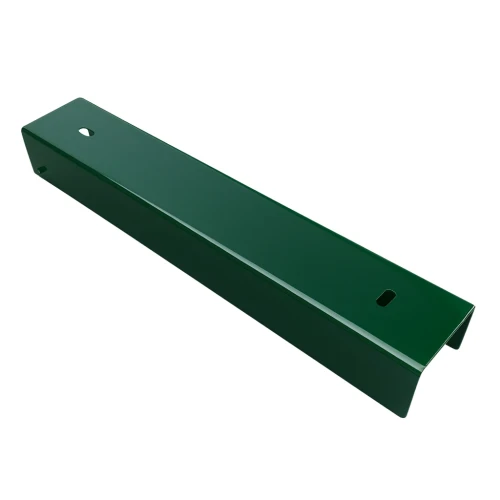

The gravel board bracket connects a concrete gravel board to a fence post. It is fastened to the post, and the end of the board slides between the bracket's flanges.

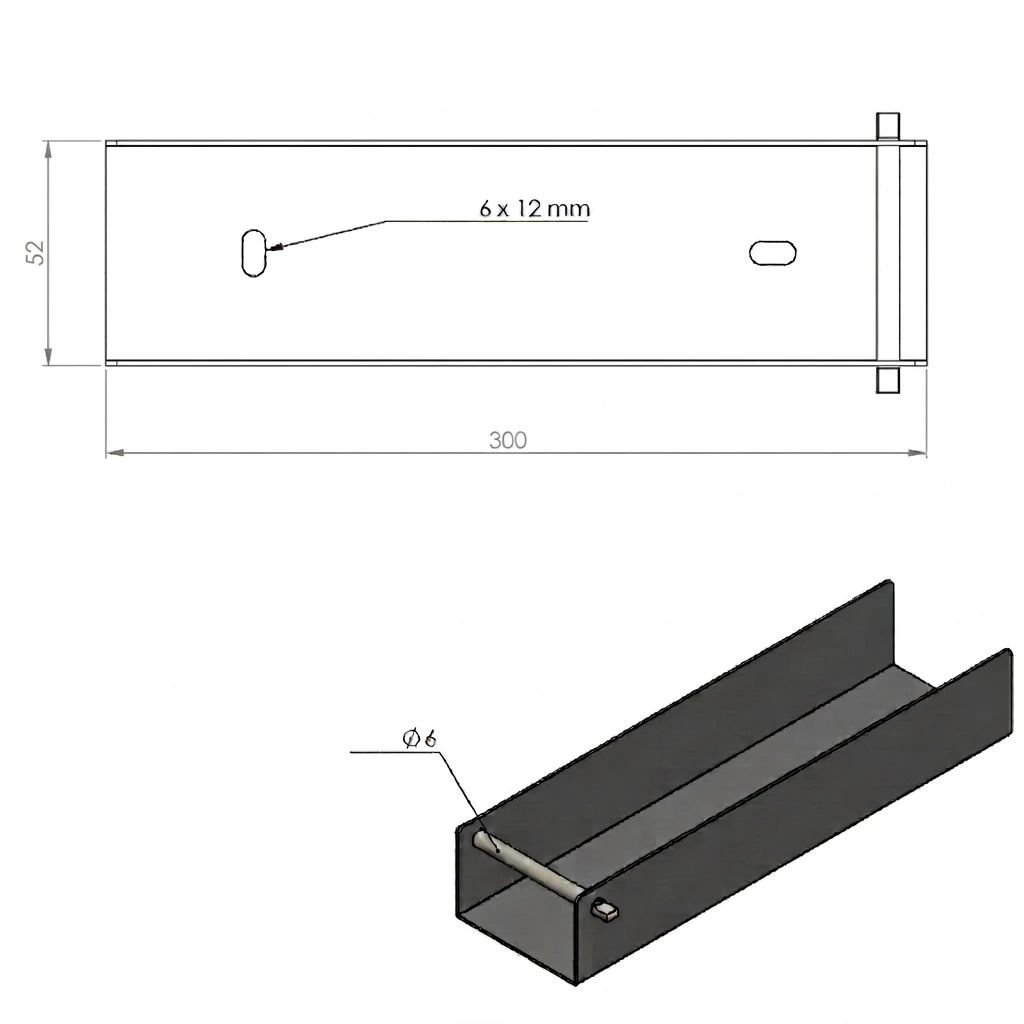

Length L is 300 mm and corresponds to the height of the 300 × 50 mm gravel board. Internal width w is 52 mm. The flange depth, holes and spacer bar shown in the drawing are indicative.
The coating (zinc-coated and powder-coated, green RAL 6005) protects the steel against corrosion under typical conditions; in the event of contact with salt or chemicals, choose a version suitable for the exposure conditions.
Selection and installation
- ✓Check the gravel board dimensions – the bracket is designed for 300 × 50 mm boards.
- ✓Fasten the bracket to the post through the 2 mounting holes, with the web against the post.
- ✓Slide the end of the gravel board into the bracket; where two boards meet at a post, use a bracket on each side.
Important
The product listing data does not specify the bracket's load-bearing capacity. Choose screws or bolts suitable for the post wall.
