Intermediate fence post clamp 60x40 brown
Leave feedback on the product

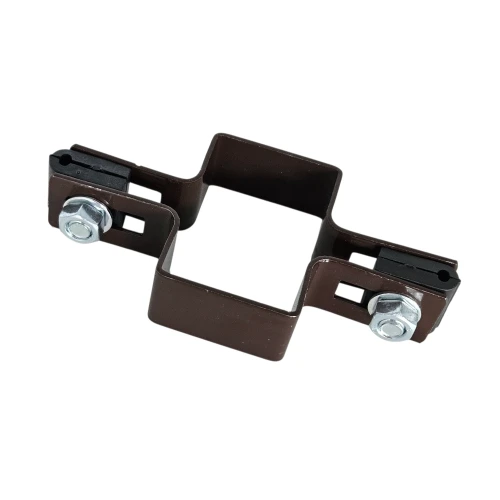

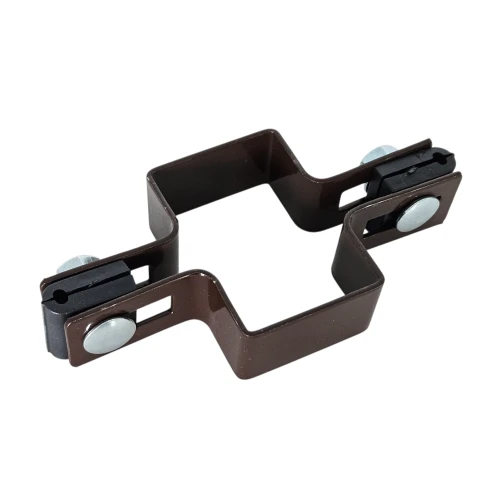

Fitting for mounting fence panels on 40x60 mm posts. The fence post clamp is made of powder-coated galvanised steel in brown. The set includes the clamp, 2 M8x25 bolts with nuts and washers, and 2 spacers for 4 mm diameter wire.
Product code: GPV-700-05
Product features
[PIM] obejmy #164
- Accessory Type Intermediate clamp
- Colour Brown RAL 8017
- Post Profile Dimension [mm] 40x60
Description
Sheet metal band around a 60 × 40 mm post, two lugs on opposite sides with 2 × M8 × 25 bolts and spacers for Ø 4 mm wire
About the product
The intermediate fence post clamp is used to fix two fence panels to one post along a straight run of fencing. The sheet metal band wraps around the rectangular post, while two lugs on the opposite longer sides hold the wires of the adjacent panels.

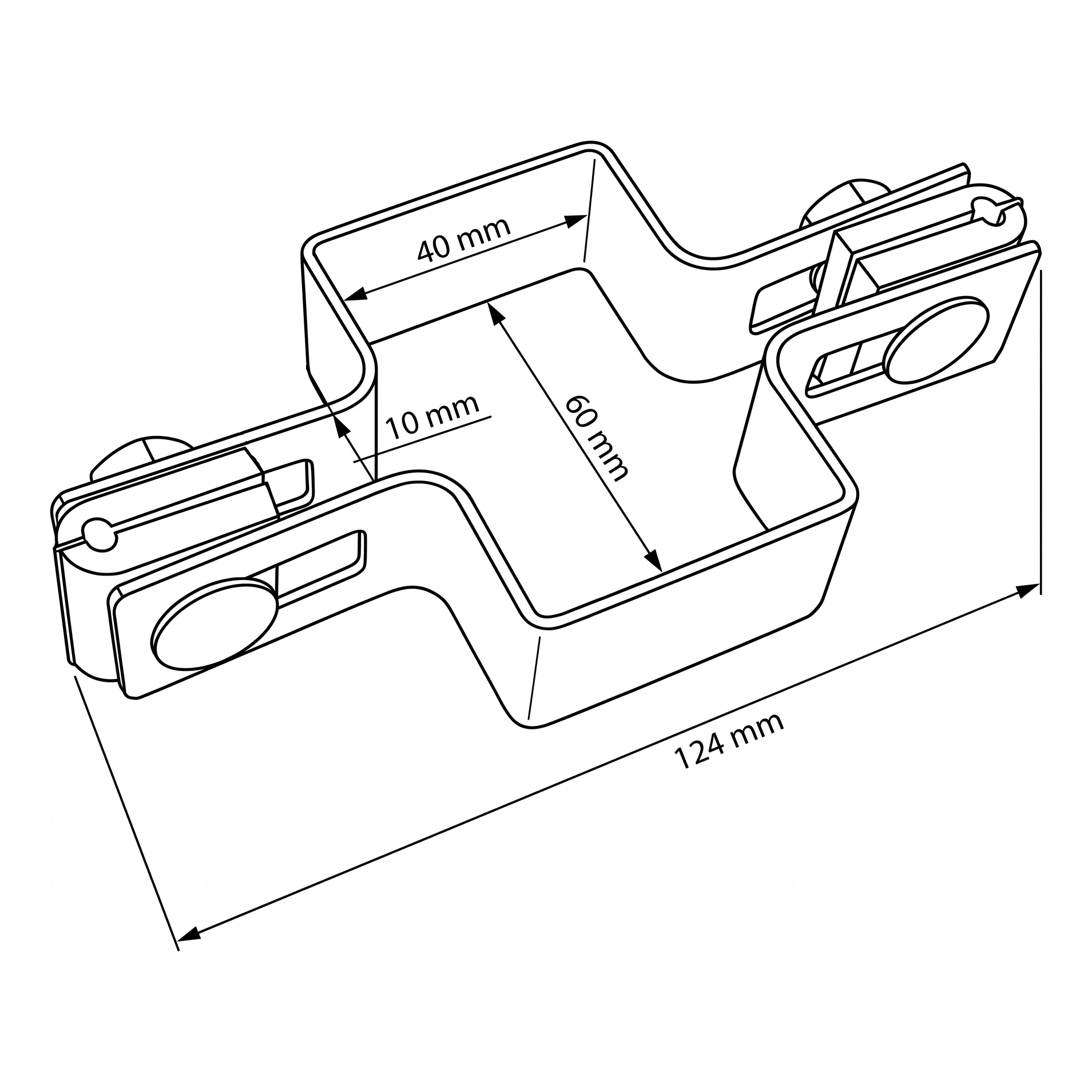

The internal dimensions a × b are 40 × 60 mm, so the clamp fits a 60 × 40 mm post. The set includes 2 × M8 × 25 bolts with nuts and plastic spacers for Ø 4 mm wire.
The coating (zinc-coated and powder-coated, brown RAL 8017) protects the steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions.
Selection and installation
- ✓Check the post cross-section – the clamp fits 60 × 40 mm posts.
- ✓Fit the clamp onto the post so that the lugs sit on both sides of the post, in line with the panels.
- ✓Insert the panel wire into the plastic spacer and tighten the M8 bolt in the lug.
Important
The supplied spacer fits Ø 4 mm wire. For panels with a different wire diameter, select a suitable spacer.
