Fence post base 80x80 mm 8 mm green
Description
Base foot for gate and fence post 80x80 mm – green RAL 6005
Steel base (foot) for gate and fence post 80×80 mm in green colour RAL 6005 is a durable mounting element enabling quick and secure fixing of profile posts to concrete surfaces, footings and other hardened substrates. Thanks to powder coating finish in RAL 6005 colour the product ensures an aesthetic, uniform appearance that perfectly complements popular panel fences and gates in green shades — whilst providing effective anti-corrosion protection.

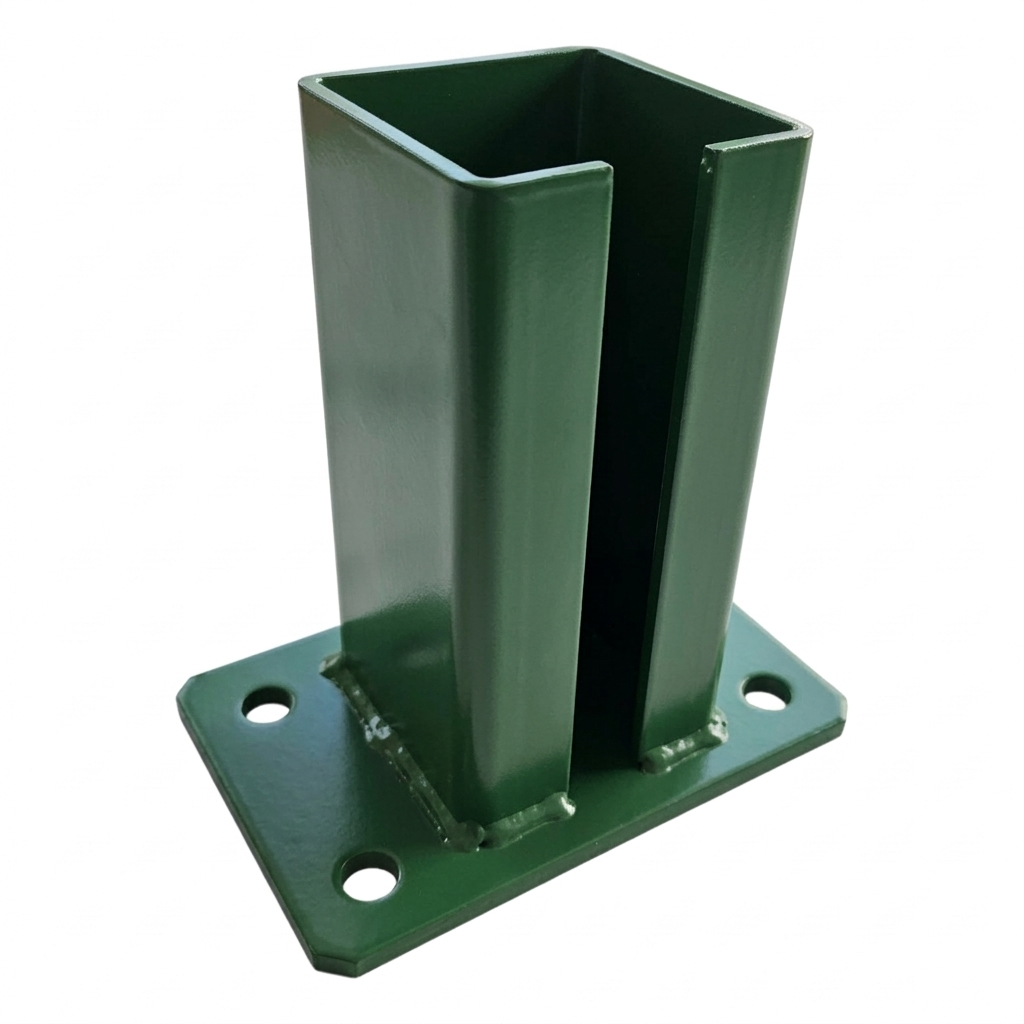

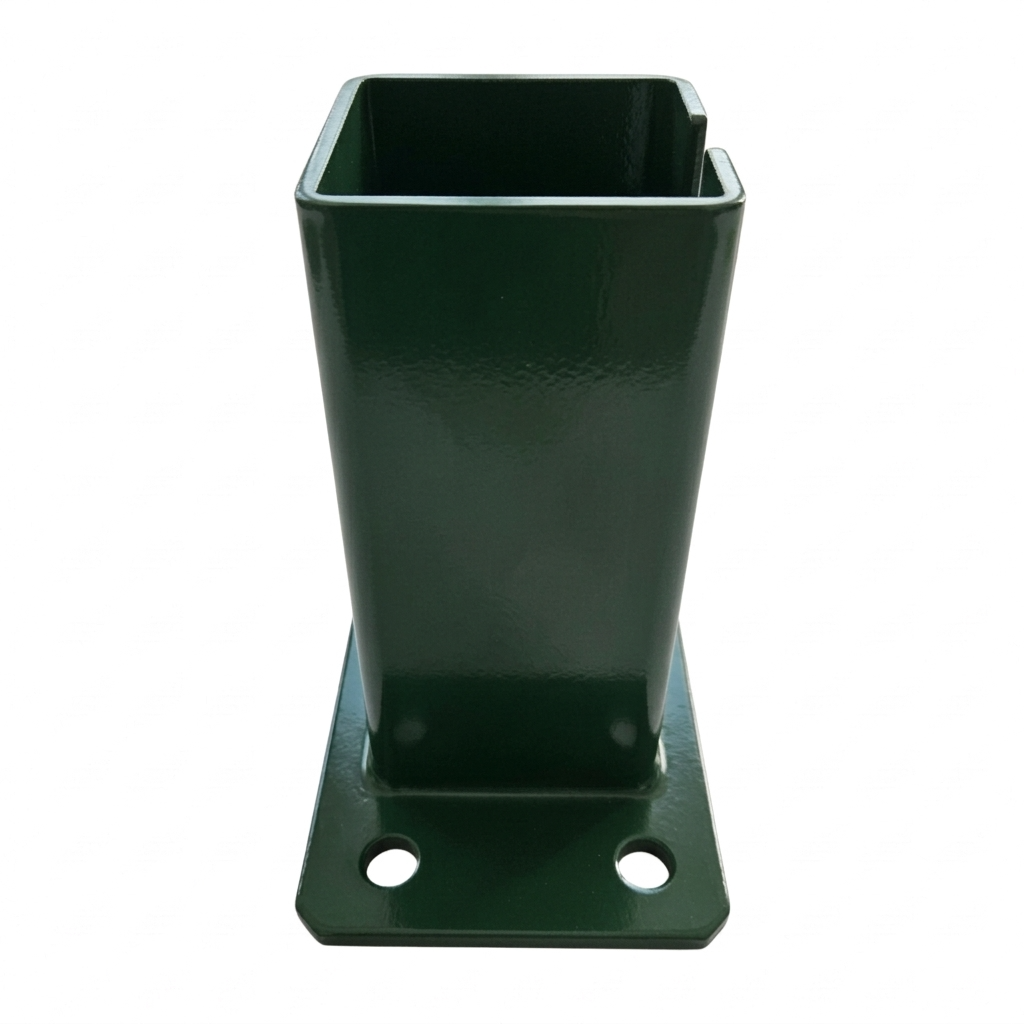

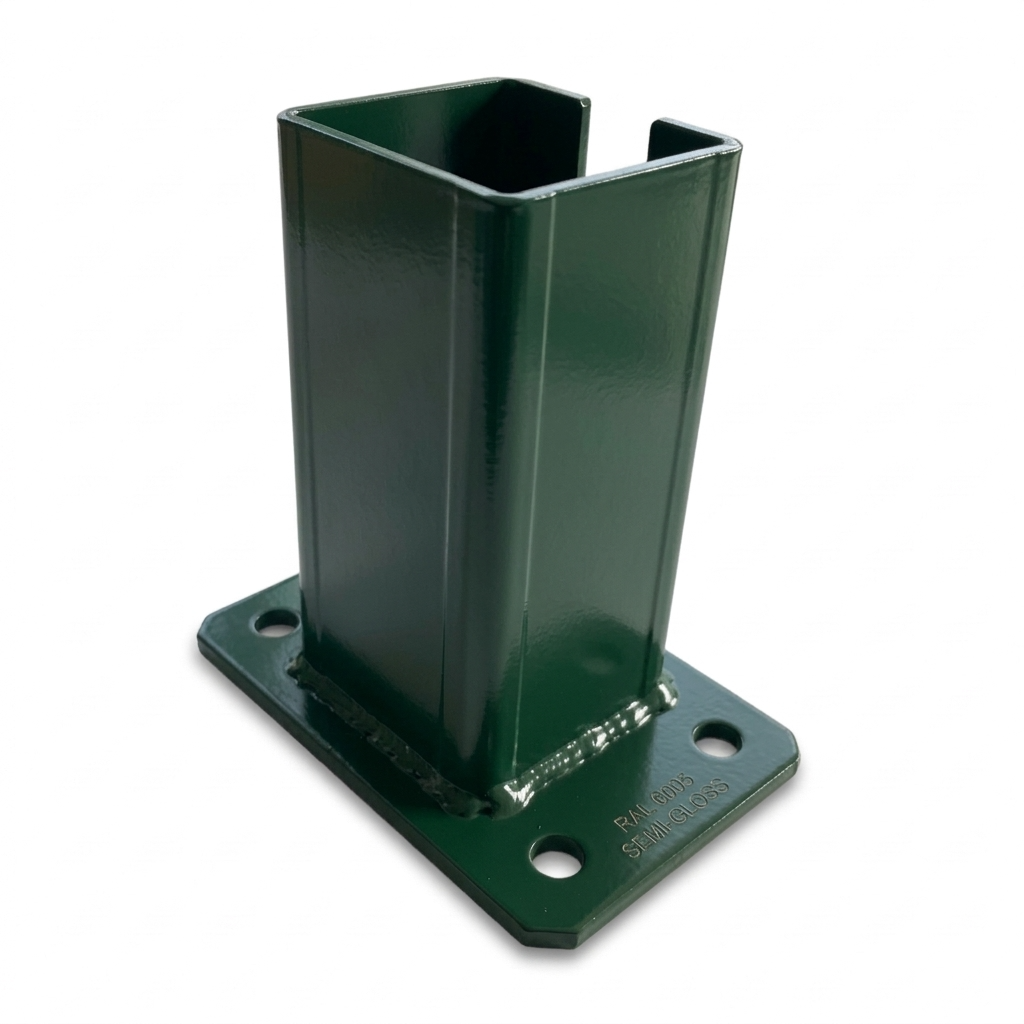

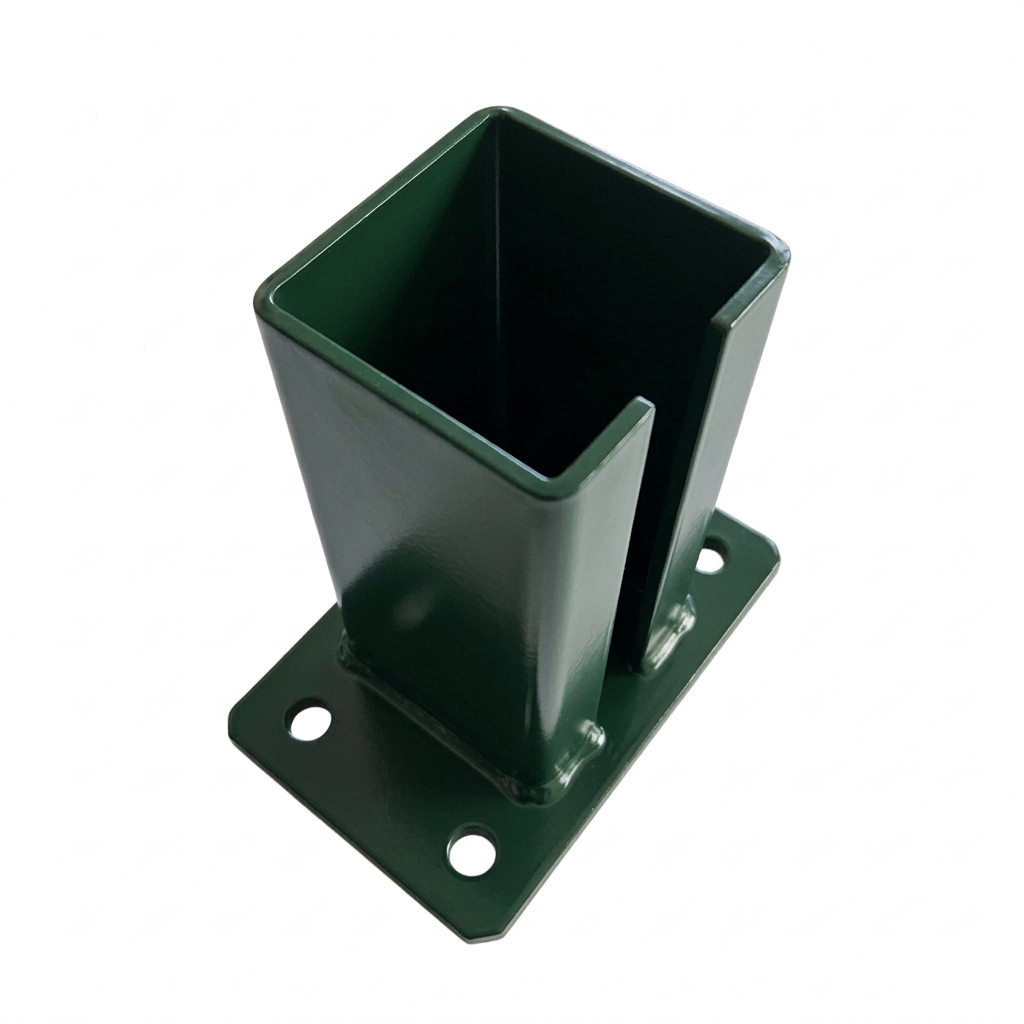

The construction consists of an open square profile 73×73 mm (fitted to 80×80 mm post) welded to a massive mounting plate with five holes for anchor bolts. The fillet weld at the base of the profile guarantees solid load transfer. The vertical slot in the profile allows for precise fitting and compensation of post tolerances.
Application
- Mounting of gate and fence posts 80×80 mm to foundation or concrete floor
- Fixing to existing fence footing
- Installation on paving stones and other hardened surfaces
- Construction of pergolas, gazebos, home playgrounds and fences
- Other fence and gate constructions according to individual needs

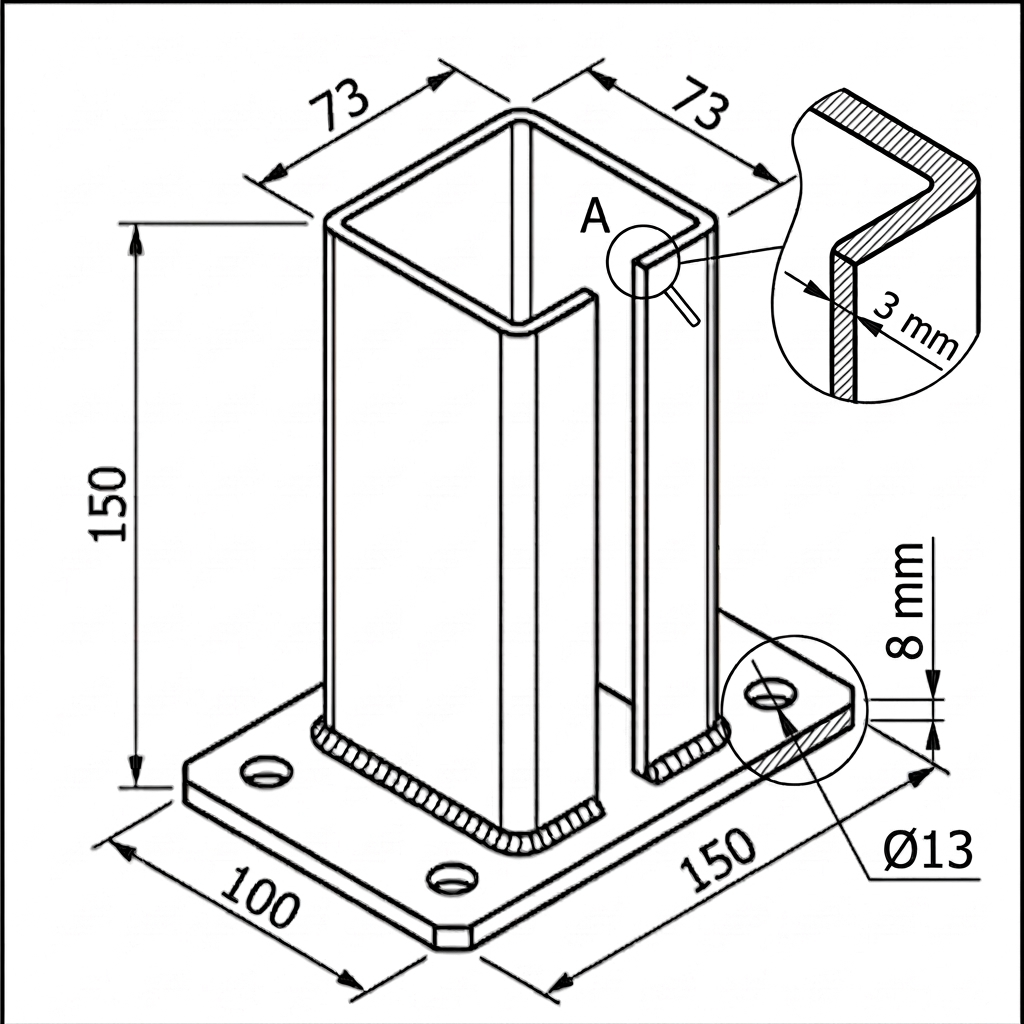

Dimensions and technical parameters
- Internal profile (external cross-section): 73×73 mm
- Compatibility with post: 80×80 mm
- Profile height: 150 mm
- Mounting plate dimensions: 150×100 mm
- Mounting plate thickness: 8 mm
- Profile wall thickness: 3 mm
- Number of mounting holes: 5
- Material: powder coated steel
- Colour: green RAL 6005
Features and advantages
- RAL 6005 powder coating — durable, scratch-resistant coating in classic fence green, ensuring aesthetic and uniform appearance of the entire fence
- Solid fillet weld — durable connection of profile to mounting plate ensuring stability of the entire construction
- Massive 8 mm plate — thick base plate guarantees rigidity and even load distribution on the substrate
- Quick installation — mounting holes enable screwing to concrete using standard anchors — no welding on site required
- Versatility — suitable for panel fences, wooden fences, sliding and swing gates as well as garden constructions
- Consistent colouring — green colour RAL 6005 perfectly matches the most popular panel and mesh fence systems in green shade
Technical data
| Accessory Type | Post Base |
| Colour | Green RAL 6005 |
| Post Profile Dimension [mm] | 80x80 |
