Fence post base 80x80 mm 8 mm galvanised
Availability:
Temporarily unavailable
Weight:
1.616 kg
Description

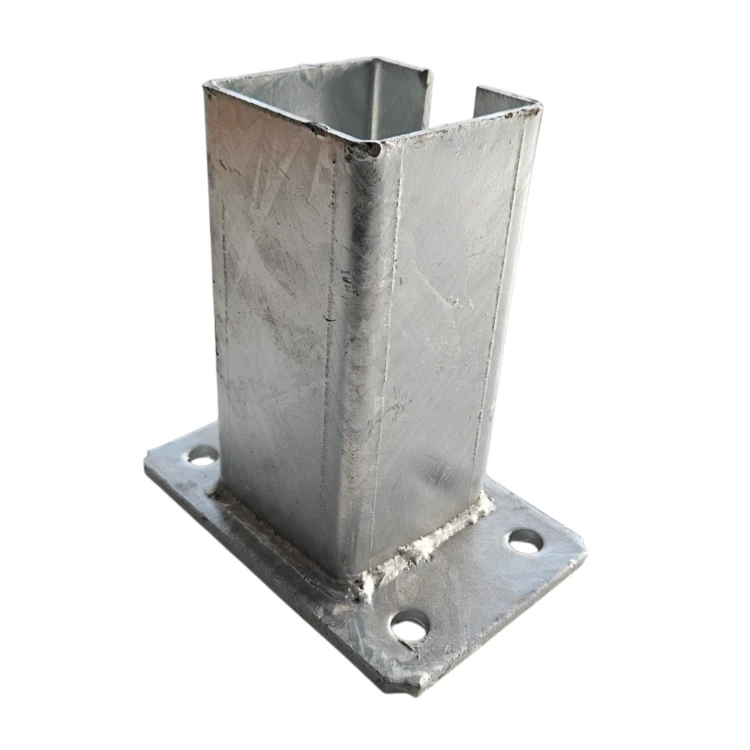

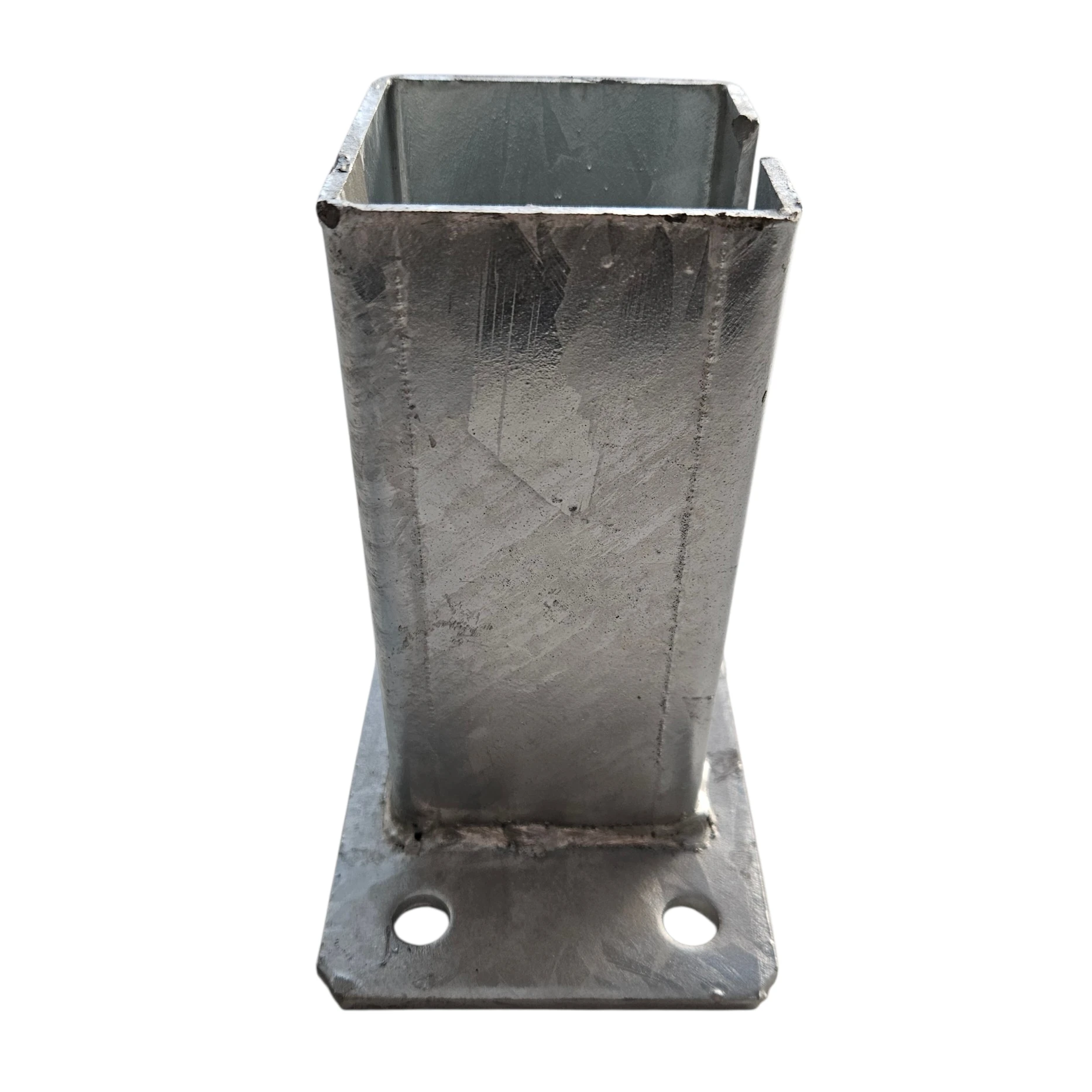

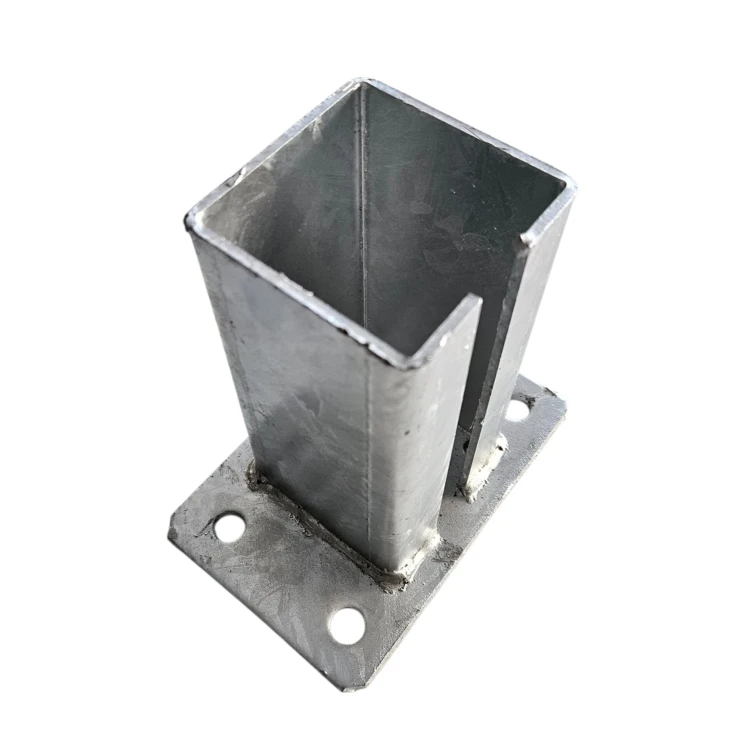

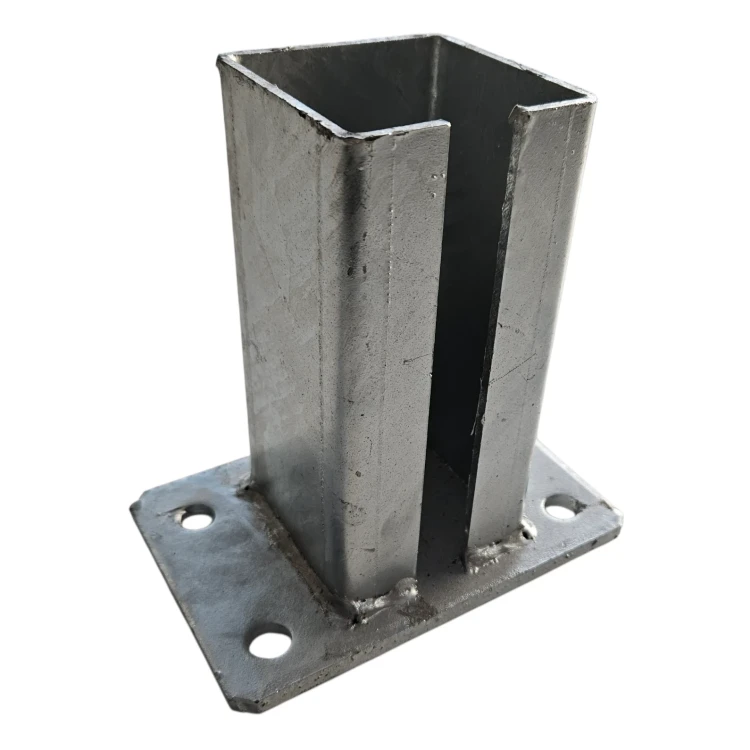

Base foot for 80x80 mm gate and fence post – hot-dip galvanised
Steel base (foot) for 80x80 mm gate and fence post is a durable mounting element enabling quick and secure attachment of profile posts to concrete surfaces, footings and other hardened substrates. Thanks to hot-dip galvanising protection, the product ensures years of corrosion resistance — even in the most demanding atmospheric conditions.
The construction consists of an open square profile 73×73 mm (fitted to 80×80 mm post) welded to a massive mounting plate with four holes for anchor bolts. The fillet weld at the base of the profile guarantees solid load transfer. The vertical slot in the profile allows for precise adjustment and compensation of post tolerances.
Applications
- Mounting 80×80 mm gate and fence posts to foundation or concrete floor
- Attachment to existing fence footing
- Mounting on paving stones and other hardened surfaces
- Construction of pergolas, gazebos, home playgrounds and wooden fences
- Other fencing and gate structures according to individual needs

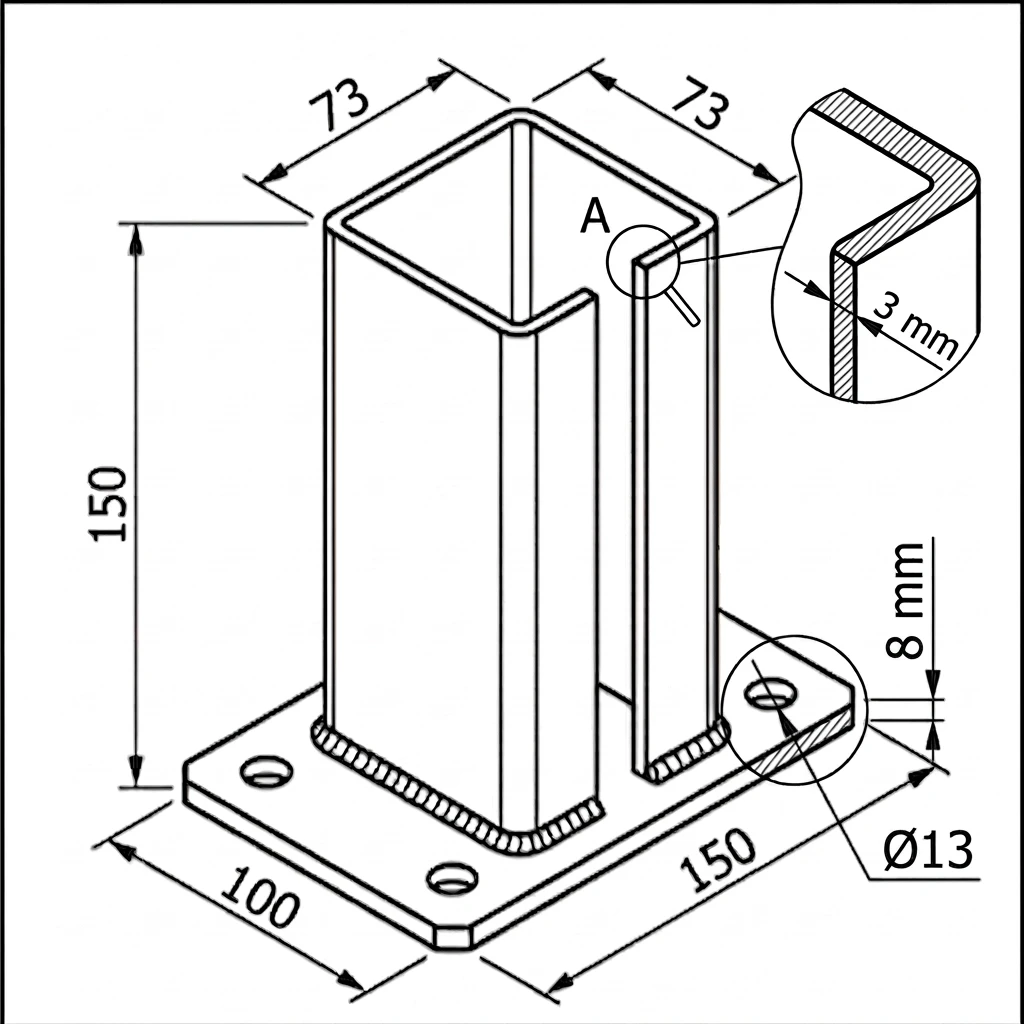

Dimensions and technical parameters
- Internal profile (external cross-section): 73×73 mm
- Compatibility with post: 80×80 mm
- Profile height: 150 mm
- Mounting plate dimensions: 150×100 mm
- Mounting plate thickness: 8 mm
- Profile wall thickness: 3 mm
- Number of mounting holes: 5
- Material: hot-dip galvanised steel
- Colour: silver (hot-dip galvanised)
Features and advantages
- Hot-dip galvanising — durable, multi-layer zinc coating effectively protecting against corrosion in outdoor conditions
- Solid fillet weld — permanent connection of profile to mounting plate ensuring stability of the entire structure
- Massive 8 mm plate — thick base sheet guarantees rigidity and even load distribution on the substrate
- Quick installation — four mounting holes enable bolting to concrete using standard anchors — without welding on site
- Versatility — suitable for panel fencing, wooden fencing, sliding and swing gates as well as garden structures
Loading...
Technical data
| Accessory Type | Post Base |
| Colour | Galvanised |
| Post Profile Dimension [mm] | 80x80 |
