Fence post base 80x80 mm 8 mm black
Description

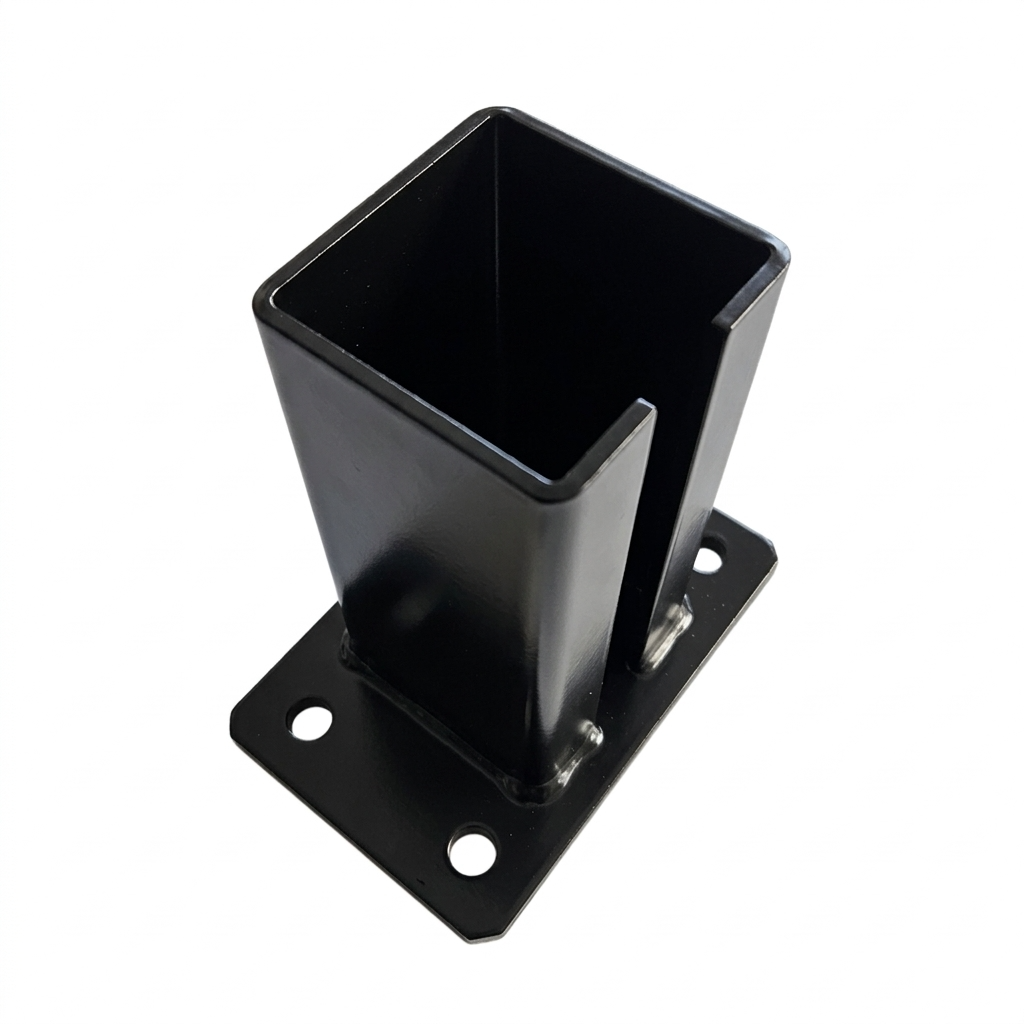

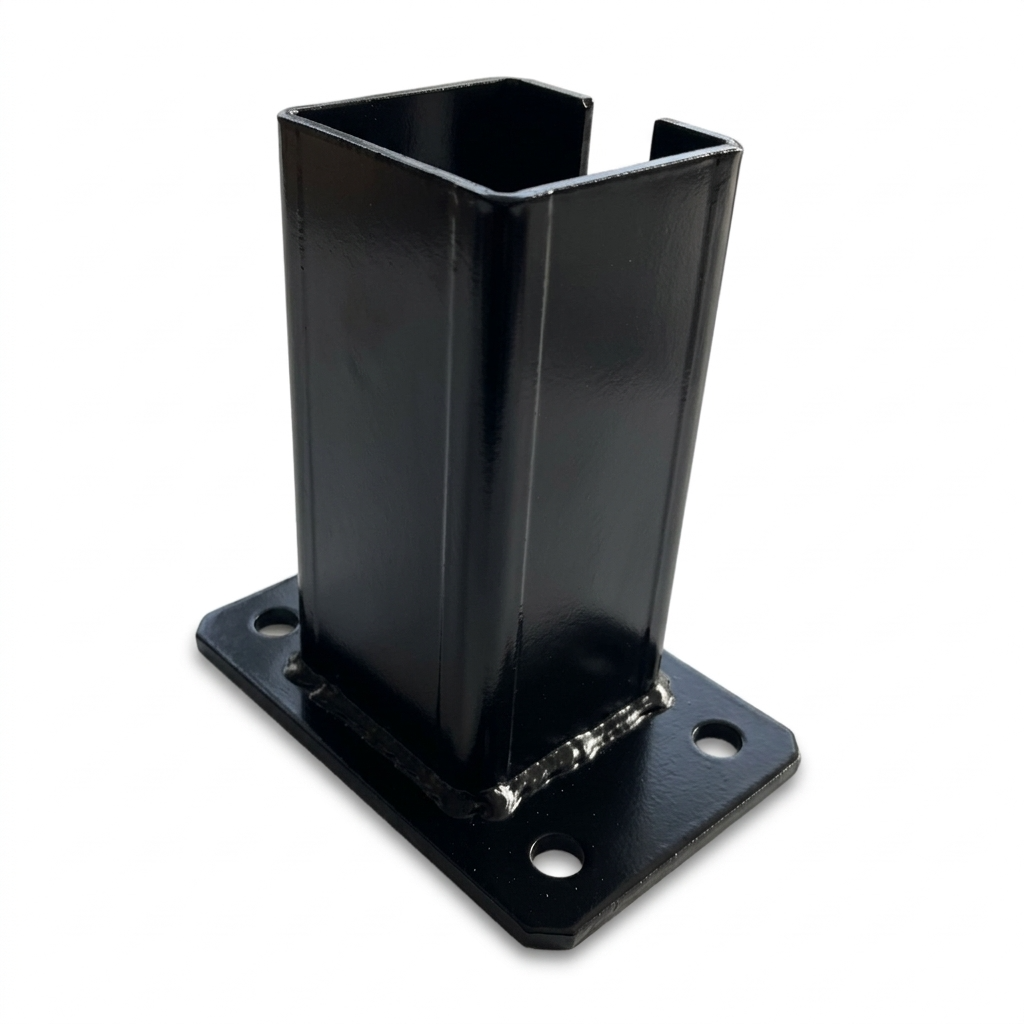

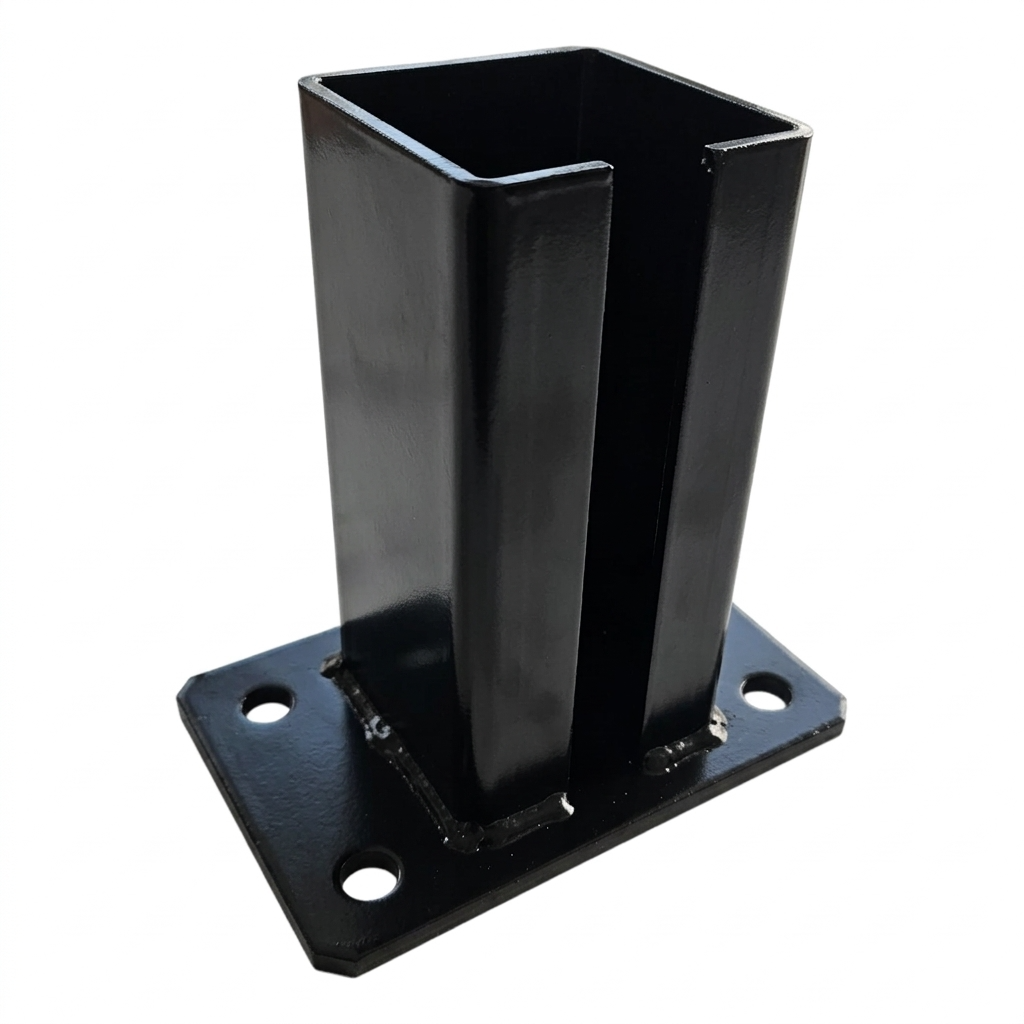

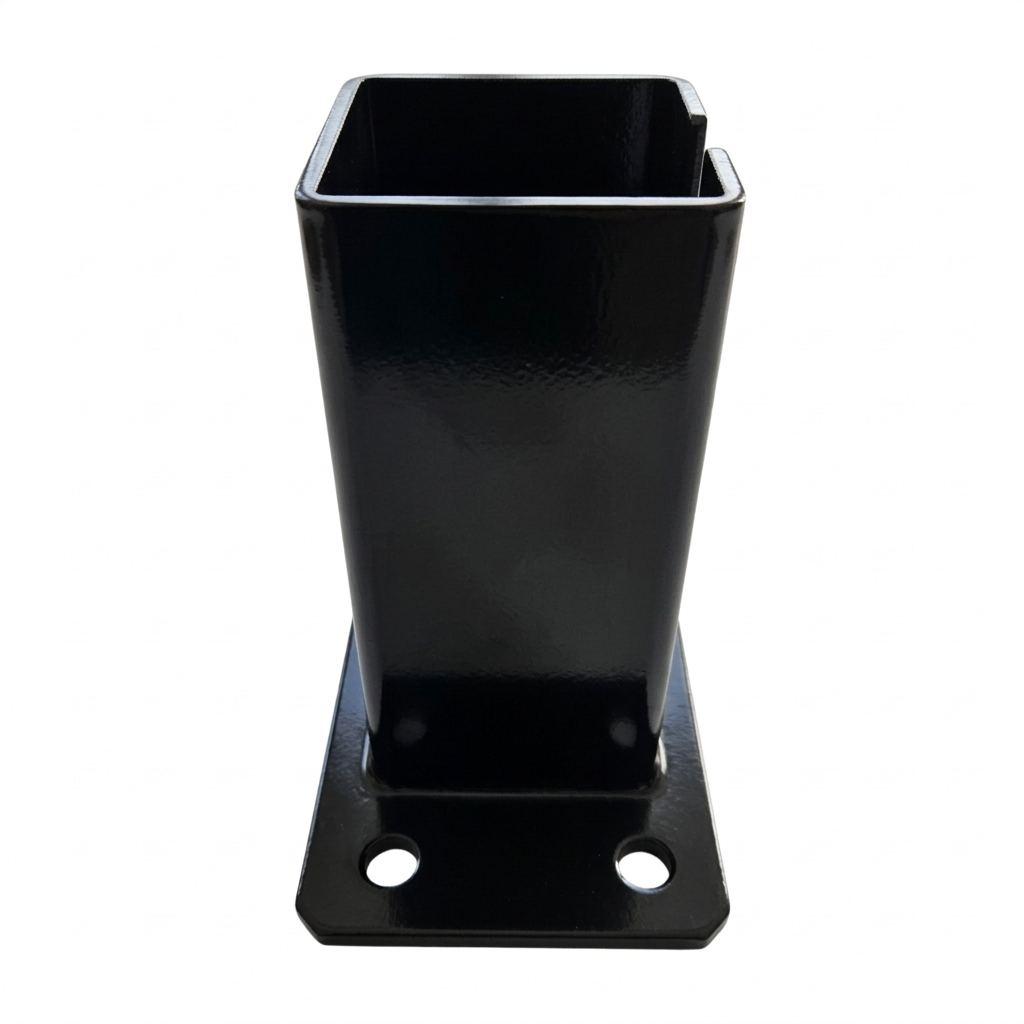

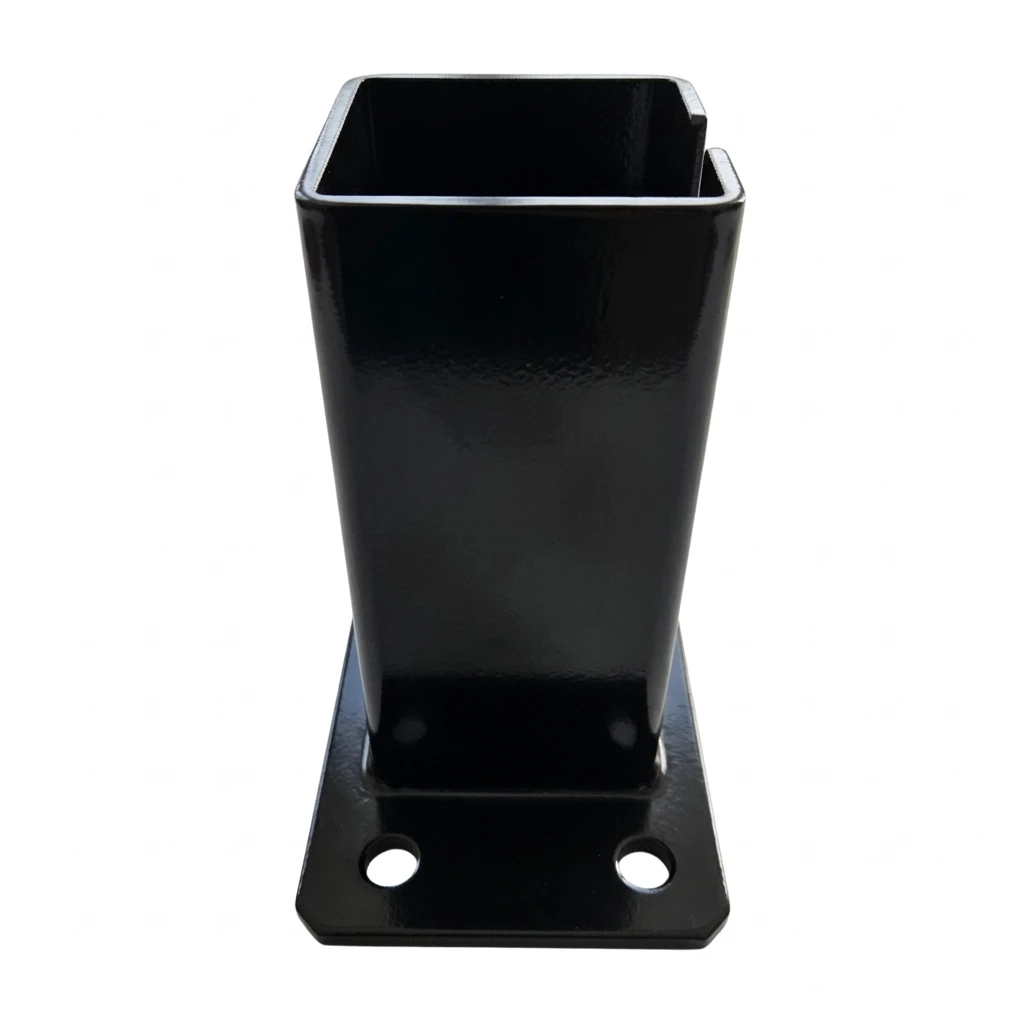

Base foot for gate and fence post 80x80 mm – black RAL 9005
Steel base (foot) for gate and fence post 80×80 mm in black colour RAL 9005 is a durable mounting element enabling quick and secure fixing of profile posts to concrete surfaces, foundation walls and other hardened substrates. Thanks to the powder coating finish in colour RAL 9005, the product ensures an aesthetic, uniform appearance that perfectly complements modern panel fencing and gates in black shades — whilst providing effective anti-corrosion protection.
The construction consists of an open square profile 73×73 mm (adapted for 80×80 mm post) welded to a massive mounting plate with five holes for anchor bolts. The fillet weld at the base of the profile guarantees solid load transfer. The vertical gap in the profile allows for precise adjustment and compensation of post tolerances.
Application
- Mounting gate and fence posts 80×80 mm to foundation or concrete floor
- Fixing to existing fence foundation wall
- Mounting on block paving and other hardened surfaces
- Construction of pergolas, gazebos, domestic playgrounds and fences
- Other fencing and gate constructions according to individual needs

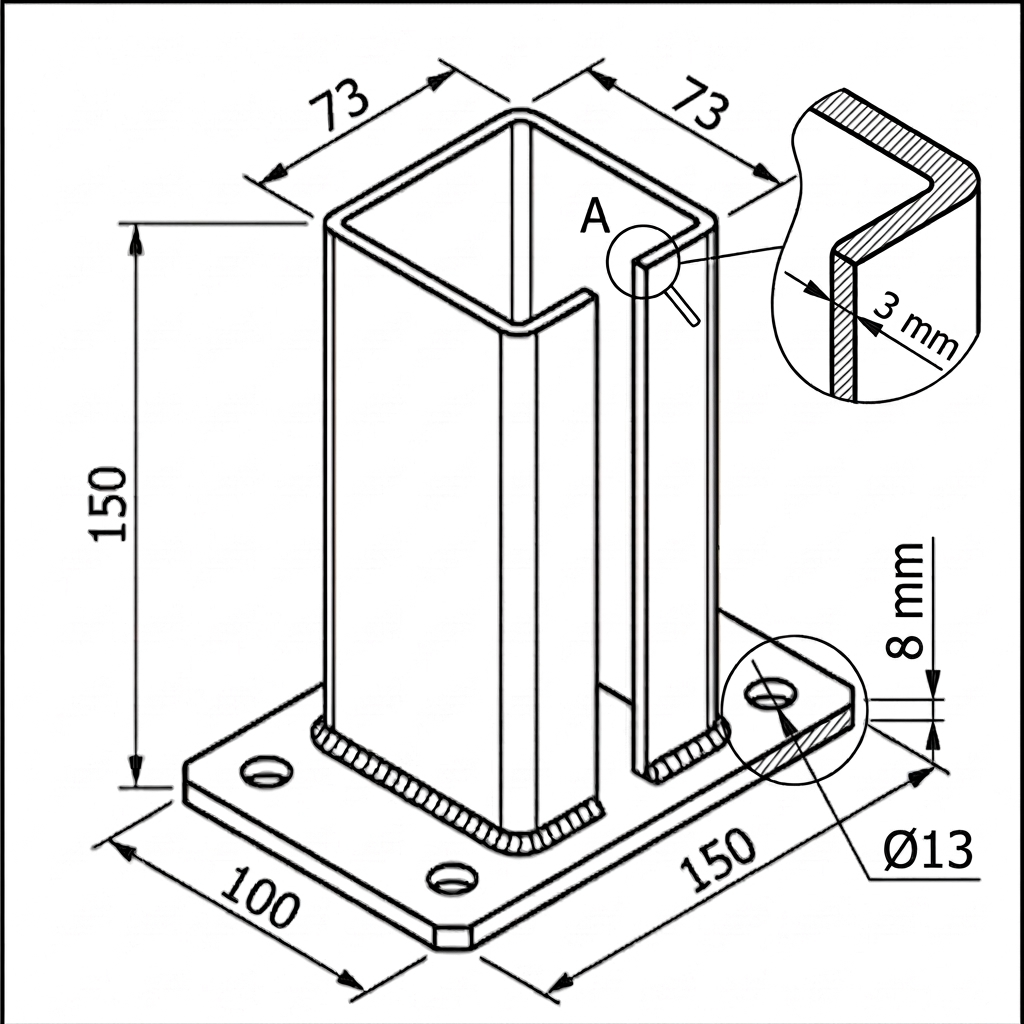

Dimensions and technical parameters
- Internal profile (external cross-section): 73×73 mm
- Compatibility with post: 80×80 mm
- Profile height: 150 mm
- Mounting plate dimensions: 150×100 mm
- Mounting plate thickness: 8 mm
- Profile wall thickness: 3 mm
- Number of mounting holes: 5
- Material: powder coated steel
- Colour: black RAL 9005
Features and advantages
- Powder coating RAL 9005 — durable, scratch-resistant coating in deep black colour, ensuring aesthetic and uniform appearance of the entire fence
- Solid fillet weld — permanent connection of profile to mounting plate ensuring stability of the entire construction
- Massive 8 mm plate — thick base sheet guarantees rigidity and even distribution of loads on the substrate
- Quick installation — mounting holes enable bolting to concrete using standard anchors — no welding on site
- Universality — performs well in panel fencing, wooden fences, sliding and swing gates, and garden constructions
- Consistent colour scheme — black colour perfectly matches the most popular fencing systems in anthracite and black shades
Technical data
| Accessory Type | Post Base |
| Colour | Black RAL 9005 |
| Post Profile Dimension [mm] | 80x80 |
