Fence post base 60x40 mm anthracite RAL 7016 galvanised
Description

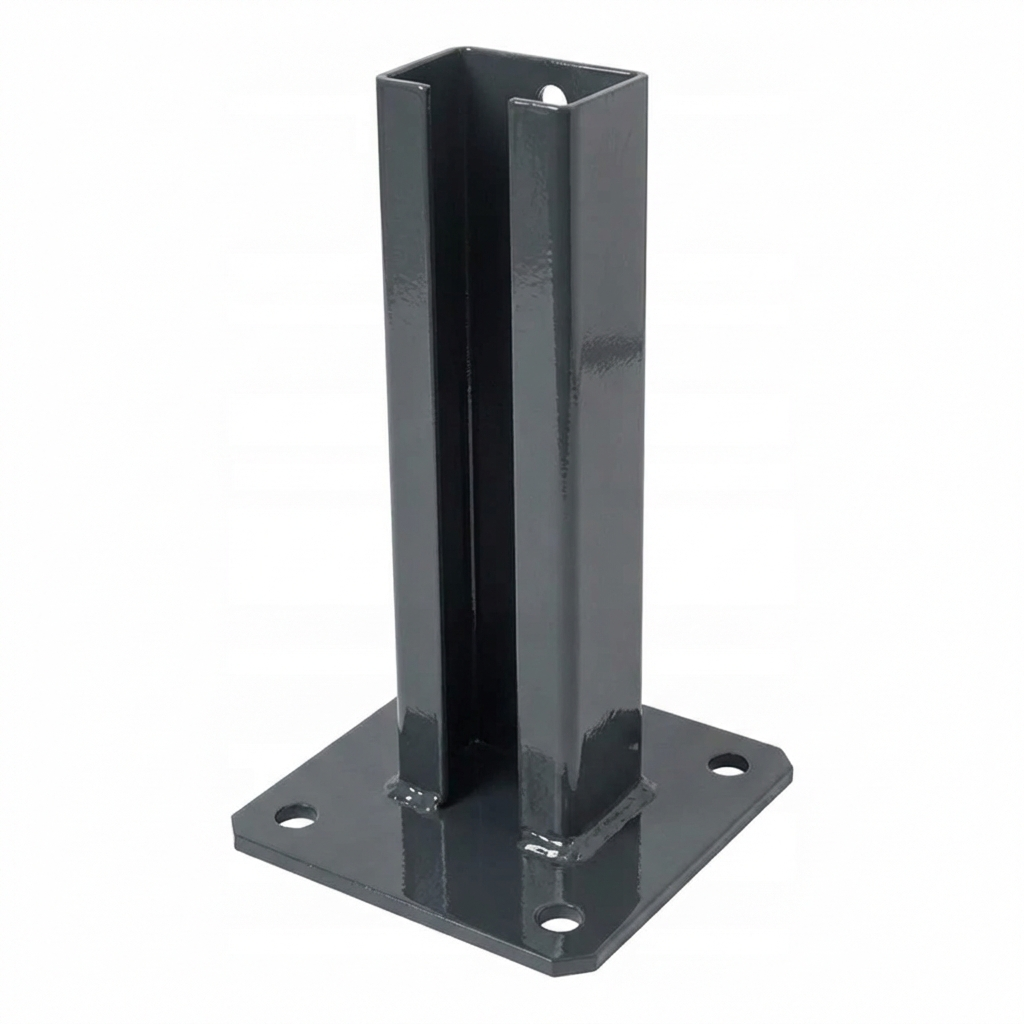

Fence post base 60x40 mm – galvanised and powder-coated RAL 7016
Fence post base 60×40 mm is a robust steel bracket designed for mounting panel posts onto concrete surfaces. Thanks to galvanic zinc coating and powder coating in anthracite grey (RAL 7016), the product provides effective corrosion protection and an aesthetic appearance — ideal for outdoor applications.
The product is dedicated to posts with a profile cross-section of 60×40 mm, used in panel fencing systems. The base enables quick and secure installation using screws or concrete anchors — simply fix it to the substrate through four factory-drilled holes and insert the post into the bracket profile.
Why choose the powder-coated version? The combination of galvanic zinc coating with powder coating provides double corrosion protection even in harsh weather conditions. This solution is dedicated to outdoor applications, where in addition to durability, the decorative function also matters — the anthracite grey colour complements modern fencing systems perfectly.
Technical specifications

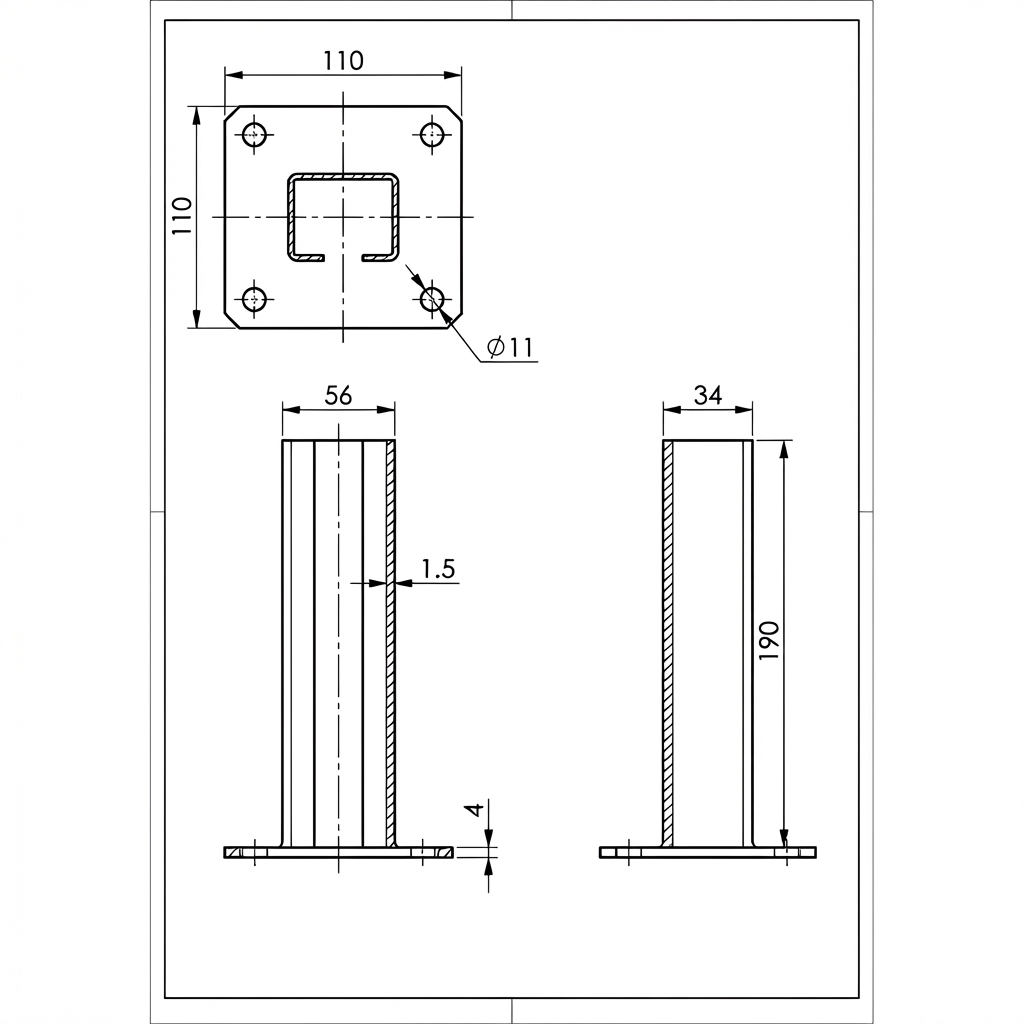

- Base (plate) dimensions: 110 × 110 mm
- Plate thickness: 4 mm
- Mounting holes: 4 × 11 mm
- Bracket profile dimensions: 190 × 58 × 38 mm
- Profile wall thickness: 1.5 mm
- Suitable for posts: 60 × 40 mm
- Protection: galvanic zinc coating + powder coating (RAL 7016, for outdoor use)
Key advantages
- Ready to install — factory-drilled holes speed up installation
- Solid construction — thick sheet metal (4 mm) and strong welds guarantee stability
- Double protection — galvanic zinc coating + powder coating for maximum durability
- Weather resistance — ideal for outdoor applications
- Modern appearance — powder coating in RAL 7016 (anthracite grey) matches contemporary fencing systems

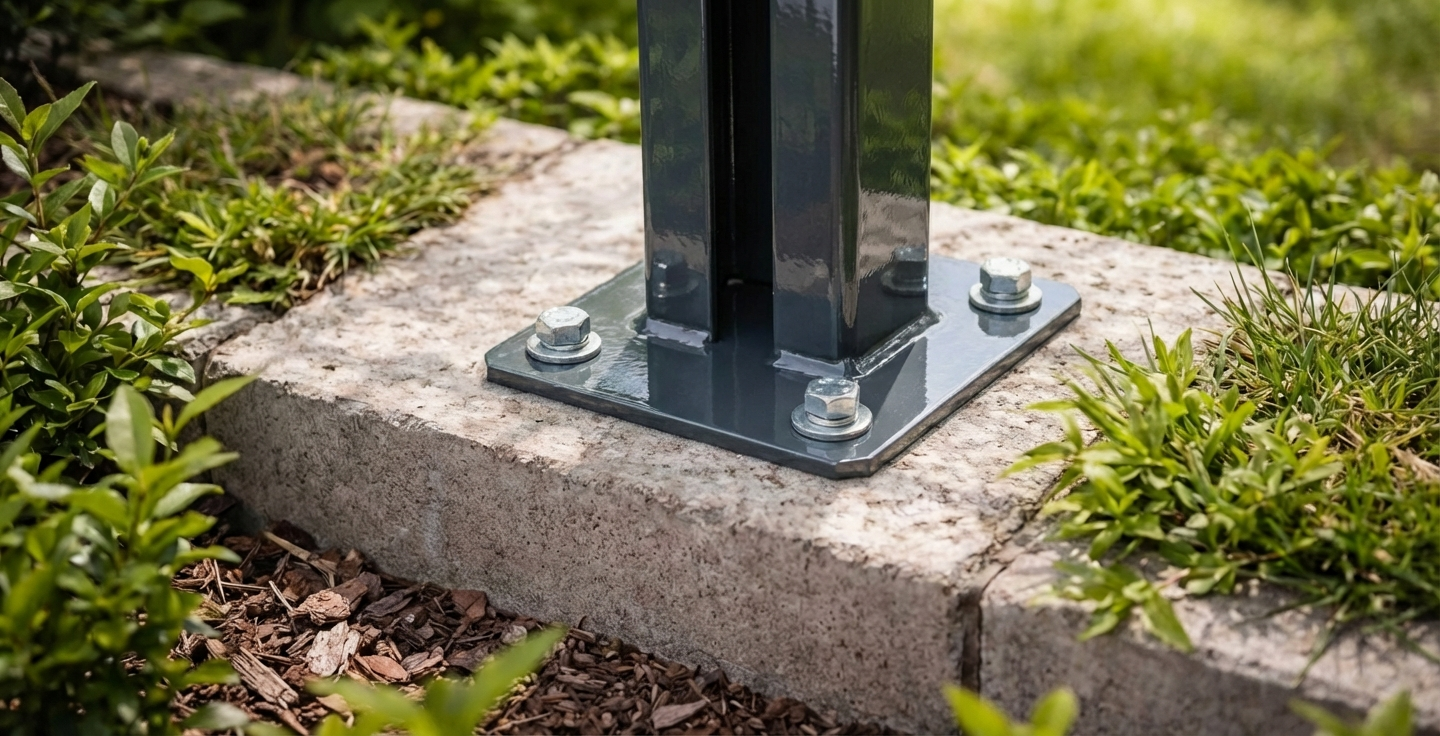

The base is compatible with standard fence posts with a 60×40 mm profile, used in most panel fencing systems. An ideal solution for installation companies carrying out fence mounting on ready-made concrete foundations and base walls outdoors — even in challenging weather conditions.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Accessory Type | Post Base |
| Colour | Graphite RAL 7016 |
| Post Profile Dimension [mm] | 60x40 |
