Fence post base 60x40 black RAL 9005 galvanised
Description

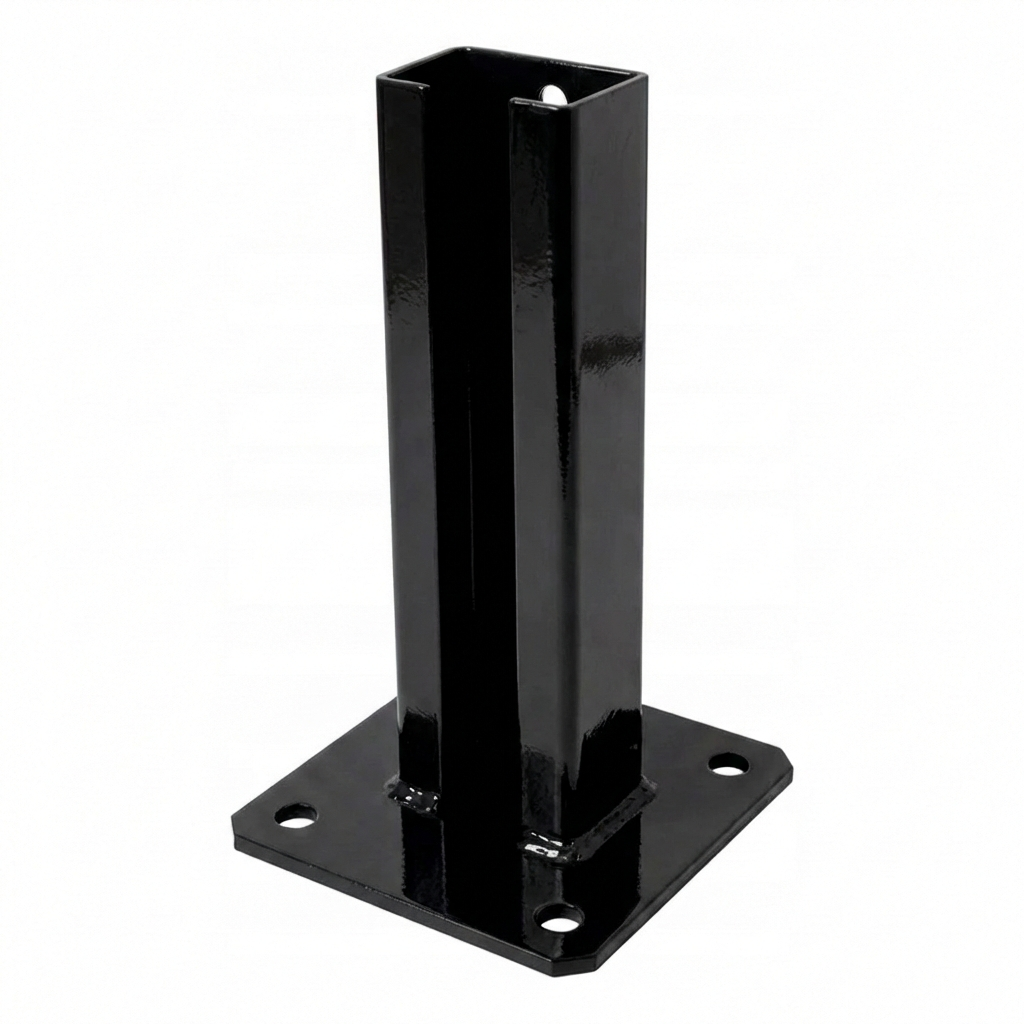

Fence post base 60x40 mm – galvanised and powder-coated RAL 9005
Fence post base 60×40 mm is a robust steel bracket designed for mounting panel posts onto concrete substrates. Thanks to galvanic zinc plating and powder coating in black (RAL 9005), the product provides effective anti-corrosion protection and an aesthetic appearance — ideal for outdoor applications.

A sturdy post mounting base dedicated to 60×40 mm posts – ideal for permanent installation on concrete foundations and plinths outdoors.
Why choose the powder-coated version? The combination of galvanic zinc plating and powder coating provides double anti-corrosion protection even in harsh weather conditions. This solution is dedicated to outdoor applications, where in addition to durability, decorative function also matters — the black colour complements modern fencing systems perfectly.

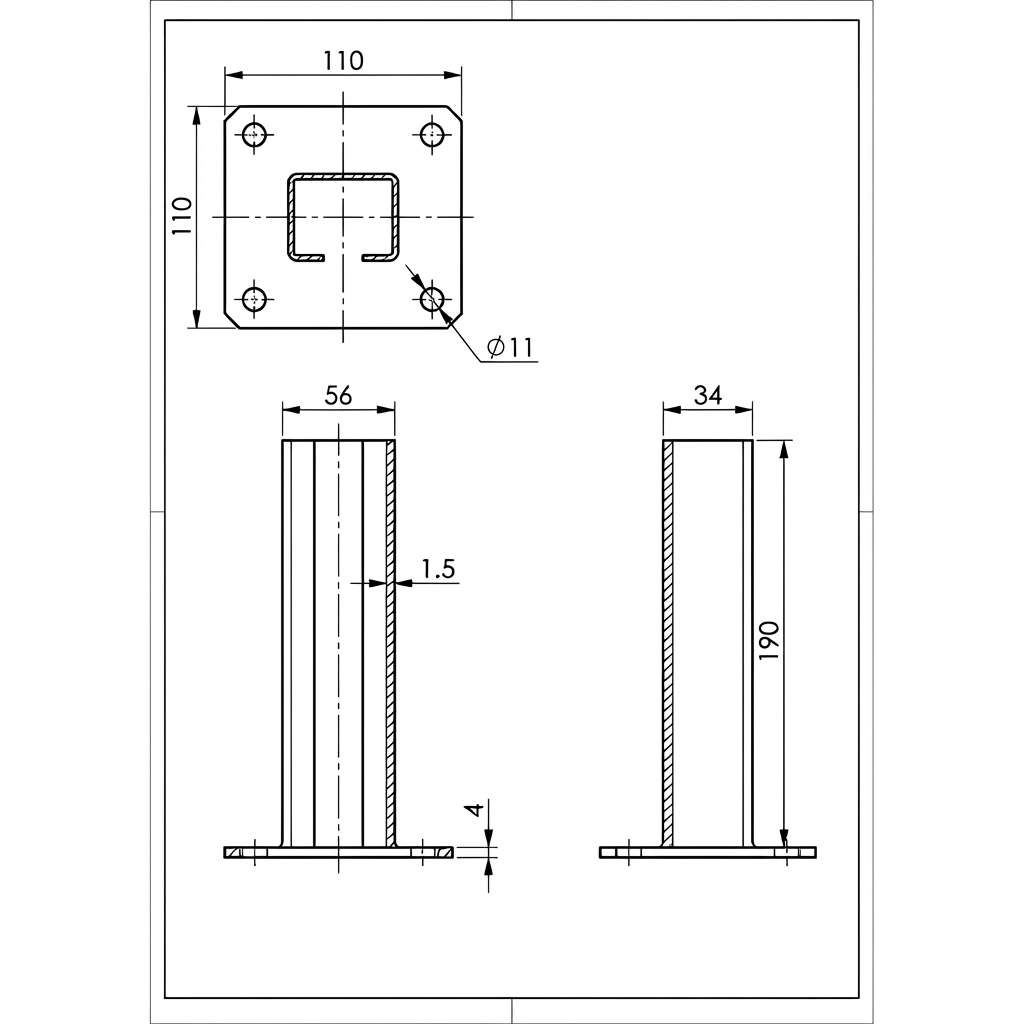

Technical specifications
- Base dimensions (plate): 110 × 110 mm
- Plate thickness: 4 mm
- Mounting holes: 4 × Ø11 mm
- Bracket profile dimensions: 190 × 58 × 38 mm
- Profile wall thickness: 1.5 mm
- Dedicated to posts: 60 × 40 mm
- Protection: galvanic zinc plating + powder coating (RAL 9005, for outdoor use)
Key advantages
- Ready to install — factory-drilled holes speed up installation
- Solid construction — thick sheet metal (4 mm) and strong welds guarantee stability
- Double protection — galvanic zinc plating + powder coating for maximum durability
- Weather resistance — ideal for outdoor applications
- Modern appearance — powder coating in RAL 9005 (black) matches contemporary fencing systems

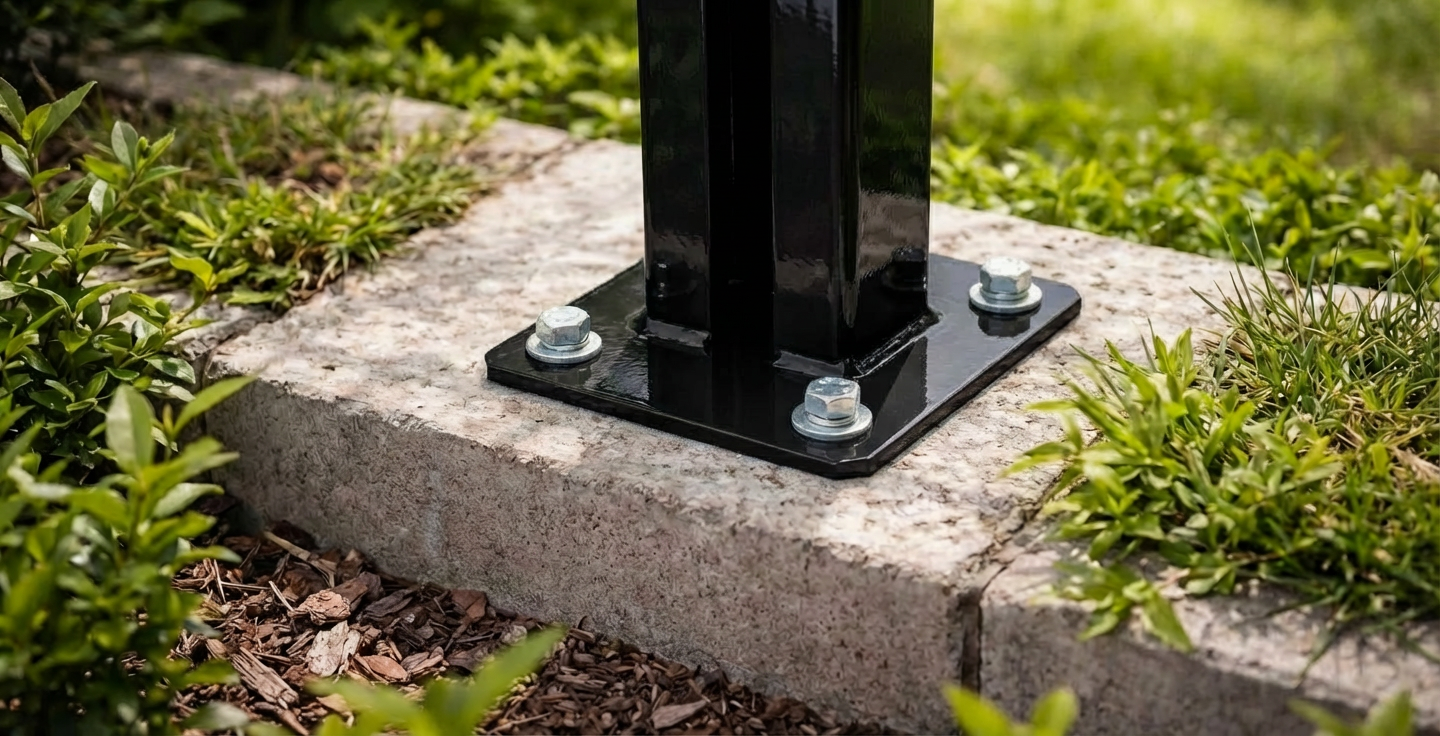

The base is compatible with standard fence posts with a 60×40 mm profile, used in most panel fencing systems. An ideal solution for installation companies carrying out fence mounting on ready-made concrete foundations and plinths outdoors — even in challenging weather conditions.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Accessory Type | Post Base |
| Colour | Black RAL 9005 |
| Post Profile Dimension [mm] | 60x40 |
