End Clamp H35 L50 - Raw with Grounding Pin

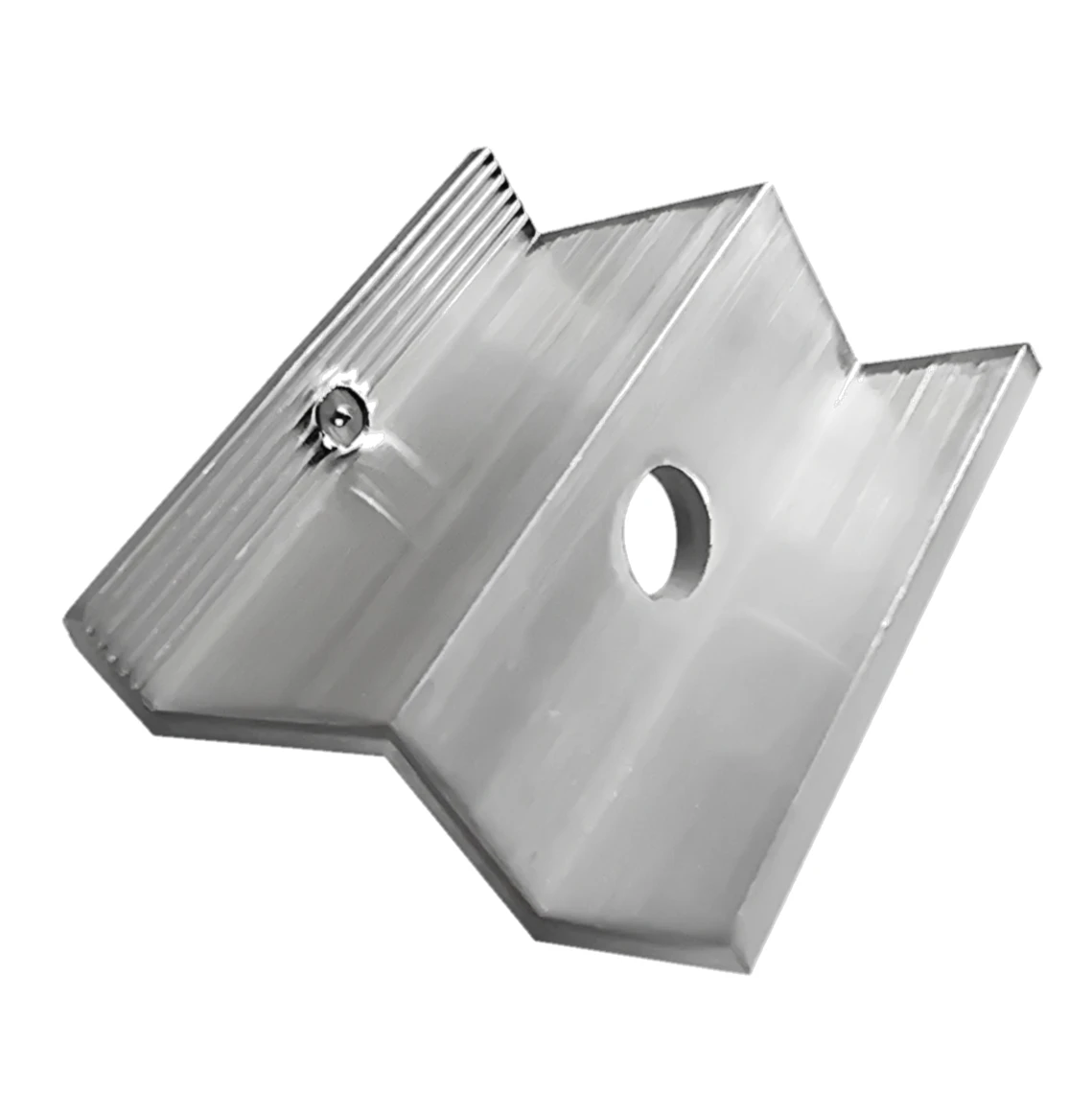

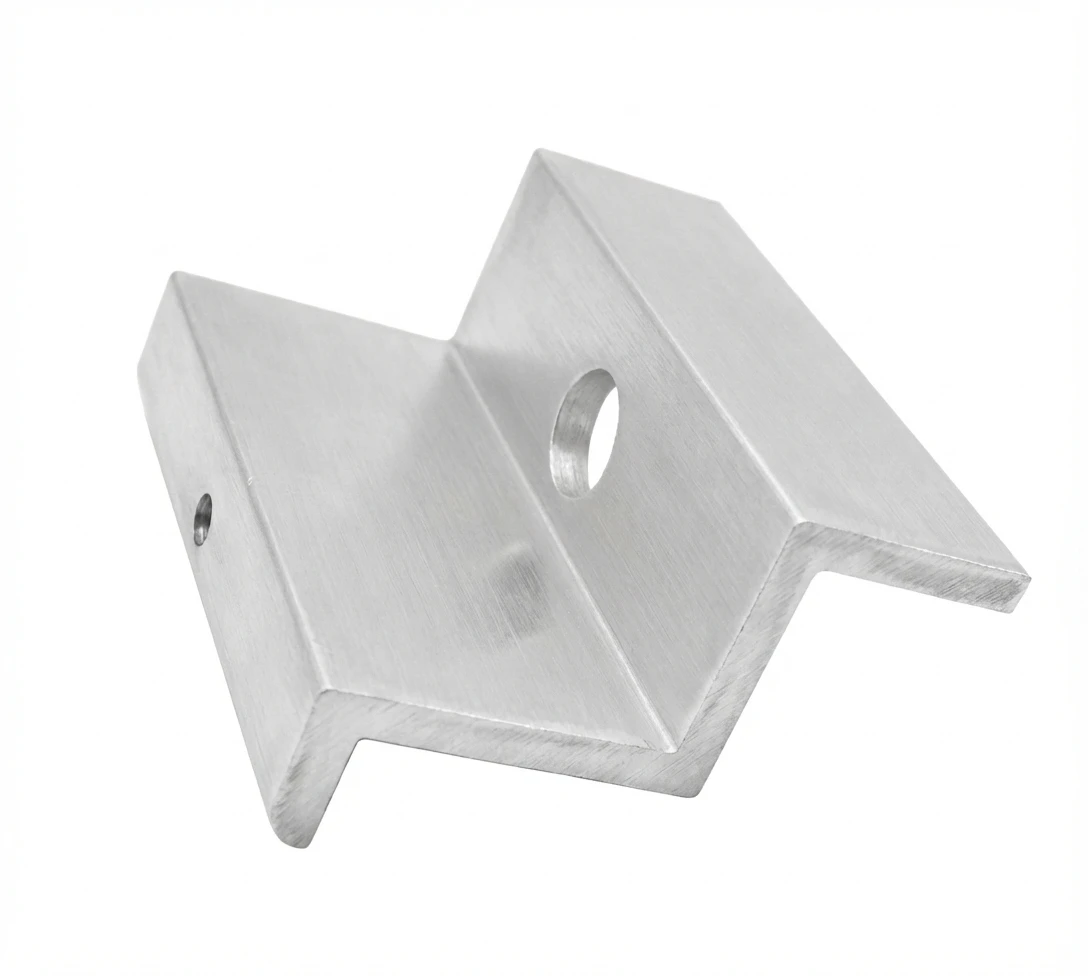

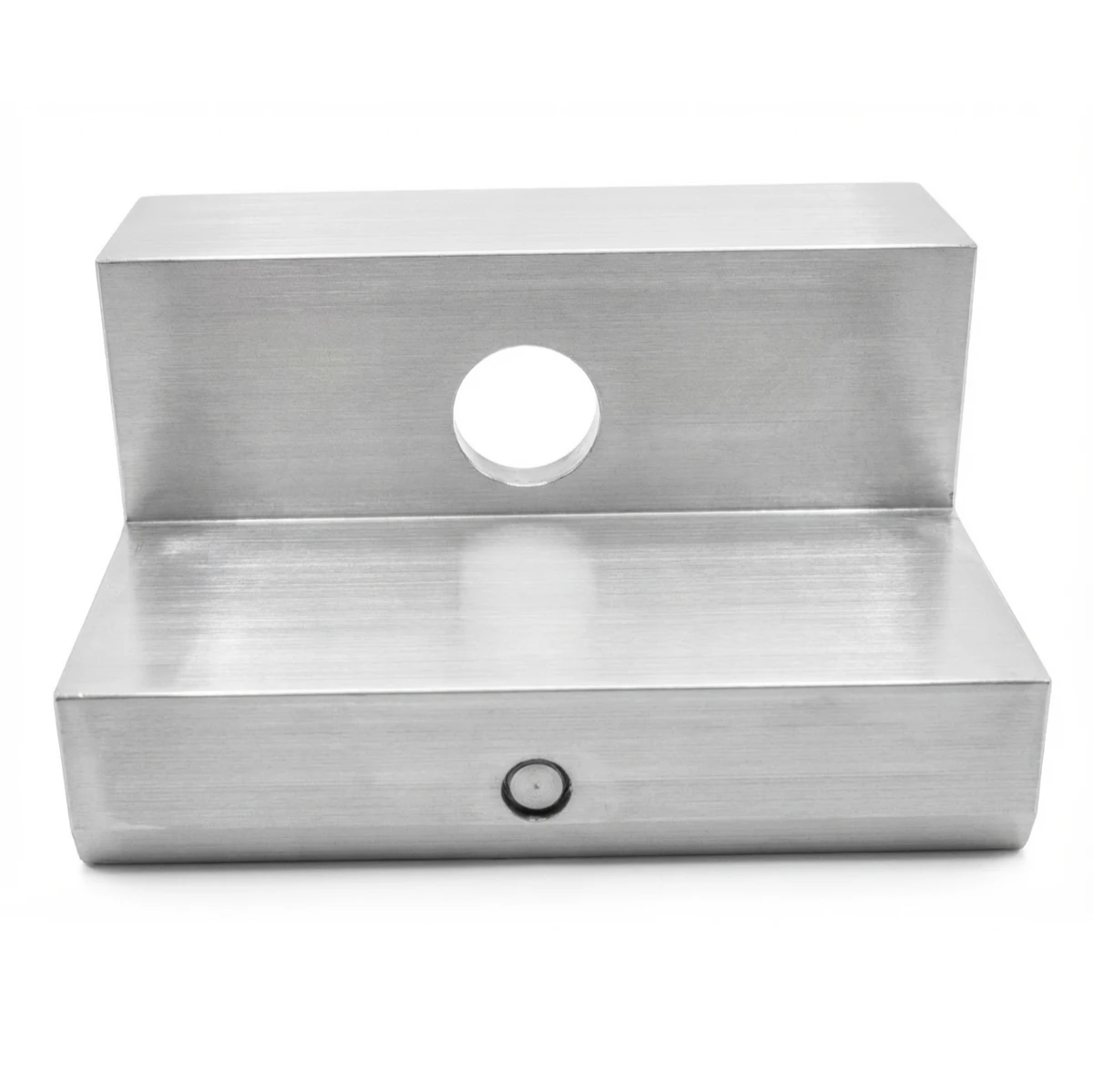

End clamp H35 with grounding pin is a professional mounting component designed for securing photovoltaic modules with a frame height of 35 mm. Manufactured from high-grade aluminium alloy 6063-T66, it ensures durable and secure fastening of solar panels to the mounting structure. The component surface remains raw, without additional protective coatings, enabling precise and reliable potential equalisation between installation elements.
The distinctive feature of this clamp is the integrated grounding pin, which enables quick and effective potential equalisation between the photovoltaic module and the mounting structure. During tightening, the pin penetrates the anodised layer of the frame, ensuring continuity of connection. This solution not only facilitates installation – eliminating the need for additional grounding washers – but also significantly reduces installation time and offers a high level of safety and efficiency for the entire system.
This innovative solution supports lightning and surge protection installations, particularly useful in photovoltaic systems. The end clamp with grounding pin is ideal for panels mounted individually or in edge positions within a row.
Technical Specifications

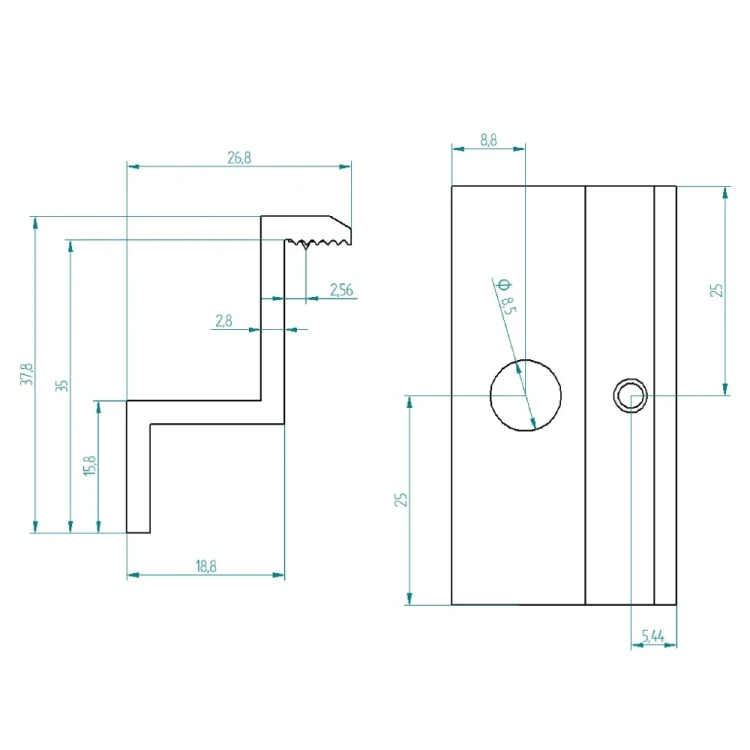

- Module frame height: 35 mm
- Total height: 37.8 mm
- Mounting hole diameter: 8.5 mm (M8)
- Material: aluminium 6063-T66
- Finish: raw
- Recommended tightening torque: value dependent on PV module manufacturer's documentation
- Bolts used: M8
Application The end clamp is an essential fastening component in solar module installations – used for securing edge panels in a row to the aluminium profile. The product is designed for mounting solar modules on flat and pitched roofs. Use the end clamp to secure panels at the beginning and end of each row. Between adjacent panels in a row, mid clamps should be used.
Compatibility
- Aluminium profiles adapted for hexagonal bolts
- Aluminium profiles for T-bolts
- Trapezoidal profiles for trapezoidal sheet metal roofs
Advantages
- High-quality material – manufactured from aluminium 6063-T66, characterised by high resistance to weather conditions
- Durability – high-quality workmanship guarantees durable fastening of photovoltaic panel structures
- Corrosion resistance – resistant to external factors and corrosion
- Mechanical strength – resistant to impacts and mechanical damage
- Integrated earthing – grounding pin eliminates the need for grounding washers, reducing installation time and increasing mounting convenience
- Potential equalisation – ensures electrical contact continuity between the module and mounting structure
- Ideal for individual panels – excellent solution for modules mounted individually or in edge positions within a row
Installation Guidelines
- Mount the clamp on the mounting rail using a sliding insert and M8 bolt
- Position the edge photovoltaic panel within the clamp, ensuring the grounding pin makes contact with the module frame
- Tighten the bolt according to the PV module manufacturer's recommendations
- Each row of panels requires a minimum of four end clamps – two at the beginning and two at the end of the panel row
- Do not use anodised or painted end clamps with a pin. In such cases, use an end clamp without a pin and a special contact plate mounted between the panel frame and aluminium profile
Package Contents End clamp H35 with grounding pin. Note: bolts, nuts and sliding inserts must be purchased separately.
