End Clamp H40 L50 - powder coated - black
![[RDY] End Clamp H40 L50 - powder coated - black PV-03-79 (1)](/environment/cache/images/productGfx_3886_500_500/RDY-End-Clamp-H40-L50---powder-coated---black-PV-03-79-1.webp?overlay=1)
![[RDY] End Clamp H40 L50 - powder coated - black PV-03-79 (1)](/userdata/public/gfx/3886/RDY-End-Clamp-H40-L50---powder-coated---black-PV-03-79-1.png)
![[RDY] End Clamp H40 L50 - powder coated - black PV-03-79 (2)](/userdata/public/gfx/3887/RDY-End-Clamp-H40-L50---powder-coated---black-PV-03-79-2.png)
![[RDY] End Clamp H40 L50 - powder coated - black PV-03-79 (3)](/userdata/public/gfx/3888/RDY-End-Clamp-H40-L50---powder-coated---black-PV-03-79-3.png)
Description

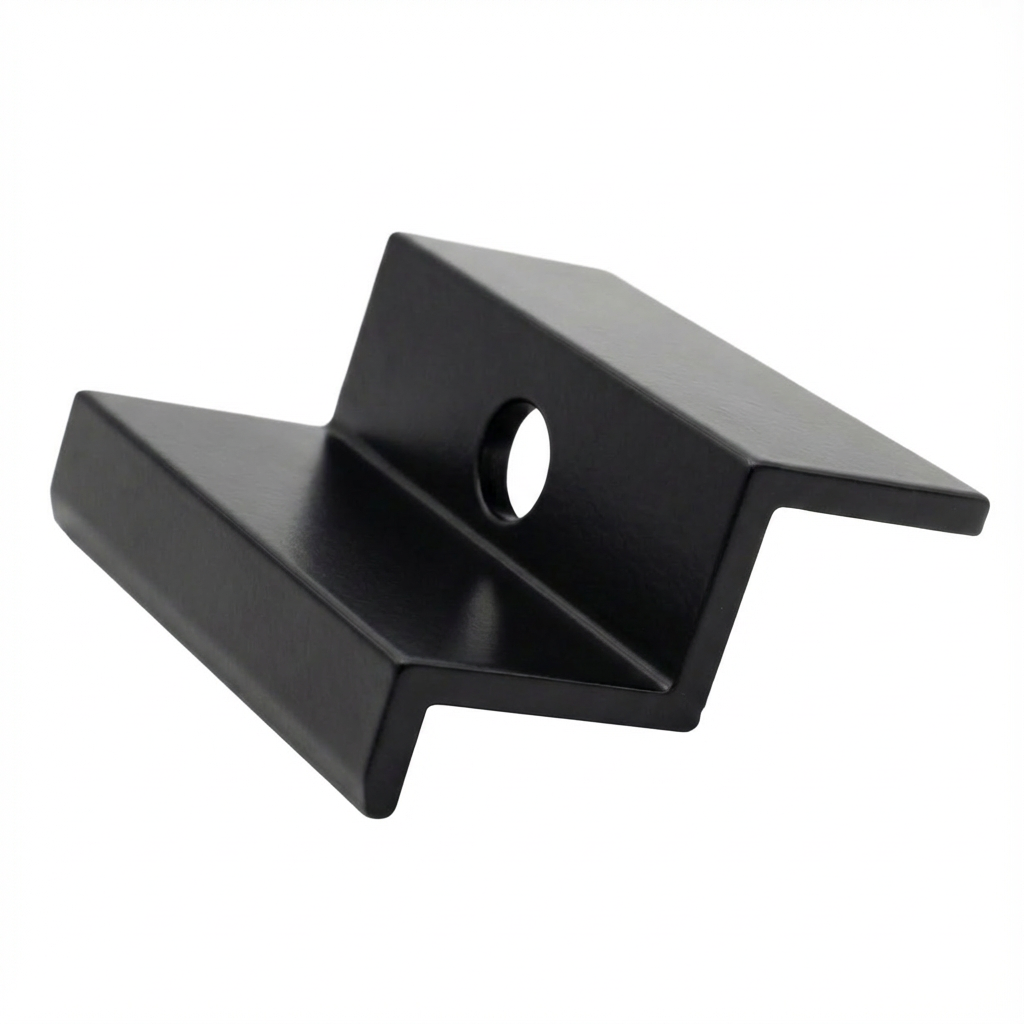

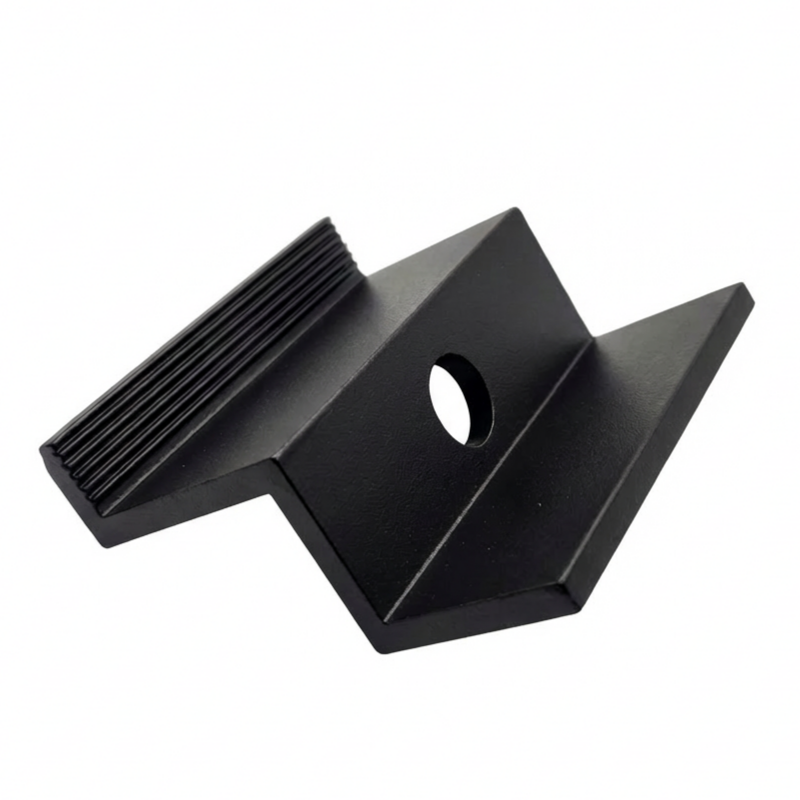

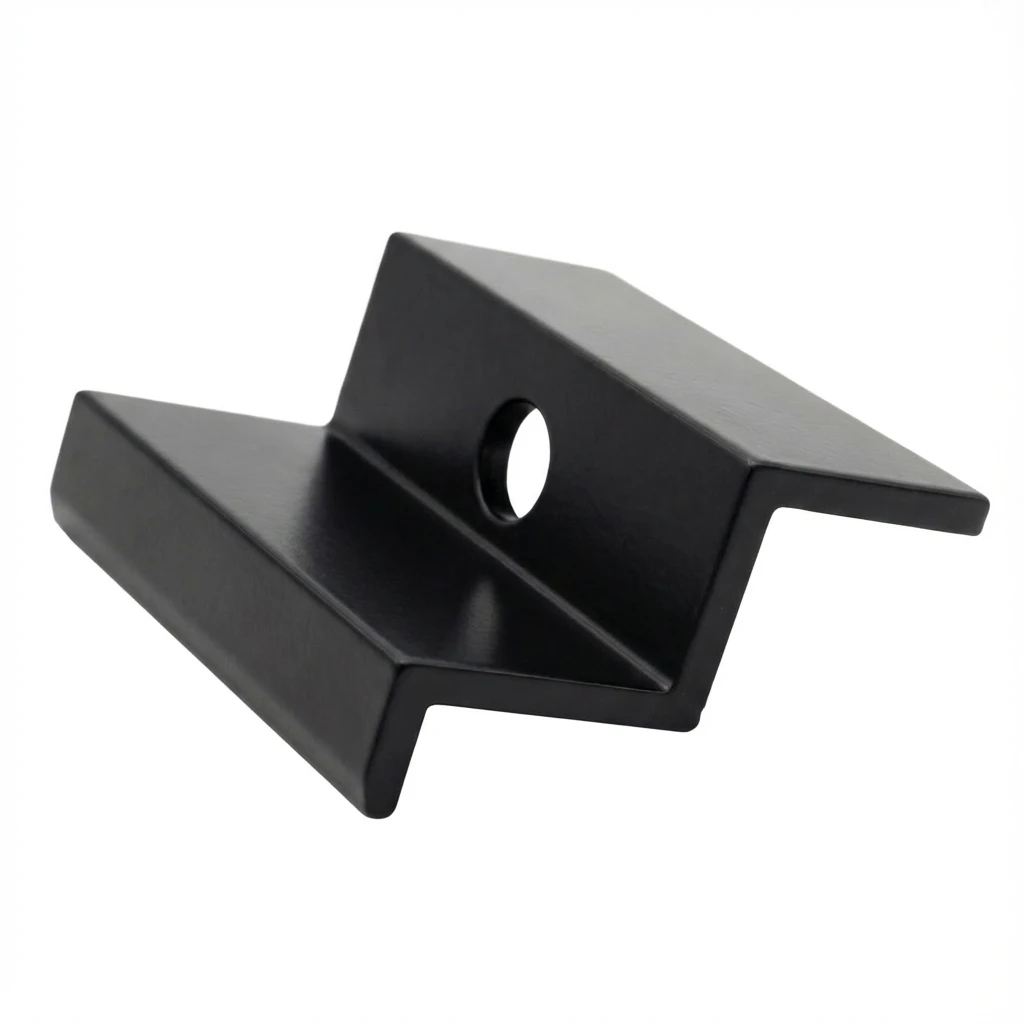

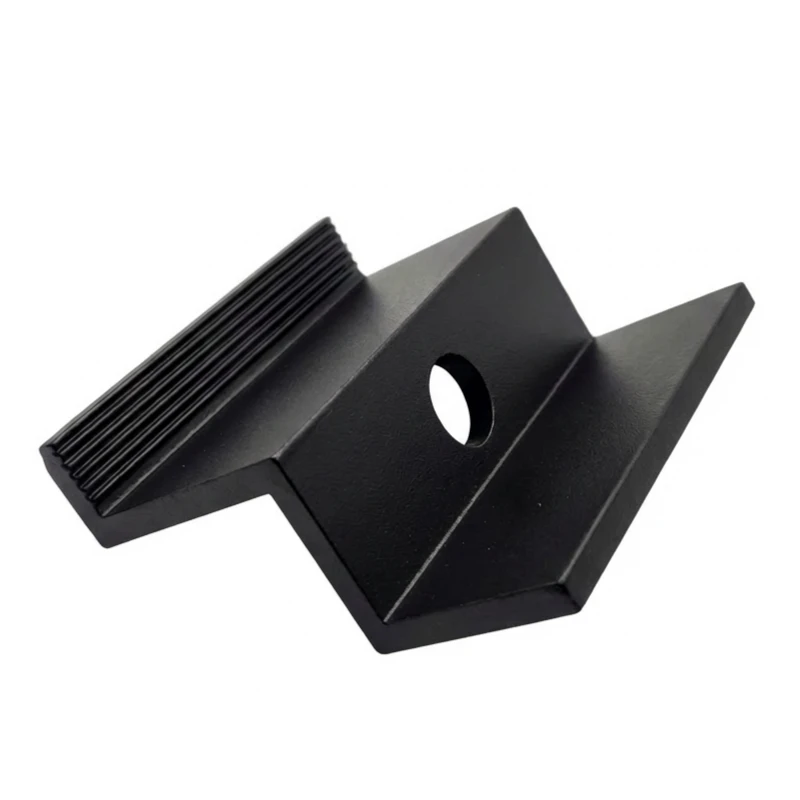

End clamp H40 L50 - black with pin
End clamp H40 is a professional mounting component designed for securing photovoltaic modules with a frame height of 40 mm. Manufactured from high-grade aluminium alloy 6063-T66, it provides durable and secure fastening of solar panels to the mounting structure. The component features a black powder-coated finish, which additionally protects it against weather conditions and gives the installation an aesthetic appearance.
The end clamp is ideal for panels mounted individually or in edge positions within a row.

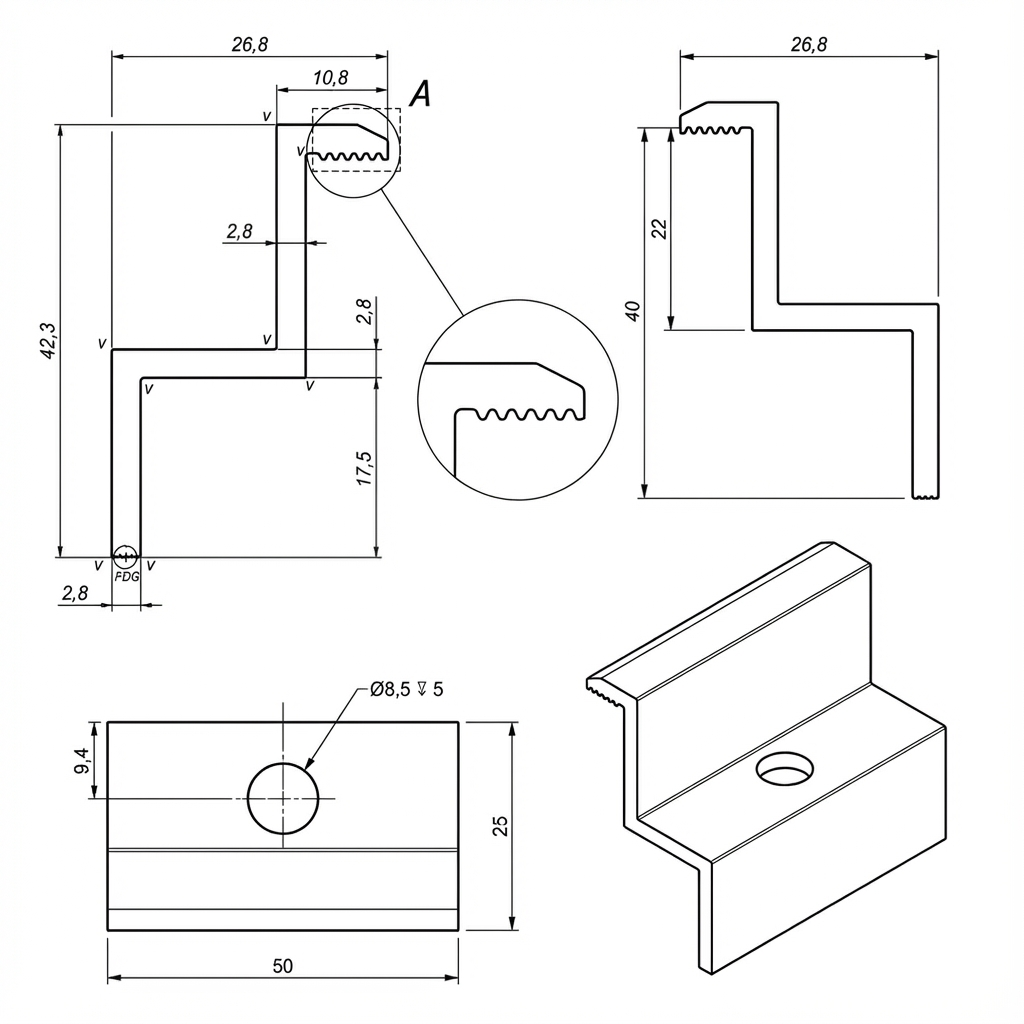

Technical specifications
- Module frame height: 40 mm
- Total height: 42.8 mm
- Mounting hole diameter: 8.5 (M8)
- Material: aluminium EN AW 6063-T66
- Finish: black powder coating
- Recommended tightening torque: value dependent on PV module manufacturer's documentation
- Bolts used: M8
Application
The end clamp is an essential fastening component in solar module installations – it is used to secure edge panels in a row to the aluminium profile. The product is designed for mounting solar modules on flat and pitched roofs. Use the end clamp to secure panels at the beginning and end of each row. Mid clamps should be used between adjacent panels within the row.
Compatibility
- Aluminium profiles adapted for hexagonal bolts
- Aluminium profiles for T-bolts
- Trapezoidal profiles for trapezoidal sheet metal roofs
Advantages
- High-quality material – manufactured from aluminium EN AW 6063-T66, characterised by high resistance to weather conditions
- Durability – high manufacturing quality guarantees durable fastening of photovoltaic panel structures
- Corrosion resistance – resistant to external factors and corrosion
- Mechanical strength – resistant to impacts and mechanical damage
- Aesthetics – black powder-coated finish ensures an attractive appearance of the PV installation
- Ideal for individual panels – excellent solution for modules mounted individually or in edge positions within a row
Installation guidelines
- Install the clamp using a sliding nut and M8 bolt
- Tighten the bolt with force according to the PV module manufacturer's recommendations
- Each row of panels requires a minimum of four end clamps – two at the beginning and two at the end of the panel row
Package contents End clamp H40. Note: bolts, nuts and sliding nuts must be purchased separately.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Panel thickness [mm] | 40 |
| Colour | Black |
| Adjustment | - |
| Additional equipment | None |
| Grounding pin | None |
| Clamp Type | End Clamp |
| Panel thickness [mm] | 40 |
| Colour | Black |
| Grounding pin | No |
| Additional accessories | None |
