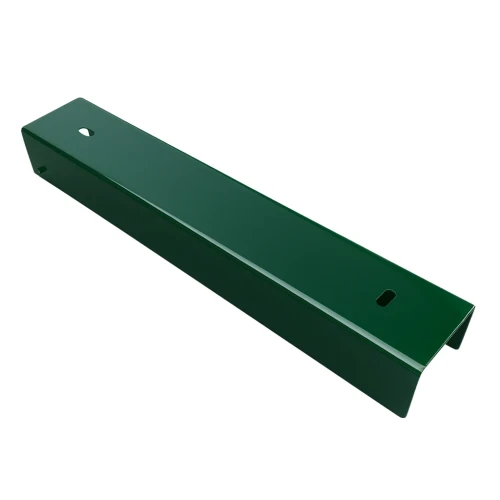

C-channel connector bracket for kerb 300x50 green

C-channel connector for fence kerb is a durable mounting element used for permanent connection of concrete kerb panels to fence posts. Designed specifically for kerbs with dimensions 300 × 50 mm, it provides precise fit and stable positioning of the panel regardless of terrain and weather conditions.

The product is manufactured from galvanised steel covered with powder coating in green RAL 6005. Double anti-corrosion protection — zinc coating plus powder coating — guarantees long-term resistance to moisture, precipitation and corrosion, eliminating the need for additional maintenance. The aesthetic, uniform finish harmoniously complements modern panel fencing in the popular green colour scheme.

Construction and mounting

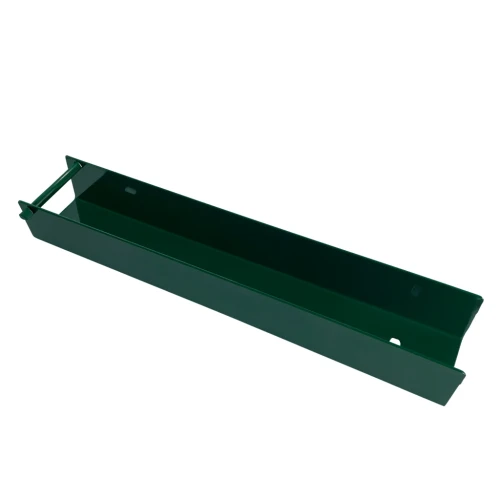

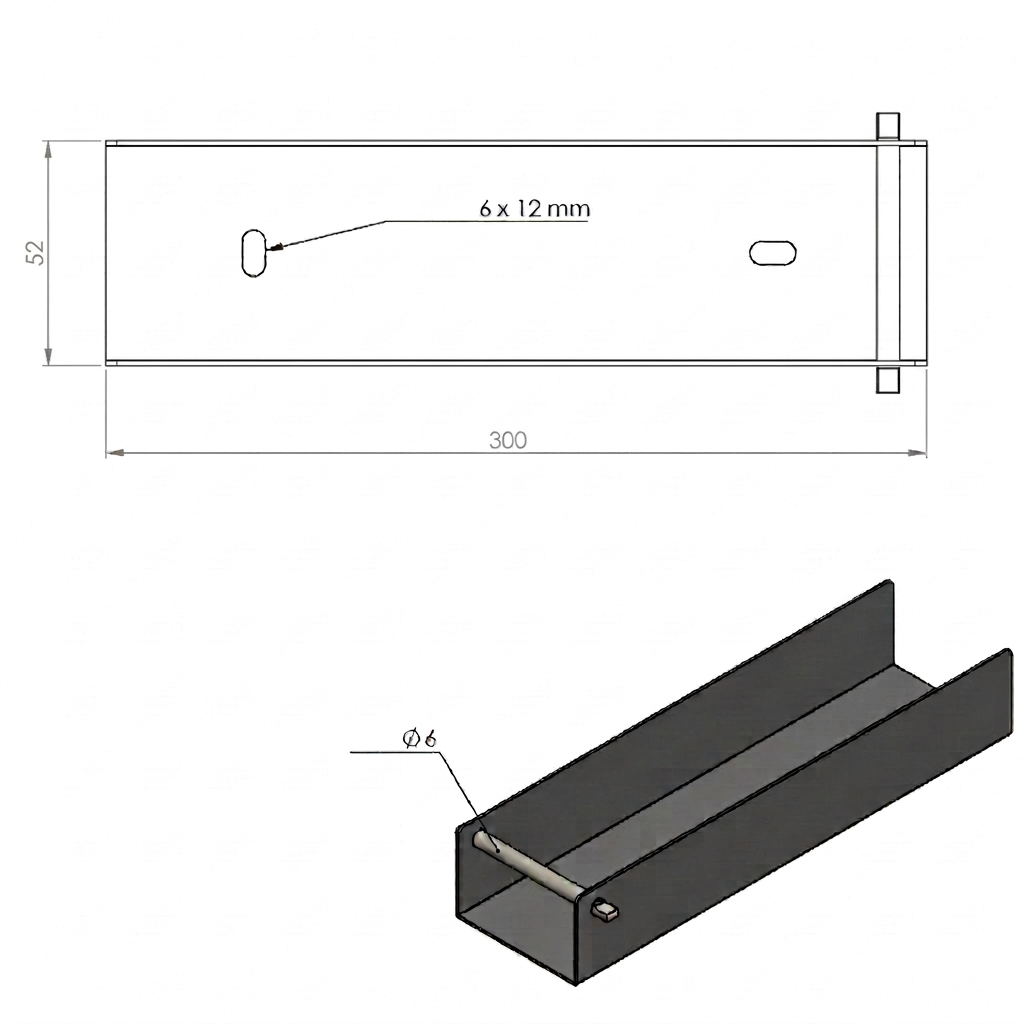

The C-channel has a C-shaped profile into which the concrete kerb panel is fitted. The external width of the profile is 52 mm, allowing for free and stable placement of a 50 mm thick panel with a slight mounting clearance facilitating installation. The built-in Ø 6 mm crossbar acts as a stopper — preventing the kerb from sliding out of the bracket, increasing the durability and safety of the entire fence structure.

Two mounting holes in the form of 6 × 12 mm slots enable quick attachment of the C-channel to the fence post. The elongated hole shape allows for position adjustment during installation, significantly speeding up the installation team's work and facilitating kerb line alignment on uneven terrain. The flat base of the C-channel protects the concrete panel from mechanical damage during installation.

Technical parameters

Application

The C-channel is a universal element used in the installation of residential, industrial and plot fencing. It performs perfectly wherever a concrete kerb with 50 mm thickness requires durable and aesthetic attachment to a fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and requires no specialist tools — standard screws and a spanner are sufficient.

Available colour variants

The C-channel is available in five colour versions (powder coating): anthracite, black, green, brown and zinc (without powder coating). The wide colour palette allows matching the connector to the colour of panel fencing and posts, maintaining consistent aesthetics of the entire fence.
