Aluminum profile 625cm 40x40 for hexagonal screw
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
4.92 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

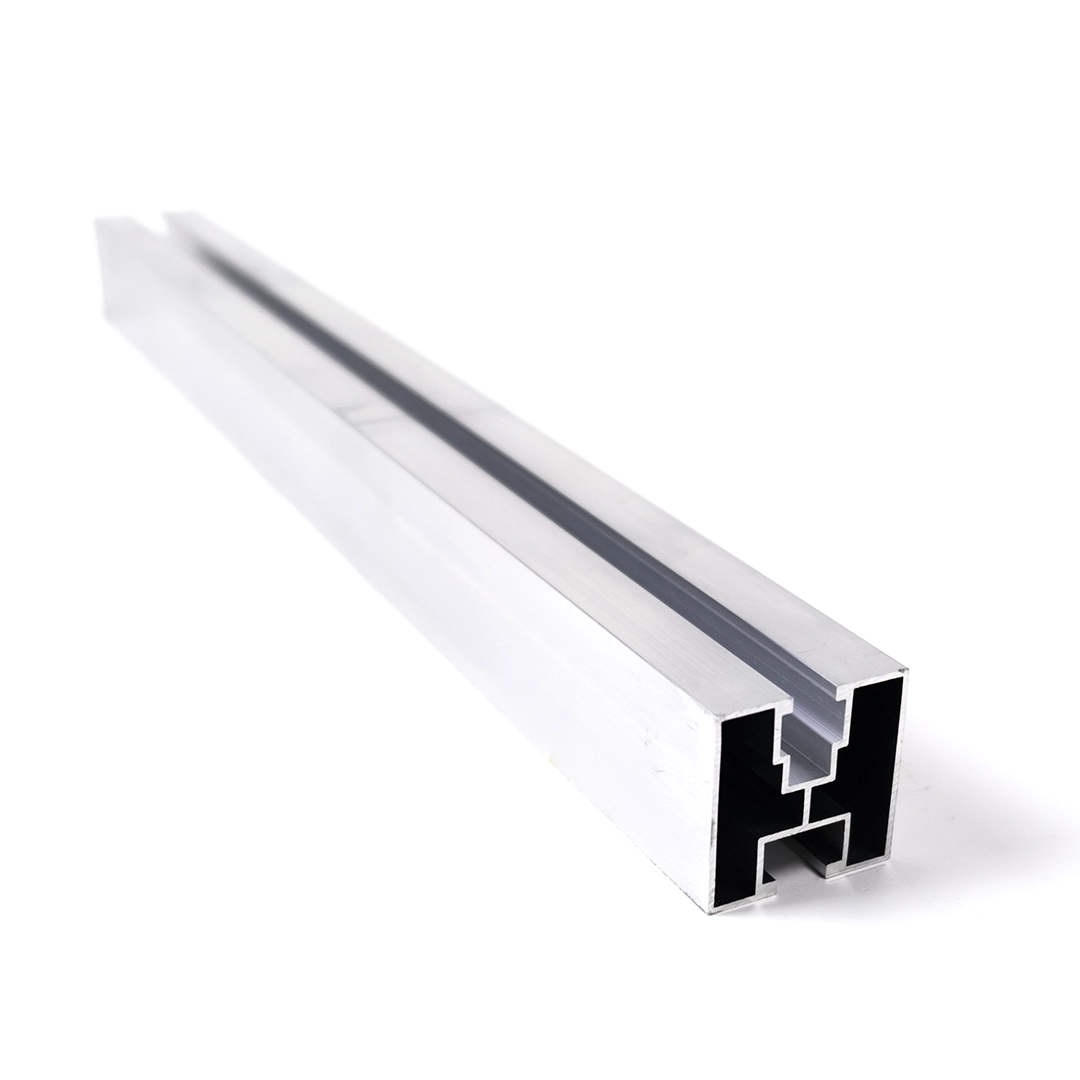

Aluminum profile 625cm 40x40 for hexagonal screw
Mounting profile in Aluminium 6060 625cm for DIN 933 M10 hexagon screw, for photovoltaic modules.

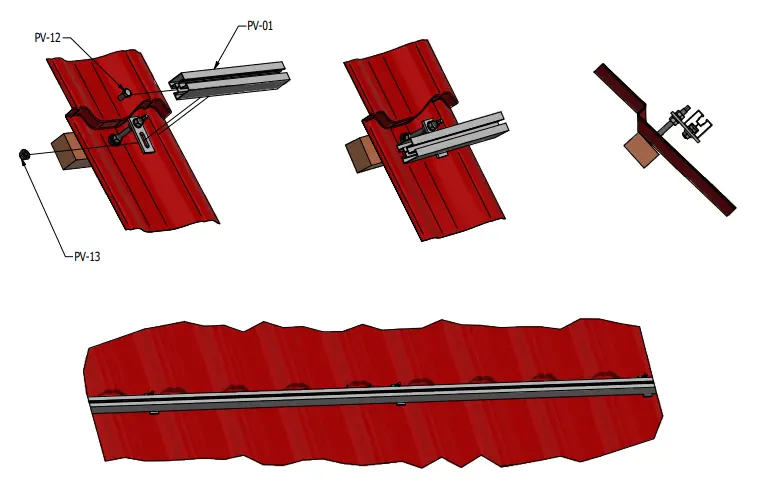

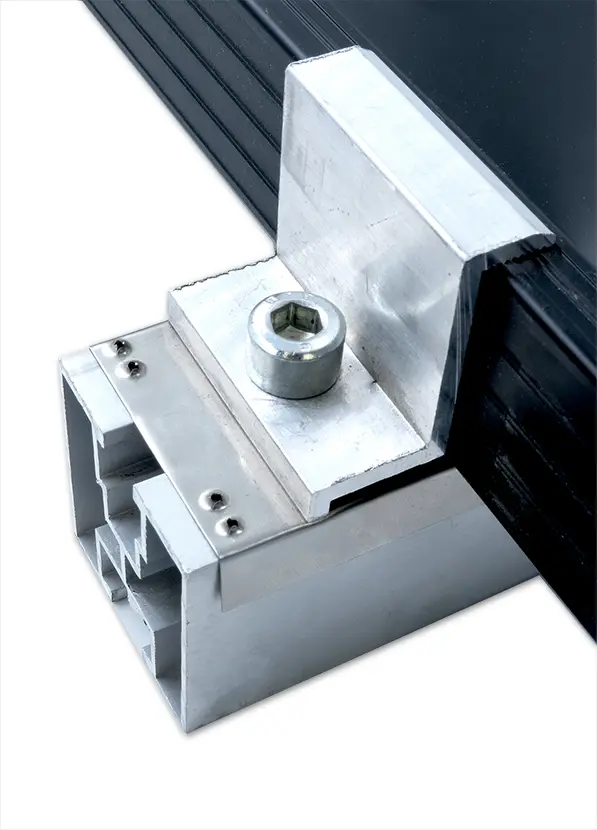

The mounting profile is suitable for fixing photovoltaic panels with centre and end clamps. The clamps are attached to the upper rail channel of the profile. The lower rail channel allows the profile to be mounted on adapters, roof hooks or triangles.
- Mounting is carried out using M10 hexagon bolts and M10 flange nuts.
- The 4x4cm long mounting profiles for hexagon screws are made of high quality 6060 aluminium.
- The length of the profiles can be extended using the profile connectors available separately.
- Also available black anodised for high resistance and protection against environmental influences.
- Only available with delivery option "FTL (Full Truck Load)".
Properties of Aluminium 6060
- Resistant to corrosion and external influences.
- Good mechanical strength, impact resistance.
- Suitable for anodising providing additional protection and a decorative finish.
Available sizes
Length [mm]
Width [mm]
Thickness [mm]
10
4
4
195
4
4
208
4
4
221
4
4
235
4
4
240
4
4
416
4
4
443
4
4
480
4
4
625
4
4
665
4
4
Available Materials
Material
ALU
Anodised ALU
| Our Models | 10cm | 195cm | 208-240cm | 416-665cm | |||
|---|---|---|---|---|---|---|---|
| Specification | |||||||
| Material | Aluminium 6060 | ||||||
| Length [cm] | 10 | 195 | 208-240 | 416-665 | |||
| Height [cm] | 4 | ||||||
| Width [cm] | 4 | ||||||
| Delivery | Sample (economic delivery) | Courier (economy delivery) | Courier (long-distance shipment) | FTL (Full Truck Load) | |||
| Approximate weight per metre | 0.82/kg | ||||||
| Installation top duct | Square nut M8 | ||||||
| Assembly bottom channel | Hexagon head screw M10 DIN 933 | ||||||
| Anodised version | Yes | Yes | Yes | Yes | |||
Technical data
| Coating type | Raw |
| Mounting type | Hex bolt |

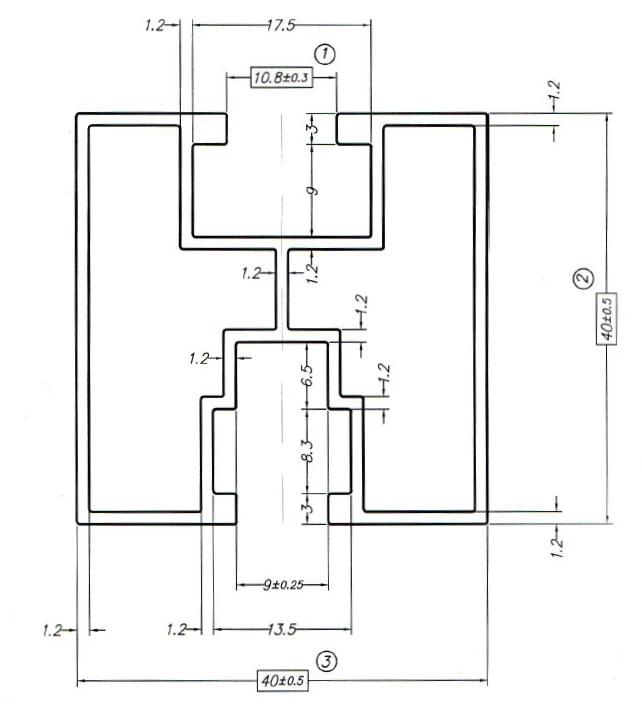

| Cross-section | 40x40 |
| Length [cm] | 625 |
| Cable channel | None |
| Length [mm] | 6250 |
| Profile [mm] | 40×40 |
| Slot Type | For hex bolt |
| Finish | Natural |
