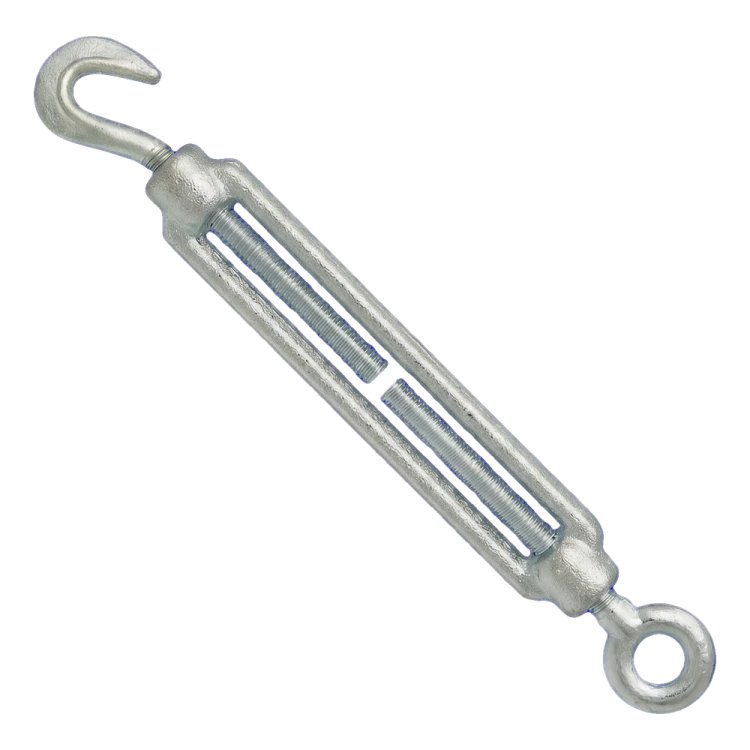

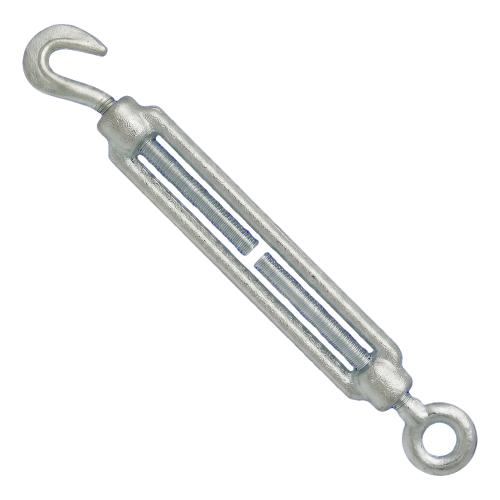

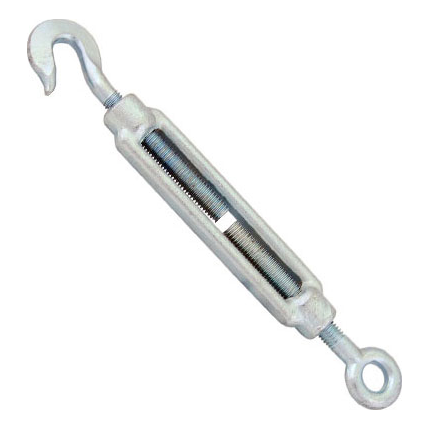

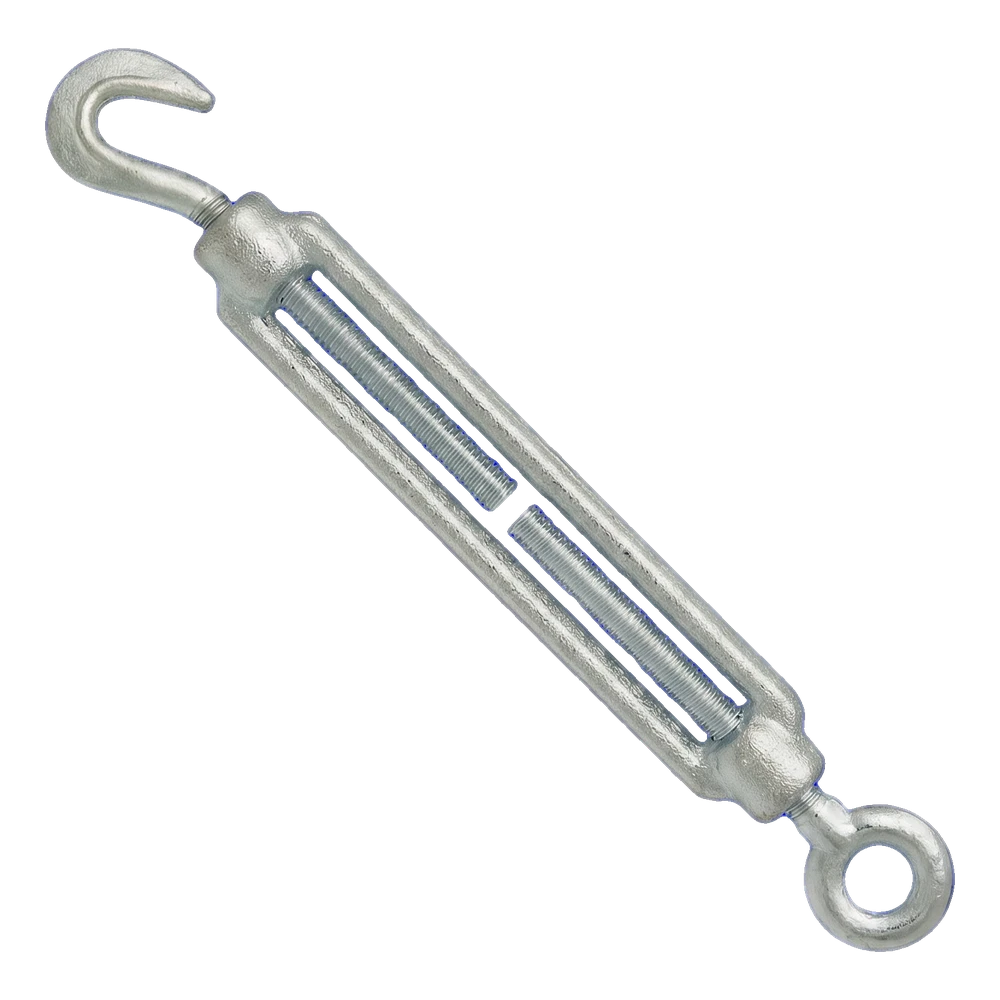

Zinc-plated turnbuckle M5×70 mm – hook–eye, DIN 1480
Leave feedback on the product
DIN 1480 hook–eye turnbuckle made of low-alloy structural steel, zinc-plated. M5 thread, length 70 mm, L1 32 mm, outer diameter 8 mm. Minimum breaking force 2.18 kN, weight 0.05 kg. For tensioning wire ropes, chains and tie rods.
Product code: 002-442
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Turnbuckle
- Thread type M5
Description
Zinc-plated turnbuckle M5×70 mm – hook–eye, DIN 1480
KHO M5×70 hook–eye turnbuckle manufactured in accordance with DIN 1480 is a forged tensioning screw designed for adjusting the tension of steel wire ropes, chains and tie rods. The hook–eye end fitting offers versatile connections — the hook allows quick attaching and detaching, while the eye provides a stable fixed attachment. The body of the turnbuckle is forged from low-alloy structural steel and finished with a zinc coating, which ensures corrosion resistance in outdoor conditions. The compact M5 size makes the turnbuckle ideal for light installation applications — from tensioning antenna and mast guy lines to fitting covers, nets and light rope structures.
Advantages of the DIN 1480 hook–eye turnbuckle
- Hook–eye end fitting — quick attachment on one side and a durable fixed connection on the other
- Forged construction provides high strength while maintaining compact dimensions
- Zinc coating protects against corrosion in outdoor weather conditions

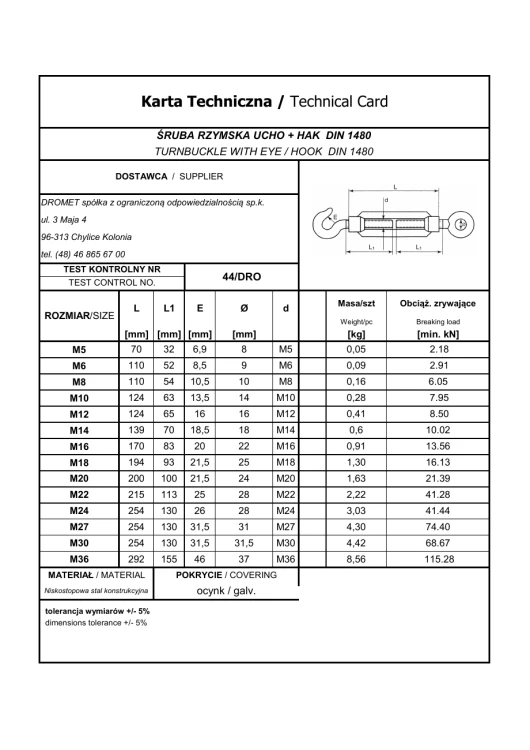

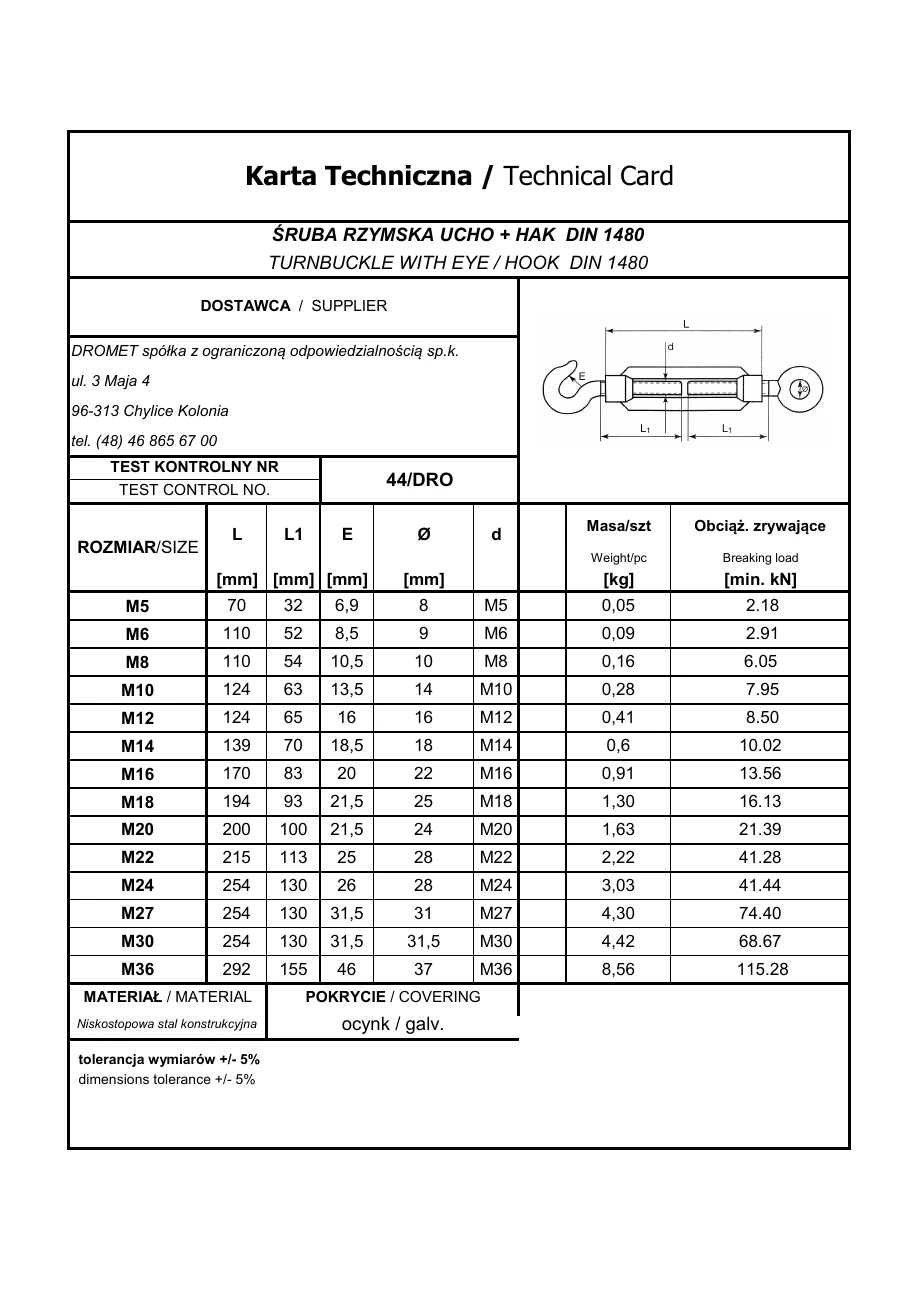

- Strength confirmed by the manufacturer's data sheet with inspection test results
- Dimensions compliant with DIN 1480 — full interchangeability with other components of the KHO series
