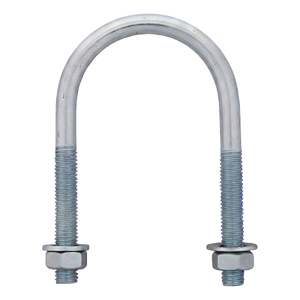

Zinc-plated U-bolt (pipe clamp) M6 × 28 mm, for 3/4" pipe
Leave feedback on the product
Zinc-plated U-bolt (pipe clamp), CB series, M6 x 28 mm. For 3/4" pipes. U-shaped clamp with two threaded legs and nuts. The zinc coating protects against corrosion. Weight 0.027 kg.
Product code: 002-220
Product features
[PIM] cybanty-i-obejmy-do-rur #1017
- U-bolt type round U-bolt (type B)
- Thread type M6
- Pipe size [inch] 3/4"
Description
Zinc-plated U-bolt (pipe clamp) M6 × 28 mm, for 3/4" pipe
U-bolt (pipe clamp), CB series in size M6×28 mm, designed for fastening pipes with a 3/4" connection size. The component has a zinc-plated coating, which provides corrosion protection in typical installation conditions.
The U-shaped clamp is a basic fastening element used when routing pipe installations. Its U shape holds the pipe securely and fixes it firmly to the support structure by means of two threaded legs with nuts.
Markings on the dimensional drawing: A — leg spacing (centre to centre), B — outer spacing, H — overall height, L1 — thread length, M — thread size, ØD — rod diameter, CHAMFER — chamfered thread end that makes it easier to start the nut.
