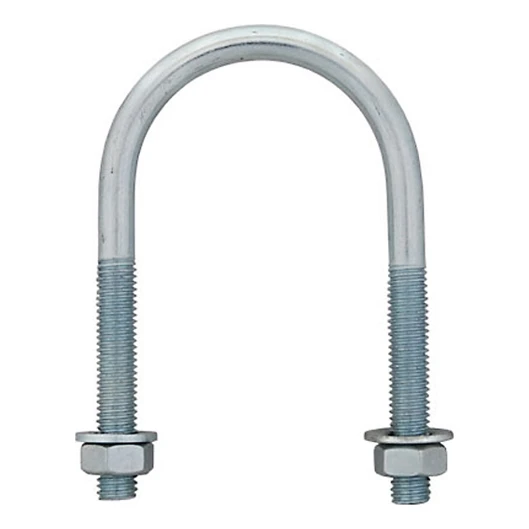

Zinc-plated U-bolt (pipe clamp) M10 × 43 mm, for 1 1/4" pipe
Leave feedback on the product
Zinc-plated U-bolt (pipe clamp), CB series, M10 × 43 mm, for 1 1/4" pipe. U-shaped with threaded ends, rod
Product code: 002-233
Product features
[PIM] cybanty-i-obejmy-do-rur #1017
- U-bolt type round U-bolt (type B)
- Thread type M10
- Pipe size [inch] 1 1/4"
Description
Zinc-plated U-bolt (pipe clamp) M10 × 43 mm, for 1 1/4" pipe
Zinc-plated U-bolt M10×43 mm (pipe clamp) from the CB series, designed for securing pipes with a connection size of 1 1/4". This classic U-shaped U-bolt with two threaded ends allows a pipe to be securely fixed to a support structure using nuts and washers.
Application
The CB U-bolt is a versatile fastening component used in pipe installations — water, gas, heating and industrial. It is suitable wherever a pipe must be securely fixed to a beam, mounting rail or other load-bearing structure. The zinc-plated coating provides corrosion protection, allowing use both inside buildings and in conditions exposed to moisture.
Construction

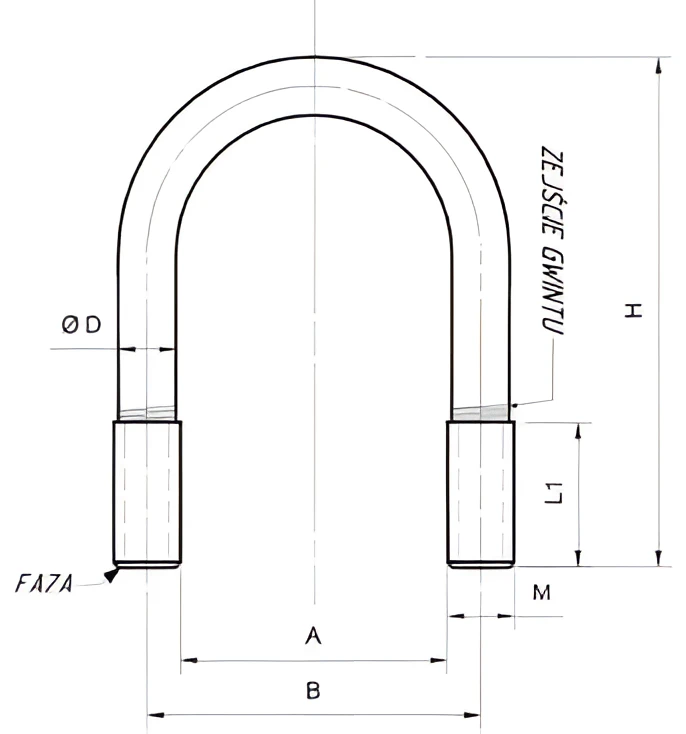

The U-bolt is made from a steel rod bent into a U shape, with chamfered ends that make it easier to fit the nuts. The technical drawing shows the key dimensions: ØD — rod diameter, A — leg spacing (distance between the thread axes), B — outer width, H — overall height, L1 — thread length and M — thread designation. The basic profile of the CB series provides adequate rigidity while remaining easy to install.
